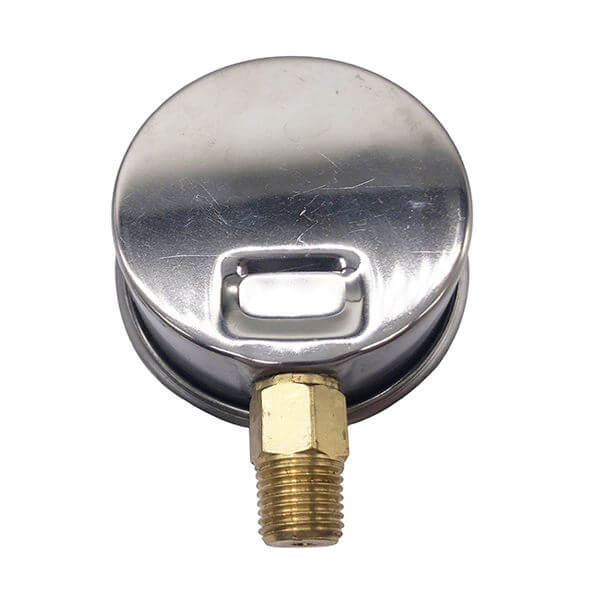

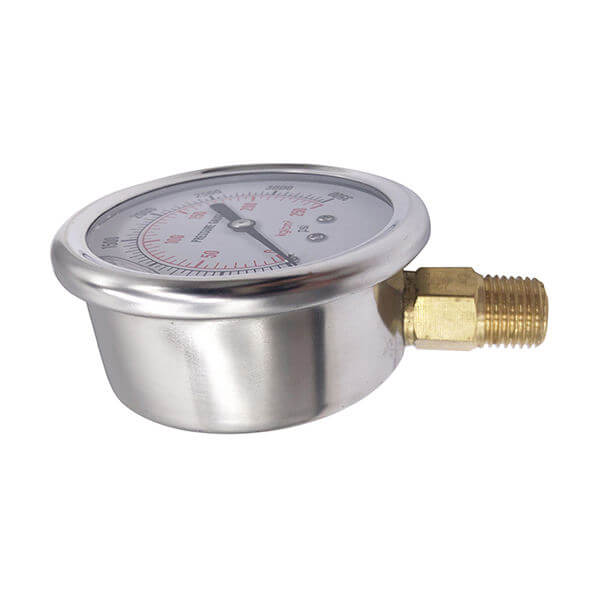

Air Oil Pressure Gauge
Pressure Gauge is designed to measure the pressure of fluid media in a compressed system, which is a critical part of safety protection and working. A simple device to indicate the current working pressure of the system, help to maintain the best performance and discover the problem in advance. Pressure gauges are usually round in shape, bottom connection and back connection, with units by Bar, PSI, MPa, customized shapes and units are available. The shell has metal, brass and stainless steel material, oil pressure gauge is for options to provide better shock resistance performance. A measuring device is feasible for air, liquid, oil, etc. Also called a manometer device in some places.
Body material: Stainless steel, brass, Steel
Pressure unit: PSI, Bar, MPa
Windows: Glass
Fluid Media: Air, liquid, oil.
Vibration and shock resistant
Especially sturdy design
| Case | Stainless steel / Carbon steel |
| Movement | stainless steel, brass |
| Dial diameter | 60mm, 100mm, 150mm, customized |
| Dial and pointer | aluminum, brass |
| Dial display | single and dual scale (psi, kpa,mpa, bar, kg/cm2 available) |
| Media | Air, Liquid, Oil |
| Connection size | 1/8″ 1/4″ 3/8″ 1/2″ 3/4″ 1″ customized. |
| Connector | stainless steel, brass |
| Connection thread | NPT, BSP (G, PF), BSPT (ZG, PT) |
| Connection mounting | bottom, top, left, right, and centered back |
| Socket | stainless steel, brass |
| Connection | bottom connection back connection |
| Window | polycarbonate, glass, tempered glass, safety glass |
| Pressure range | – 0.1 – 0 -60Mpa |
| Accuracy range | 1%, 1.6%, 2.5% full scale |
| Working temperature | -20℃- 70℃ |
| Filled medium | glycerine, silicone |
| Filling cap | neoprene or silica gel |
