Pneumatic Actuator

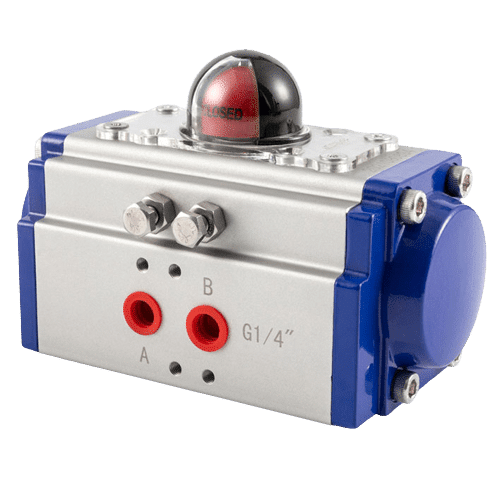

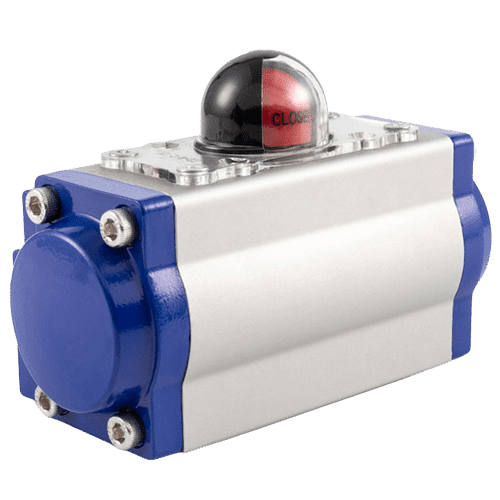

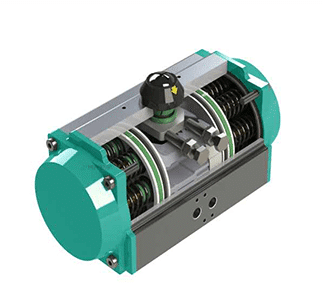

AT Series pneumatic actuator, compact design, long working life service, superior quality, high precision limit switch options.
Pneumatic actuators are used for rotary opening valves, such as ball valves, butterfly valves, plug valves, etc.
ISO 5211 Standard Compatibility.
Easy mounting, easy maintenance.
Equipped with visual position indicator.
| Move Degree | 90 degree adjustable | |
| Lubrication | 100% lubricated | |
| Working Life | 1000000 cycles | |
| Body Material | Aluminum Alloy | |
| Indicator | Open/Close Status | |
| Working Pressure | 10 bar | |

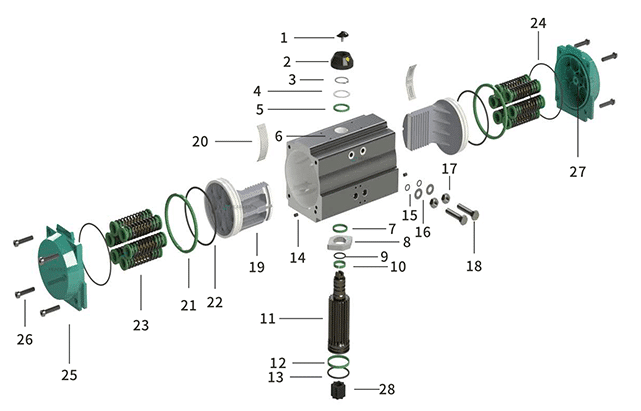

| Descriptions | Materials | QTY | Descriptions | Material | QTY | ||
| 1 | Indicator Screws | ABS | 1 | 15 | Screws Seal | NBR VITON EPDM | 2 |
| 2 | Visual Indicator | ABS | 1 | 16 | Screws | SS304 | 2 |
| 3 | Spring Clips | SS304 | 1 | 17 | Screws | SS304 | 2 |
| 4 | Washer | SS304 | 1 | 18 | Screws | SS304 | 2 |
| 5 | O Ring | Plastic | 1 | 19 | Piston | Aluminum Alloy | 2 |
| 6 | Main Body | Aluminum Alloy | 1 | 20 | Piston Bearing | Plastic | 2 |
| 7 | Washer | Plastic | 1 | 21 | Bearing Piston | Plastic | 2 |
| 8 | Stopper | Steel | 1 | 22 | O Ring Piston | NBR VITON EPDM | 2 |
| 9 | O Ring | NBR VITON EPDM | 1 | 23 | Springs | Steel | 0~12 |
| 10 | Bearing Top | Plastic | 1 | 24 | End Seal | NBR VITON EPDM | 2 |
| 11 | Pinion | Steel / SS304 | 1 | 25 | End Cap | Aluminum | 2 |
| 12 | Bearing | Plastic | 1 | 26 | Cap Screws | SS304 | 8 |
| 13 | Bearing Bottom | NBR VITON EPDM | 1 | 27 | Stop Screws | SS304 | 2 |
| 14 | Sealing | NBR VITON EPDM | 2 | 28 | Adapter | Carbon Steel | 1 |
