Bermad Alternative IR 110 Series Irrigation Solenoid Valve

Bermad Alternative 110 series Pilot operated Irrigation Solenoid Valves are installed in the water flow control pipeline, with AC or DC latching solenoid coil, normally closed, normally open optional. widely used in gardens, fields, and landscape irrigation systems, to open and close the water by electric control. By the signal feedback, the solenoid valve can be controlled by PLC, a remote control APP. Reinforced nylon plastic valve body, durable, stainless steel screw parts, IP68 degree. Competitive price.

Features:

1. Pilot-operated diaphragm structure, nylon plastic valve body.
2. Double filtration to protect the solenoid armature.
3. IP68 Degree, waterproof solenoid coil.
4. Slowly close to prevent the water hammer.

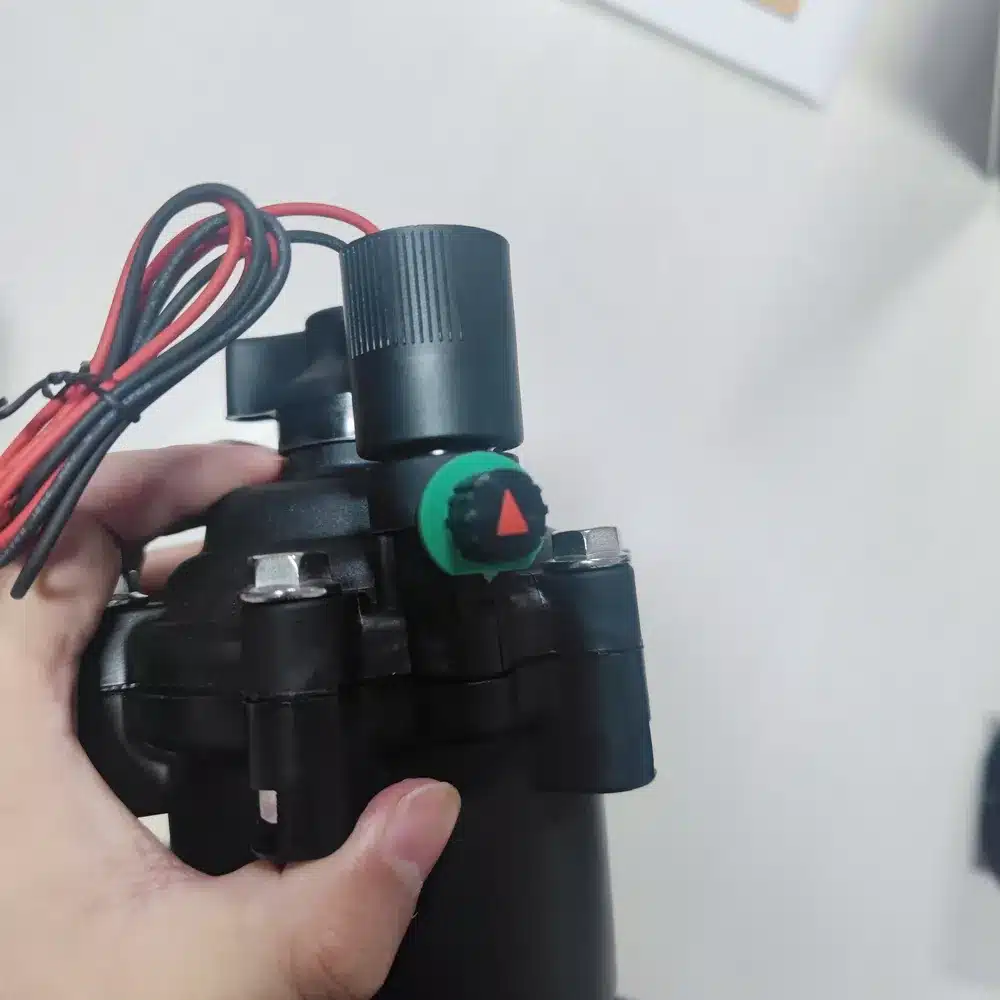

5. Manually Open/Close function.

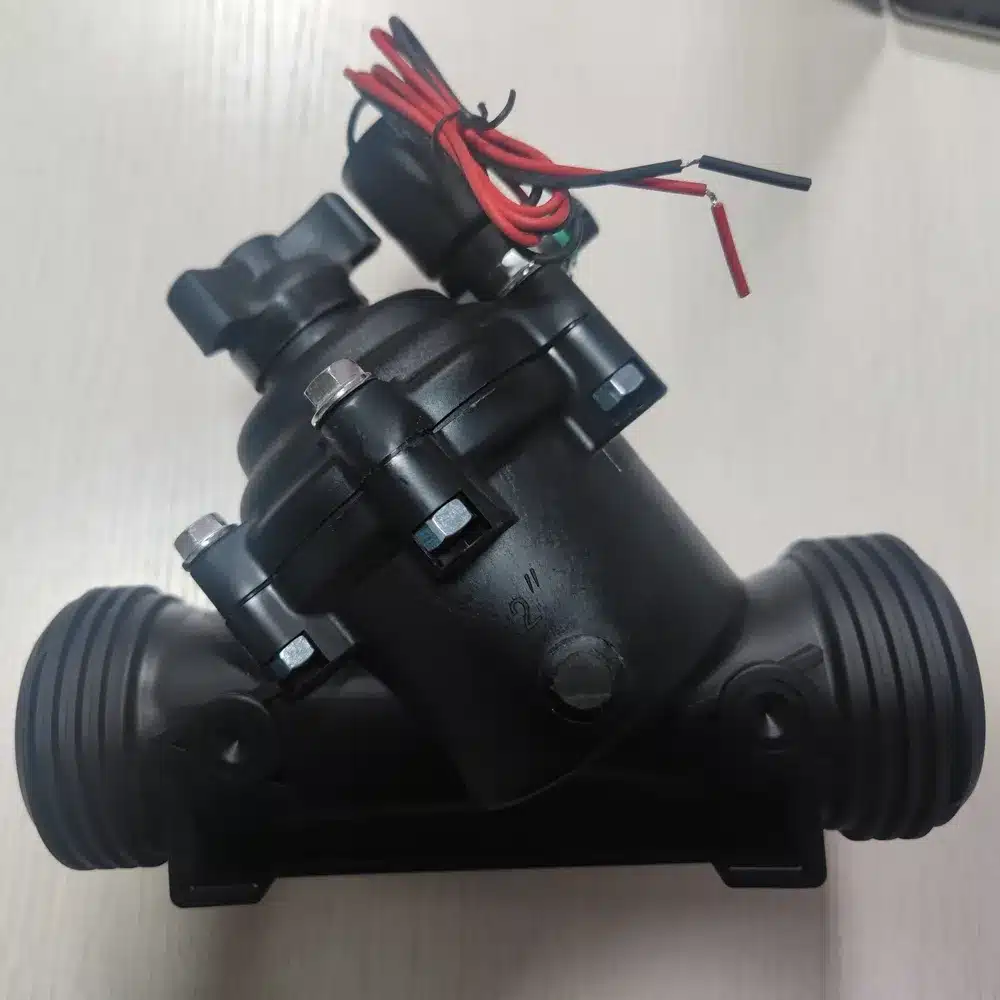

6. Water flow rate adjustable.

Body material: Reinforced Nylon Plastic
Pressure: 0-10 bar, 150 PSI
Fluid Media: Water

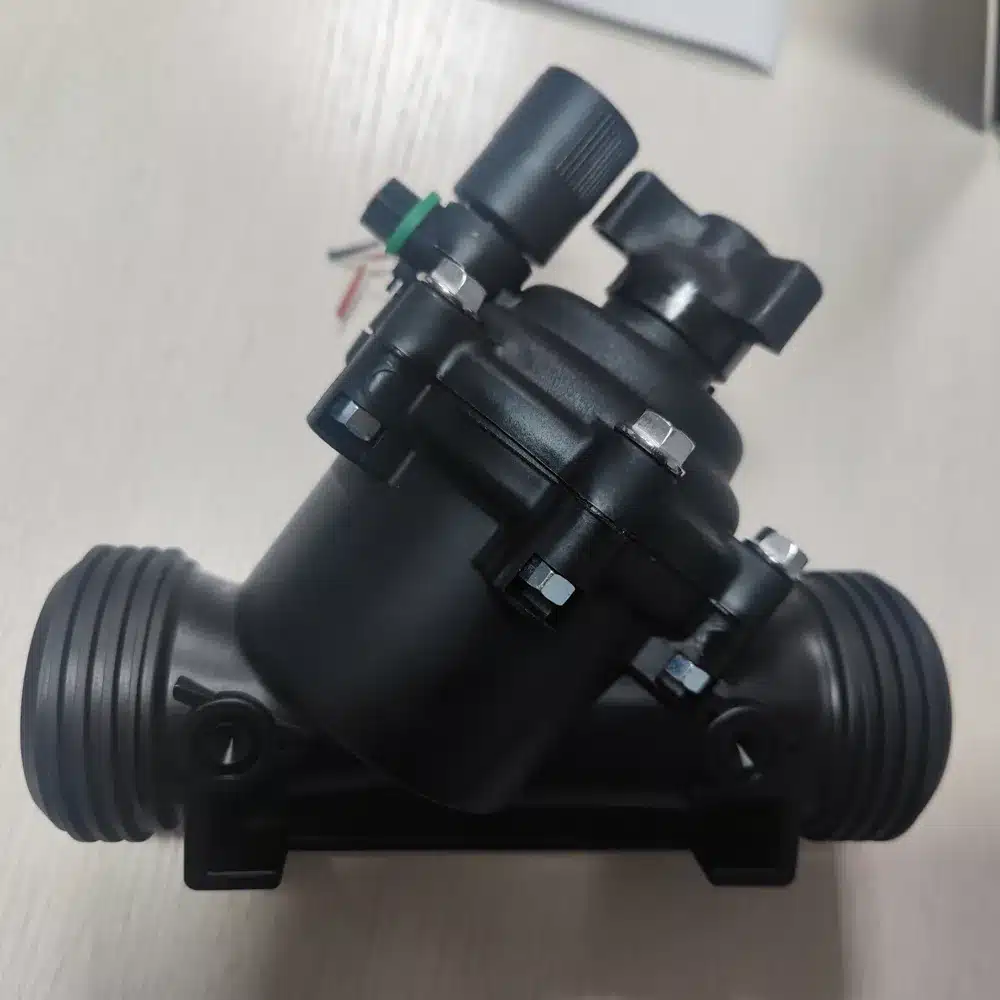

Series: Bermad 110 series, IR-110-X Solenoid Irrigation Valve
Sizes: 2″, 2-1/2″, 3″, 4″, 5″, 6″ inches irrigation solenoid valve

Characteristic	1. Pilot-operated diaphragm structure, reinforced nylon. Both are normally closed and the latching valve on optional.
	2. Double filtration anti-blocking solenoid valve
	3. Full closed coil waterproof
	4. Close slowly, anti-water hammer
Medium	water
Temperature	NBR seal: -10°C to 80 °C
Pressure	0.1-1.0Mpa
Port size	3/4′-3′
Port thread	G
Orifice	20,25,40,50,63, 80mm
Voltage	DC-12V,24V
Voltage	AC-24V,120V,240V/60HZ,110V,220V/50HZ
Tolerance	±10%
Coils	SE02B,8W,IP68,100% ED
Coils	L32B, DC6-20V, pulse length 20-500 ms
Application	Widely used in lawn irrigation systems, like large areas of lawn, gym, agriculture, industrial dusting, and water treatment.
Material	Body-reinforced nylon
	Seal- NBR
	Amature tube-stainless steel 304
	Plunger-stainless steel430F
	Stop-stainless steel 430F
	Springs-SS304
	Shading rings- stainless steel 304
