0955 Series Normally Open Solenoid Valve
0955 series brass solenoid valve is widely used for air compressor, normally open, compact design, installation space saving. 2/2 way diaphragm pilot operated type, working pressure can resist up to 16 bar, 1.6 MPa. Relevant normally closed type 0927 series solenoid valves for options.
Features:
1. 0955 series 2/2 way N/O solenoid valve
2. Port Sizes: 1/8", 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
3. Thread Standard: G, BSP, NPT
4. Materials: Brass
5. Seal options: NBR, EPDM, FKM
6. Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
7. Quality: Each valve will be tested before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/8", 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
3. Thread Standard: G, BSP, NPT
4. Materials: Brass
5. Seal options: NBR, EPDM, FKM
6. Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
7. Quality: Each valve will be tested before shipment, including the functionality and leakage testing.
8. Operation: Diaphragm Pilot Operated
9. Working Pressure Range: 0.07 to 1.6 MPa, 16 Bar
10. Working Medium: Water, Air, Gas, Light Oil, etc
11. Working Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM PTFE (-10 to +150ºC)
| Model No. (2 Way N/C) |
0927000 | 0927100 | 0927200 | 0927300 | 0927400 | 0927500 | 0927600 | 0927700 |
|---|---|---|---|---|---|---|---|---|
| Model No. (2 Way N/O) |
0955105 | 0955205 | 0955305 | 0955405 | 0955505 | 0955605 | 0955705 | 0955805 |
| Orifice Size (mm) |
8 | 10 | 12 | 20 | 25 | 32 | 40 | 50 |
| Port Size (Inch) |
1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Effective Area (mm²) | 20 | 40 | 60 | 110 | 190 | 300 | 400 | 500 |
| Function | 2 Way Normally Closed: (0927 series) 2 Way Normally Open: (0955 series) |
|||||||
| Operation | Diaphragm Pilot Operated | |||||||
| Working Pressure | 0.07 to 1.6 MPa | 0.1 to 1.6 MPa | ||||||
| Working Temperature | NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃ |
|||||||
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||||

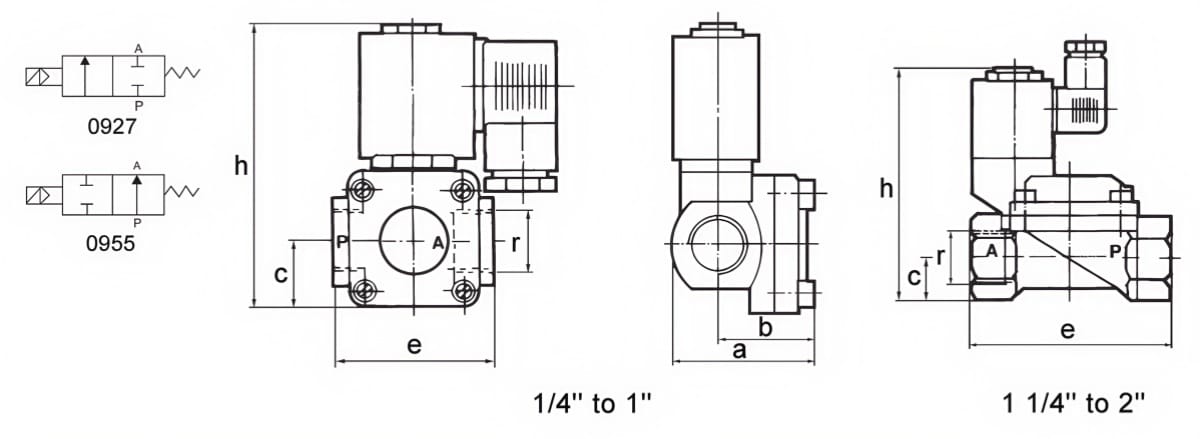

| Model No. | Orifice Size (mm) |
Port Size (Inch) |
a | b | c | e | h |
|---|---|---|---|---|---|---|---|
| 0927000 | 8 | 1/4'' | 45 | 31.5 | 22 | 53 | 97 |
| 0955105 | 114 | ||||||
| 0927100 | 10 | 3/8'' | 97 | ||||
| 0955205 | 114 | ||||||
| 0927200 | 12 | 1/2'' | 97 | ||||
| 0955305 | 114 | ||||||
| 0927300 | 20 | 3/4'' | 65 | 44 | 30 | 86 | 113 |
| 0955405 | 130 | ||||||
| 0927400 | 25 | 1'' | 113 | ||||
| 0955505 | 130 | ||||||
| 0927500 | 32 | 1 1/4'' | 95 | 47 | 31 | 131 | 136 |
| 0955605 | 153 | ||||||
| 0927600 | 40 | 1 1/2'' | 136 | ||||
| 0955705 | 153 | ||||||
| 0927700 | 50 | 2'' | 112 | 55 | 39.5 | 163 | 155 |
| 0955805 | 172 |
