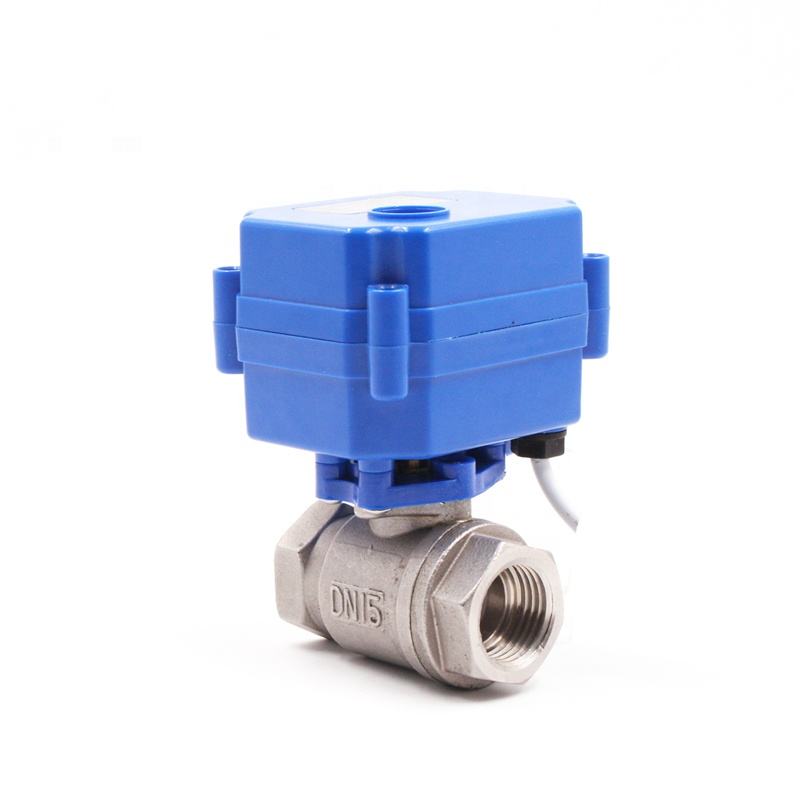

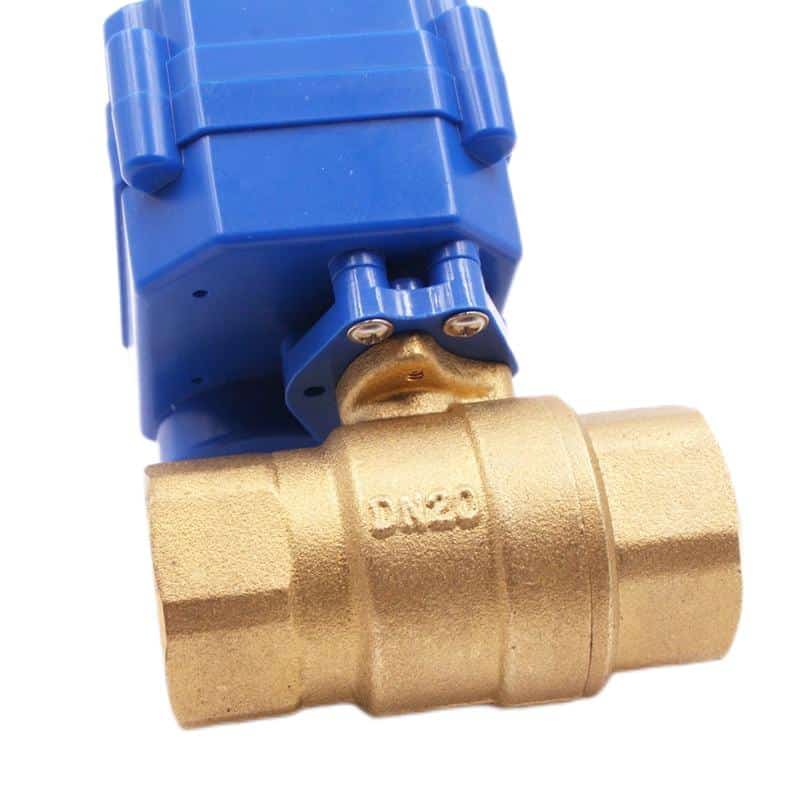

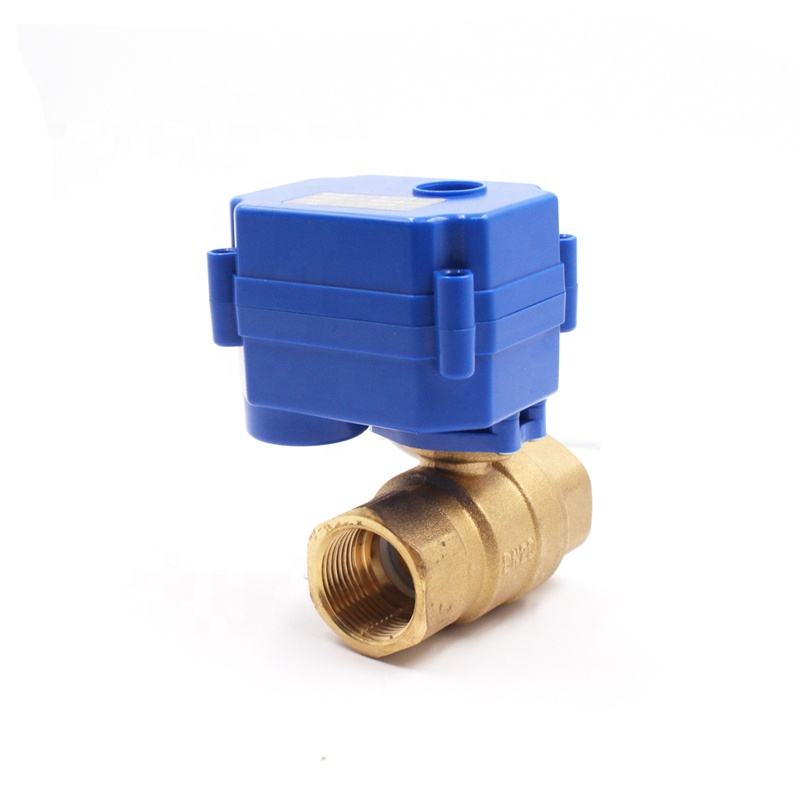

Stainless Steel / Brass Motorized Ball Valves
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
1, Metal gearbox and POM gear design, low noise, perform reliably.
2, Long service life: more than 100000 circles.
3, Electric limit and machinery limit design, located accurately, avoid gear run continuously.
4, Mufti-angle assembling, easy to install.
5, Float ball structure, no leakage, especially suitable for heavy pollution conditions.
| Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
| CWX-15Q | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V |
Max100mA
(CR04 except for Max150mA) |
Max1.5NM | <3s | DN8-DN20 |
| CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
| Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |

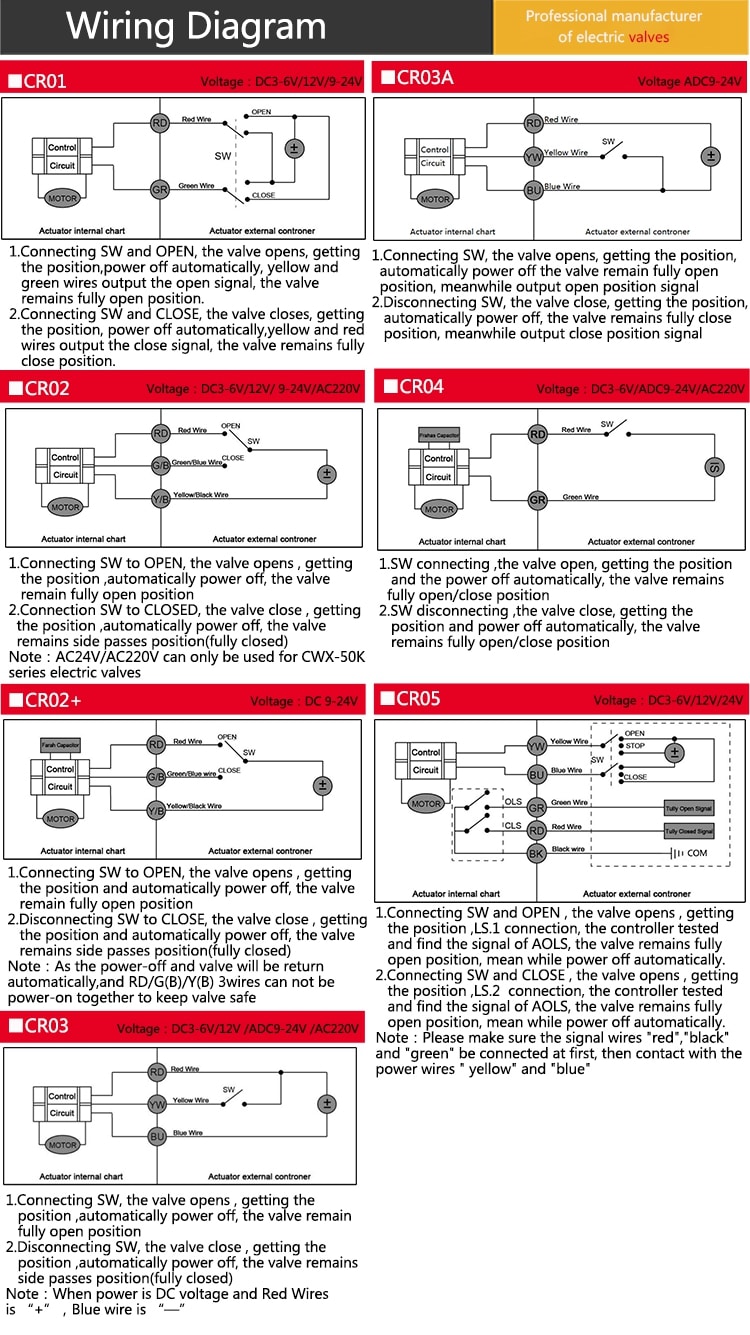

| Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with signal feedback) |

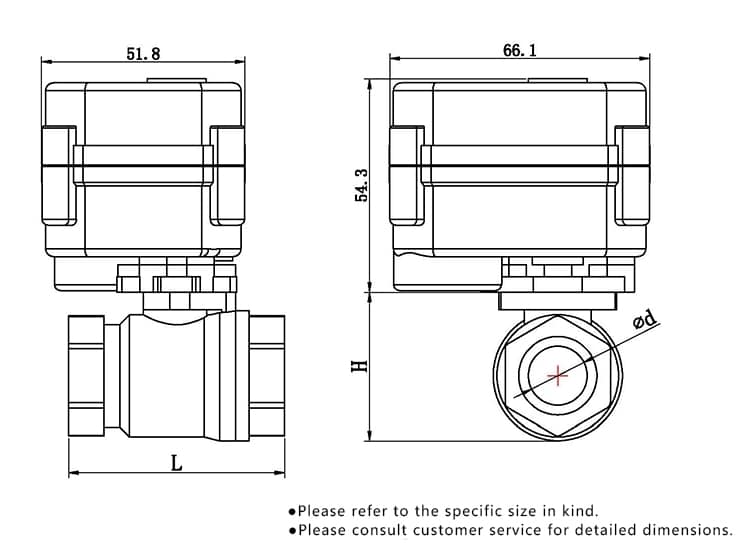

| Brass | Connection | Sizes | d | H | L |
| Both female thread
Full-port |
DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertical
Three-way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
Application:
1. Heat energy meters, firework, save water system.
2. Auto control system, industrial mini auto control equipment.
3. Water-saving equipment, drinking water equipment.
4. Air-conditioning fan coin(HVAC).
