Valve
|
OPT-A
|
OPT-B
|
|
Type
|
2/2 Port Direct-acting Solenoid Valve
|
2/2 Port Direct-acting Solenoid Valve
|
|
2/2 Port Direct-acting Solenoid Valve
|
G1/2
|
Inlet G1/2 Male Thread、
Output G1/2 Female Thread
|
|
Max. Working Pressure
|
1.0MPa
|
|
|
Lowest/Highest Ambient Temperature
|
2℃/55℃
|
|
|
Highest Medium Temperature
|
90℃
|
|
|
Valve Body
|
Brass (Stainless Steel can be customized)
|
Brass
|
|
Insulation Grade
|
H Level
|
|
|
Protection Class
|
IP65
|
|
|
Voltage
|
DC24,AC220V
|
|
|
Voltage Range
|
±10%
|
|
|
Timer
|
OPT-A/OPT-B
|
|
Interval Time(OFF)
|
0.5~45 Mins
|
|
Discharge Time(ON)
|
0.5-10S
|
|
Manual Test Button
|
Micro Switch
|
|
Power Supply
|
24-240V AC/DC 50/60Hz(AC380V can be customized)
|
|
Current Consumption
|
Max. 4mA
|
|
Temperature
|
-40 ~ 60℃
|
|
Protection Class
|
IP65
|
|
Shell Material
|
Flame Retardant ABS Plastic
|
|
Electrical Connection
|
DIN43650A
|
|
Indicator
|
LED Indicator On/Off
|

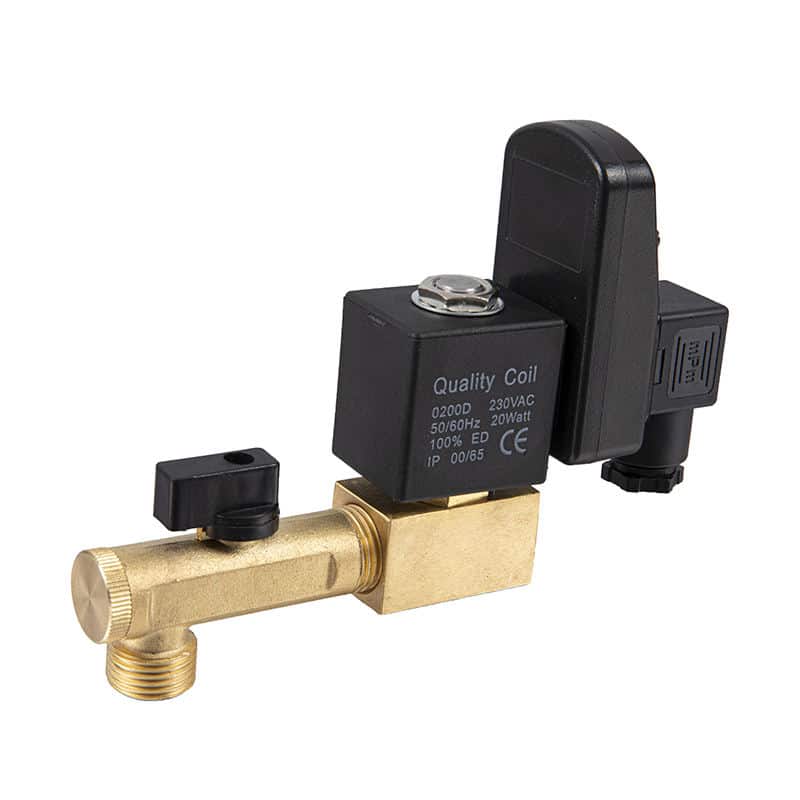

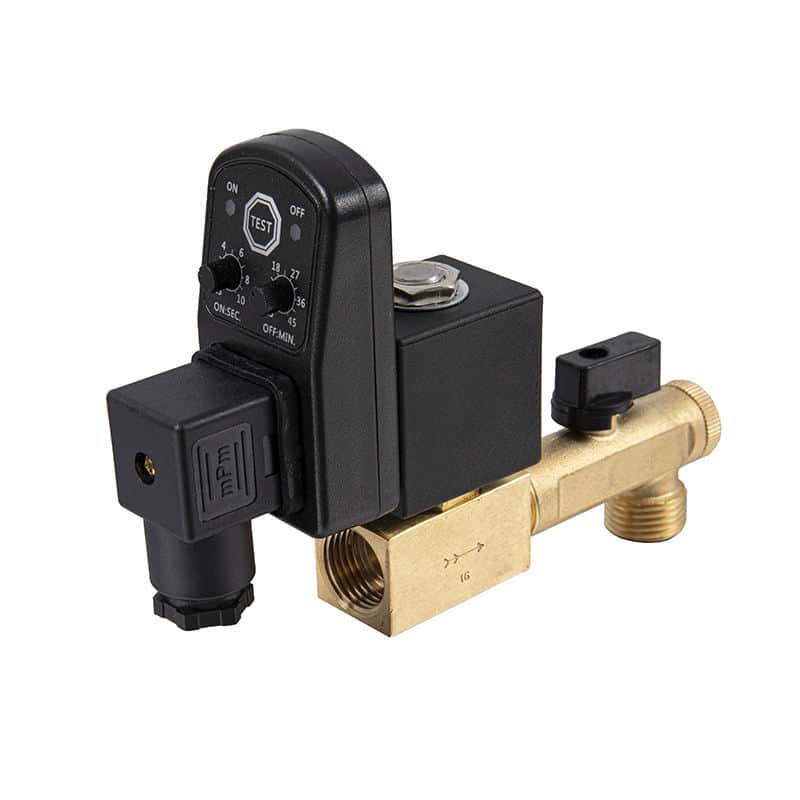

Airtac Type OPT-A OPT-B Series Manufacturers Timed Electronic Automatic Water Drain Valve For Air Compressor
> Easy to install, fully automatic operation.
> Discharge time and interval time can be adjusted according to different needs.
> Electronic drain valve to the solid-state electronic timer and solenoid valve to match the time to achieve automatic discharge of compressed air condensate.
