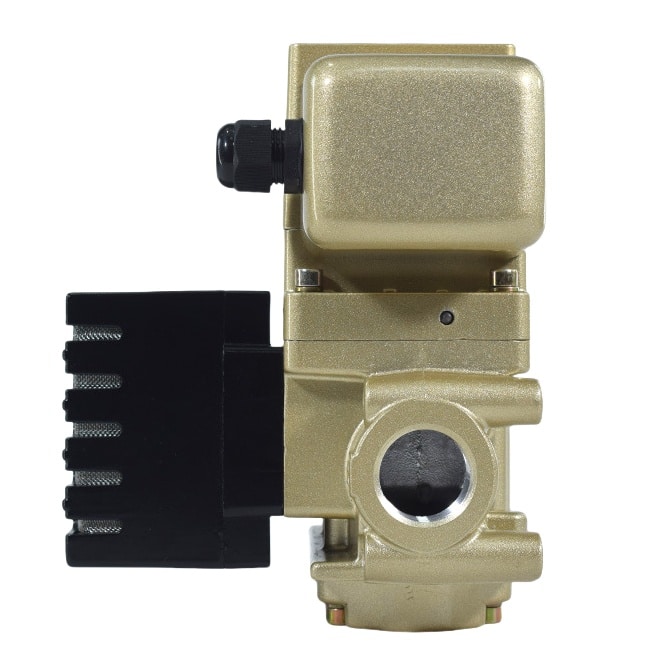

K23JSD-L15TFA Double Safety Valve

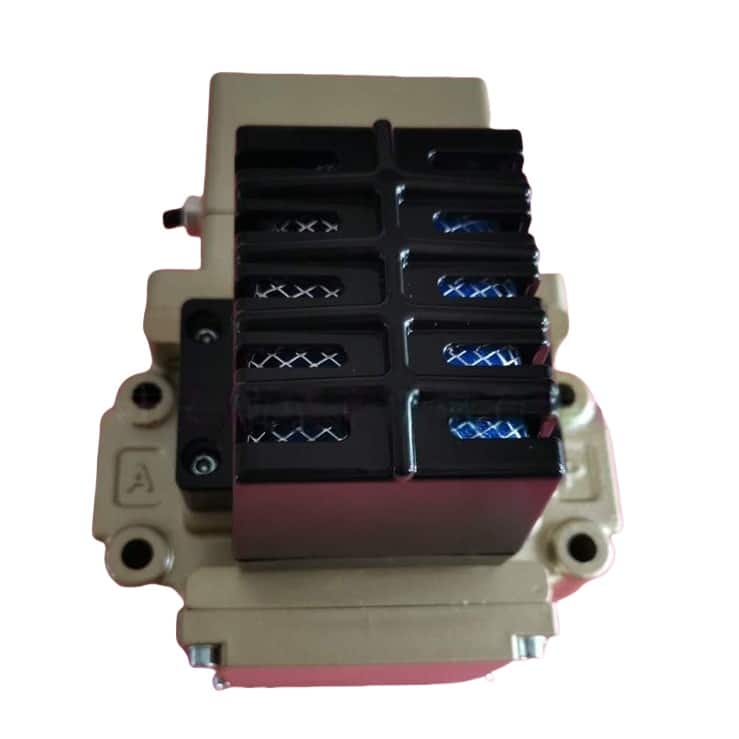

K23JSD Series TFA Type Double Safety Relief Solenoid Valve

K23JSD Series TFA type aluminum alloy dual coils solenoid valves, for punch press machine. Safety double relief valves. Designed to Control the acting of the brakes and clutches of the punch press machine, the pneumatic punch safety valve. Greatly improve the accuracy and safety of the punch press. Superior aluminum alloy valve body, smooth finishing, durable use.

Features:

1. K23JSD-L15TFA K23JSD-L25TFA  3/2 Way Solenoid Valve
2. Port Sizes: 1/2", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Compressed Air
Operation: Direct Acting
Type: K23JSD TFA Series double relief valves

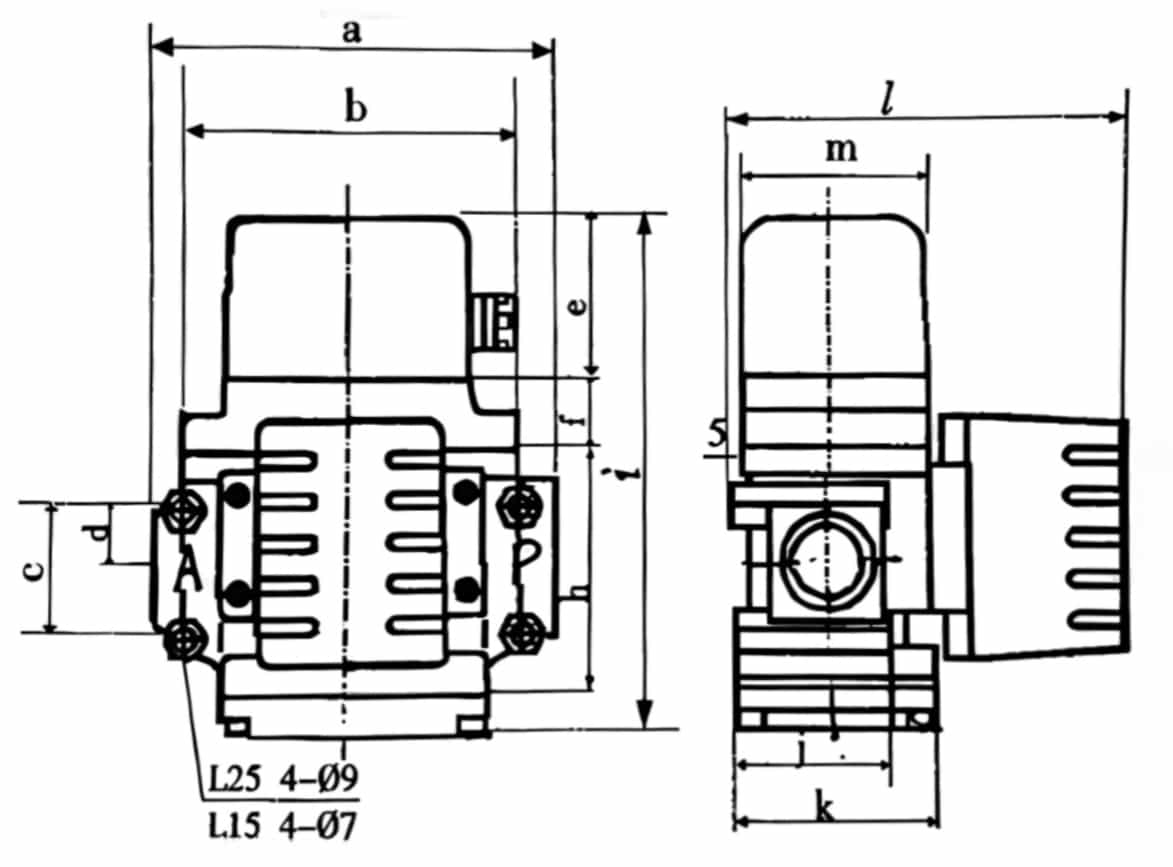

K23JSD-L15TFA DRAWING
Size
Model		 a b C d E f g H i j k 1 m
K23JSD—L10(Z) 154 129 35 18 66 30 G3/8
G1/2		 S0 193 64 85 156 80
K23JSD-L15(Z)
K23JSD-L20(Z) 164 140 52.5 24 G3/4
G1		 96 219 66
K23JSD—L25(Z)
K23JSDa—L10(Z) 154 129 35 18 G3/8
G1/2		 80 218 64
K23JSDa—L15(Z)
K23JSDa—L20(Z) 164 140 52.5 24 G3/4
G1		 96 244 66
K23JSDa—L25(Z)
Model K23JSD-L15(10) K23JSD-L25(20) K23JSD-L32(40,50)
Bore(mm) 10 15 20 25 32 40 50
Working Pressure (MPa) 0.3~0.63
Reversing
Time (s)		 Up 0.04 0.06 0.1
Down 0.03 0.04
Frequency (HZ) 8 6 4
Cross Area(mm²) P-A 30 90 130
A—0 120 360 520
Leakage(ml/min) 80 150 200
Loss(MPa) Inlet Pressure 10%, Less than 0.04Mpa
Durability 150

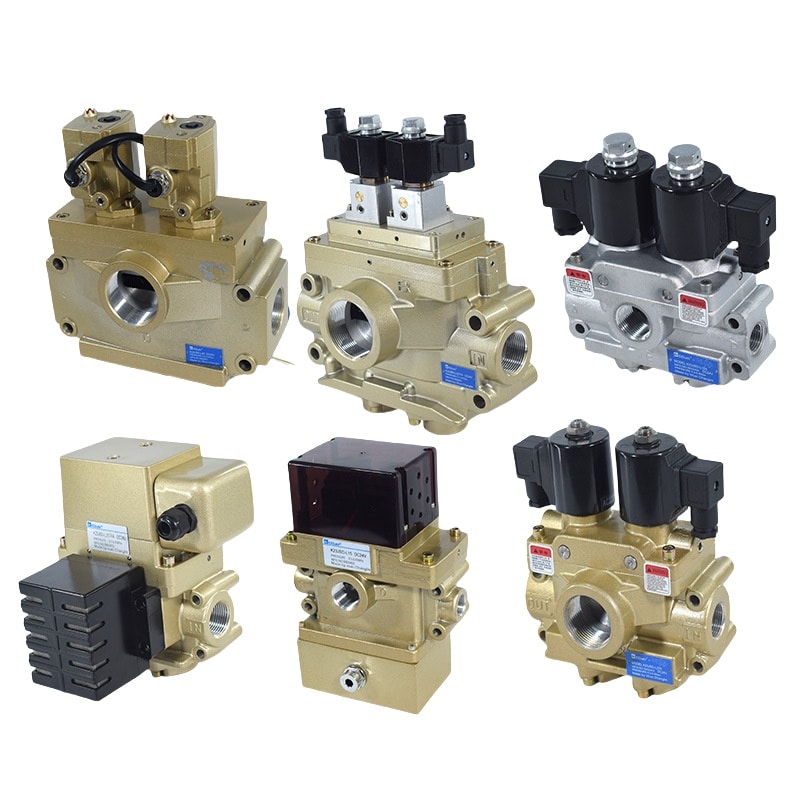

Double Relief Solenoid Valve
