UPVC Solenoid Valve

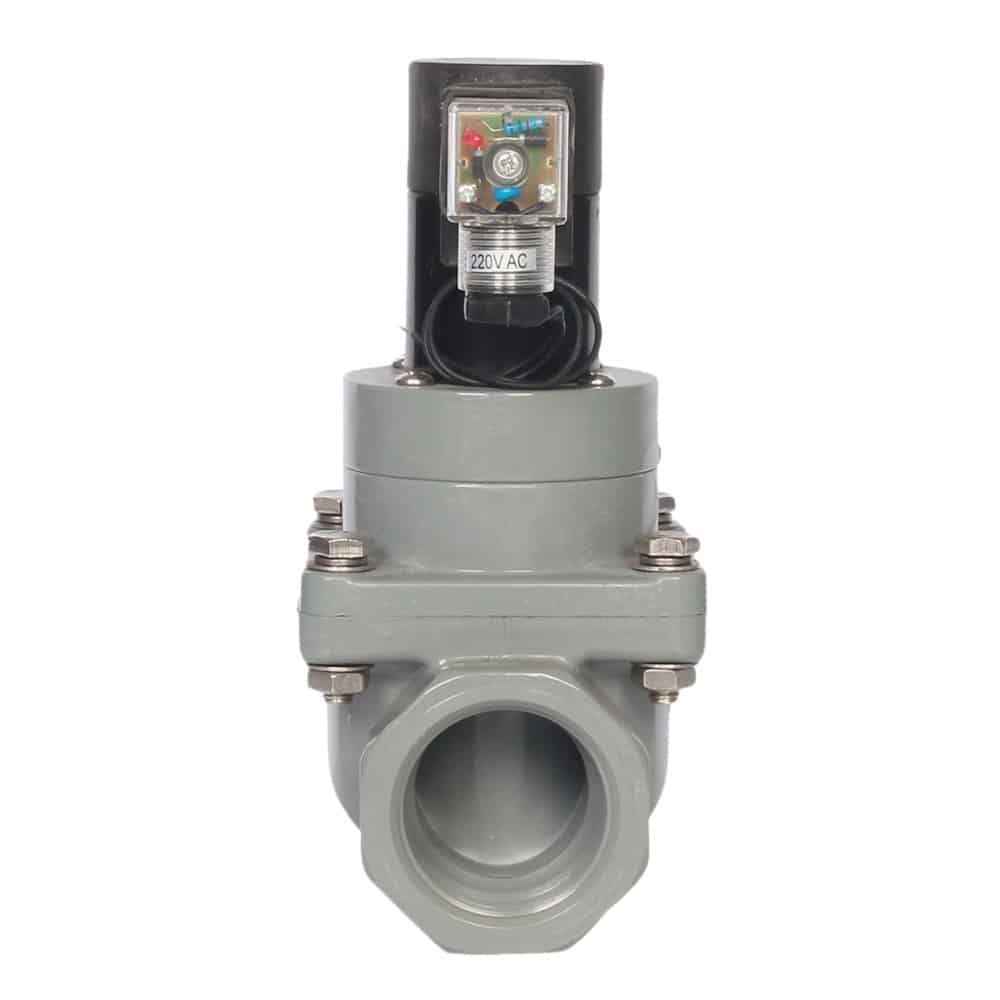

Plastic UPVC Solenoid Valve

AKFP Series Plastic UPVC solenoid valve, CPVC body material is also available. High Acid Alkali resistant, anti corrosion, longevity working cycles. Widely used in chemical industries, good chemical elements resistance. Isolated piston structure, completely isolate the medium from metal parts, durable. In environmental analysis and monitor applications.

Features:

1. UPVC CPVC Plastic Valve body
2. Port Sizes: 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", Flanged type available.
3. Thread Standard: G, BSP, NPT, Flanged
4. Materials: Anti Corrosion plastic
5. Seal options: EPDF, VITON
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC
7. Quality: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 0-6 bar, 100 PSI
Fluid Media: Acid  Alkali Salt

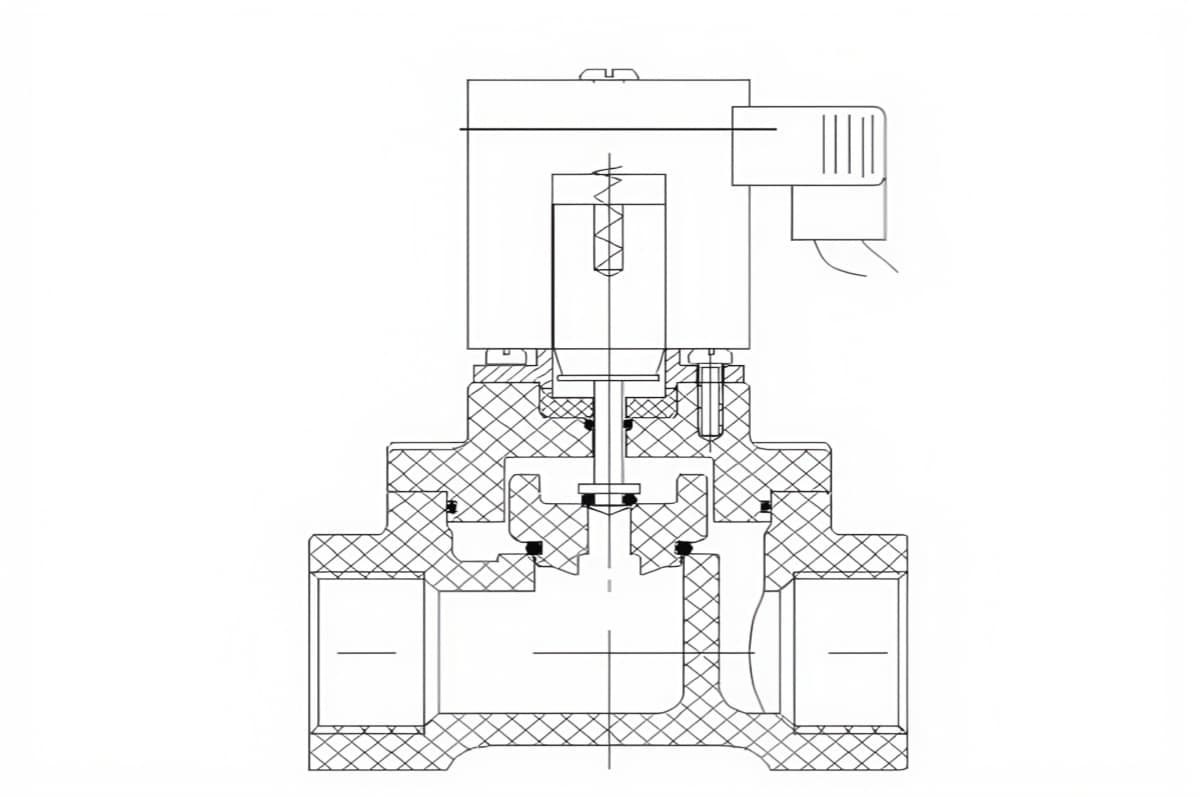

upvc solenoid valve profile



PART NO AKFP31 N/C
PORT G(NPT)1/2"-2",F1/2"-F2"
ORIFICE (MM) 15,20,25,32,40,50
PRESSURE AC:0.01MPa~0.6MPa DC:0.01MPa~0.6MPa
COILS G1B,H1B
SEALS EPDM(-30℃~120℃),VITON(-30℃~150℃)
BODY UPVC,CPVC
MEDIUM Acid,alkali,salt and other anti-corrosive fluids
ELECTRICAL
PARAMETER		 VOLTAGE:DC-12V,24V
AC-110V,220V
POWER: C1B,15W(AC),16W(DC)
G1B,start 200W,keep 5W(AC),28W(DC)
H1B,start 350W,keep 10W(AC),start75W,keep25W(DC)

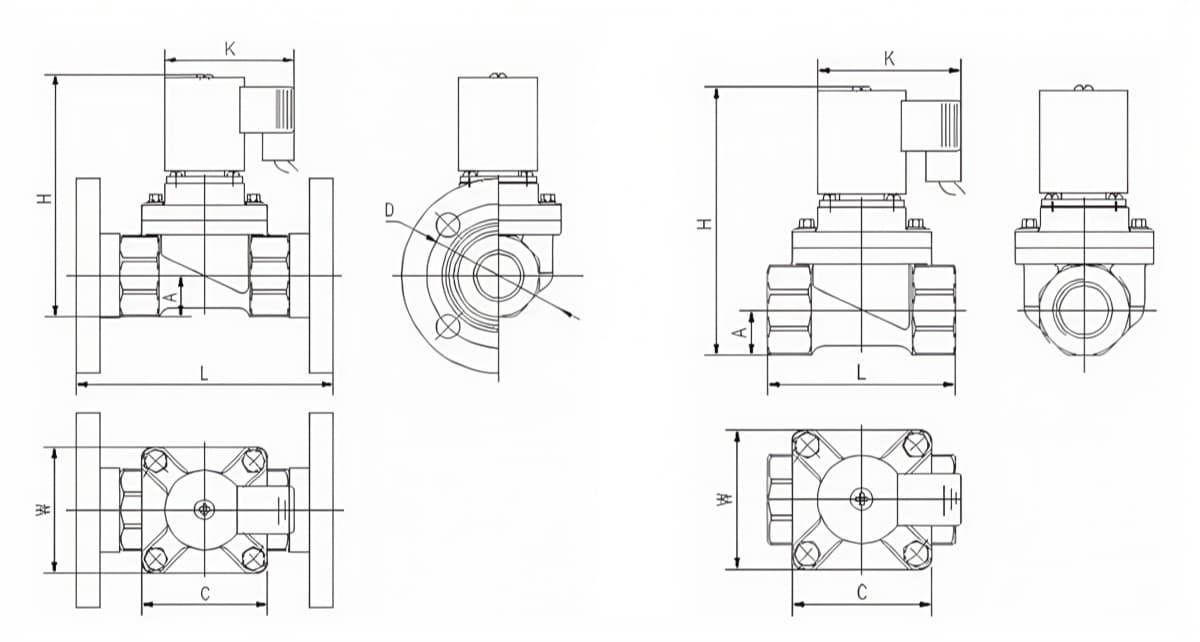

Orifice
(mm)		 Port Cv Medium Temp Pressure
(Mpa)		 Voltage Dimension(mm)
L H W C A K Flange
D
15 G1/2 4.2 1、UPVC

ABS:≤50℃

2、CPVC:

≤95℃

 Flange

0.6

10

 AC220V/50

DC24V

Other voltage is

optional

 74 132 63.5 63.5 16 92 Φ64
Flange 128
20 G1/4 5.8 80 137 63.5 63.5 19 92 Φ75
Flange 140
25 G1 10 100 147 74 74 26 92 Φ85
Flange 169
32 G 1-1/4 15.2 120 194 94 94 30 94 Φ100
Flange 195
40 G1-1/2 21 130 200 94 94 32.5 94 Φ110
Flange 205
50 G2 40 172 225 155 155 42 94 Φ125
Flange 268
65 G2-1/2 52.6 190 -

一

 -

一

 -

一

 50 一 Φ145
Flange 290
