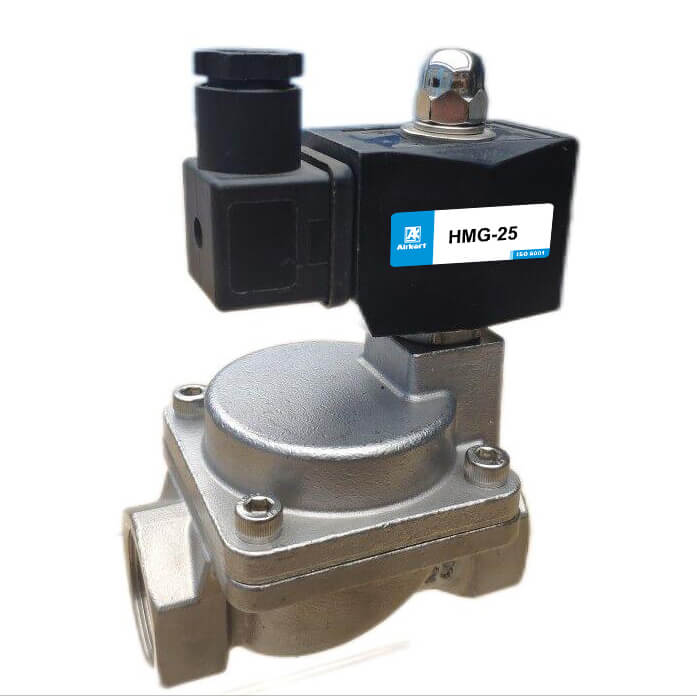

HMG SS304 CF8 Stainless steel high pressure solenoid valve

High Temperature Solenoid Valve

HMG Series Super High pressure High Temperature solenoid valve is designed to meet applications that need super high-pressure and high temperature resistance, pressure up to 1000 PSI, 60 bar, temperature up to 200 centi degree. The HMG  high pressure solenoid valve uses a piston-driven type, and has a thread size ranging from 1/8” to 1”.We started production when the factory was established. We have two types material of for these valves: brass body and stainless steel body, for high pressure applications, the stainless steel type is recommended. And the function can be a normally closed valve and normally open. With good quality and stable performance, this type of solenoid valve is widely used in many different industrial fields. Our output can reach 600,000Pcs per year.

Body material: SS304 CF8
Pressure:1-65 bar, 900 PSI
Temperature: -20 C - 200 C
Pipe size:1/8”-1”
Fluid Media: Water、Hot Water、Air、Gas 、Oil Etc

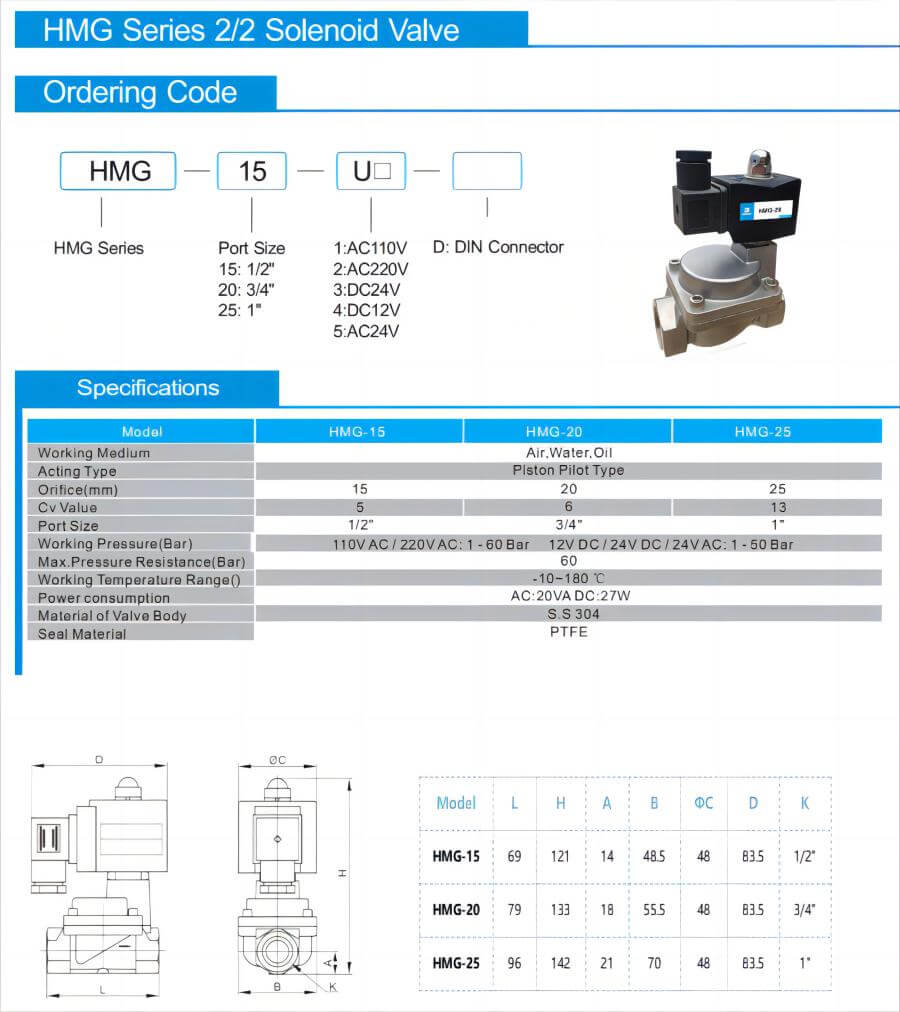

Working Medium Air, Water,Oil,Gas, Steam
Operation Piston Driven Type
Acting Type Normally Closed / Normally Open
Orifice Size(mm) 15mm / 20mm/ 25mm
CV Value 5 / 6 / 13
Port Size 1/2″  3/4" 1"
Operation Fluid Viscosity 20 CST Below
Operating Pressure 110V AC / 220V AC : 1 - 60 Bar      12V DC / 24V DC / 24V AC : 1 - 50 Bar
Max. Pressure Resistance 65 bar
Operating Temperature PTFE for -20~180℃
Voltage Range ±10%
Material of Body SS304   CF8
Material of Oil Seal  PTFE
