High Pressure Solenoid Valve

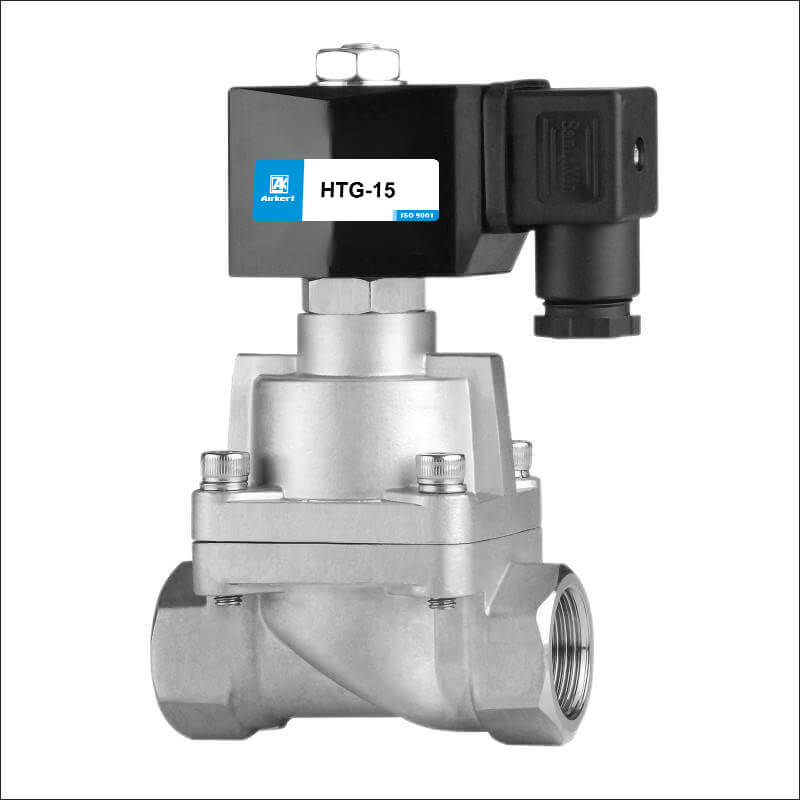

HTG Series Super High pressure solenoid valve is designed to meet applications that need super high pressure resistance, pressure up to 1000 PSI, 65 bar. The HTG high pressure solenoid valve direct acting type, has a thread size ranging from 1/8” to 1”.We started production when the factory was established. We have two types material of for these valves: brass body and stainless steel body, for high pressure applications, stainless steel type is recommended. And the function can be a normally closed valve and normally open. With good quality and stable performance, this type of solenoid valve is widely used in many different industrial fields. Our output can reach 600,000Pcs per year.
Body material: SS304
Pressure:1-100 bar, 1500 PSI
Orifice:Ф2.5mm-25mm
Pipe size:1/8”-1”
Fluid Media: Water、Hot Water、Air、Gas 、Oil Etc

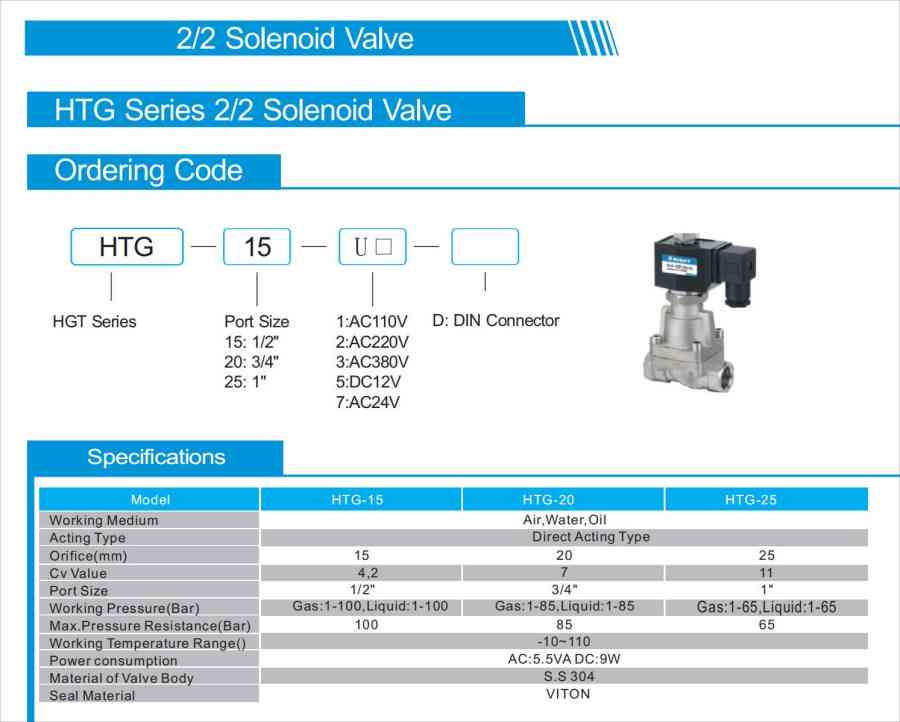

| Working Medium | Air, Water,Oil,Gas, Steam |
| Operation | Direct Acting |
| Acting Type | Normally Closed |
| Orifice Size(mm) | 15mm / 20mm/ 25mm |
| CV Value | 4.3 / 7 / 11 |
| Port Size | 1/2″ 3/4″ 1″ |
| Operation Fluid Viscosity | 20 CST Below |
| Operating Pressure | 1/2″ 1-100 bar / 3/4″ 1-85 bar / 1″ 1-65 bar |
| Max. Pressure Resistance | 100 bar |
| Operating Temperature | VITON for -5~150℃ |
| Voltage Range | ±10% |
| Material of Body | SS304 |
| Material of Oil Seal | VITON |
