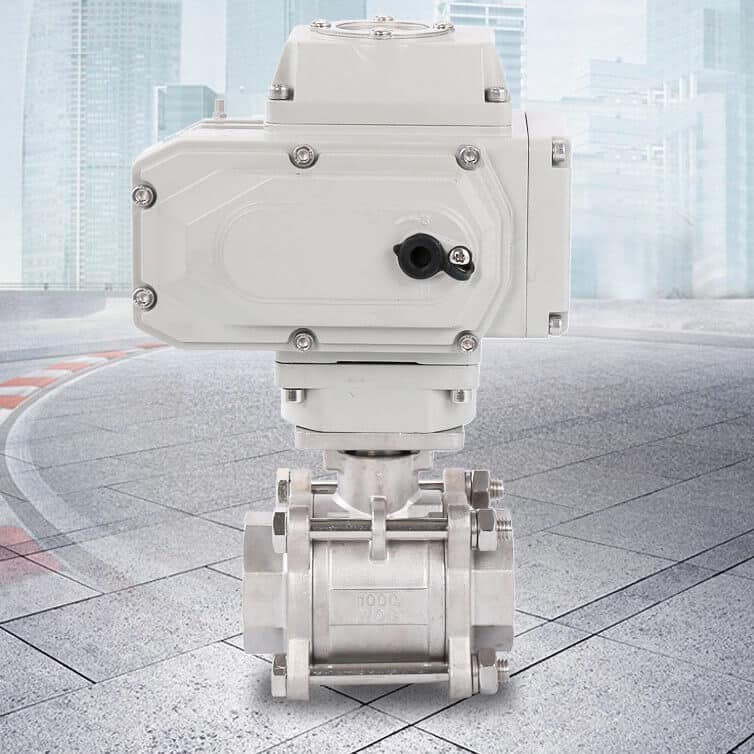

Electric Actuator Screwed Ball Valve
The electric actuated internal thread ball valve is suitable for two-position cut-off and adjustment occasions. The connection between the valve and the actuator adopts a direct connection method. The electric actuator has a built-in servo system, and no additional servo amplifier is required. The operation can be controlled by inputting 4-20mA signal and 220VAC power supply. It has the advantages of simple connection, compact structure, small size, lightweight, small resistance, stable and reliable action, etc. The actuator can be configured according to user requirements.
Features:

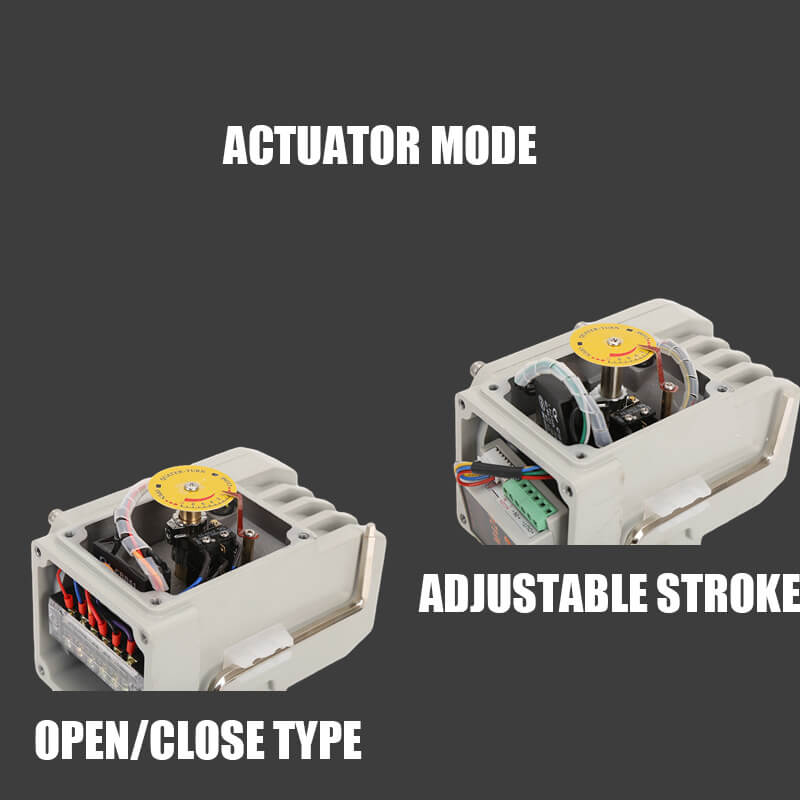

- Actuator Type: Open/Close Type, Adjustable Stroke Type
- Regulation Type: Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V
- Multi-control methods optional: Signal Control, Manual Control
- 3-Piece 3 PCS ball valve design. Easy to maintain, long working life.
- Connection: Threaded, Flanged, Welded available.
- Â Various applications: Water treatment, HVAC, Power plant, FGD industry, Chemical industry, and other industries.
Pressure: PN16
Fluid Media: Water, Chemical, Oil
Fluid Media: Water, Chemical, Oil
| Type | 3 PC Ball Valve |
| Acting type | Electric Actuated |
| Series | Q911 |
| Body Material | SS304 / SS316 |
| Actuation | Open/Close, Adjustable Stroke |
| Pressure Resistance | PN16 |
| Sealing Material | PTFE |
| Temperature | -5 ~ 80 ℃ (120℃ optional) |
| Port Size | 1/2″ to 4″ |

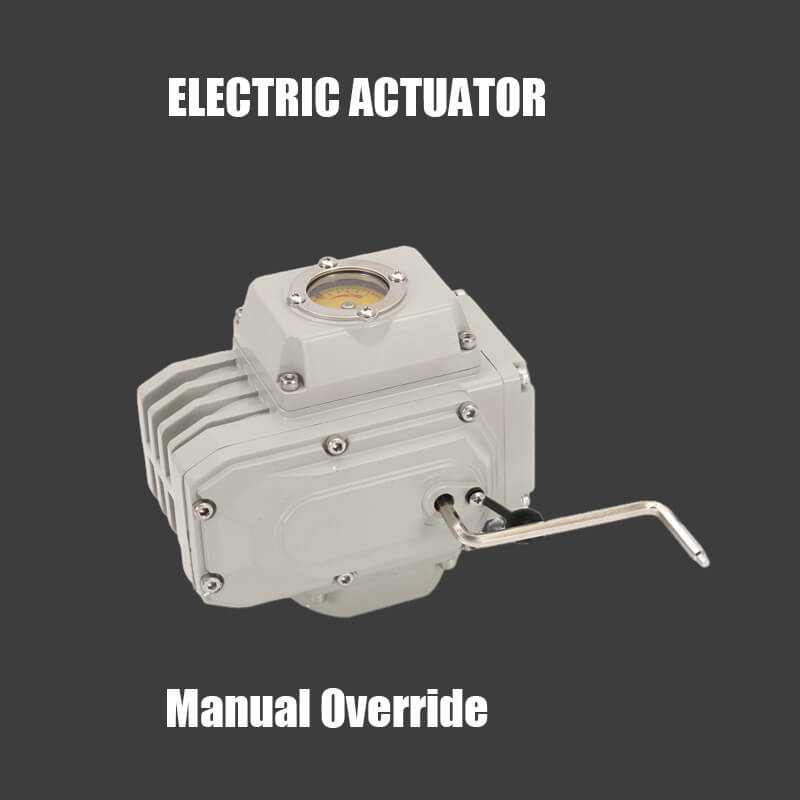

| Working Status | Electric Actuator, Manual Override under power cut-off |
| Wiring | 220VAC 24VDC |
| Industry | Â Safety Protection industry |
