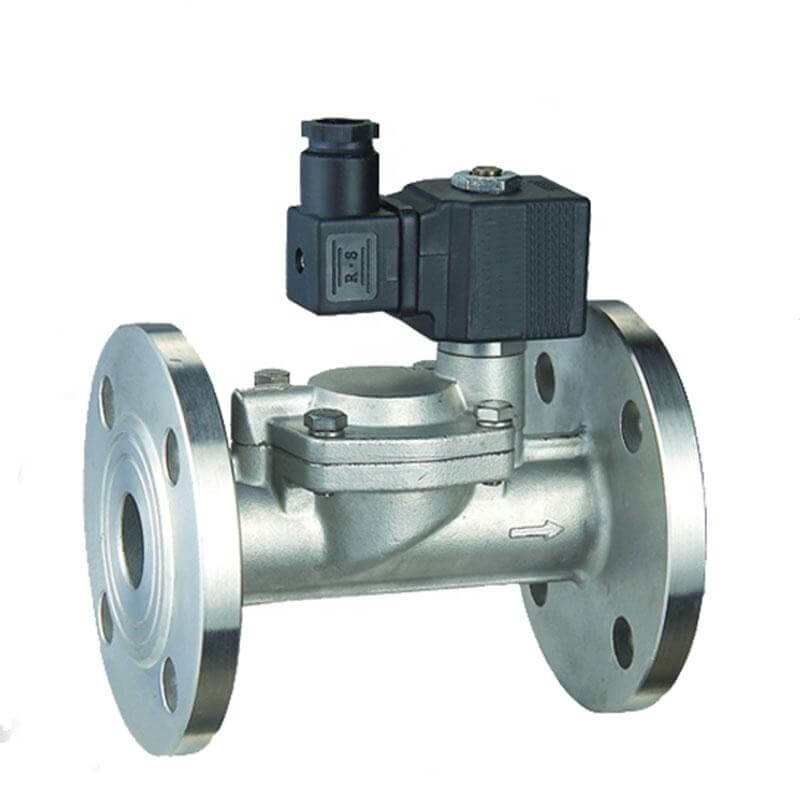

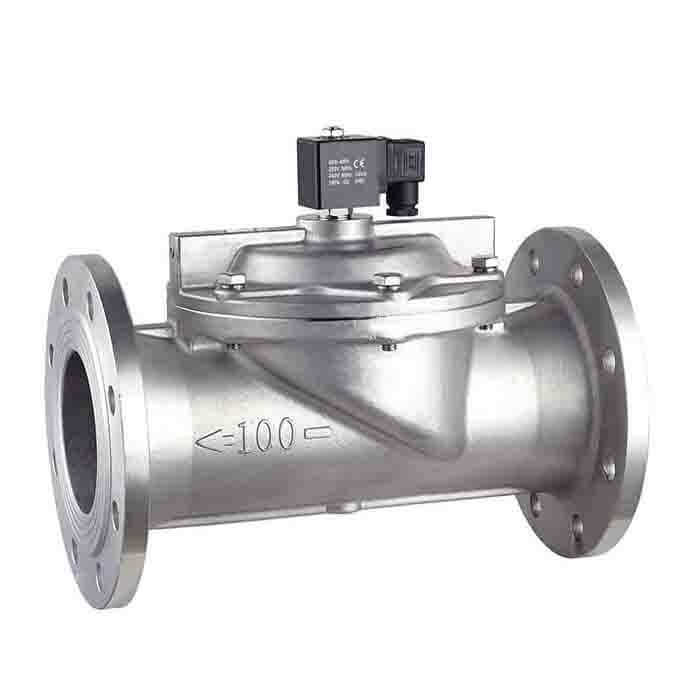

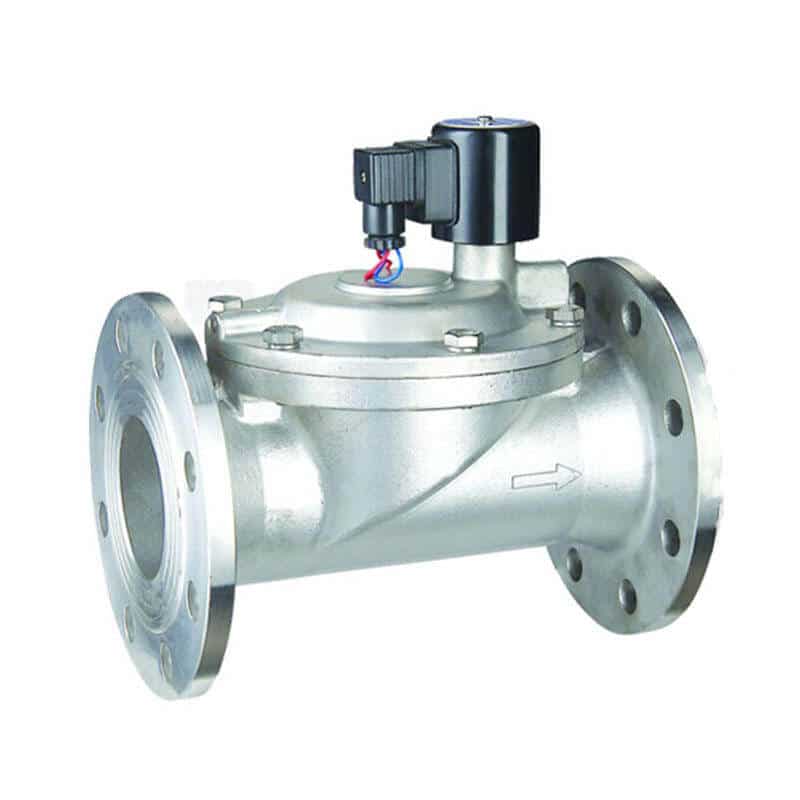

Stainless Steel Flanged Pilot Solenoid Valve
Large Size Series SS304 Pilot Operated Solenoid Valve with flange connection, one of the most popular types of 2-way general purpose fluid solenoid valves, with brass, iron, and stainless steel materials for options. The enhanced flow series solenoid valves come with flanges, DIN standard, and ASME B16.5 CLASS 150 -RF standard.
Features:
1. Pilot-operated diaphragm structure with power saving and long working cycles.
2. The initial start pressure opened from 0.3 bar
3. Durability, 1000000 cycles.
2. The initial start pressure opened from 0.3 bar
3. Durability, 1000000 cycles.
Pressure: CLASS 150 / PN16
Fluid Media: Water
Fluid Media: Water
Size: DN25 to DN200
Material: SS304, Brass, Cast Iron
Seal: NBR, EPDM, VITON
|
Working Medium:
|
Air, Gas, Water, Light oil, etc.
|
|
Temperature:
|
NBR Seal: -10 to 80 EPDM Seal: -10 to 120 VITON Seal: -10 to 150
|
|
Working Pressure:
|
DHD01F: 0.3 ~ 16 bar
|
|
Port Size:
|
1"~8" DN25 - DN200
|
|
Connection:
|
Flanged
|
|
Orifice(mm):
|
25mm~200mm
|
|
Voltage:
|
DC - 12V, 24V AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ; Tolerance: +/- 10%
|
|
Solenoid Coils:
|
S91B/H, 17VA (AC), 10W (DC), IP65, 100%ED
|
|

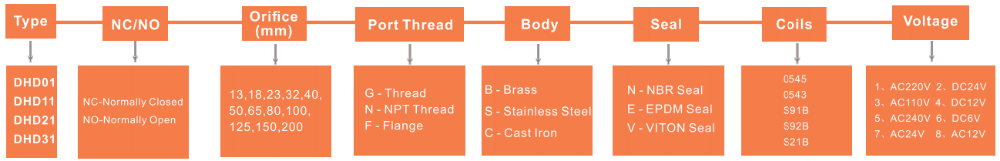

DHD01F Normally Closed N/C, Solenoid Coil 0545, DIN Standard
|
||||||||
|
Valve
Body |
Port
Size |
Orifice
|
Cv
|
Min
Pressure (MPa) |
Max Pressure(MPa)
|
Seals
Material |
Body
Material |
|
|
AC(25VA)
|
DC(13W)
|
|||||||
|
DHD0125FXXX
|
Flange
|
25
|
12
|
0.03
|
1.2
|
1.0
|
NBR,
EPDM, VITON |
Stainless Steel
Cast Iron
|
|
DHD0132FXXX
|
Flange
|
32
|
24
|
0.03
|
1.2
|
1.0
|
||
|
DHD0140FXXX
|
Flange
|
40
|
30
|
0.03
|
1.2
|
1.0
|
||
|
DHD0150FXXX
|
Flange
|
50
|
48
|
0.03
|
1.2
|
1.0
|
||
|
DHD0165FXXX
|
Flange
|
65
|
52
|
0.03
|
1.2
|
1.0
|
||
|
DHD0180FXXX
|
Flange
|
80
|
82
|
0.03
|
1.2
|
1.0
|
||
|
DHD01100FXXX
|
Flange
|
100
|
129
|
0.03
|
1.2
|
1.0
|
||
|
DHD01125FXXX
|
Flange
|
125
|
222
|
0.03
|
1.2
|
1.0
|
||
|
DHD01150FXXX
|
Flange
|
150
|
292
|
0.03
|
1.2
|
1.0
|
||
|
DHD01200FXXX
|
Flange
|
200
|
513
|
0.03
|
1.2
|
1.0
|
||

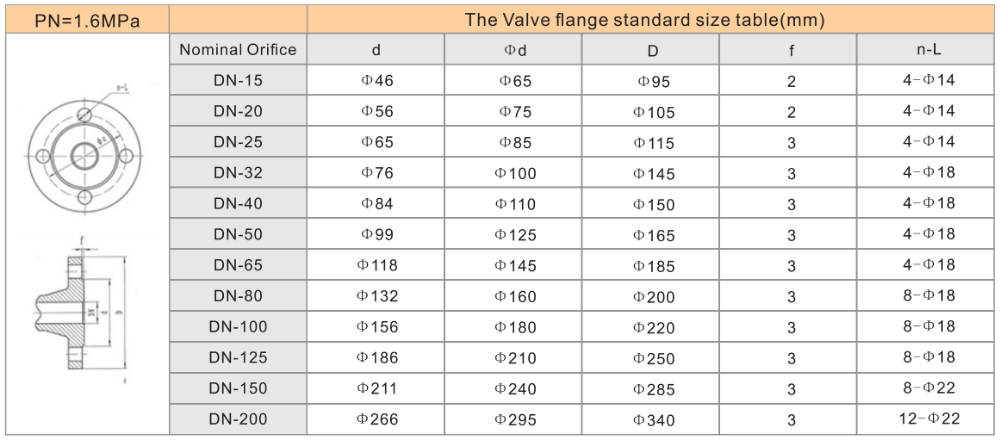

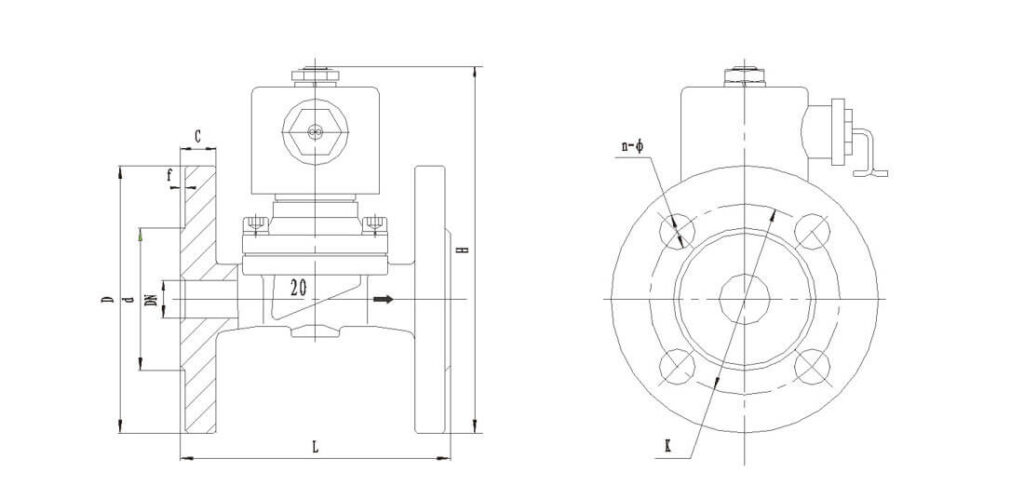

| DN | Flanged Connection | |||||||
| Valve Dimensions | Flange Dimensions (mm) | |||||||
| H | L | D | D1 | D2 | b | f | n-d | |
| 25 | 130 | 60 | 115 | 85 | 65 | 16 | 3 | 4-Φ14 |
| 32 | 137 | 180 | 140 | 100 | 76 | 18 | 3 | 4-Φ18 |
| 40 | 152 | 200 | 150 | 110 | 84 | 18 | 3 | 4-Φ18 |
| 50 | 164 | 230 | 165 | 125 | 99 | 20 | 3 | 4-Φ18 |
| 65 | 222 | 290 | 185 | 145 | 118 | 20 | 3 | 4-Φ18 |
| 80 | 253 | 310 | 200 | 160 | 132 | 22 | 3 | 8-Φ18 |
| 100 | 260 | 350 | 220 | 180 | 156 | 24 | 3 | 8-Φ18 |
| 125 | 315 | 400 | 250 | 210 | 184 | 26 | 3 | 8-Φ18 |
| 150 | 350 | 480 | 285 | 240 | 211 | 26 | 3 | 8-Φ22 |
| 200 | 390 | 600 | 340 | 295 | 266 | 26 | 3 | 8-Φ22 |
| 250 | 430 | 730 | 395 | 350 | 319 | 28 | 3 | 12-Φ22 |
| 300 | 480 | 850 | 445 | 400 | 370 | 28 | 4 | 12-Φ22 |
