DMF-Z Series Dust Blowing Pulse Jet Solenoid Valve
MCF DMF DMF-Z Series Dust Cleaning Diaphragm Pulse Jet Solenoid Valve, aluminum alloy body material and stainless steel body materials, explosion-Proof Device for generating dust cleaning vibration airflow. Anti-Corrosion/Die Casting Dense/No Coating Peeling/No Burrs/No Cracks. More than 1 million working cycles, diaphragm replacement parts available.
Features:
1. DMF-Z Series
2. Port Sizes: 3/8", 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting, stainless steel.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 3/8", 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting, stainless steel.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Air
Fluid Media: Air
|

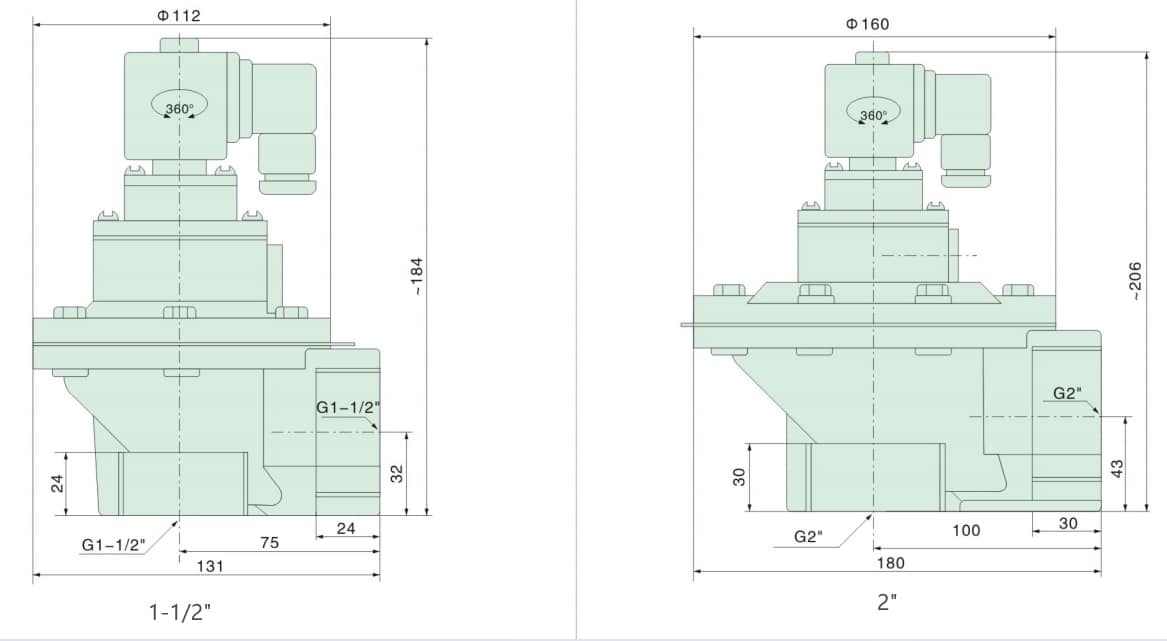

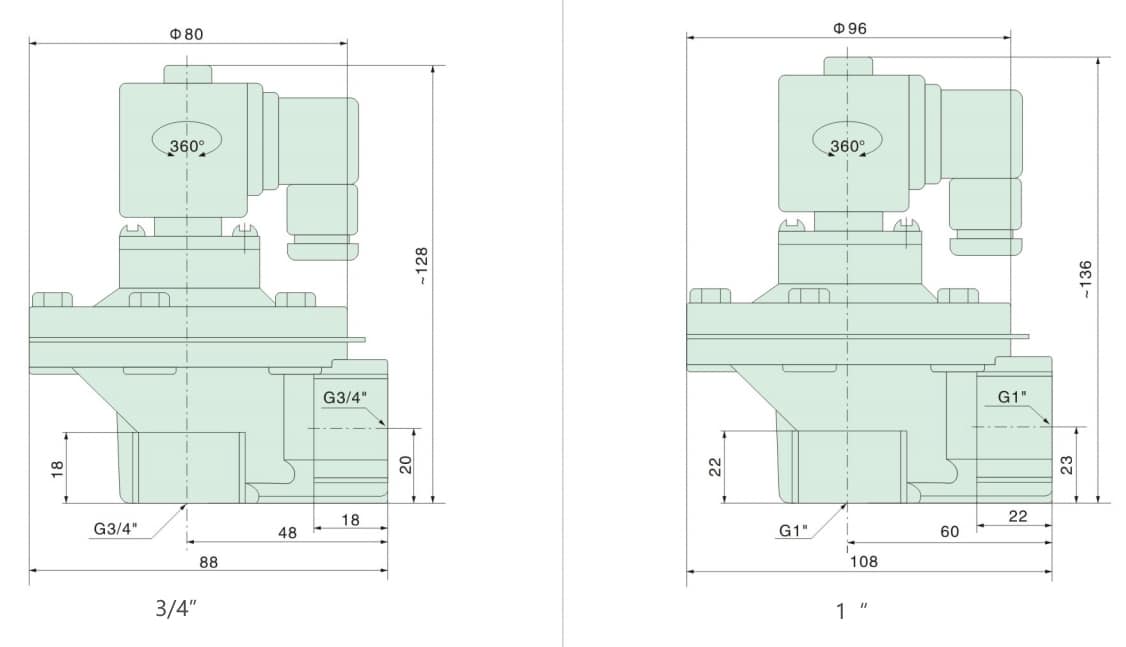

Modle
|
Width
|
A
|
B
|
C
|
D
|
|
DMF-Z-20
|
80
|
88
|
128
|
48
|
20
|
|
DMF-Z-25
|
96
|
108
|
136
|
60
|
23
|
|
DMF-Z-40
|
112
|
131
|
148
|
75
|
32
|
|
DMF-Z-40S
|
112
|
131
|
180
|
75
|
32
|
|
DMF-Z-50S
|
160
|
180
|
206
|
100
|
43
|
|
DMF-Z-62S
|
188
|
204
|
226
|
110
|
49
|
|
DMF-Z-76S
|
200
|
220
|
250
|
120
|
66
|
|
Modle
|
NominalÂ
diameter
|
Number ofÂ
diaphragms
|
Flow Coefficient (Kv/Cv)
|
SprayÂ
area(m^2)
|
Inlet/outletÂ
interface size
|
Weight
(kgs)
|
|
DMF-Y-25
|
25
|
1
|
28.82/33.63
|
8-10
|
G1
|
0.9
|
|
DMF-Y-40S
|
40
|
2
|
47.36/55.27
|
12-16
|
G1.5
|
2
|
|
DMF-Y-50S
|
50
|
2
|
62.09/72.46
|
18-28
|
G2
|
2.6
|
|
DMF-Y-62S
|
62
|
2
|
136.58/159.39
|
27-38
|
G2.5
|
3.2
|
|
DMF-Y-76S
|
76
|
2
|
165.84/193.54
|
37-65
|
G3
|
3.3
|
|
DMF-Y-20
|
20
|
1
|
17.55/20.48
|
3.5-6
|
G3/4
|
0.9
|
|
DMF-Y-25
|
25
|
1
|
26.16/30.53
|
8-10
|
G1
|
2
|
|
DMF-Y-40S
|
10
|
2
|
45.82/53.47
|
12-16
|
G1.5
|
2.6
|
|
DMF-Y-50S
|
50
|
2
|
61.24/71.47
|
18-28
|
G2
|
3.2
|
|
DMF-Y-62S
|
62
|
2
|
129.26/150.85
|
27-38
|
G2.5
|
3.3
|
|
DMF-Y-76S
|
76
|
2
|
159.95/186.66
|
37-65
|
G3
|
4
|
