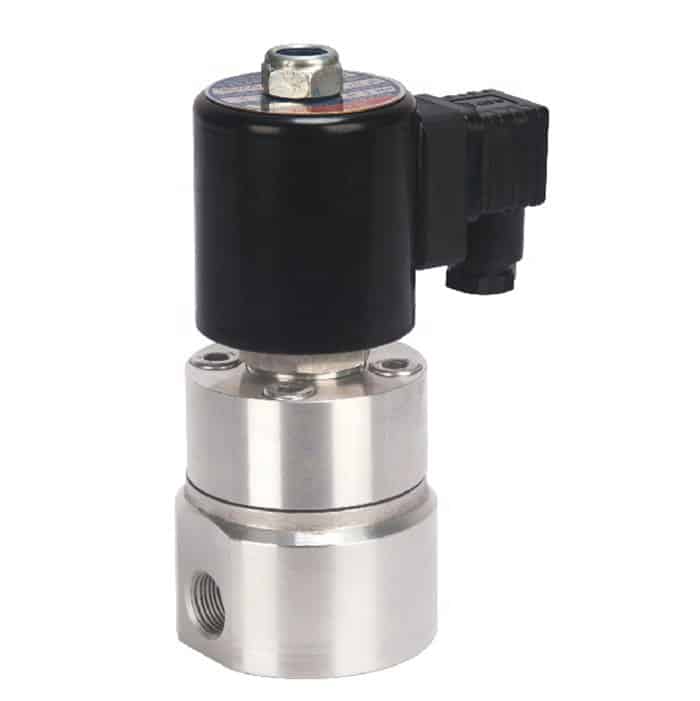

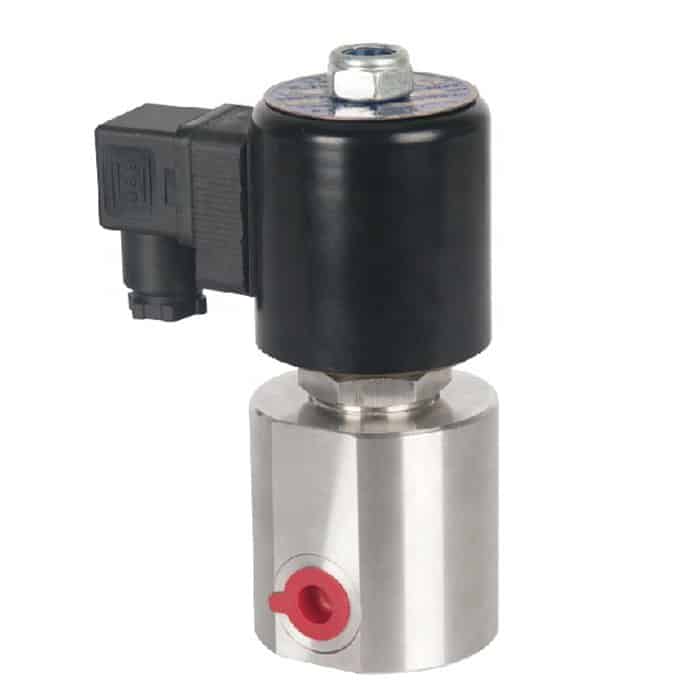

30 MPa Normally Open High Pressure Stainless Steel Solenoid Valve
AMS-O Series 300 bar / 30 MPa Ultra-high pressure N/O solenoid valves are mainly used in hydraulic systems, petrochemicals, metallurgy, spray humidification, aerospace, military industry, nuclear industry, shipbuilding industry, electricity, energy, urban heating, steam supply, water supply and other fields. They realize the automation and remote control of ultra-high pressure systems.
Features:
1. 2/2 Normally Open
2. Port Sizes: 1/4", 3/8", 1/2", 3/4", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SS316
5. Seal options: PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/4", 3/8", 1/2", 3/4", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SS316
5. Seal options: PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
8. Temperature: -5 - 150 c
Pressure: 300 bar, 4500 PSI, 30 MPa
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.
|
DN
|
DN10~50mm, 1/4, 3/8", 1/2", 3/4", 1"
|
|
Connection type
|

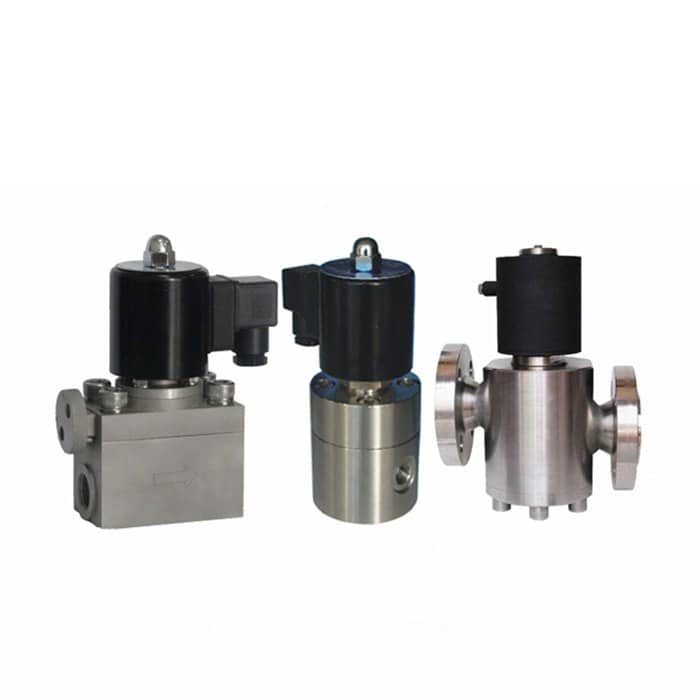

G, BSP, NPT(other options : flange,welding ..can be customized)
|
|
Work principle
|
Pilot piston mode
|
|
Body material
|
Stainless 304,optional 316 or 316L
|
|
Seal material
|
NBR,FKM PTFE
|
|
Suitable media
|
Liquid,gas, oil etc.
|
|
Media temperature
|
1.-20℃~80℃ 2.-20℃~150℃ 3.100℃~200℃ 4.120℃~250℃
|
|
Ambient temperature
|
Standard：-20~150℃
|
|
Install method
|
Horizonal installation coil vertical upward
|
|
Protection class
|
IP65
|
Model Selection notice:
1.Ensure the arrow of valve consistent with the flow of media For 2 way flow choose electric valve or pneumatic valve
2.Install Filter screen in front of valve avoiding particles
3.Proper length for DC power line important for normal operation
4.Design control project,Normal close valve as priority.
5.Consult us for Certain Voltage or special function
