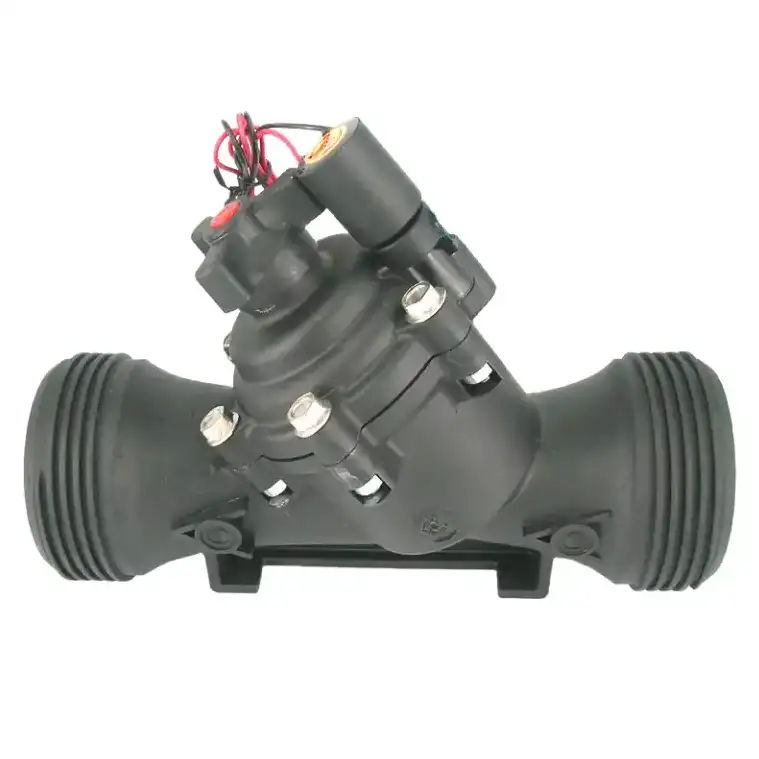

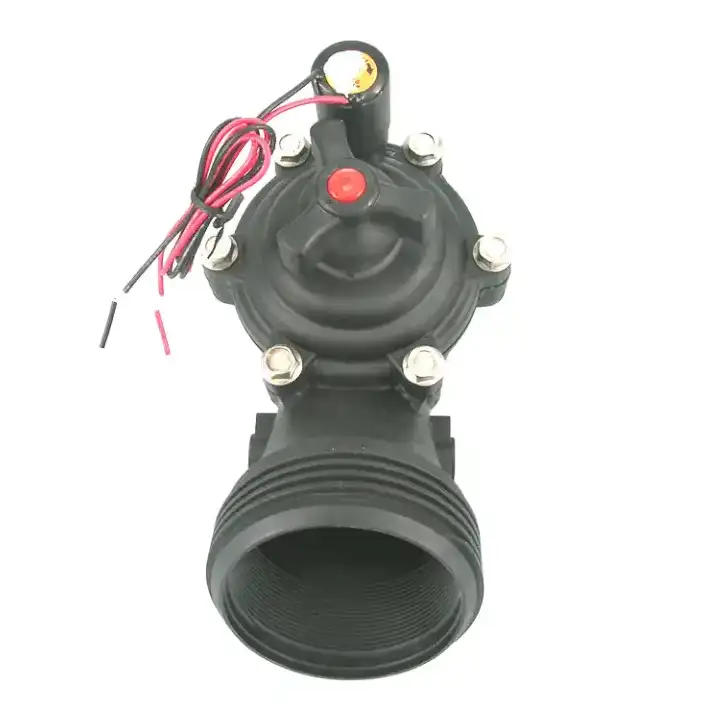

RainBird Alternative IVM 300PGA 3" Irrigation Solenoid Valve
Irrigation Solenoid Valves are installed in the water flow control pipeline, widely used in gardens, fields, and landscape irrigation systems, to open and close the water by electric control. By the signal feedback, the solenoid valve can be controlled by PLC, a remote control APP. Reinforced nylon plastic valve body, durable, stainless steel screw parts, IP68 degree. Alternative solenoid valves of Rainbird 3" 300PGA IVM series, competitive.
Features:
1. Pilot-operated diaphragm structure, nylon plastic valve body.
2. Double filtration to protect the solenoid armature.
3. IP68 Degree, waterproof solenoid coil.
4. Slowly close to prevent the water hammer.
2. Double filtration to protect the solenoid armature.
3. IP68 Degree, waterproof solenoid coil.
4. Slowly close to prevent the water hammer.
5. Manually Open/Close the valve by turning the coil.
6. Water flow rate adjustable.
Body material: Reinforced Nylon Plastic
Pressure: 0-10 bar, 150 PSI
Fluid Media: Water
Series: 2" IVM200PGA, 1-1/2" IVM150PGA, 1" IVM100PGA, IVM 300PGA 3"
| Characteristic | 1. Pilot-operated diaphragm structure, reinforced nylon.
Both are normally closed and the latching valve on optional. |
| Â 2. Double filtration anti-blocking solenoid valve | |
| Â 3. Full closed coil waterproof | |
| Â 4. Close slowly, anti-water hammer | |
| Medium | water |
| Temperature | NBR seal: -10°C to 80 °C |
| Pressure | 0.1-1.0Mpa |
| Port size | 3/4′-3′ |
| Port thread | G |
| Orifice | 20,25,40,50,63, 80mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ | |
| Tolerance± | 10% |
| Coils | SE02B,8W,IP68,100%Â ED |
| L32B,DC6-20V, pulse length 20-500 ms | |

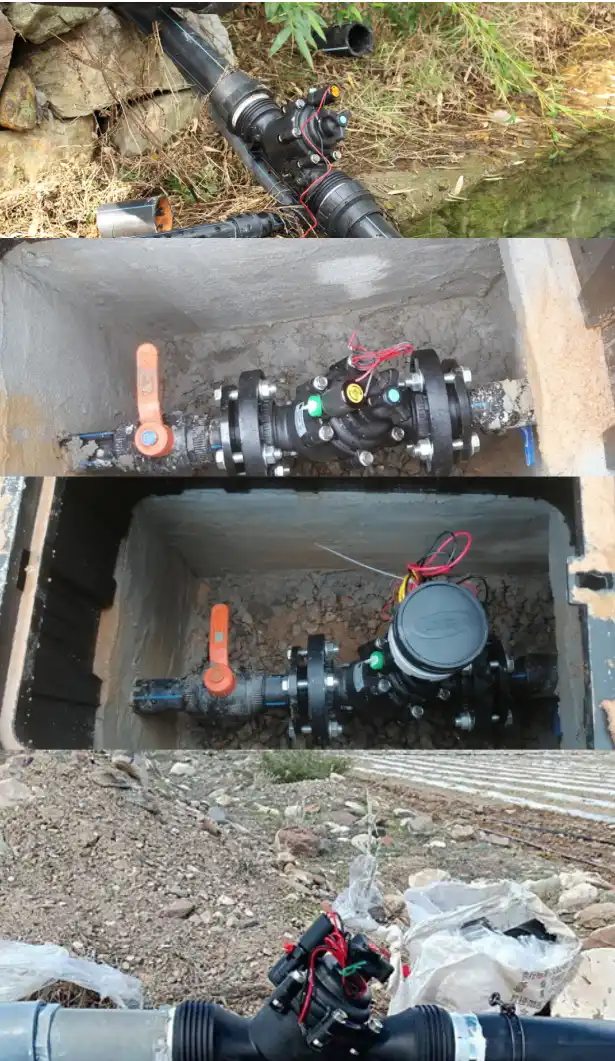

| Â Application | Â Widely used in lawn irrigation systems, like large areas of lawn, gym, agriculture, industrial dusting, and water treatment. |
| Material | Body-reinforced nylon |
| Seal-Â NBR | |
| Amature tube-stainless steel 304 | |
| Plunger-stainless steel430F | |
| Stop-stainless steel 430F | |
| Springs-SS304 | |
| Shading rings- stainless steel 304 |
