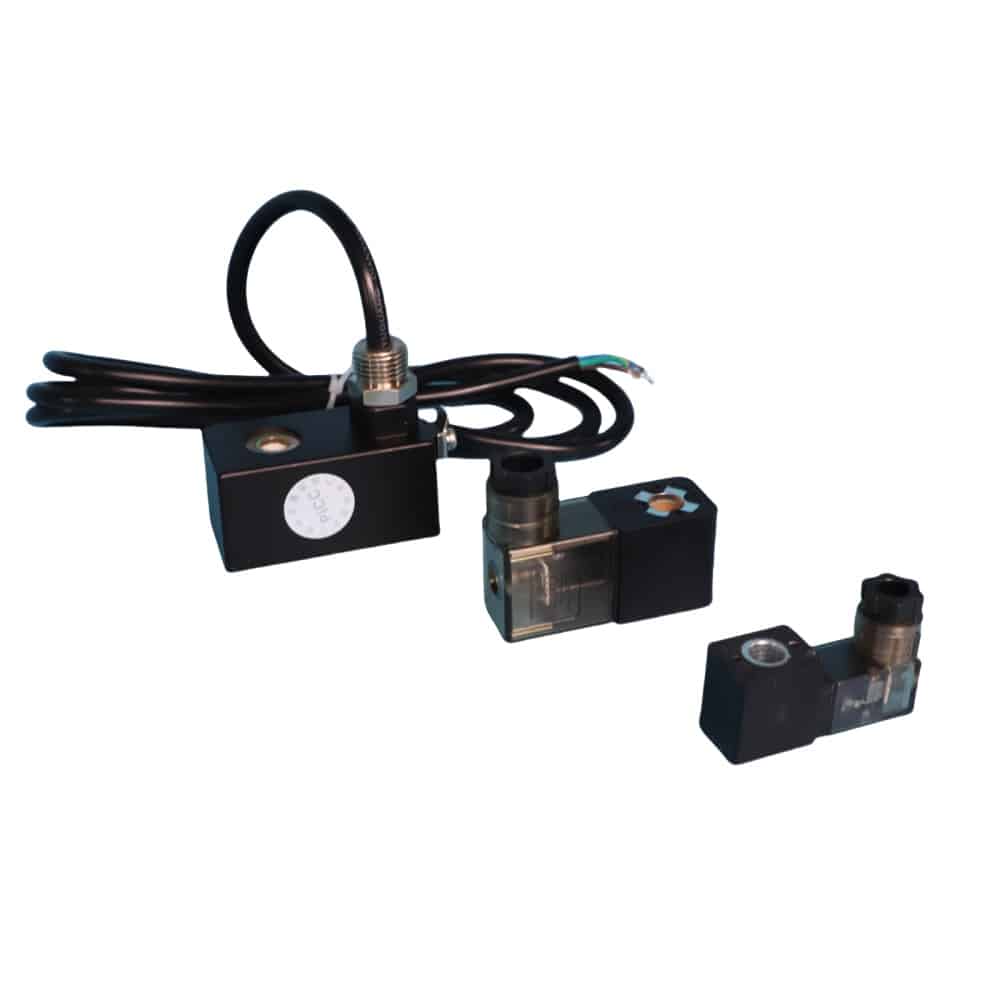

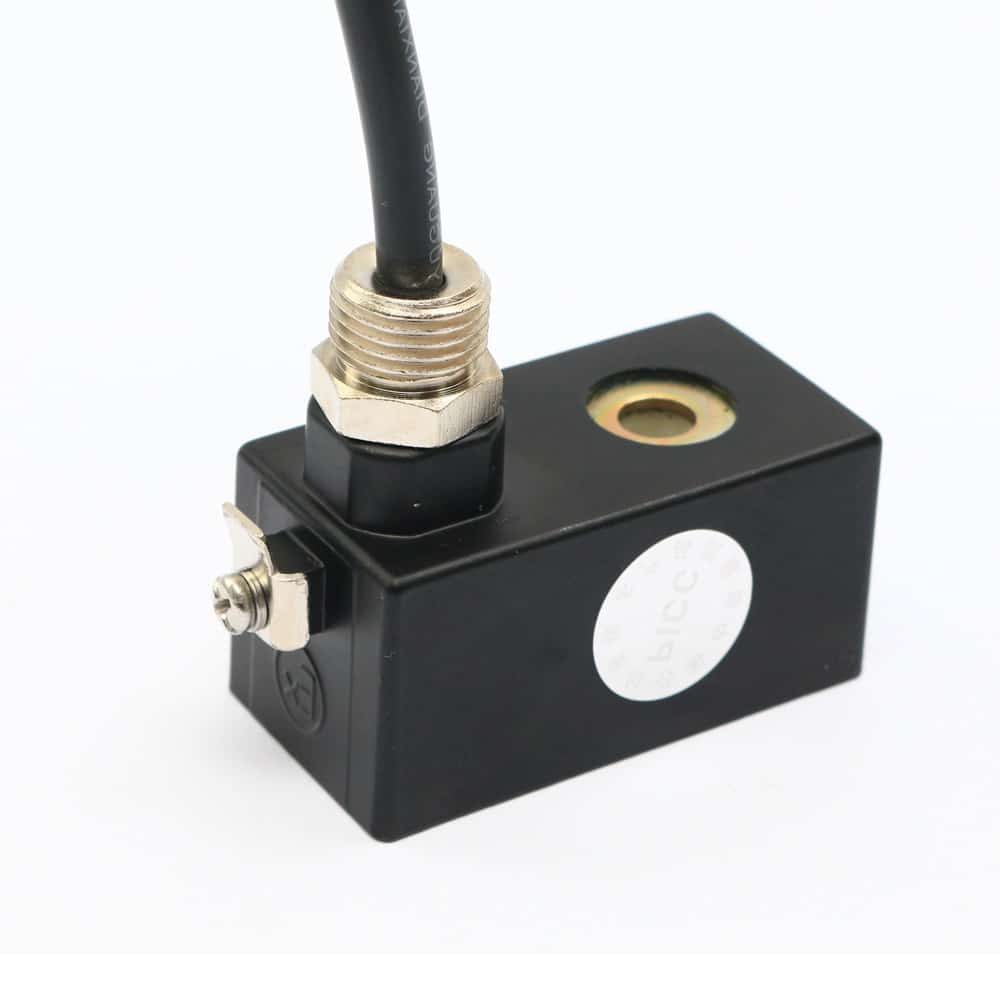

ATEX Certificate Explosion Proof Solenoid Coil
A980 Series Explosion Proof solenoid coil is used to fit the 3V 4V series of pneumatic solenoid directional valve, pneumatic Namur solenoid valve, ensuring a reliable and safe operation in various environments. Suitable for medium-temperature media, and is constructed with a durable plastic body. The Explosion-proof Electromagnetic Valve Coil Ex mb T4 EX Proof Coils operate on a board supply voltage range (12~240V AC/DC), making it adaptable to different power sources.
Features:
1. Explosion-proof / Ex-proof coil / ATEX certificate
2. Equipped with pneumatic solenoid valve and Namur solenoid valve.
3. Thread Standard: G, BSP, NPT
4. Materials: Durable plastic body.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Equipped with pneumatic solenoid valve and Namur solenoid valve.
3. Thread Standard: G, BSP, NPT
4. Materials: Durable plastic body.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Clean air
Fluid Media: Clean air
Model: A980 Series
Explosion Proof Standard: Ex mb I Mb Ex mb II T4 Gb DIP A20 TA T4
| Product Name | explosion proof solenoid valve coil |
|---|---|
| Model | A980 EX solenoid coil |
| Voltage | AC220V AC110V DC24V DC12V |
| Power Consumption | AC: 5.5 VA, DC : 4 W |
| Ex-proof Grade | Ex mb I Mb Ex mb II T4 Gb DIP A20 TA T4 |
| Connection Type | Lead wire cable |

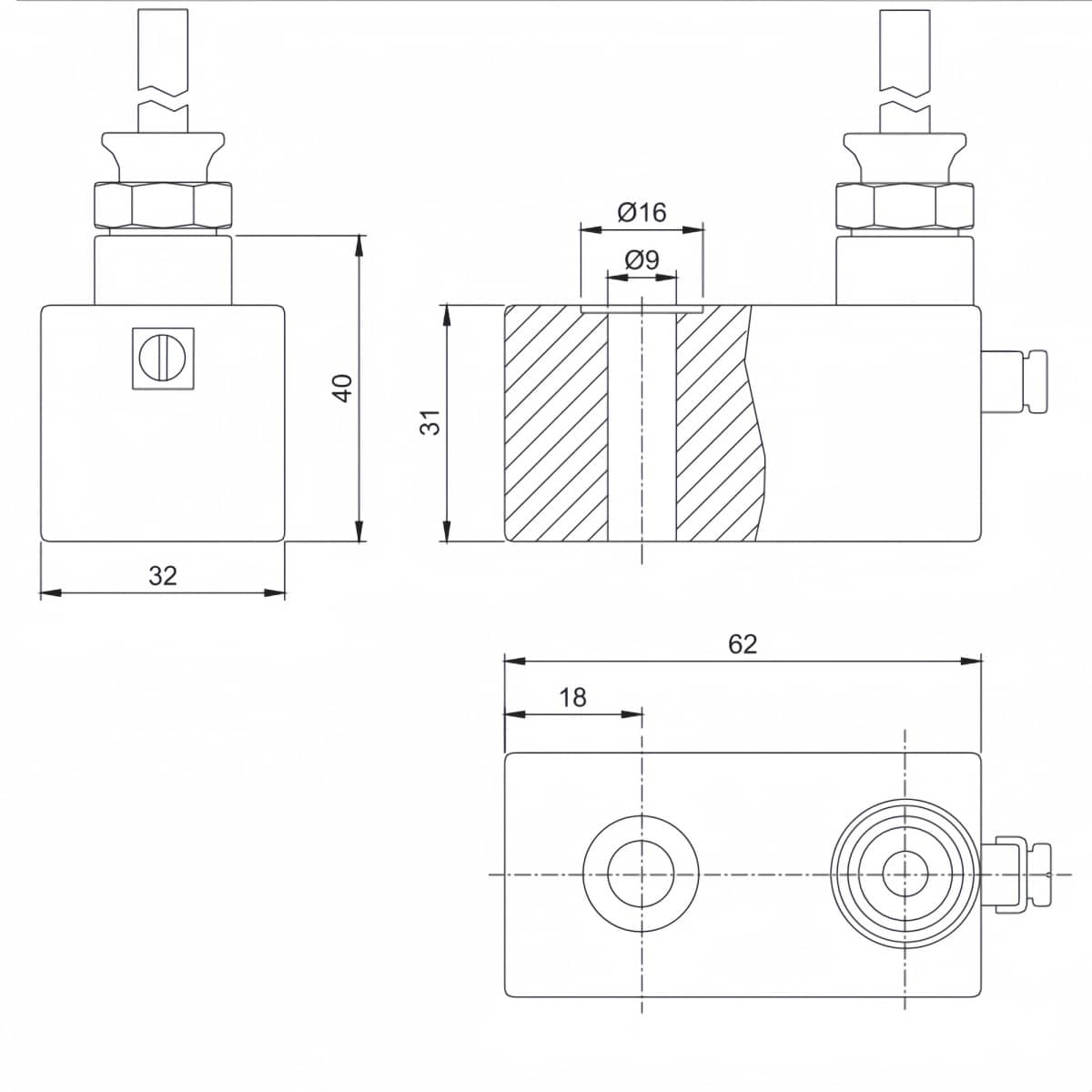

| Diameter | 9 mm |
| Height | 31 mm |
| Code | 280 / 980 / 981 |
| Material | Plastic Copper |
