2L Solenoid Valve

2L US 2/2 way Steam Solenoid Valves, Steam Electro-magnetic Valves

2L solenoid valve, also called US solenoid valve is a kind of pilot steam 2/2 way valve. It can work under 180 ℃, mainly used for controlling the steams, that’s why called the steam solenoid valve. The thread size is from 3/8” to 2”. The working pressure for 2L solenoid valves is high, which can reach 1.5 MPa. The orifice sizes for this valve is also bigger than normal valve for same thread sizes to make the flow rate bigger. With its steady performance, this type of solenoid valve is widely used in the steam control systems in different industries.

Hot Water Solenoid Valve Air Solenoid Valve Gas Solenoid Valve Steam Solenoid Valve Oil Solenoid Valve
Solenoid Valve 12V DC 24V DC 110V AC 220V AC

2L-06 2L-08 2L-10 2L-15 2L-20 2L-25 2L-35 2L-40 2L-50

Working Medium Air,Water,Steam
Operation Pilot operated
Acting Type Normally Closed
Orifi ce Size mm 17
CV Value 4.8
Port Size 3/4″
Operation Fluid Viscosity 20 CST (Below)
Operating Pressure Air,Water,Steam:0.1~1.5Mpa
Max. Pressure Resistance 1.5Mpa
Operating Temperature -5 ~ 185℃
Voltage Range ±10%
Material of Body Brass
Material of Oil Seal PTFE

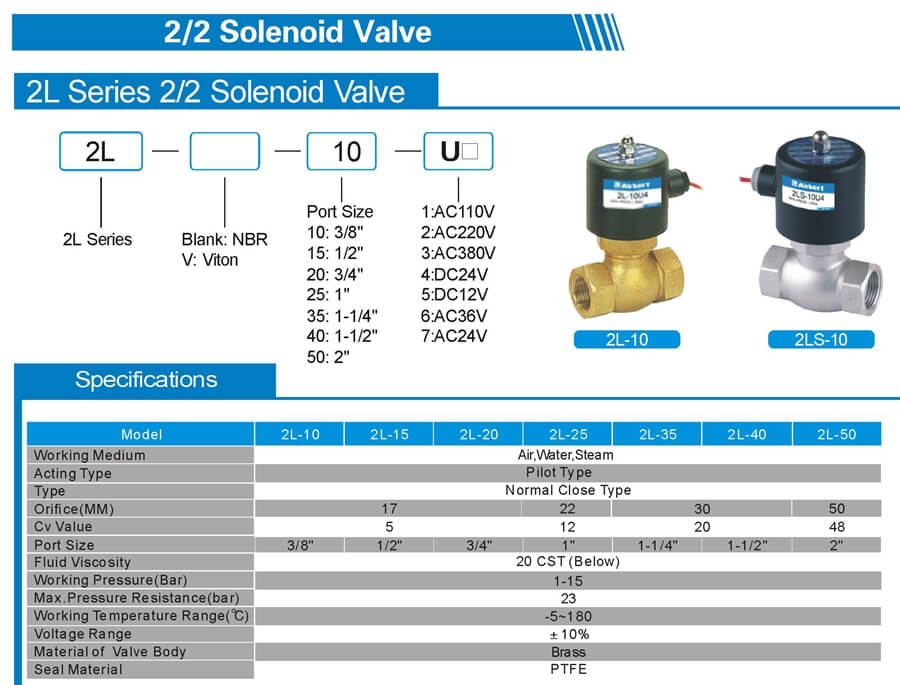

2L US 2S Solenoid Valve Sheet

2L US 2S Solenoid Valve Sheet
