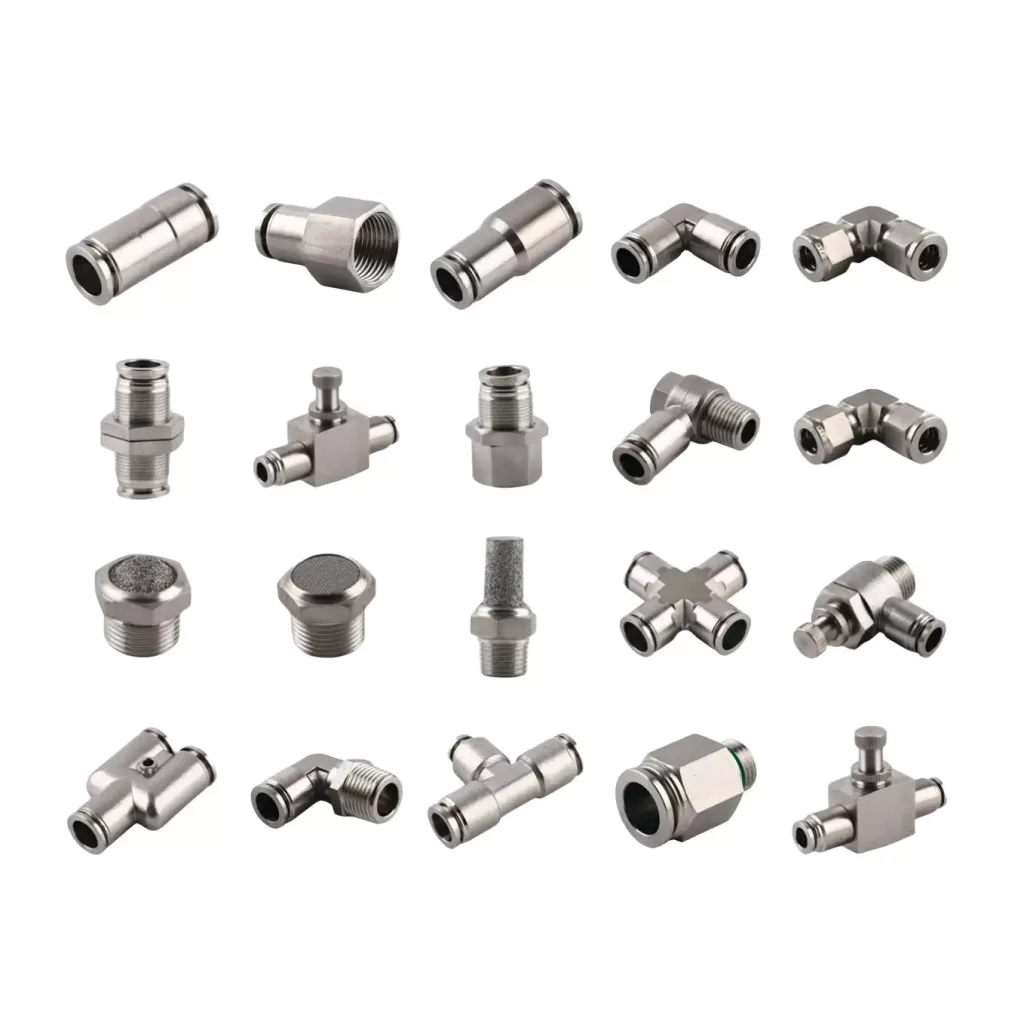

Stainless Steel One Touch Push-In Fittings

Stainless steel one touch fittings, SS304 push-in fittings, and SS316 push-to-connect fittings, are used to fit the PU and Nylon compressed air pipeline, water, and steam. A variety of models, straight, elbow, T fitting, Y fitting, union fitting, speed controller, reducer fittings, connectors, quick connect.

Features:

1. Full standards support, BSPP/BSPT/NPT thread.
2. High temperature resistant, anti-corrosion.
3. Quick one-touch installation.
4. O-ring optional.

5. Tube support, PU, PE, Nylon

6. High durability, stainless steel material.

Body material: Stainless Steel SS304/SS316
Pressure:1-10 bar, 150 PSI
Fluid Media: Compressed air, water, steam.

Name	Stainless Steel Pneumatic Push In Fittings
Materials	Stainless Steel SS304 SS316
Operating Temperature	-20~140°C
Operating Pressure	0~1.5Mpa
Max Pressure	2 Mpa
Fluid	Air, Water, Steam
Tube material	Nylon and Polyurethane PU PE NYLON
Features	2 ways/2 ports; "No oil" specification; Compliant with Food Sanitation Law.
Application	Food, Chemical And Medical Industries
