SS316 Stainless Steel 2 Way 20000 PSI High Pressure Ball Valve
The 10B 15B 20B series stainless steel ball valve supports super high-pressure applications up to 1400 bar 20000 PSI, suitable for air, water, oil, steam, etc. Processed by orbital welding technology, it ensures a brighter surface finish, superior weld quality, and precise sealing performance.
The valve body uses high performance SUS316 stainless steel material, the sealing material is high temperature resistant VITON, working temperature is from -17.8℃ to 204℃
The 2-way ball valve supports thread connection, NPT thread, taper female thread, high precision processing.
Body material: SS316 SUS316
Pressure: 10000 PSI / 690 Bar, 15000 PSI / 1000 Bar, 20000 PSI / 1400 Bar
Working Temperature: -18℃~204℃(VITON/PTFE)
Max Pressure: 140 MPa
Pipe size:1/4”-1”
Fluid Media: Compressed air, Liquid, Oil
Model: 10B, 15B, 20B Series
| No. | Part | Material |
|---|---|---|
| 1 | Handle | SUS304 |
| 2 | Fixing Screw | SUS316 |
| 3 | Valve Stem | SUS316 |
| 4 | Support Ring | PEEK |
| 5 | Panel Nut | SUS316 |
| 6 | Stem O-ring | VITON |
| 7 | Valve Body | SUS316 |
| 8 | Ball | SUS316 |
| 9 | Seat Bonnet | SUS316 |
| 10 | Bearing | PEEK |
| 11 | Plug | SUS316 |
| 12 | Stem O-ring | VITON |
| 13 | Stop Ring | PEEK |
| 14 | Bearing | PEEK |
| 15 | Seat Retainer | SUS316 |
| 16 | Valve Seat | PEEK |
| 17 | Bonnet O-ring | VITON |
| 18 | Plug O-ring | VITON |
| 19 | Nut | SUS316 |

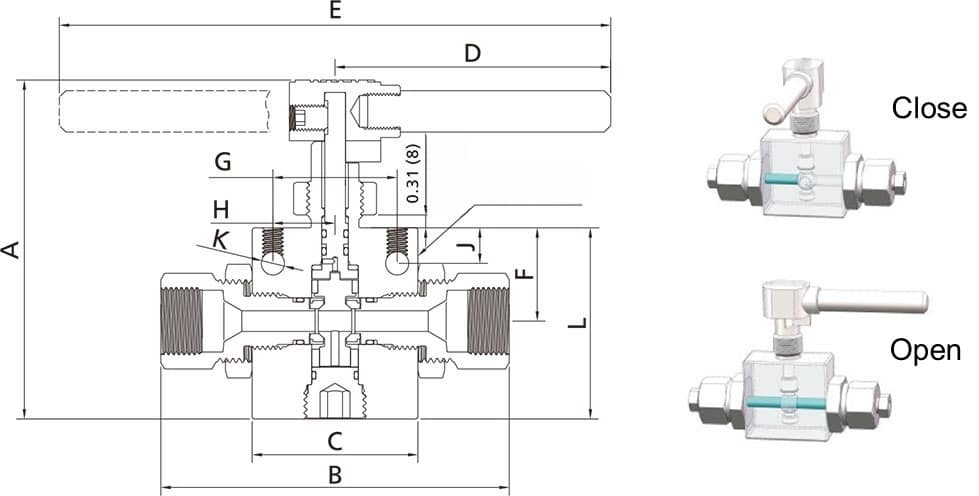

| Model | Port Size | Orifice(mm) | CV | Dimensions(mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | L | Thickness | ||||
| SS-10B1-12-20S-12.7 | 3/4in.20 Taper Female Thread | 12.7 | 10.2 | 136.8 | 197 | 104.6 | —— | 260 | 42.2 | 76.2 | 38.1 | 12.7 | 7.1 | 89.4 | 44.5 |
| SS-10B1-16-20S-12.7 | lin.20 Taper Female Thread | 12.7 | 10.2 | 136.8 | 197 | 104.6 | —— | 260 | 42.2 | 76.2 | 38.1 | 12.7 | 7.1 | 89.4 | 44.5 |
| SS-10B1-12-F-12.7 | 3/4in.NPT Female Thread | 12.7 | 10.2 | 136.8 | 197 | 104.6 | —— | 260 | 42.2 | 76.2 | 38.1 | 12.7 | 7.1 | 89.4 | 44.5 |
| SS-10B1-16-F-12.7 | lin.NPT Female Thread | 12.7 | 10.2 | 136.8 | 197 | 104.6 | —— | 260 | 42.2 | 76.2 | 38.1 | 12.7 | 7.1 | 89.4 | 44.5 |
| SS-15B1-2-F-6.4 | 1/8in.NPT Female Thread | 6.4 | 1.51 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-15B1-4-F-6.4 | 1/4in.NPT Female Thread | 6.4 | 1.51 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-15B1-6-F-6.4 | 3/8in.NPT Female Thread | 6.4 | 1.51 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-15B1-8-F-6.4 | 1/2in.NPT Female Thread | 6.4 | 1.51 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-15B1-4-F-9.5 | 1/4in.NPT Female Thread | 9.5 | 3.51 | 121 | 140 | 76.2 | 126 | —— | 34.9 | 50.8 | 25.4 | 10.3 | 7.1 | 74.9 | 34.9 |
| SS-15B1-6-F-9.5 | 3/8in.NPT Female Thread | 9.5 | 3.51 | 121 | 140 | 76.2 | 126 | —— | 34.9 | 50.8 | 25.4 | 10.3 | 7.1 | 74.9 | 34.9 |
| SS-15B1-8-F-9.5 | 1/2in.NPT Female Thread | 9.5 | 3.51 | 121 | 140 | 76.2 | 126 | —— | 34.9 | 50.8 | 25.4 | 10.3 | 7.1 | 74.9 | 34.9 |
| SS-15B1-12-20S-12.7 | 3/4in.20 Taper Female Thread | 12.7 | 10.2 | 136.8 | 197 | 104.6 | —— | 260 | 42.2 | 76.2 | 38.1 | 12.7 | 7.1 | 89.4 | 44.5 |
| SS-15B1-16-20S-12.7 | lin.20 Taper Female Thread | 12.7 | 10.2 | 136.8 | 197 | 104.6 | —— | 260 | 42.2 | 76.2 | 38.1 | 12.7 | 7.1 | 89.4 | 44.5 |
| SS-20B1-4-20S-2.8 | 1/4in.20 Taper Female Thread | 2.8 | 0.36 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-20B1-6-20S-5.2 | 3/8in.20 Taper Female Thread | 5.2 | 1.23 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-20B1-9-20S-6.4 | 9/16in.20 Taper Female Thread | 6.4 | 1.51 | 103.9 | 107 | 50.8 | 84.5 | —— | 28.6 | 38.1 | 19.1 | 10.9 | 7.1 | 58.6 | 25.4 |
| SS-20B1-6-20S-5.2 | 3/8in.20 Taper Female Thread | 5.2 | 1.23 | 121 | 140 | 76.2 | 126 | —— | 34.9 | 50.8 | 25.4 | 10.3 | 7.1 | 74.9 | 34.9 |
| SS-20B1-9-20S-7.9 | 9/16in.20 Taper Female Thread | 7.9 | 2.93 | 121 | 140 | 76.2 | 126 | —— | 34.9 | 50.8 | 25.4 | 10.3 | 7.1 | 74.9 | 34.9 |
| SS-20B1-12-20S-9.5 | 3/4in.20 Taper Female Thread | 9.5 | 3.51 | 121 | 140 | 76.2 | 126 | —— | 34.9 | 50.8 | 25.4 | 10.3 | 7.1 | 74.9 | 34.9 |
