SR Series SS316 Stainless Steel High Pressure Air Regulator
The SR Series air regulator, SUS316 regulator, features robust construction with high-quality stainless steel SS316 materials to ensure long-lasting performance. The filter regulator is capable of handling high pressures, making it ideal for applications where compressed air is used at high pressure. With its compact design and easy-to-use features, the SR Series is perfect for a wide range of industrial applications, including automotive, industrial, manufacturing, and more.
The high-pressure regulator portion of the unit allows you to precisely control the output pressure, ensuring consistent performance of your pneumatic systems. The pressure gauge provides real-time pressure monitoring, allowing you to quickly and easily adjust the pressure to meet your specific requirements.
With its superior performance, durability, and ease of use, the SR Series High-Pressure Air Filter Regulator is the perfect choice for professionals who demand the best. Whether you need clean and dry air for painting, sandblasting, or other high-pressure applications, the SR Series will deliver consistent and reliable performance every time. Invest in the SFR Series High Pressure Air Filter Regulator for unparalleled quality and peace of mind in your pneumatic systems.
Body material: SS316 SUS316
Pressure: 0.15 MPa - 3.5 MPa
Max Pressure: 4.0 MPa
Filter: 5um, 10um, 20um, 40um, customized.
Pipe size:1/4”-1”
Fluid Media: Compressed air

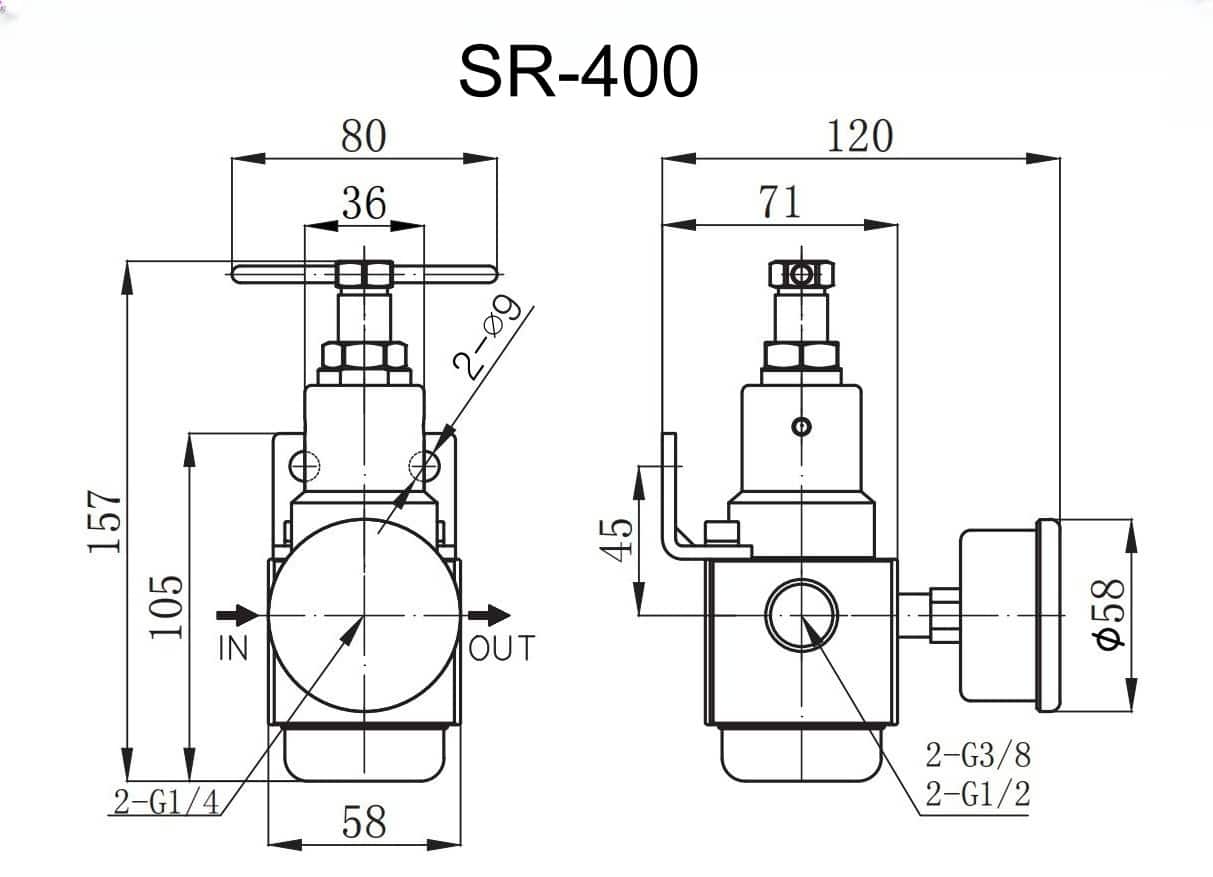

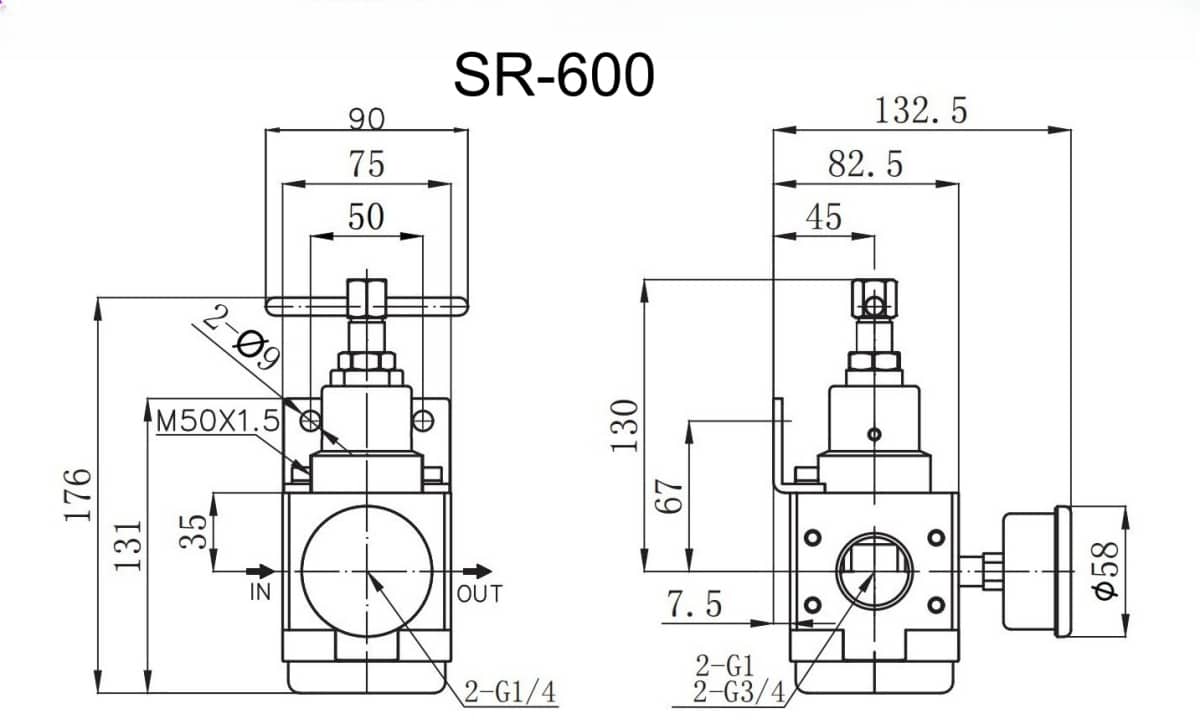

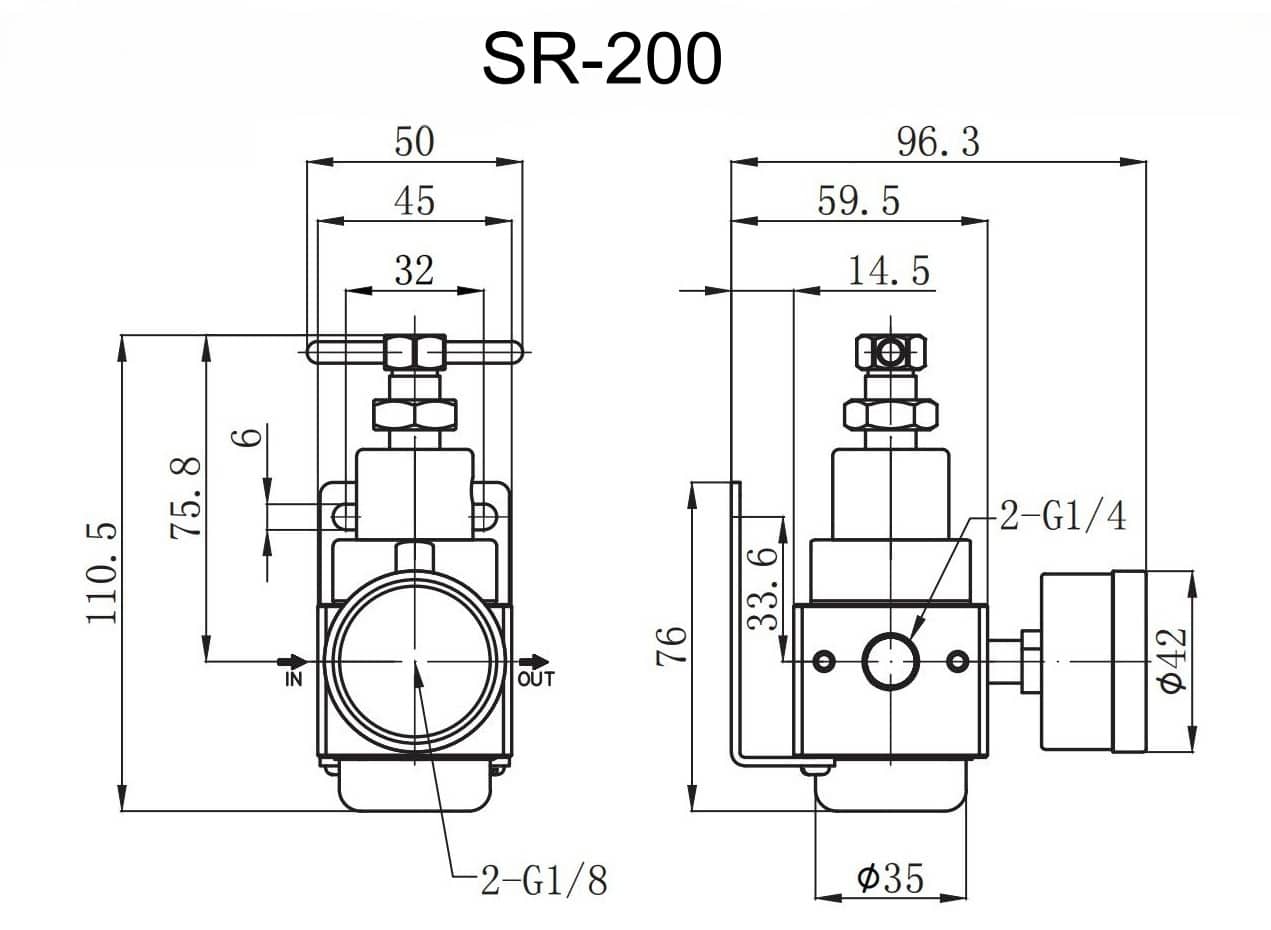

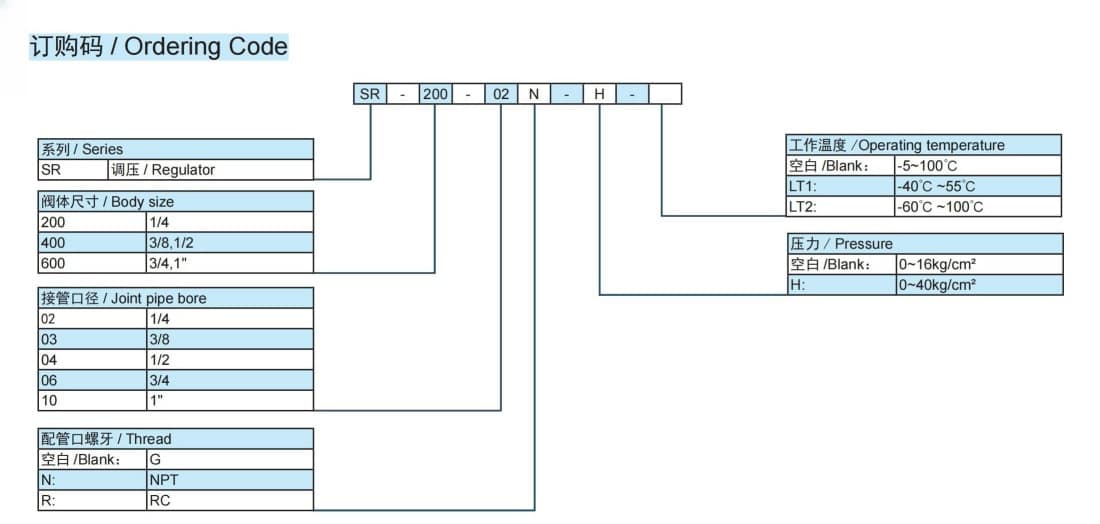

Model: SR-200 / SR-400 / SR-600
| Type-Name | Air regulator | ||||
|---|---|---|---|---|---|
| Model | SR200 | SR400 | SR400 | SR600 | SR600 |
| Port Size(G) | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Max Flow Rate(L/Min) | 1850 | 2250 | 2520 | 9000 | 9400 |
| Regulator construction | Piston | ||||
| Working Medium | Air | ||||
| Pressure Regulating Range | 0.15~2MPa | ||||
| Pressure Resistance | 6MPa(870Psi) | ||||
| Operating Temperature Range | -40~100℃ | ||||
| Material | SUS316 stainless steel | ||||
| Accessories | Pressure gauge,mounting bracket,screw x2 | ||||
| Weight | 1150g | 1350g | 1300g | 3300g | 3200g |
-
Compact & Lightweight: Easy to install and operate with a space-efficient design.
-
Press-in Self-locking Mechanism: Prevents external interference, ensuring the set pressure remains stable.
-
Minimal Leakage: Effectively reduces compressed air waste.
-
Sensitive & Precise Pressure Adjustment: Provides accurate and responsive pressure control.
-
High Pressure & Temperature Resistance: Built to withstand both high-pressure and extreme temperature conditions.
-
Strong Anti-Interference: Highly adaptable to system pressure fluctuations, maintaining reliable performance.
