PU225 SLP Solenoid Valves

PU225 Series Brass Solenoid Valve

The PU225 Series Solenoid Valve is a high-quality fluid control solution designed for various industrial applications. With its advanced features and durable construction, this solenoid valve offers efficient and reliable performance in controlling the flow of fluids.

PU225 PU220 Series solenoid valve is designed to meet applications that need affordable, reliable solenoid valves. The PU225-04 solenoid valve pilot-operated type has a thread size ranging from 3/8” to 2”.We started production when the factory was established. We have two types material of for these valves: brass body and stainless steel body, and the function can be a normally closed valve and normally open. With good quality and stable performance, this type of solenoid valve is widely used in many different industrial fields. Our output can reach 600,000Pcs per year.

Body material: Brass
Pressure: 0.5 - 10 bar
Max Pressure: 16 bar
Orifice:Ф13mm-50mm
Pipe size:3/8”-2”
Fluid Media: Water、Hot Water、Air、Gas 、Oil Etc

Working Medium Air, Water,Oil,Gas, Steam
Operation Pilot Operated
Acting Type Normally Closed

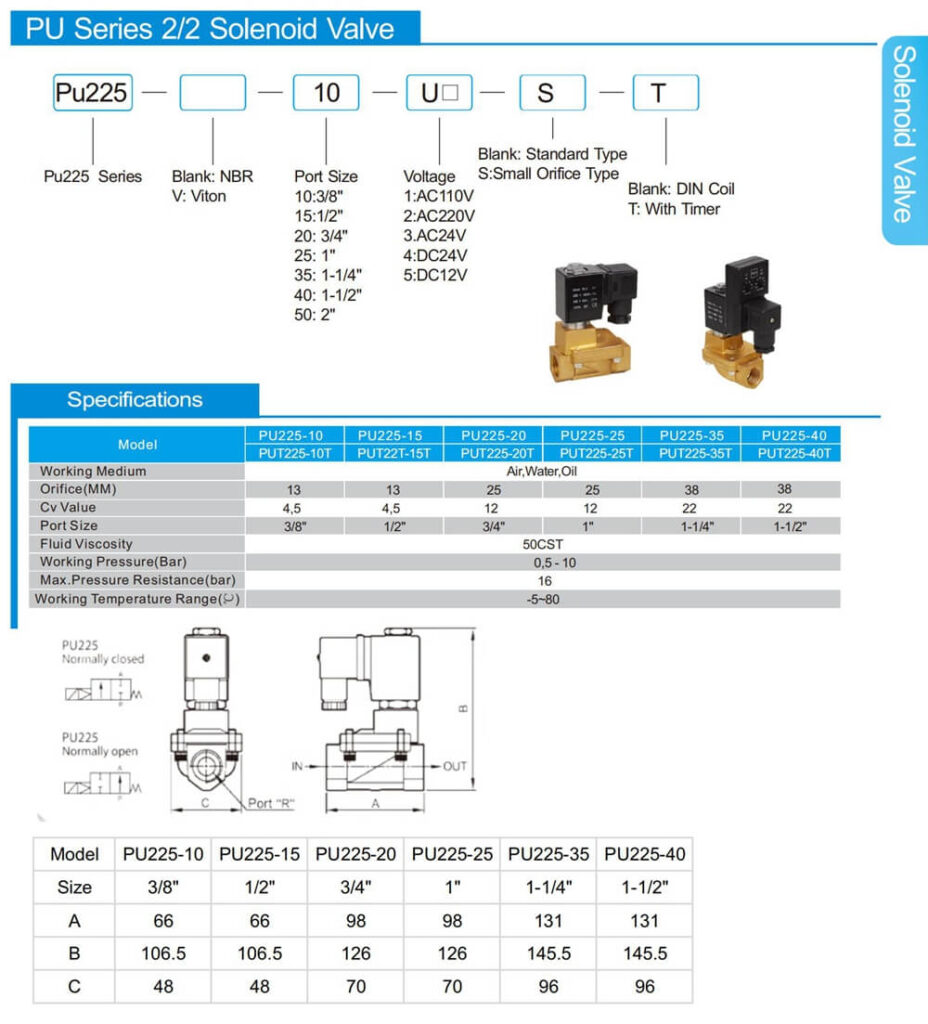

Orifice Size(mm) 13mm / 25mm/ 38mm
CV Value 4.5 / 12 / 22
Port Size 3/8" 1/2″  3/4" 1" 1-1/4" 1-1/2" 2"
Operation Fluid Viscosity 20 CST Below
Operating Pressure 0.5 - 10 bar
Max. Pressure Resistance 16 bar
Operating Temperature  -5~80℃
Voltage Range ±10%
Material of Body Brass
Material of Oil Seal NBR
