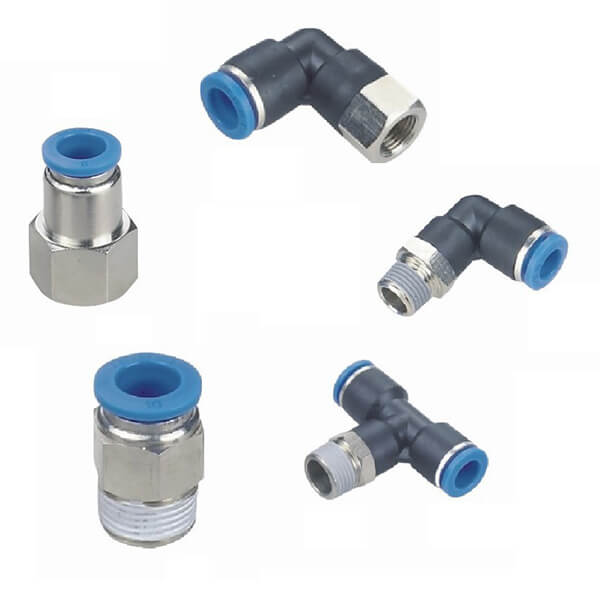

  • pneumatic one touch in fitting PC PL POC PB PLF touch-in fittings

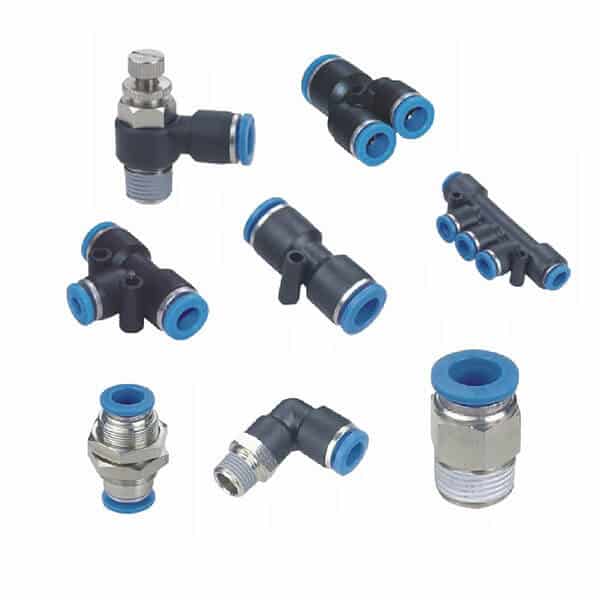

  • plastic one touch in fittings

Plastic Pneumatic One Touch In Fittings

One touch fittings for hoses made of plastics are used to connecting the hoses and other elements in pneumatic systems. Uncomplicated construction and high quality guarantee easily and quick installment or disinterment. The body material is brass, the sleeve material is POM. The lock claw material is SUS, the sealing material is NBR. Tightness connection between the fitting and the tube is made after pushing the end of hose in the fitting body to feel resistance. Disconnection is possible after pushing the blue plastic ring.

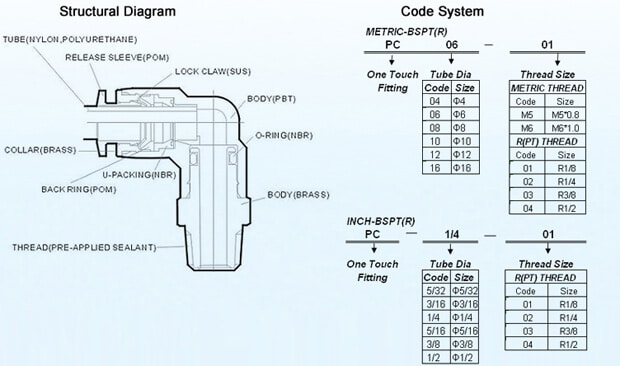

one touch-in fittings drawing

one touch-in fittings drawing

Applications:
*One touch type connection tool for air pressure piping.
*Various uses depending on the user’s environment.

Features:
*One-Touch push-to-connect configuration allows an instant tubing connection.
*Smooth-Edge release sleeve design facilitates a quick tubing disconnection
*Aesthetically pleasing nickel-plated metallic optional feature ensures anti-containation
properties of an extended product lift.
*Pre-applied sealant on all external threads eliminates the additional sealing requirement.
*Internal and/or external flat-to&flat hexagonal configurations for both metric and inch specifications
allow a proper tightening or directional orientation upon installation by using L key or allen wrench
for the applicable model types.

Specifications:
*Fluid Type: Air(No other gases or liquids)
*Working Pressure:0-150Psi
*Negative pressure: -29.5 in Hg
*Working temperature:32 -140°F / 0-60℃
*Applicable Tube:Polyurethane,Polyethylene and Nylon

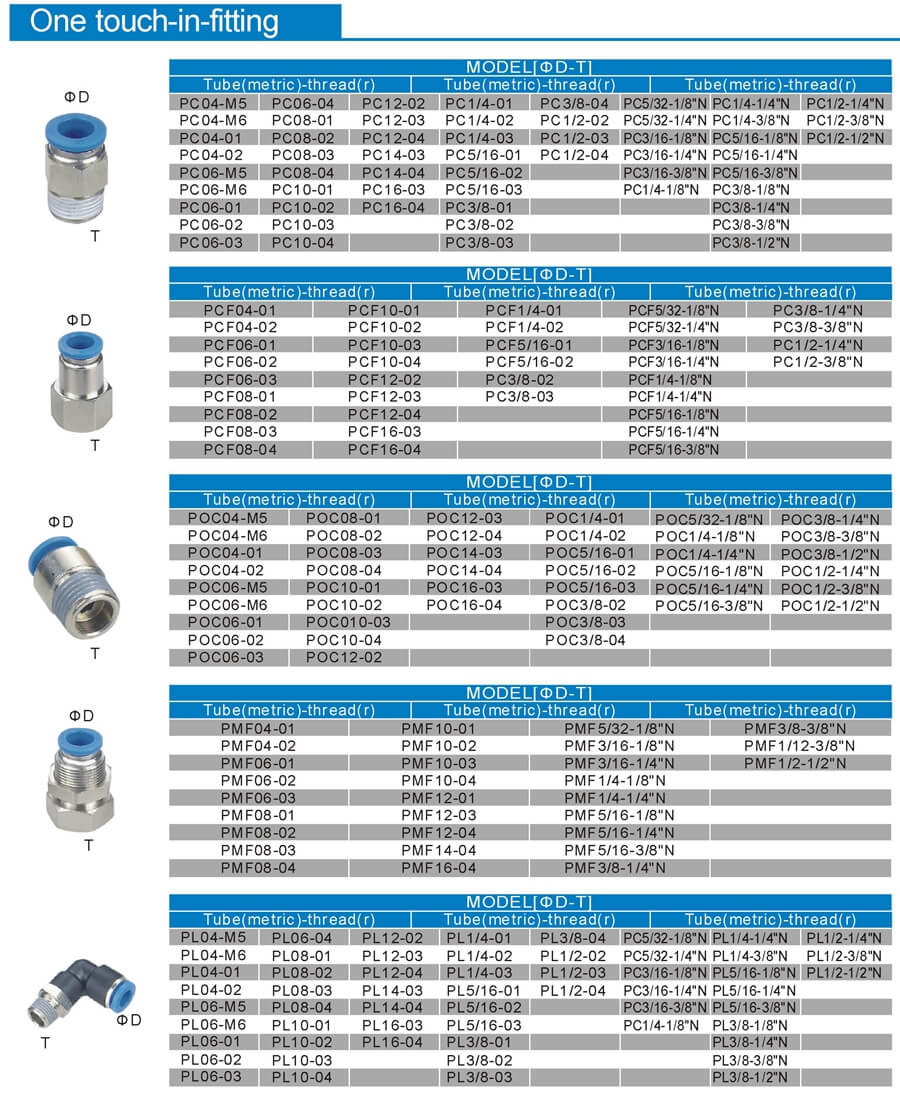

one touch in fittings pc pcf poc pmf pl

one touch in fittings pc pcf poc pmf pl

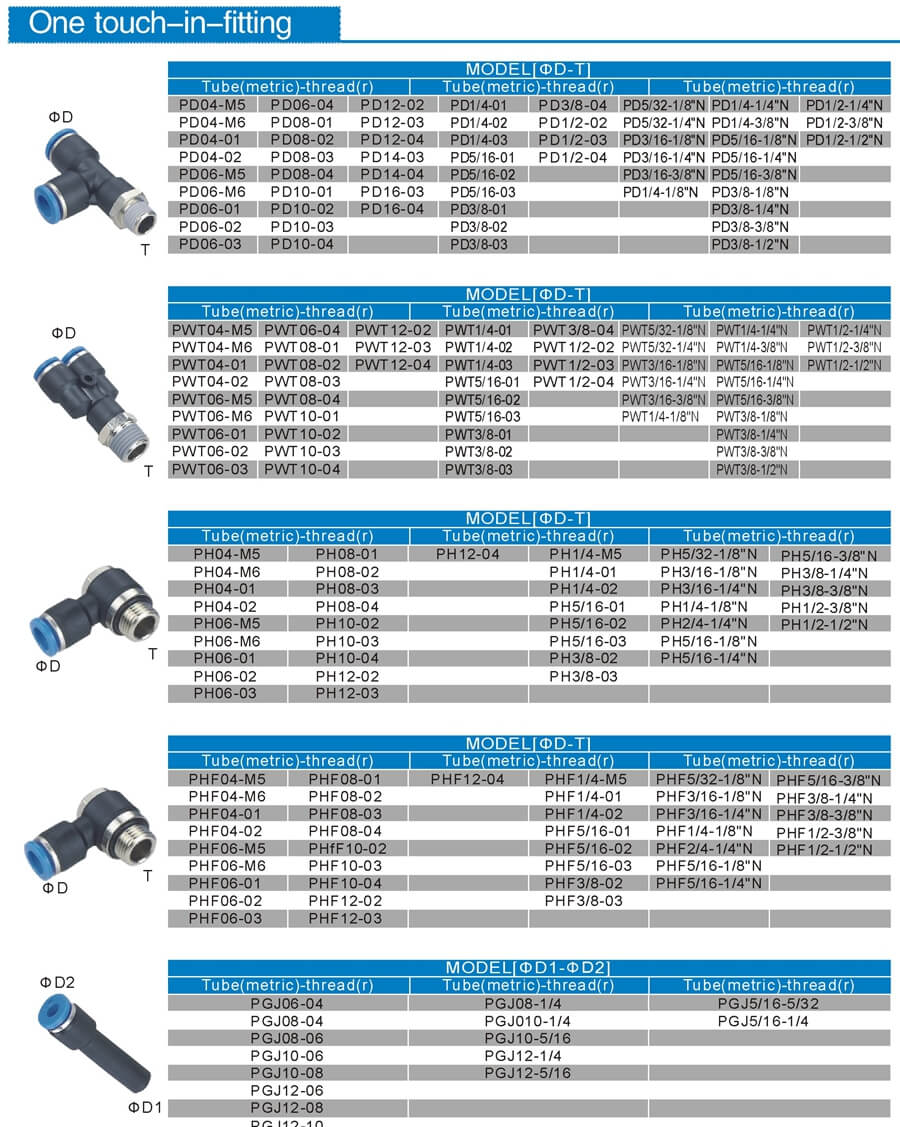

one touch in fitting PD PWT PH PHF PGJ

one touch in fitting PD PWT PH PHF PGJ

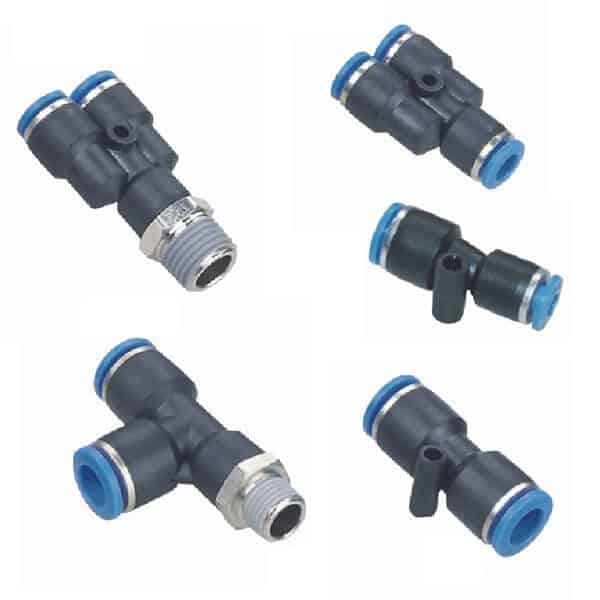

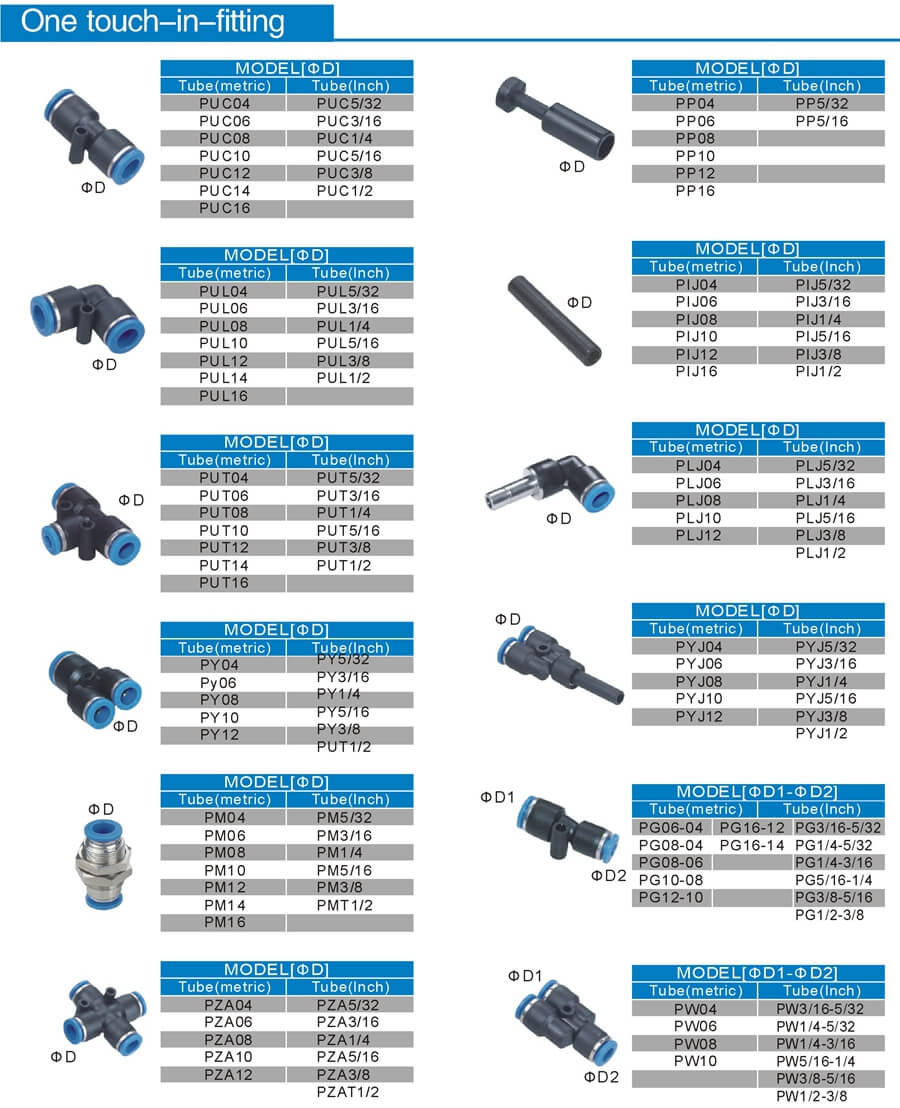

one touch in fitting PUC PUL PUT PY PM PZA PW PG PP

one touch in fitting PUC PUL PUT PY PM PZA PW PG PP

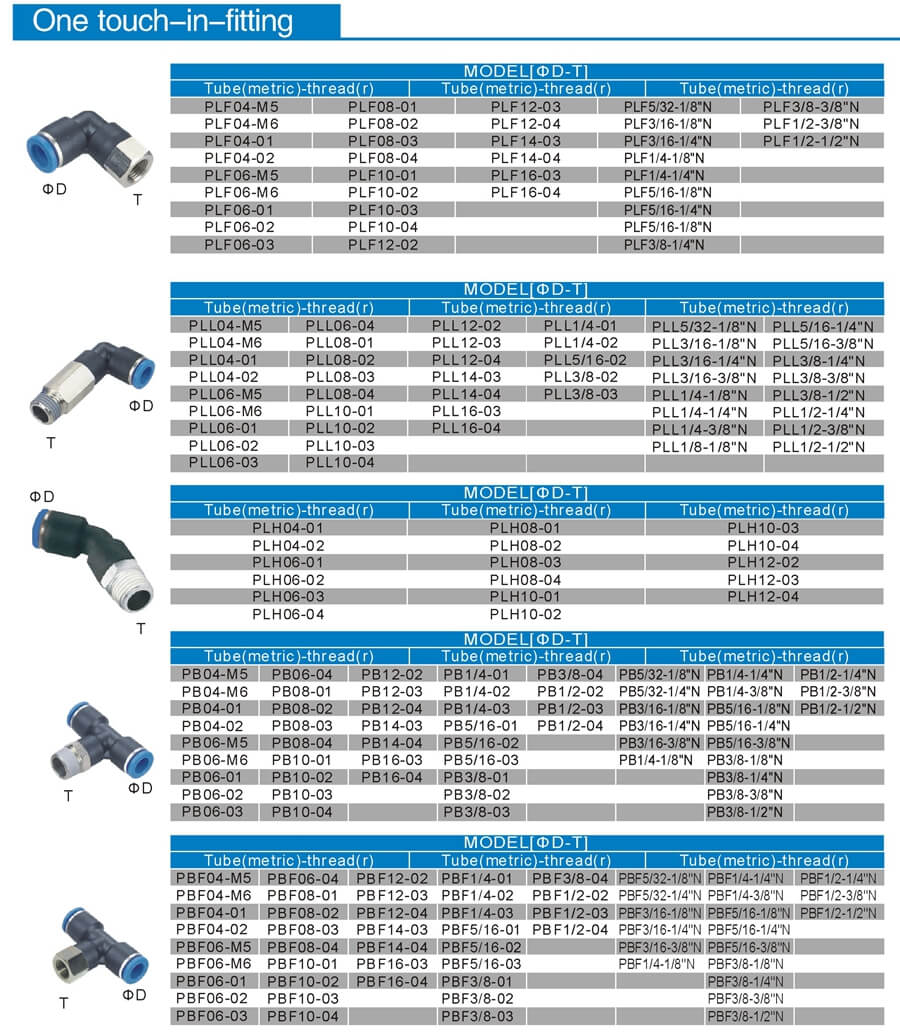

one touch in fitting PLF PLL PLH PB PBF

one touch in fitting PLF PLL PLH PB PBF

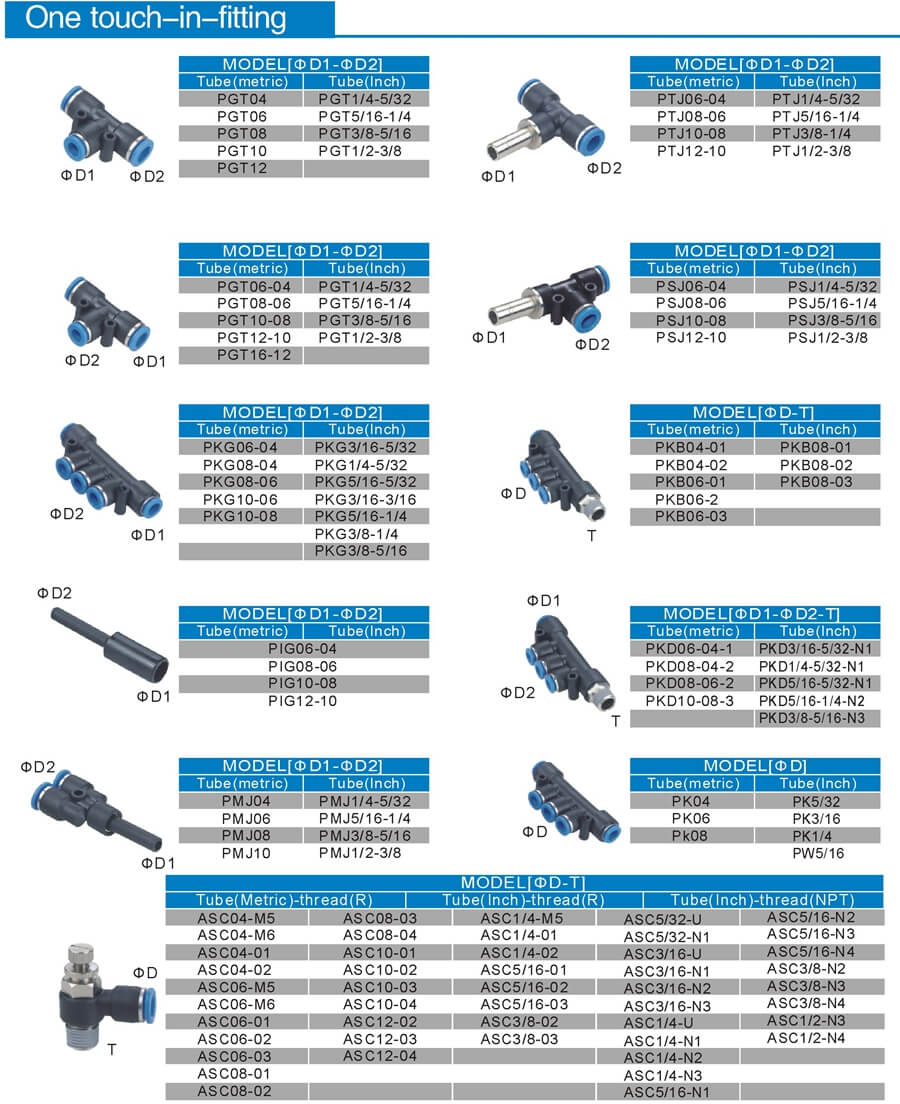

one touch in fitting PGT PKG PMJ SC PK

one touch in fitting PGT PKG PMJ SC PK

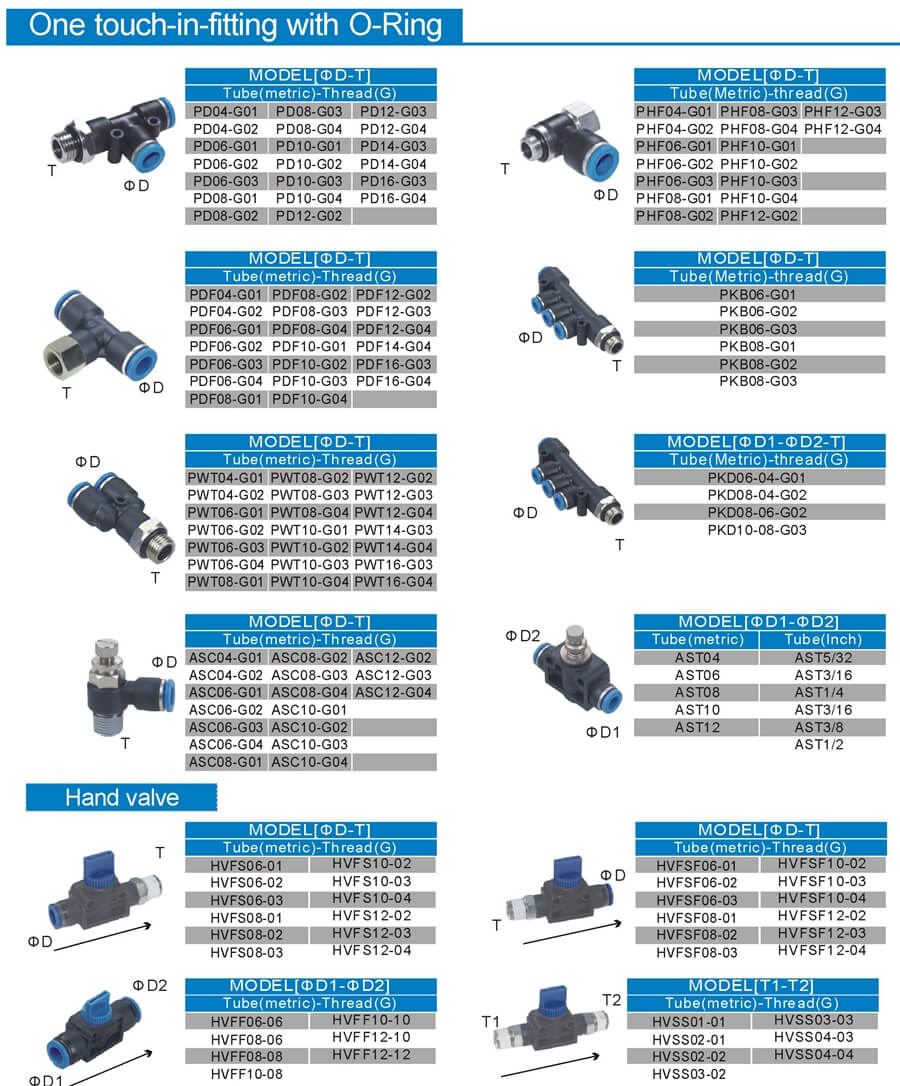

one touch in fitting with o-ring PD PHF PWT PDF SC HVFS HVFSF HVFF HVSS

one touch in fitting with o-ring PD PHF PWT PDF SC HVFS HVFSF HVFF HVSS

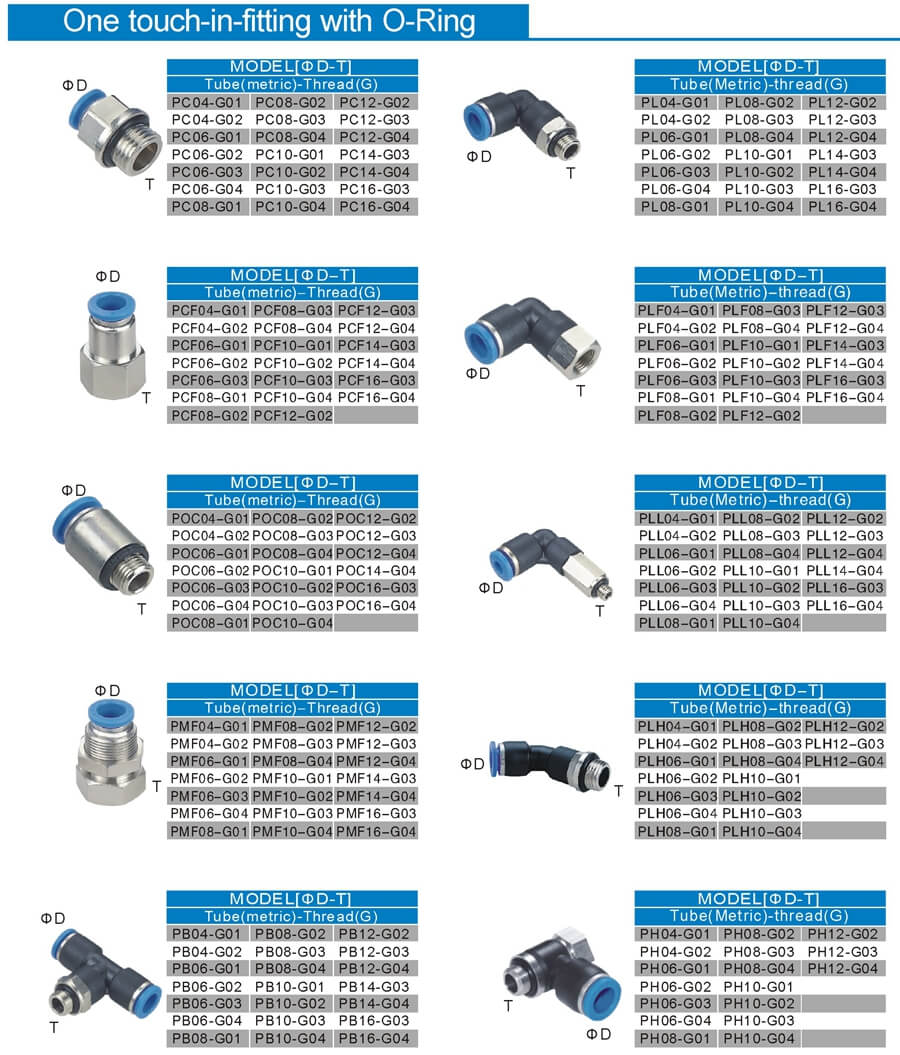

one touch in fitting with o-ring PC PL PCF POC PLH PB

one touch in fitting with o-ring PC PL PCF POC PLH PB
