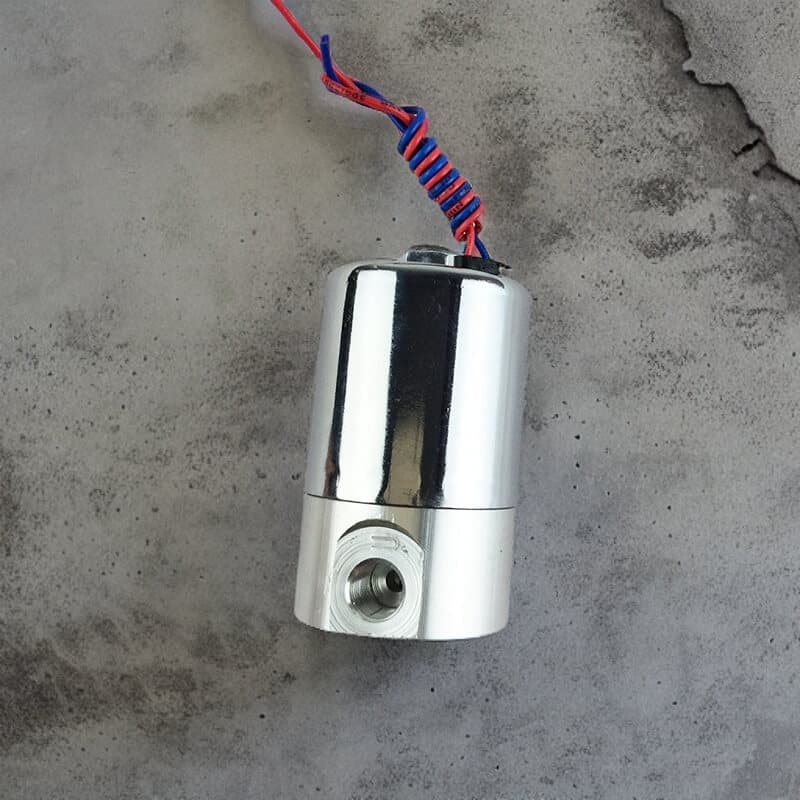

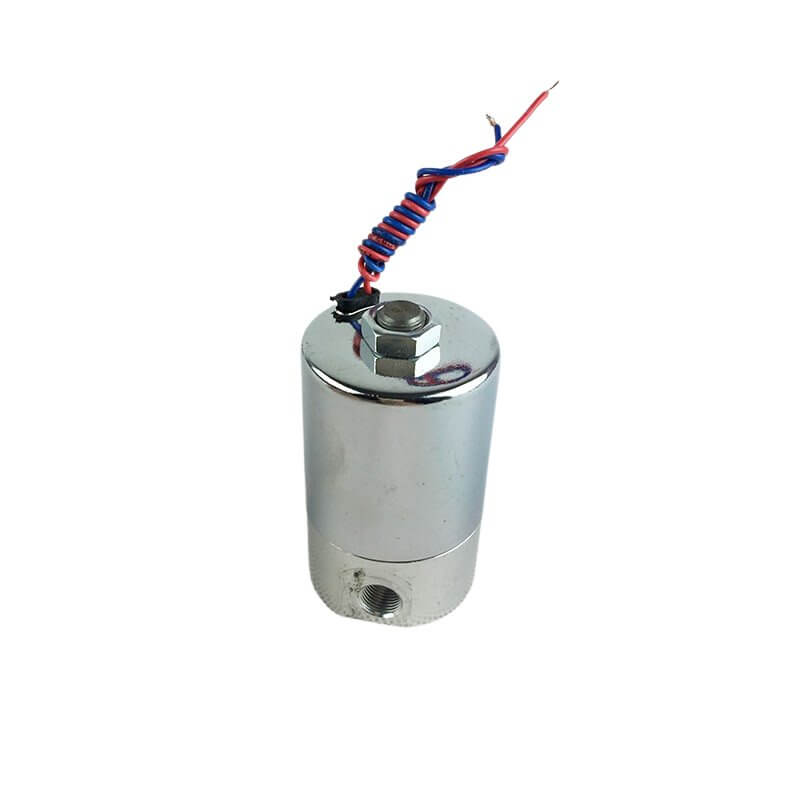

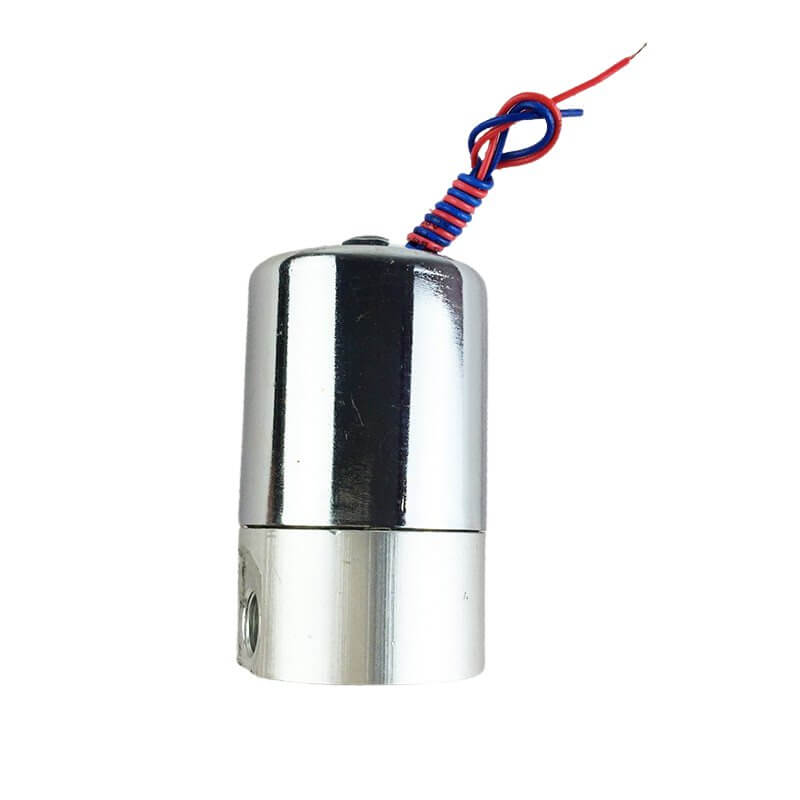

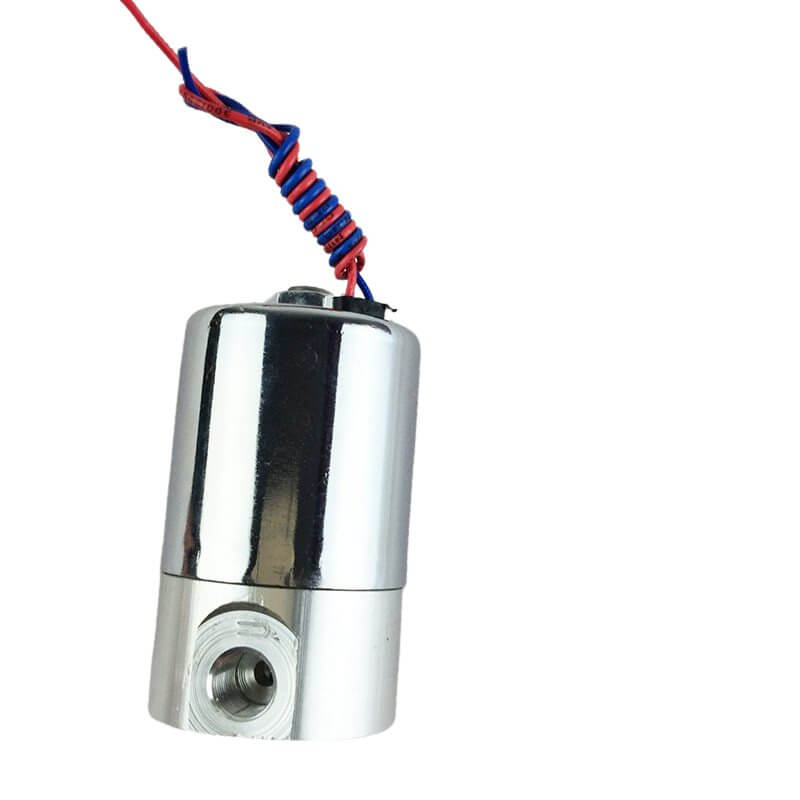

Miniature Dental Solenoid Valve
The Q22XD series miniature solenoid valve is highly adaptable and can be used in various applications such as dental machines, process automation, fluid handling systems, pneumatic systems, and more. Its versatility makes it suitable for controlling the flow of water, air, or gas in diverse industrial processes. Built with precision and quality in mind, the Q22XD solenoid valve delivers consistent and reliable performance over time.
Features:
1. The valves have 2/2 and 3/2 ways optional, orifice 1mm, 2mm, 3mm.
2. Low Power consumption
3. Easy installation, compact design.
4. Affordable, nice maintenance.
2. Low Power consumption
3. Easy installation, compact design.
4. Affordable, nice maintenance.
Body material: Aluminum
Pressure:1-10 bar, 150 PSI
Fluid Media: water, air
|

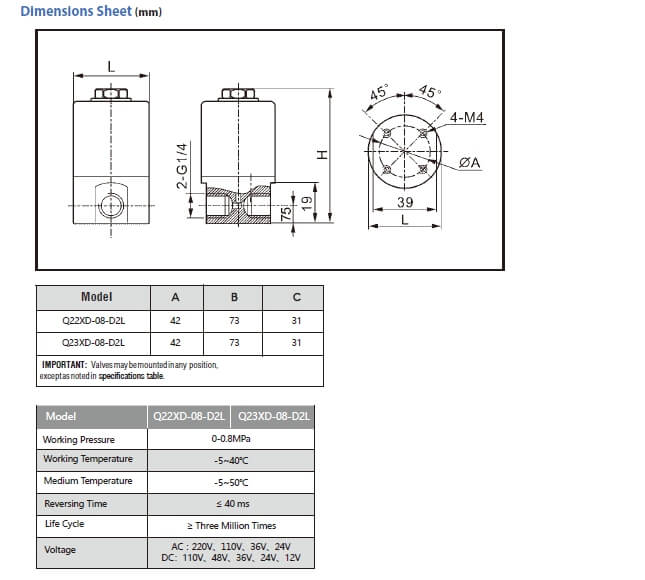

Model
|
Q23XD-2L
|
Q22XD-2L
|
|
Way and position
|
3/2 way
|
2/2 way
|
|
Working medium
|
Air, Water, Oil, Gas
|
|
|
Port Size
|
G1/8″
|
|
|
CV Value
|
5
|
10
|
|
Aperture Of Flow Rate (mm)
|
20
|
25
|
|
Valve Type
|
Normally Closed Type
|
|
|
working pressure
|
0~0.8 Mpa
|
|
|
Max. Pressure Resistance (bar)
|
1Mpa
|
|
|
temperature
|
-5~ +80℃
|
|
|
Material Body
|
Brass, aluminum
|
|
|
Acting
|
inner pilot Type
|
|
|

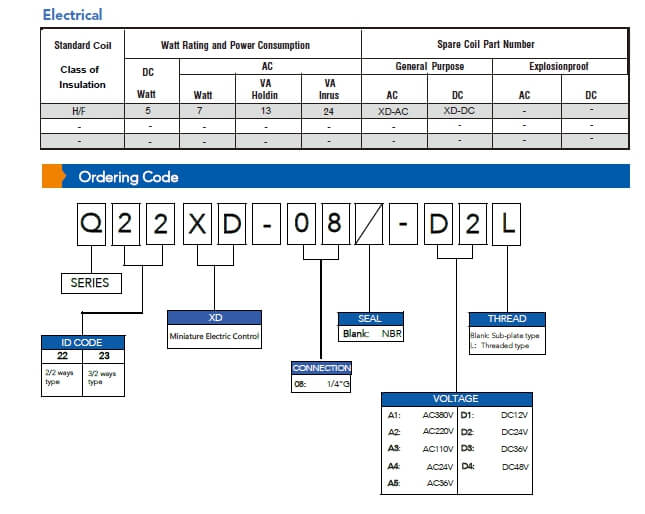

Voltage Range
|
12VDC 24VDC 24VAC 110VAC 220VAC 380VAC
|
|
|
Protect Class
|
IP65
|
|
|
SEAL
|
NBR
|
|
