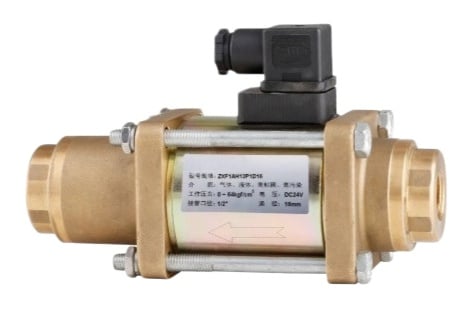

AFX Series 60Bar High Pressure Axial Solenoid Valve
The AFX series axial solenoid valve is a 2/2-way normally closed valve designed for high-flow and stable fluid control in industrial applications. Featuring an axial flow structure, this valve provides low pressure drop, high flow capacity, and reliable sealing performance. The valve opens when energized and closes when de-energized, ensuring fast response and dependable operation.

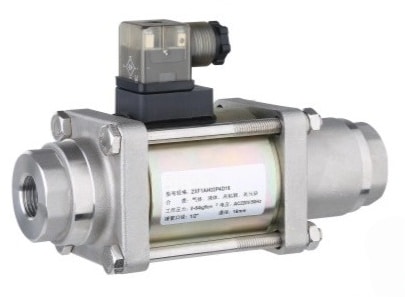

With a robust construction available in forged brass or stainless steel, the AFX series offers excellent durability and corrosion resistance for use with air, water, gas, and other compatible media. The valve supports flexible installation in various positions, with optimal performance achieved in a vertical orientation.
Equipped with multiple voltage options (AC and DC) and various seal materials such as PU, NBR, EPDM, and VITON, the AFX series can be customized to meet different working conditions. Its wide pressure range, stable performance, and compact axial design make it an ideal choice for automation systems, pneumatic equipment, water treatment, and industrial fluid control applications.
Technical Specifications
- Size: 1/4″ – 1-1/2″
- Material: Brass, Stainless Steel
- Media: Water, air, oil, steam, gas.
- Temperature: 0°C to +70°C
- Voltage: 24VDC, 220VAC, 110VAC, 12VDC
- Connection: Threaded
- Control Type: Normally Closed (NC) / Normally Open (NO)
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Orifice (mm) | Body Material | Operation | Coil Type | Thread Standard |
| AFX | 10 | U2 | B | 10L | S1 | C | D | N |
| 08: 1/4″ 10: 3/8″ 15: 1/2″ 20: 3/4″ 25: 1″ 30: 1-1/2″ |
U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC | B: PU | 10mm-30mm | B: Brass S1: SS316 S2: SS304 | C: Normally Closed O: Normally Open | D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof | B: BSP G: G N: NPT |
Dimensions
| Model | A | B | C | D | E | H |
|---|---|---|---|---|---|---|
| AXF-10 | 162.5 | 60 | 125.5 | 30 | 6.5 | 115 |
| AXF-16 | 184 | 70 | 133 | 40 | 6.5 | 126 |
| AXF-17 | 215 | 80 | 148 | 45 | 8.5 | 144 |
| AXF-25 | 246 | 90 | 178 | 50 | 8.5 | 154 |
| AXF-30 | 258 | 125 | 180 | 92 | 13 | 191 |
Technical Specifications
| Pipe Size |
Orifice mm |
CV Factor |
Operating pressure diferential (kgflcm²) | Coil Type |
Coil Class |
Power | Max. Fluids Temp ℃ |
Weight KG |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | VA | W | ||||||||||
| Air | Opposite pressure | AC 220V |
DC 24V |
||||||||||
| AC | DC | AC | DC | ||||||||||
| 1/4° | 10 | 2.5 | 0 | 64 | 64 | 16 | 16 | A | H | 42 | 42 | 120 | 2.45 |
| 3/8″ | 10 | 2.5 | 0 | 64 | 64 | 16 | 16 | A | H | 42 | 42 | 120 | 2.4 |
| 1/2′ | 10 | 2.5 | 0 | 64 | 64 | 16 | 16 | A | H | 42 | 42 | 120 | 2.4 |
| 3/8″ | 16 | 5.5 | 0 | 64 | 64 | 16 | 16 | A | H | 50 | 50 | 120 | 3.5 |
| 1/2′ | 16 | 5.5 | 0 | 64 | 64 | 16 | 16 | A | H | 50 | 50 | 120 | 3.45 |
| 3/4″ | 17 | 7.5 | 0 | 64 | 64 | 16 | 16 | A | H | 57 | 57 | 120 | 5.3 |
| 1″ | 25 | 13 | 0 | 64 | 64 | 16 | 16 | A | H | 77 | 77 | 120 | 7.8 |
| 1-1/4” | 30 | 16 | 0 | 64 | 64 | 16 | 16 | A | H | 100 | 100 | 120 | 14.4 |
| 1-1/2 | 30 | 16 | 0 | 64 | 64 | 16 | 16 | A | H | 100 | 100 | 120 | 14.5 |
