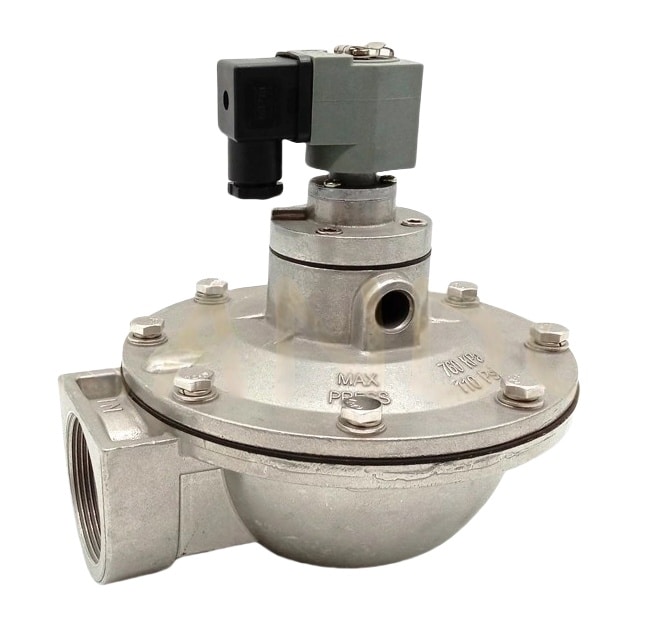

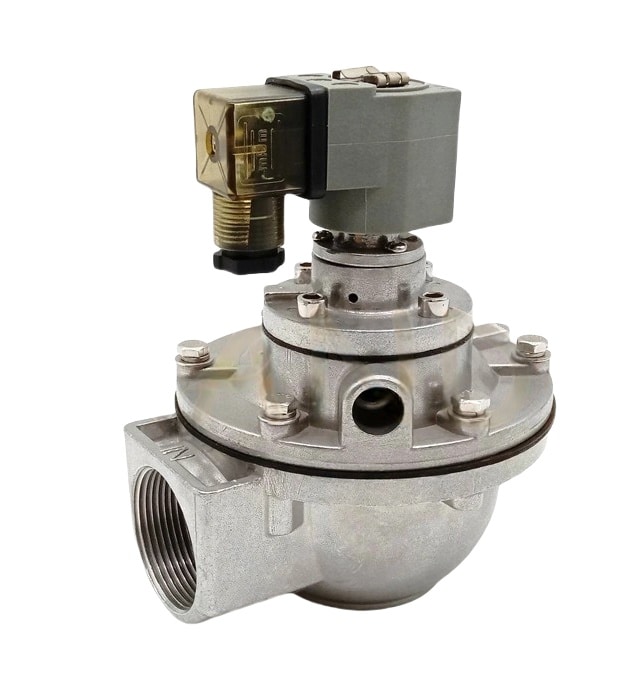

GOYEN Type diaphragm valve 2 inch
GOYEN Type diaphragm valve 2 inch
GOYEN Type diaphragm valve 2 inch

GOYEN Type Dust Clean Diaphragm Pulse Solenoid Valve

GOYEN Type CA45T000 CA50T000 CA62T000 CA76T000 Series Dust Cleaning Diaphragm Pulse Jet Solenoid Valve, aluminum alloy body material and stainless steel body materials, explosion-Proof Device for generating dust cleaning vibration airflow. Threaded type, Flanged Type, Compression Fitting type connections. Anti-Corrosion/Die Casting Dense/No Coating Peeling/No Burrs/No Cracks. More than 1 million working cycles, diaphragm replacement parts available. Pulse jet solenoid valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Features:

1. GOYEN Type
2. Port Sizes: 3/4", 1", 1-1/2", 2", 2-1/2", 3"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting, stainless steel.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Air
Product Code: CA45T000 CA50T000 CA62T000 CA76T000

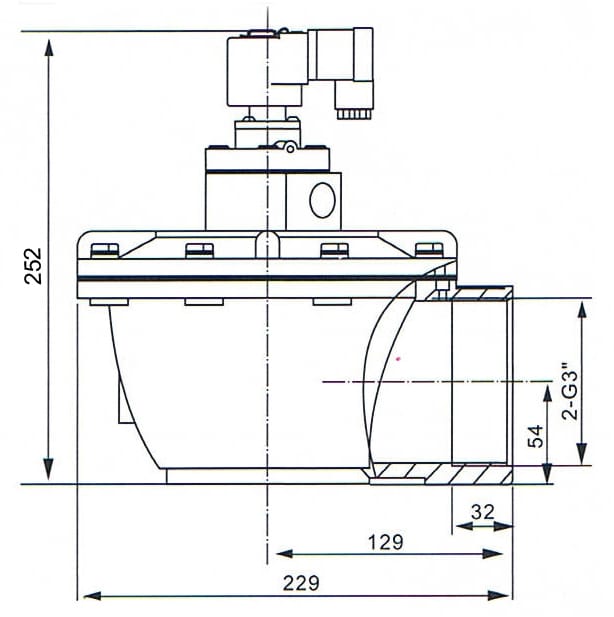

CA76T000 Goyen Type diaphragm Valve

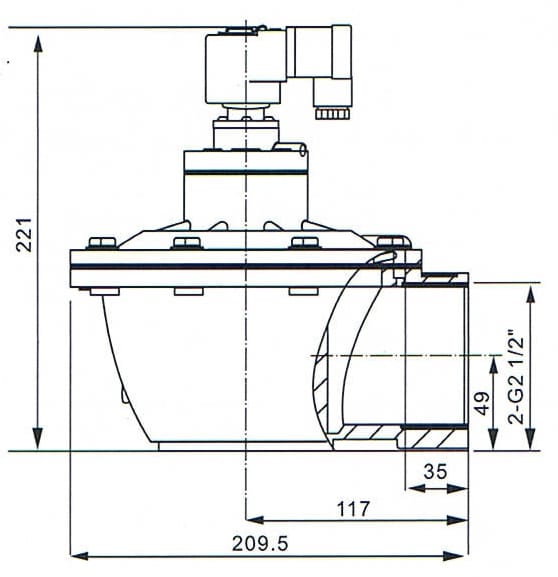

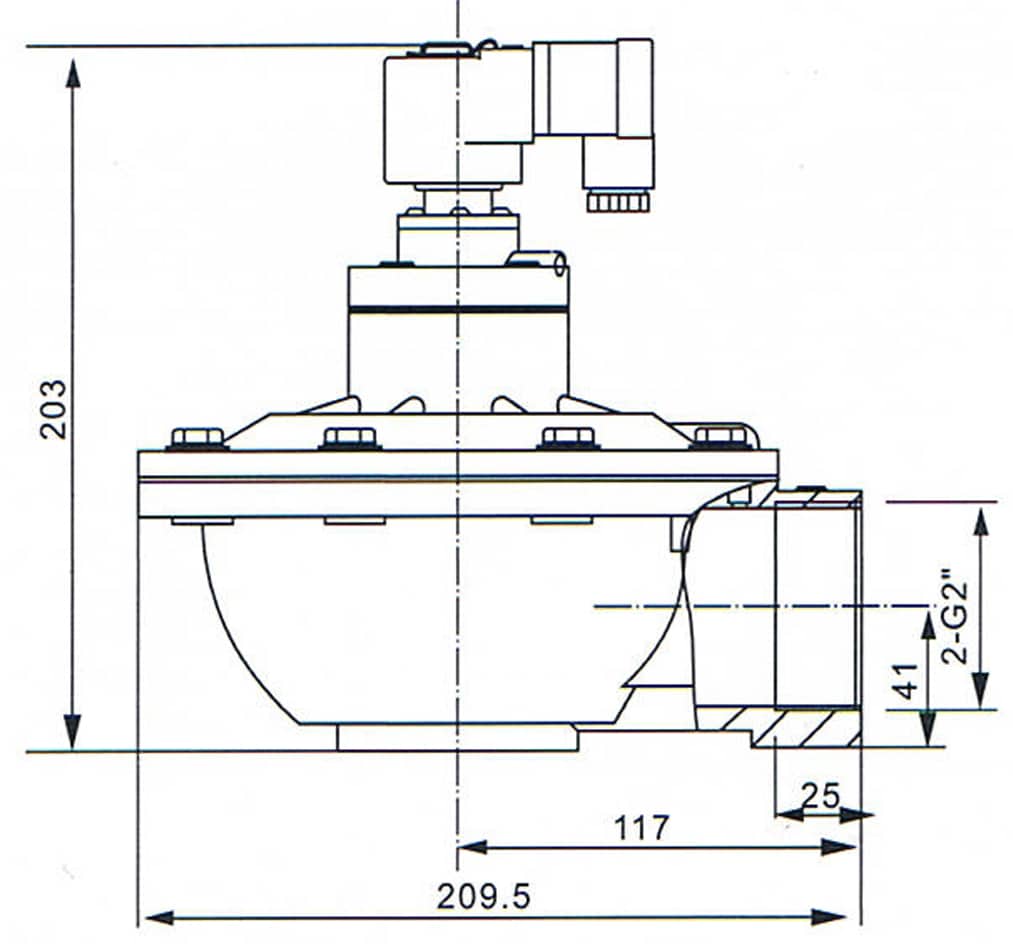

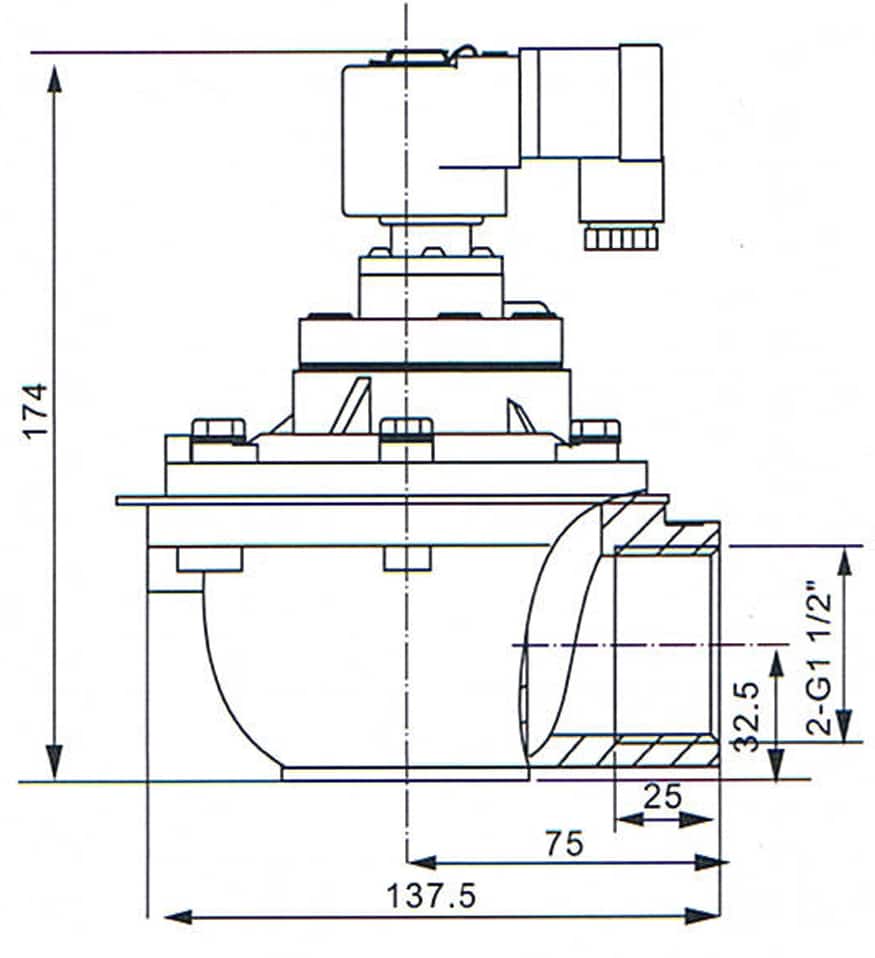

Model No RCAC15T4002 RCAC20ST4002 RCAC25T4002 RCAC35T4002 CA45T000 CA50T000 CA62T000 CA76T000
Orifice Size
(mm)		 15 20 25 35 45 50 62 76
Port Size
(Inch)		 1/2'' 3/4'' 1'' 1 1/2'' 1 1/2'' 2'' 2 1/2'' 3''
Diaphragm Quantity 1 2
Working Pressure 0.35 to 0.85 MPa (5 to 125 PSI)
Voltage 24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material NBR, FKM, EPDM
Body Material Aluminum Alloy
Valve Structure Right Angle (Outlet is at 90° to Inlet), Threaded Port, Compression Fitting

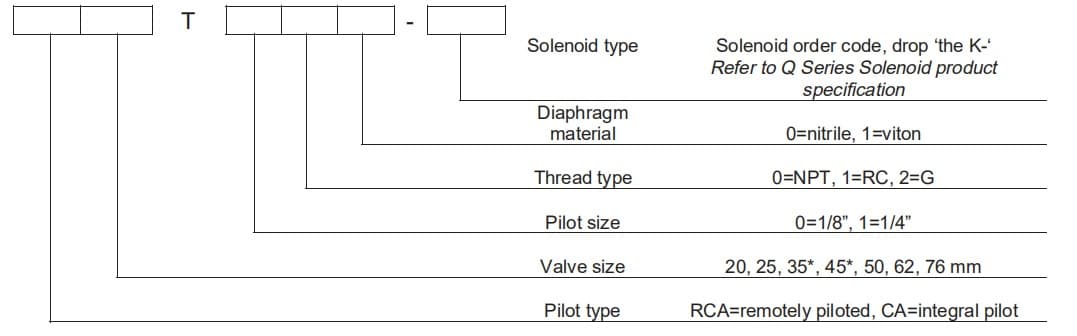

Goyen Type diaphragm Valve Code
Pulse Solenoid Valve Applications
