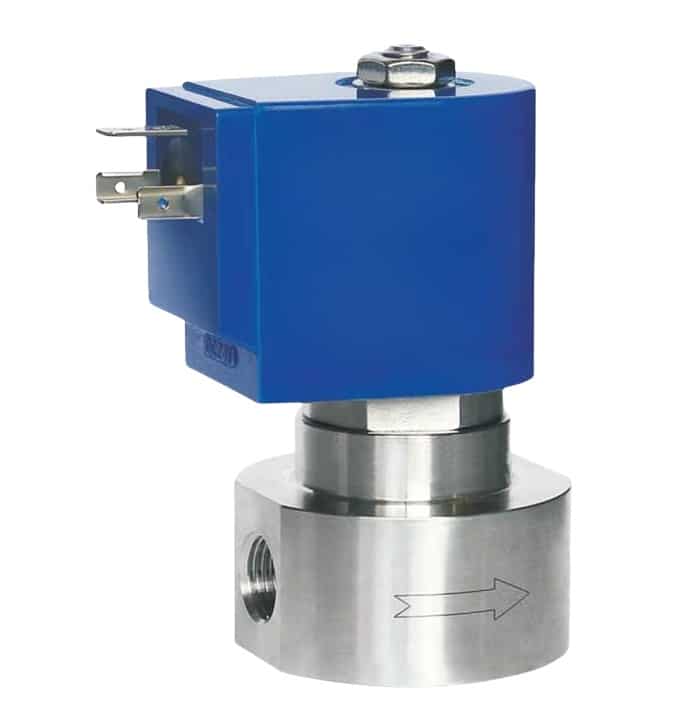

1/8" Size 300 Bar High Pressure Solenoid Valve
AMZ Series Stainless Steel SS316 Body Material, 1/8" Port Size Miniature type, 300 bar, 30 MPa, 5000 PSI Super high pressure solenoid valve, anti-corrosion, suitable for washing system, dust cleaning, dust blowing systems, long-lasting, high performance, durable, ultra-high pressure resistance.
Features:
1. AMZ series 2/2 way solenoid valve
2. Port Sizes: 1/8"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS316, SS304
5. Seal options: PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/8"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS316, SS304
5. Seal options: PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
8. Normally Closed. N/C Type

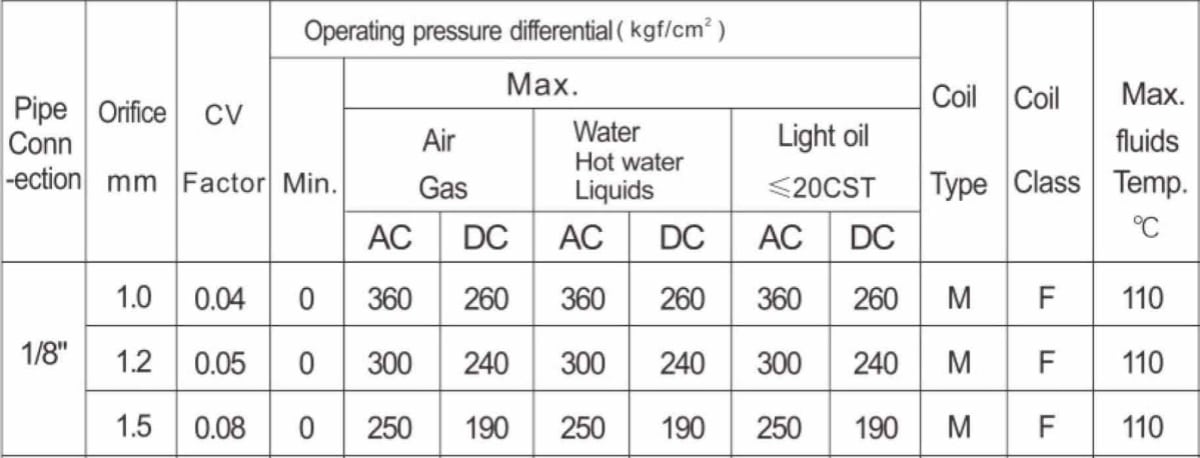

Pressure: 300 bar, 30 mPa, 5000PSI
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.
| Coil | Voltage | Power | Electricity | ||
| Inrush | Holding | Inrush | Holding | ||
| AM01 | 220VAC | 130VA | 6VA | 590 mA | 28 mA |
| AM02 | 110VAC | 95VA | 8VA | 900 mA | 75 mA |
| AM06 | 24VDC | 50W | 9W | 2185 mA | 385 mA |
| AM04 | 24VAC | 19VA | 7VA | 930 mA | 360 mA |
