Project Description

DNC FESTO ISO pneumatic cylinder

DNT ISO15552 pneumatic cylinder

DNT ISO pneumatic cylinder is manufactured according to ISO6431 ISO 15552 standards, VDMA24562 standards, and DIN24335 standards. It is one of the standard cylinders. There are two type barrels- Square and Mickey Mouse shapes .The bore size from 32mm to 100mm is optional. The cylinder has adopted the U.S. PARK ring seals, which will extend of the life of the cylinder.

Features:
·Highlighted products for process optimization
·Completely according to ISO15552 standard
·All PU sealing system
·Strong guiding design with high concentricity
·Bronze bearing with much better lateral loading
·Strengthened cushion design, soft ending
·Double cushioning system
·2000KM loaded stroke life

Supply Chain:
·Japan or Taiwan area seal
·Germany Grease
·Strong aluminum material

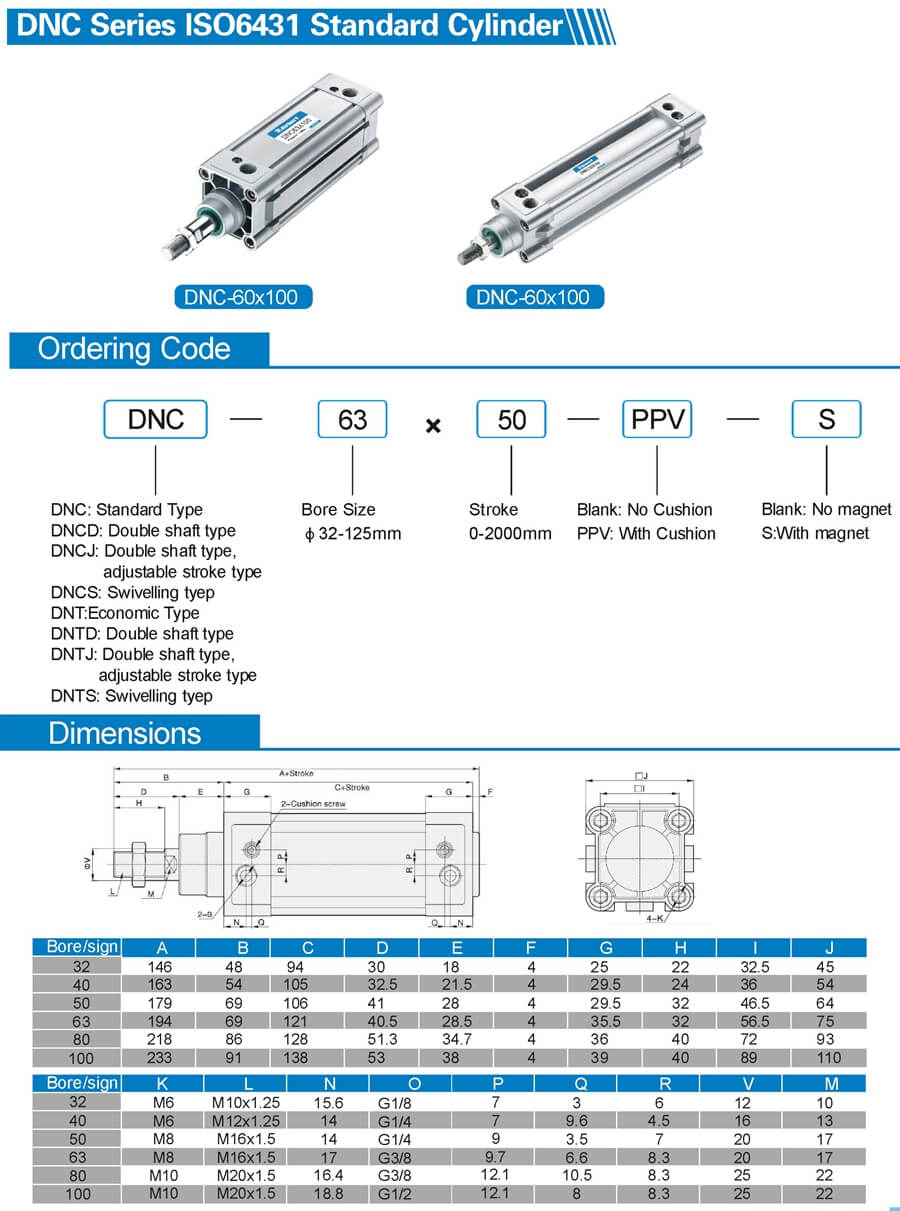

DNC ISO 6431 standard air cylinder

DNC ISO 6431 standard air cylinder

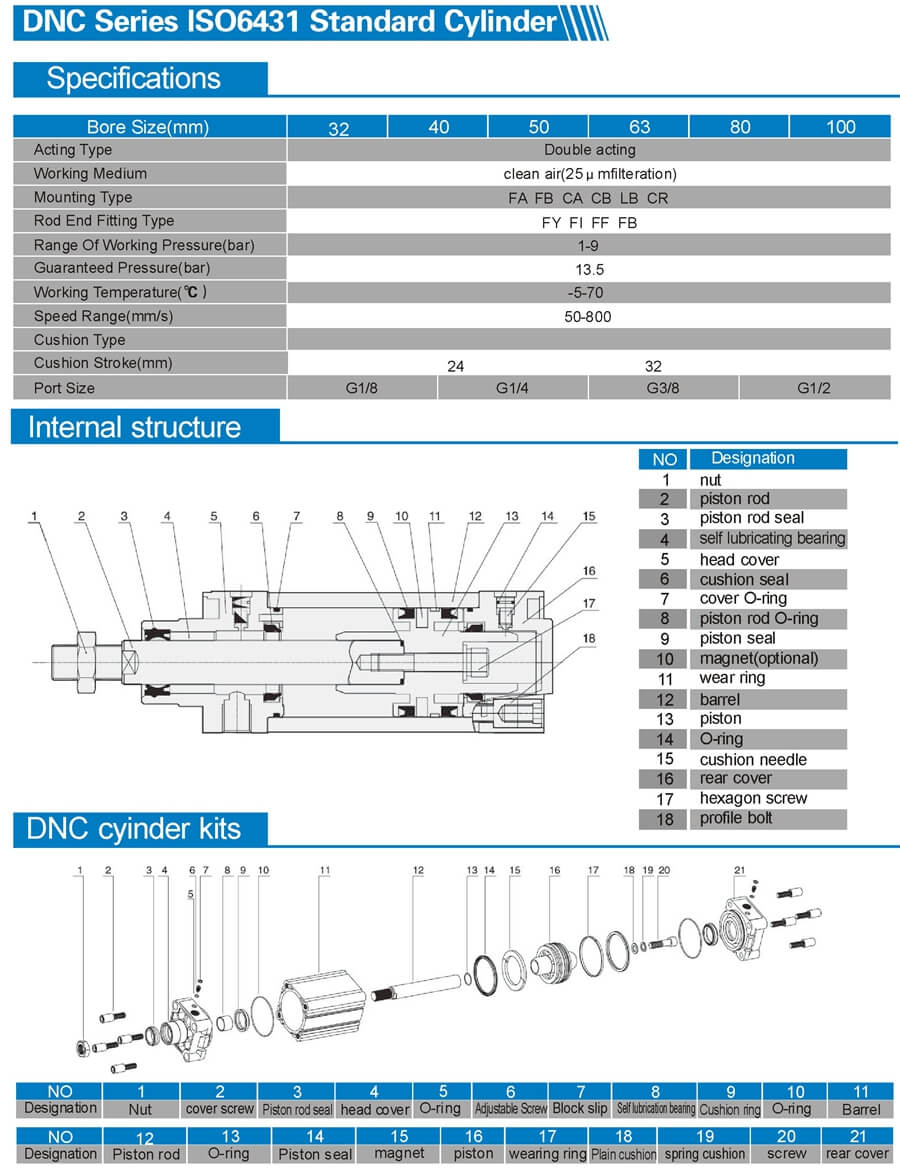

DNC ISO 6431 standard air cylinder 2

DNC ISO 6431 standard air cylinder 2
