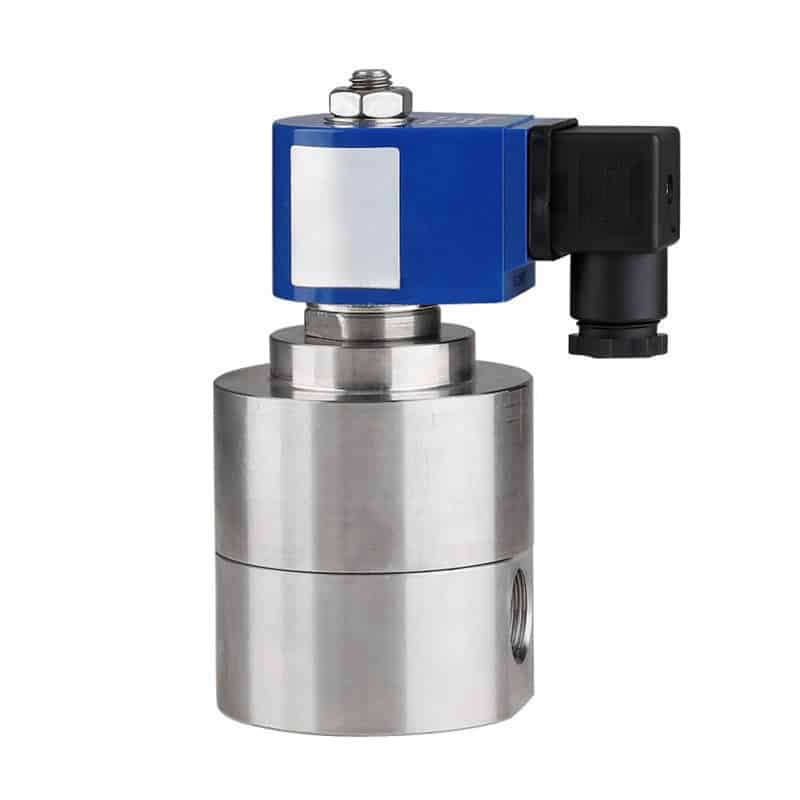

SS316 300 bar Super High Pressure Solenoid Valve

300 Bar Super High Pressure Solenoid Valve

AMS Series Ultra-high pressure solenoid valves are mainly used in hydraulic systems, petrochemicals, metallurgy, spray humidification, aerospace, military industry, nuclear industry, shipbuilding industry, electricity, energy, urban heating, steam supply, water supply and other fields. They realize the automation and remote control of ultra-high pressure systems.

Features:

  1. 2/2 Super High Pressure, normally closed.
  2. Special design, power Saving, compact size, large flow rate.
  3. SS316 stainless steel material.
  4. Ambient Temp.: 0 - 65℃, Media Temp.: 0 - 110℃
  5. Voltage: 220V/230V/110V AC, 24V DC, tolerance: 10%
  6. Seal: PTFE

Body material: SS316 Stainless Steel
Pressure: 0-300 bar, 4500 PSI
Fluid Media: Water, Air

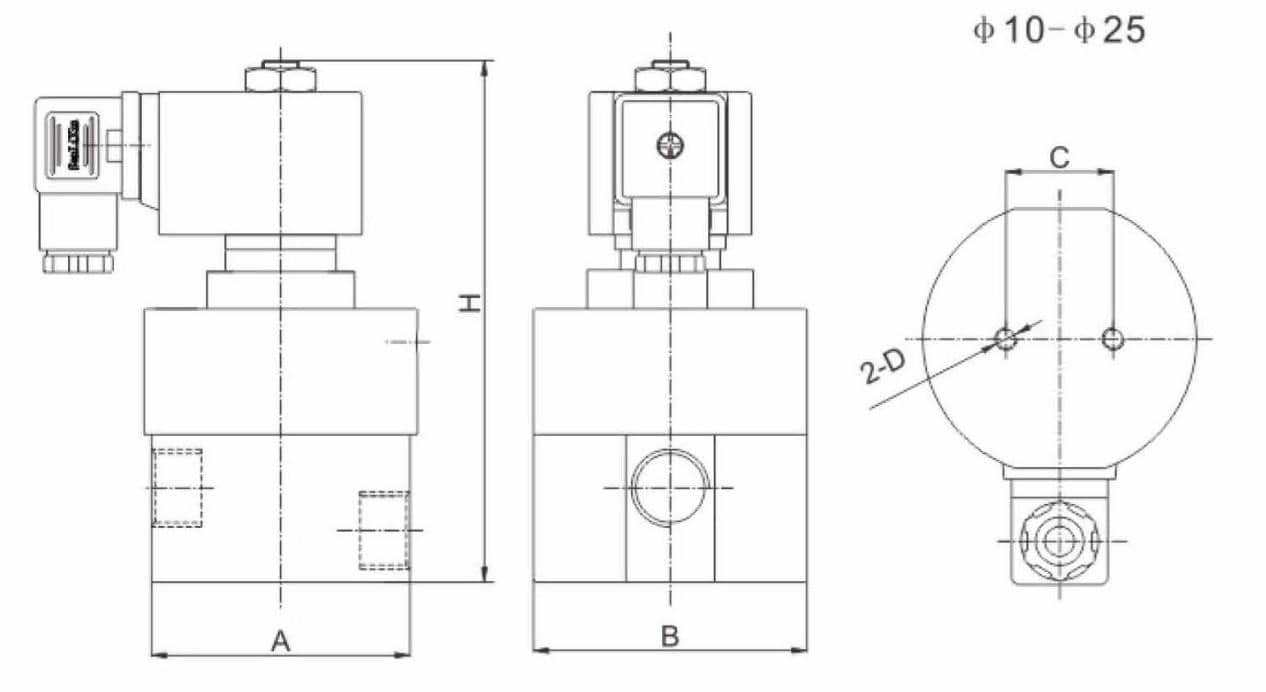

Model A B H C D Orifice (mm)
AMZ-10 3/8” 70 74 141 29 M6 10
AMZ-15 1/2” 70 74 141 29 M6 15
AMZ-20 3/4” 79 84 150 36 M6 20
AMZ-25 1” 93 99 160 45 M6 25

Solenoid Coil Parameter

Coil Voltage Power Electricity
Inrush Holding Inrush Holding
AM01 220VAC 130VA 6VA 590 mA 28 mA
AM02 110VAC 95VA 8VA 900 mA 75 mA
AM06 24VDC 50W 9W 2185 mA 385 mA
AM04 24VAC 19VA 7VA 930 mA 360 mA

Pressure

220V/230V/110V AC : 360 Bar

24V DC: 300 Bar
