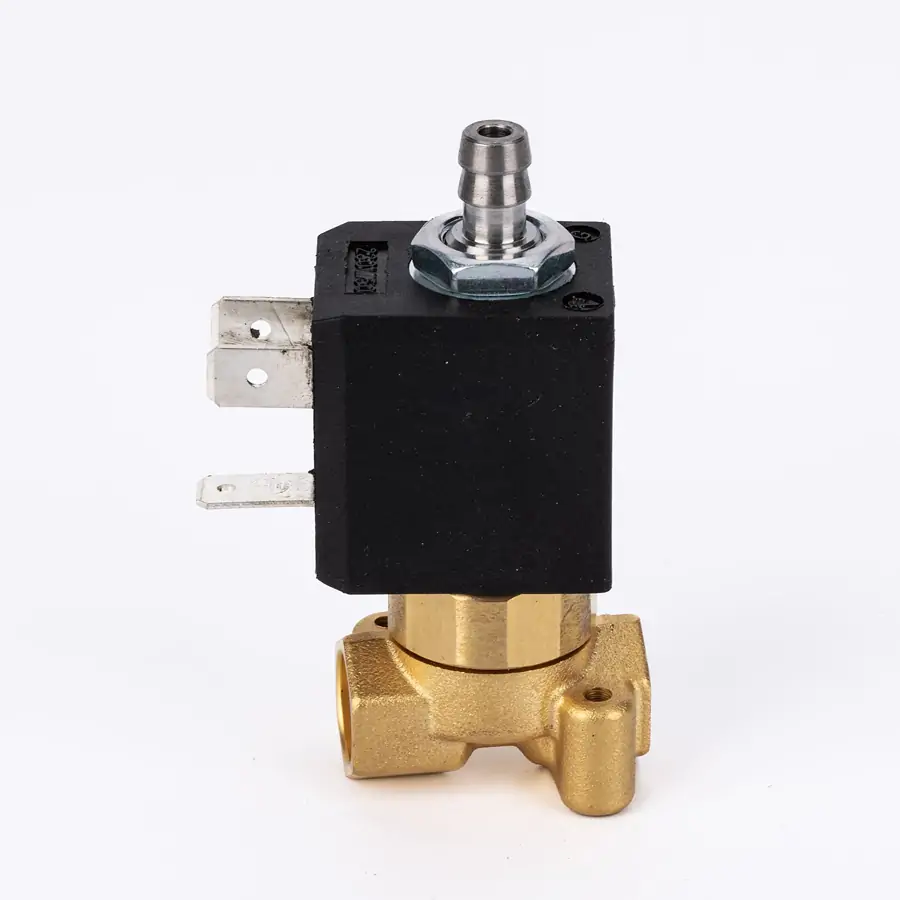

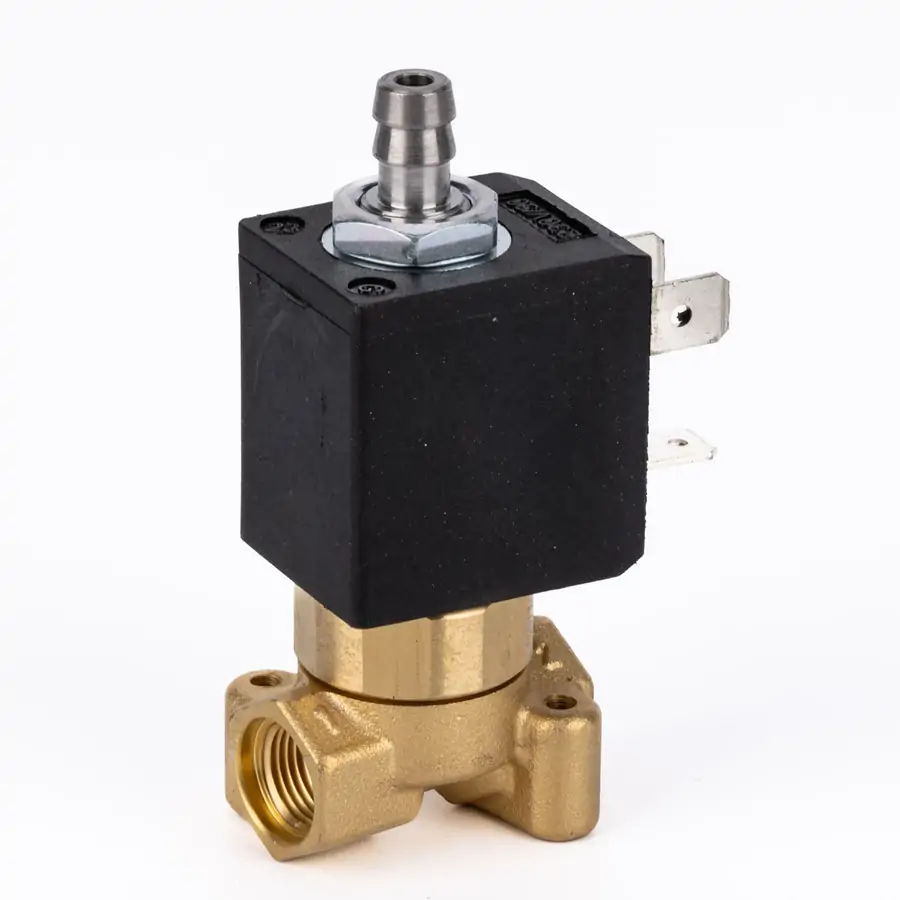

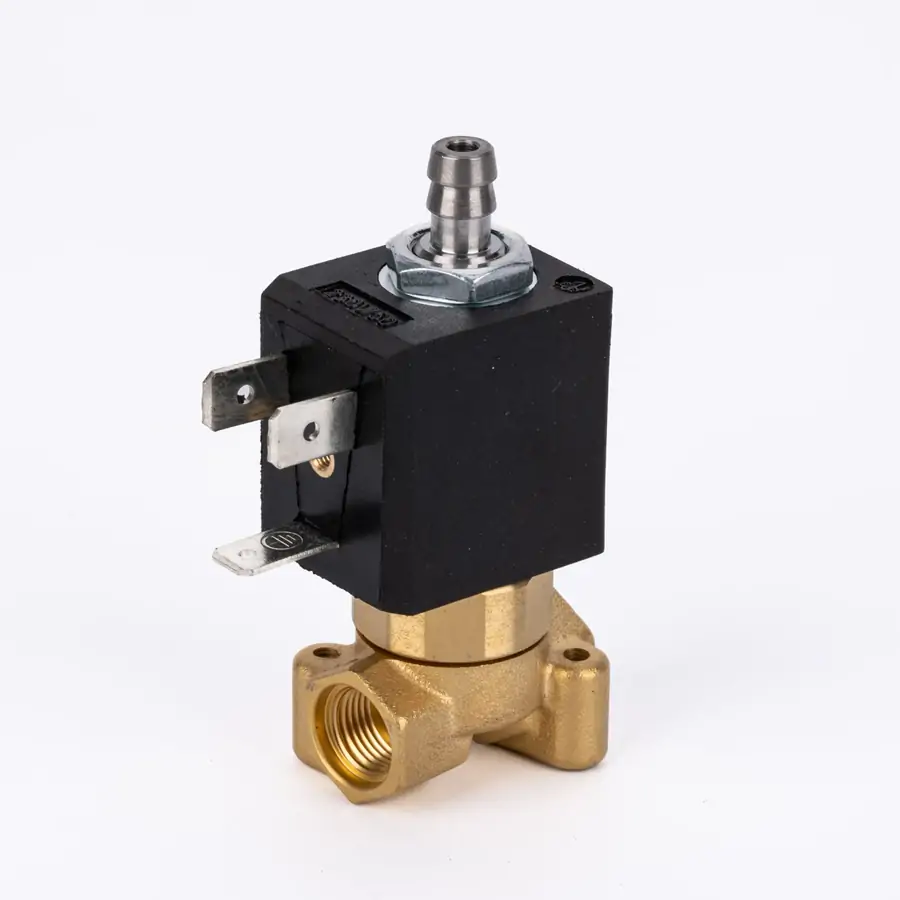

3 Way Steam Solenoid Valve
3 Way 1/8″ Steam Solenoid Valve, up to 180 degree, can be used for coffee machine, hot beverage drinking machine. DC 12V; DC 24V; 12VAC; 24VAC; 110/120VAC;220/230VAC
Features:
1. 3-Way Solenoid valve
2. Direct acting
3. General purpose, especially for coffee machine.
4. Hot water, Steam.
5. Normally closed.
6. Water flow rate adjustable.
Body material: Brass
Pressure: 0-10 bar, 150 PSI
Fluid Media: Hot water, Steam
Series: 1/8″
|
Port Size |
Female G 1/8” |
| Body Material | Brass |
| Seal ring material |
NBR, EPDM ,Silicon Gel, Viton etc. |
| Max Media Temperature | 80℃/160℃ |
| Voltage available | DC 12V; DC 24V; 12VAC; 24VAC;110/120VAC;220/230V AC |
| Inner Orifice |
2-3mm |
| work Pressure | 0-10 bar |
| Dimension(L×W×H) | 45×22.5×54.5mm |
