2ws solenoid valve

2WS160-10 2WS160-15 2WS160-20  2WS200-20 2WS250-25 2WS350-35 2WS400-40 2WS500-50

2W160-10 2W160-15 2W160-20  2W200-20 2W250-25 2W350-35 2W400-40 2W500-50

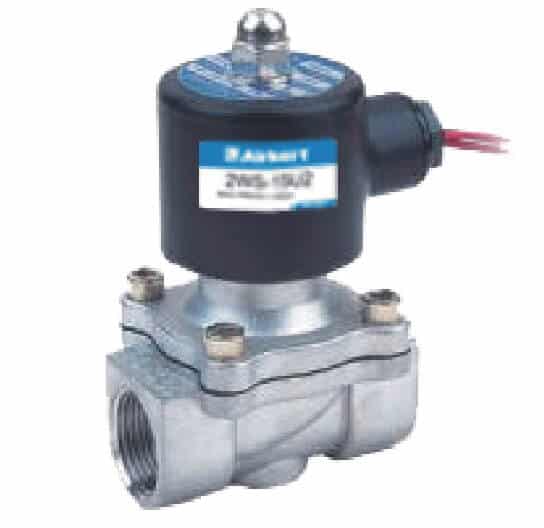

2WS Stainless Steel Solenoid Valve is one of the most popular 2/2 way valve in Airkert company. The 2W solenoid valve zero differential valves have the thread size range from 1/8” to 2”.We started the production when the factory was established. We have two types material of these valves: brass body and stainless steel body. And the function can be normal close valve and normal open. With good quality and stable performance, this type of solenoid valve is widely used in many different industrial fields. Our output can reach 600,000Pcs per year.

Body material:SS304
Pressure:0-7kgf/cm2
Orifice:Ф2.5mm-50mm
Pipe size:1/8”-2”
Flange connection:DN15-50
Fluid Media:Water、Hot Water、Air、Gas 、Oil Etc

Working Medium Air,Water,Oil,gas
Operation Direct Acting
Acting Type Normally Closed
Orifi ce Size(mm) 16
CV Value 4.8
Port Size 1/2″
Operation Fluid Viscosity 20 CST Below
Operating Pressure Air:0~1.0Mpa,Water:0~0.7Mpa,Oil:0.9Mpa
Max. Pressure Resistance 1.0Mpa
Operating Temperature NBR for -5 ~80℃ and VITON for -5~150℃
Voltage Range ±10%
Material of Body Stainless Steel
Material of Oil Seal NBR or VITON
2W 2S 2WS Solenoid Valve Sheet

2W 2S 2WS Solenoid Valve Sheet

Water Solenoid Valve
Hot Water Solenoid Valve
Air Solenoid Valve
Gas Solenoid Valve
Steam Solenoid Valve
Oil Solenoid Valve
