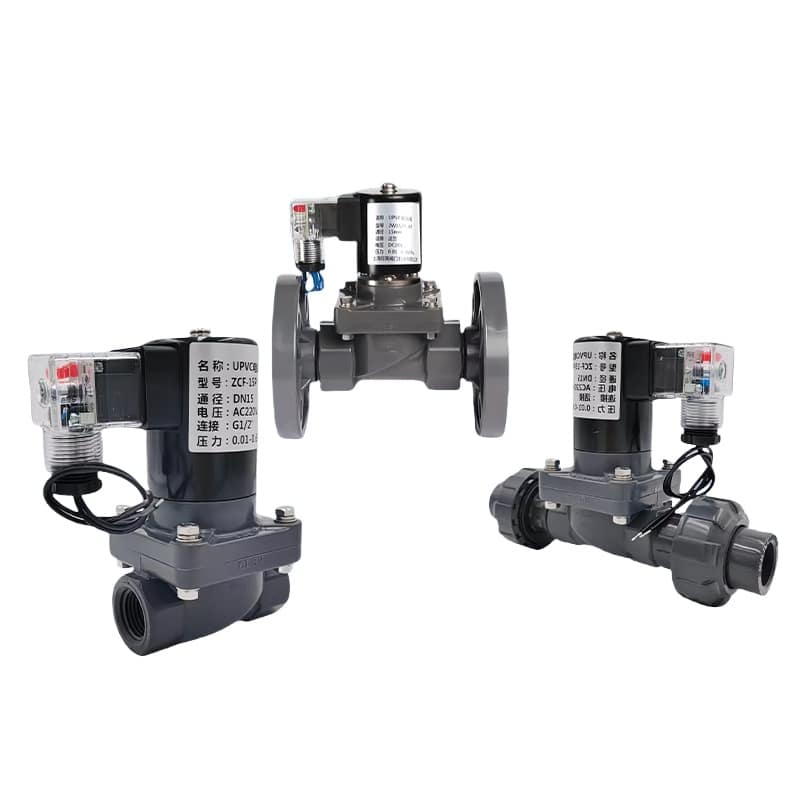

UPVC True Union Solenoid Valve
AUPV-U Series Plastic true union UPVC solenoid valve, CPVC union ball valve body material is also available. High Acid Alkali resistant, anti corrosion, longevity working cycles. Widely used in chemical industries, good chemical elements resistance. Isolated piston structure, completely isolate the medium from metal parts, durable. In environmental analysis and monitor applications. Thickened valve body, high pressure resistance, scratch friction resistance. Isolation design, big flow rate, free of jam. Strong oxidation and weather resistance, The orifice is large, the path is short and straight, and it is not easily blocked by precipitates or crystalline particles
Features:
1. UPVC CPVC true union Plastic Valve
2. Port Sizes: 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", thread, union and flange connection for options.
3. Thread Standard: G, BSP, NPT.
4. Materials: Anti Corrosion plastic PVC-U PVC-C
5. Seal options: EPDF, VITON
6. Voltages: 12vDC, 24vDC, 48vDC, 24vAC, 48vAC, 110vAC, 220vAC
7. Quality: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", thread, union and flange connection for options.
3. Thread Standard: G, BSP, NPT.
4. Materials: Anti Corrosion plastic PVC-U PVC-C
5. Seal options: EPDF, VITON
6. Voltages: 12vDC, 24vDC, 48vDC, 24vAC, 48vAC, 110vAC, 220vAC
7. Quality: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 0-6 bar, 100 PSI
Fluid Media: Acid Alkali Salt
Fluid Media: Acid Alkali Salt

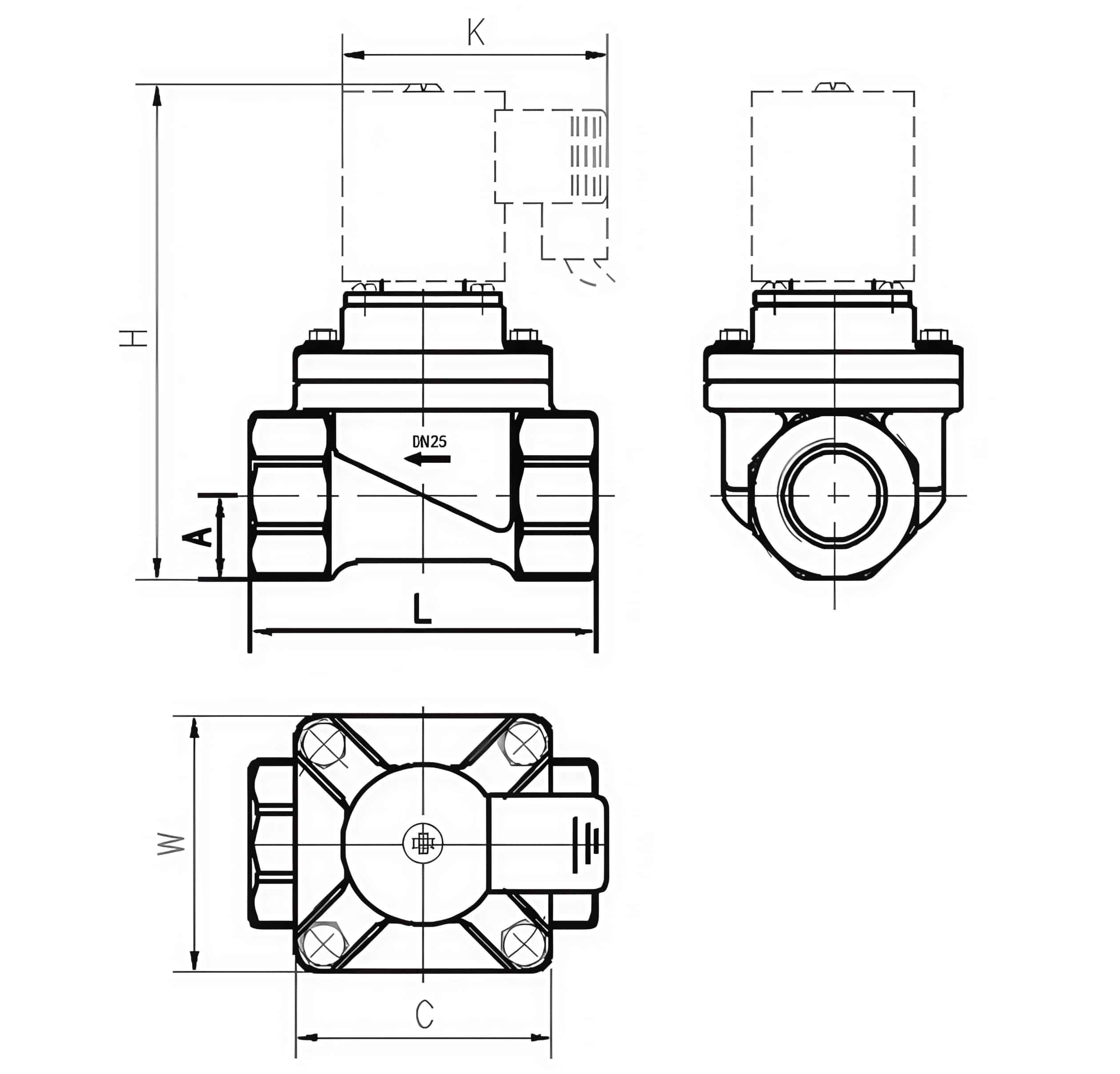

| Model | Connection | Overall Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| Thread | L | H | W | C | A | K | D | |
| 2W15ZP | G1/2 | 75 | 132 | 63.5 | 63.5 | 16 | 92 | Φ64 |
| 2W20ZP | G3/4 | 80 | 137 | 63.5 | 63.5 | 19 | 92 | Φ75 |
| 2W25ZP | G1 | 100 | 147 | 74 | 74 | 26 | 92 | Φ85 |
| 2W32ZP | G1-1/4 | 120 | 171 | 94 | 94 | 30 | 94 | Φ100 |
| 2W40ZP | G1-1/2 | 130 | 180 | 94 | 94 | 32.5 | 94 | Φ110 |
| 2W50ZP | G2 | 172 | 225 | 155 | 155 | 42 | 94 | Φ125 |

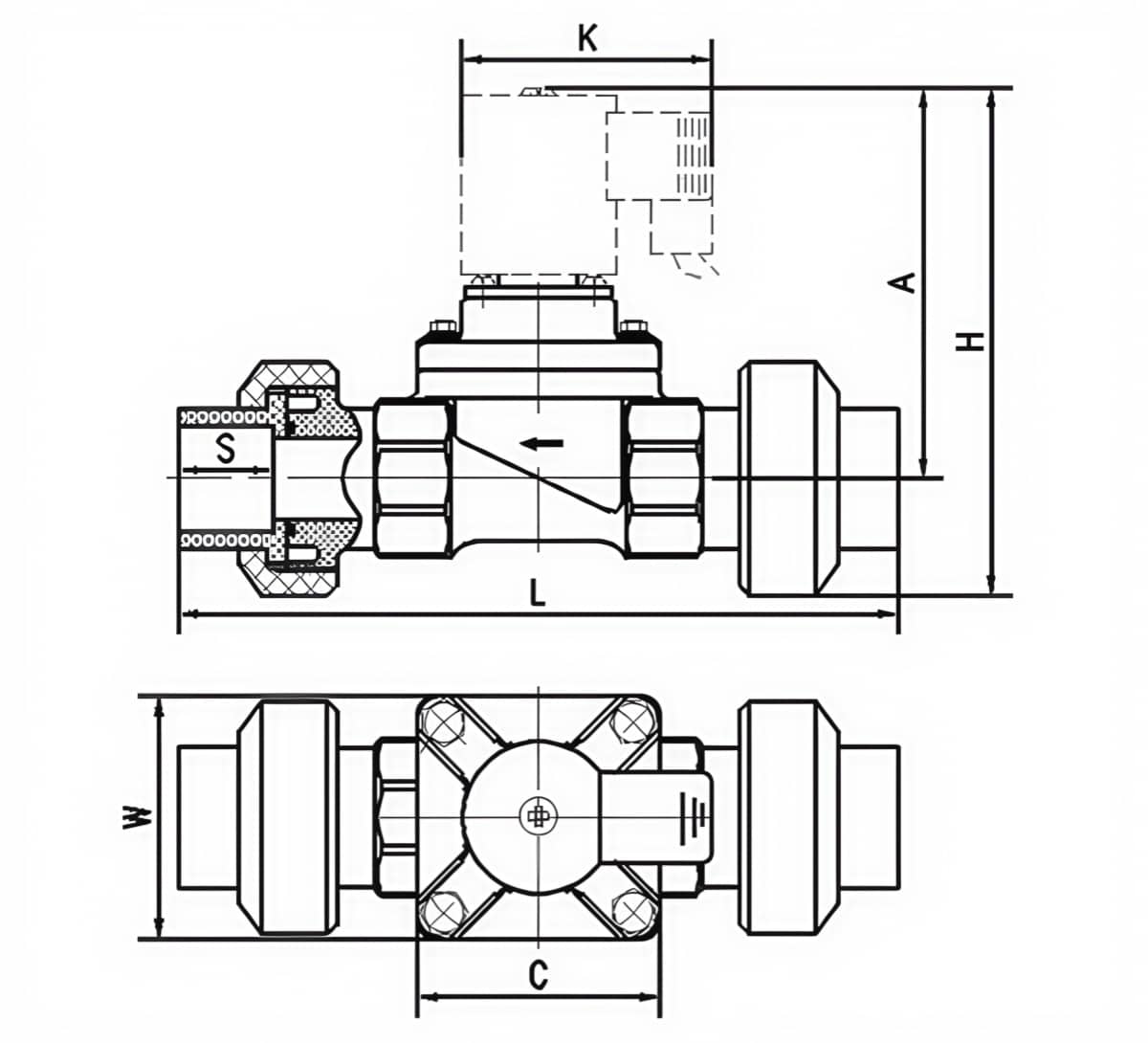

| Model | Union Size | L | H | W | C | A | K | S |
|---|---|---|---|---|---|---|---|---|
| AUPV-U | DN15 | 169 | 143 | 63.5 | 63.5 | 116 | 92 | 16.5 |
| DN20 | 198 | 149.5 | 63.5 | 63.5 | 118 | 92 | 19 | |
| DN25 | 234 | 158 | 74 | 74 | 121 | 92 | 22.5 | |
| DN32 | 272 | 184 | 94 | 94 | 141 | 94 | 26.5 | |
| DN40 | 290 | 196.5 | 94 | 94 | 147.5 | 94 | 31.5 | |
| DN50 | 360 | 242.5 | 155 | 155 | 183 | 94 | 38 |

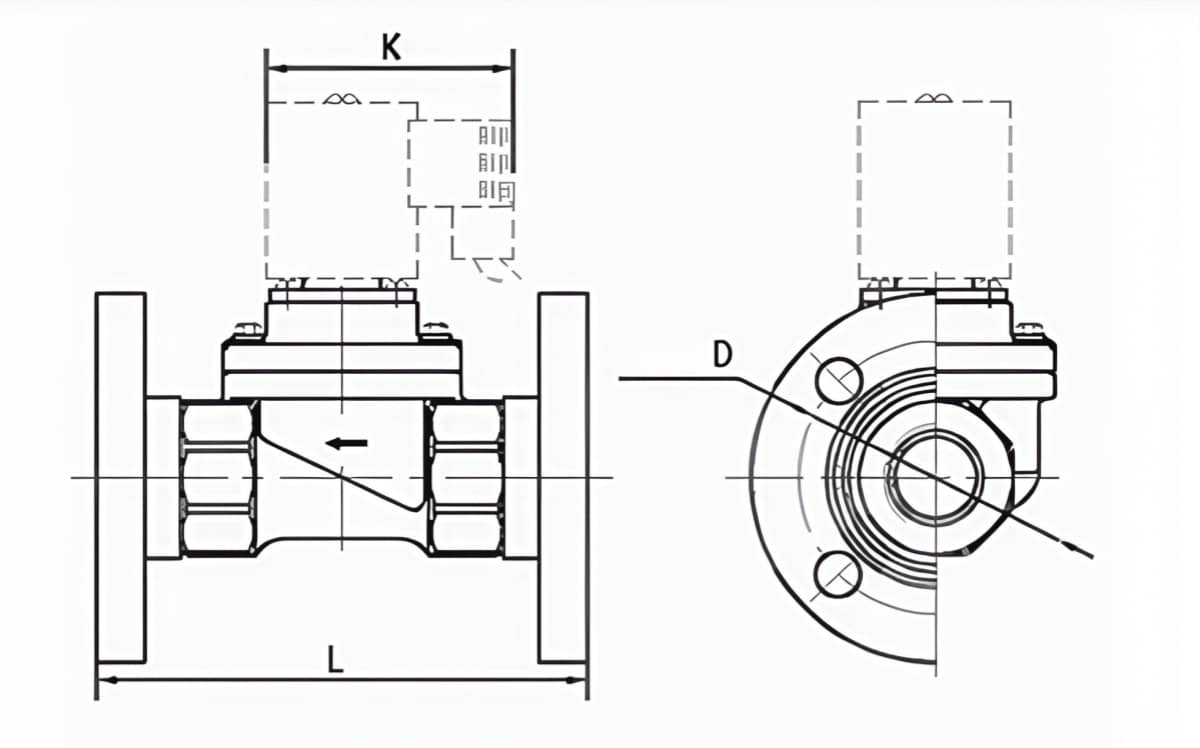

| Model | Connection Flange |
Dimensions (mm) | ||
|---|---|---|---|---|
| L | K | Distance | ||
| 2W15FP | F15 | 108 | - | 64 |
| 2W20FP | F20 | 125 | - | 75 |
| 2W25FP | F25 | 152 | - | 85 |
| 2W32FP | F32 | 183 | - | 100 |
| 2W40FP | F40 | 201 | - | 110 |
| 2W50FP | F50 | 272 | - | 125 |
