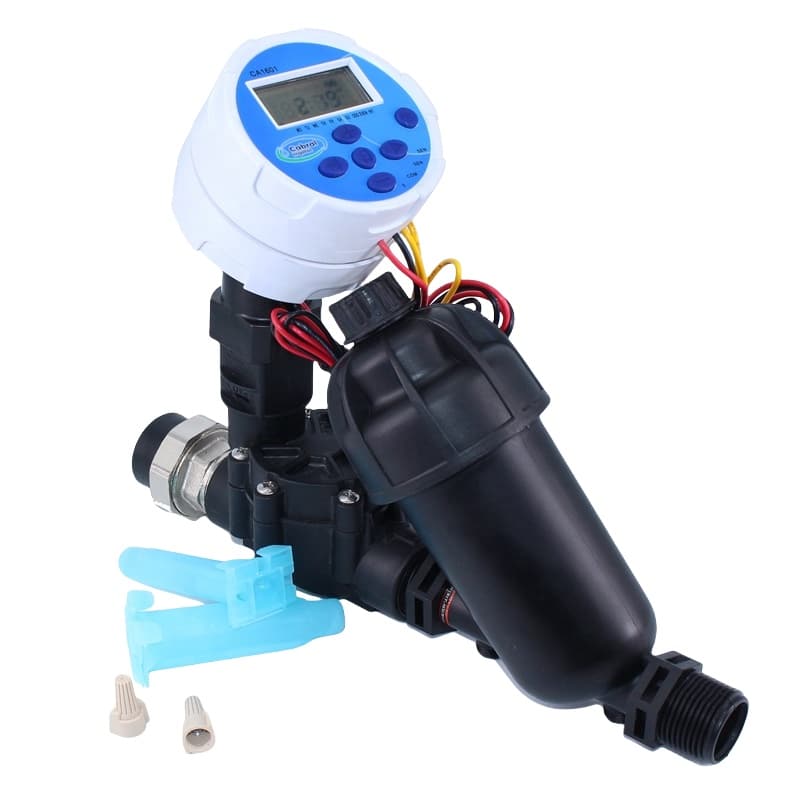

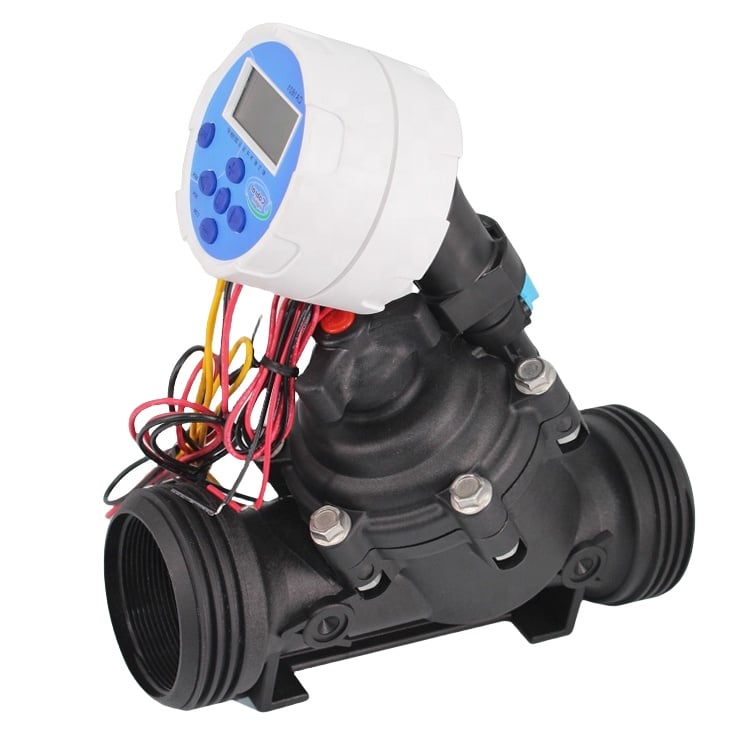

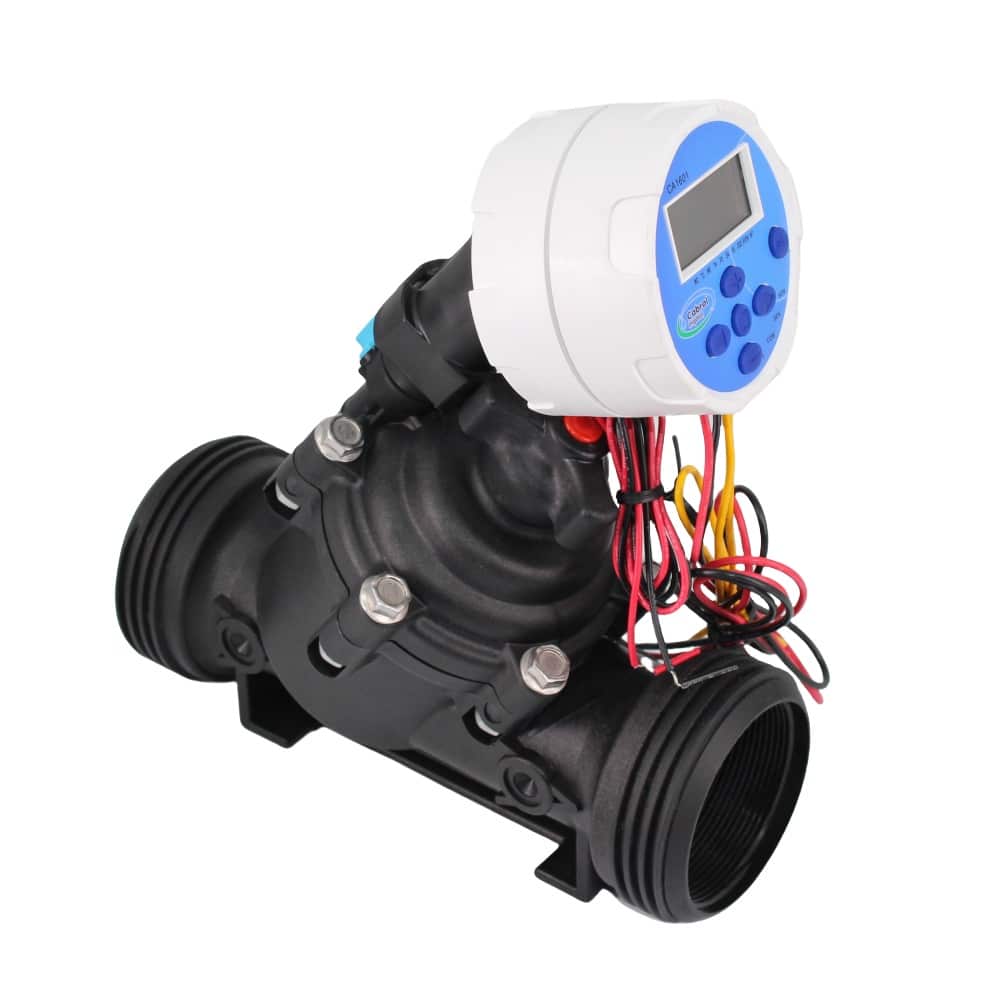

Plastic Timed Irrigation Solenoid Valve
Rainbird Alternative IVM series irrigation solenoid valve, with timer optional. 9V battery operated wireless waterproof programmer controller irrigation timer CA1601 DC Latching pulse one station. Timer is programmable, any intervals control for the open/close work of solenoid valves. Manually overpass rain sensor. For field, garden irrigation and solar panel cleaning work, etc.
Features:
2. Double filtration to protect the solenoid armature.
3. IP68 Degree, waterproof solenoid coil.
4. Slowly close to prevent the water hammer.
Body material: Reinforced Nylon Plastic
Pressure: 0-10 bar, 150 PSI
Fluid Media: Water
Series: 2" IVM200PGA, 1-1/2" IVM150PGA, 1" IVM100PGA, IVM 300PGA 3"
| Name | CA1601 Controller | ||
|---|---|---|---|
| Dimensions | 94 mm diameter, 75 mm high | ||
| Product weight | 0.3KG | ||
| Power source | one or two 9V alkaline batteries | ||
| Power transmission | Pulse(20-500mSec) | ||
| Applicable product | 6-20V DC Latching Coil | ||
| Operating TEMP | -10~60℃ | ||
| Body material | Plastic | ||
| Water-proof | Yes | ||
| Characteristic | 1. Pilot-operated diaphragm structure, reinforced nylon.
Both are normally closed and the latching valve on optional. |
|---|---|
| 2. Double filtration anti-blocking solenoid valve | |
| 3. Full closed coil waterproof | |
| 4. Close slowly, anti-water hammer | |
| Medium | water |
| Temperature | NBR seal: -10°C to 80 °C |
| Pressure | 0.1-1.0Mpa |
| Port size | 3/4′-3′ |
| Port thread | G |
| Orifice | 20,25,40,50,63, 80mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ | |
| Tolerance± | 10% |
| Coils | SE02B,8W,IP68,100% ED |
| L32B,DC6-20V, pulse length 20-500 ms | |
| Application | Widely used in lawn irrigation systems, like large areas of lawn, gym, agriculture, industrial dusting, and water treatment. |
| Material | Body-reinforced nylon |
| Seal- NBR | |
| Amature tube-stainless steel 304 | |
| Plunger-stainless steel430F | |
| Stop-stainless steel 430F | |
| Springs-SS304 | |
| Shading rings- stainless steel 304 |
•Simple push button programming
•Single station model with DC latching solenoid.
•Large Liquid Crystal Display (LCD) with easy to understand icons
•Operates on a standard 9-volt alkaline batteries (1 or 2 for extended battery life)
•3 programs (A, B, C) with up to 4 start times each
•Run times from 1 min to 6 hours
•Manual watering
•Battery Indicator shows remaining life of battery
•Rain sensor compatible
•Non-volatile memory retains all program information
•Seasonal Adjustment from 10–150%
•Easy Retrieve Memory allows saving/retrieval of preferred program data
•Manual Bypass of Rain Sensor
•Total Run Time Calculator shows total program irrigation time per program
