SF Series SS316 Stainless Steel High Pressure Air Filter

The SF Series air regulator, SUS316 regulator, features robust construction with high-quality stainless steel SS316 materials to ensure long-lasting performance. The filter regulator is capable of handling high pressures, making it ideal for applications where compressed air is used at high pressure. With its compact design and easy-to-use features, the SF Series is perfect for a wide range of industrial applications, including automotive, industrial, manufacturing, and more.

The high-pressure regulator portion of the unit allows you to precisely control the output pressure, ensuring consistent performance of your pneumatic systems. The pressure gauge provides real-time pressure monitoring, allowing you to quickly and easily adjust the pressure to meet your specific requirements.

With its superior performance, durability, and ease of use, the SF Series High-Pressure Air Filter Regulator is the perfect choice for professionals who demand the best. Whether you need clean and dry air for painting, sandblasting, or other high-pressure applications, the SF Series will deliver consistent and reliable performance every time. Invest in the SF Series High Pressure Air Filter Regulator for unparalleled quality and peace of mind in your pneumatic systems.

Body material: SS316 SUS316
Pressure: 0.15 MPa - 3.5 MPa
Max Pressure: 4.0 MPa
Filter: 5um, 10um, 20um, 40um, customized.
Pipe size:1/4”-1”
Fluid Media: Compressed air

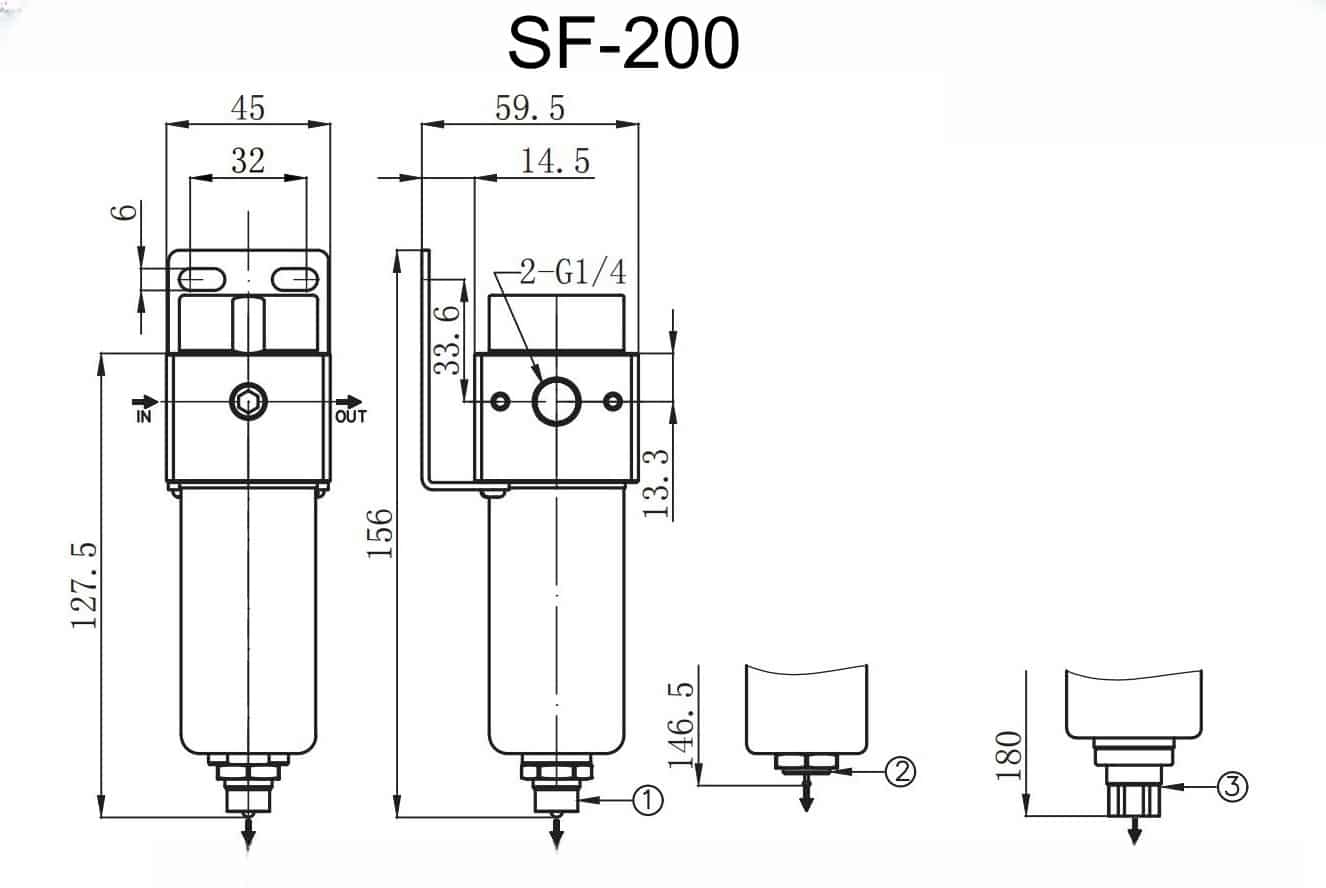

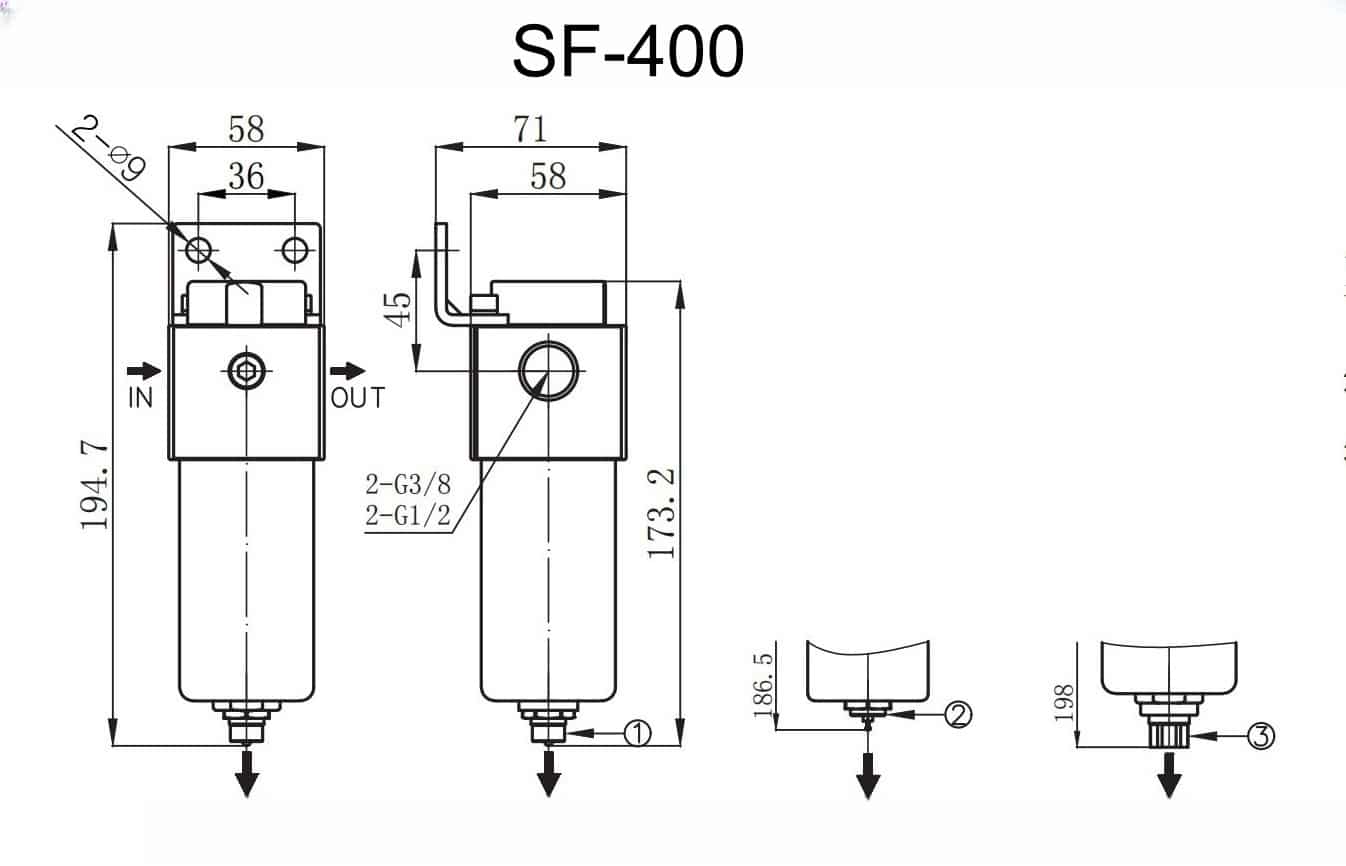

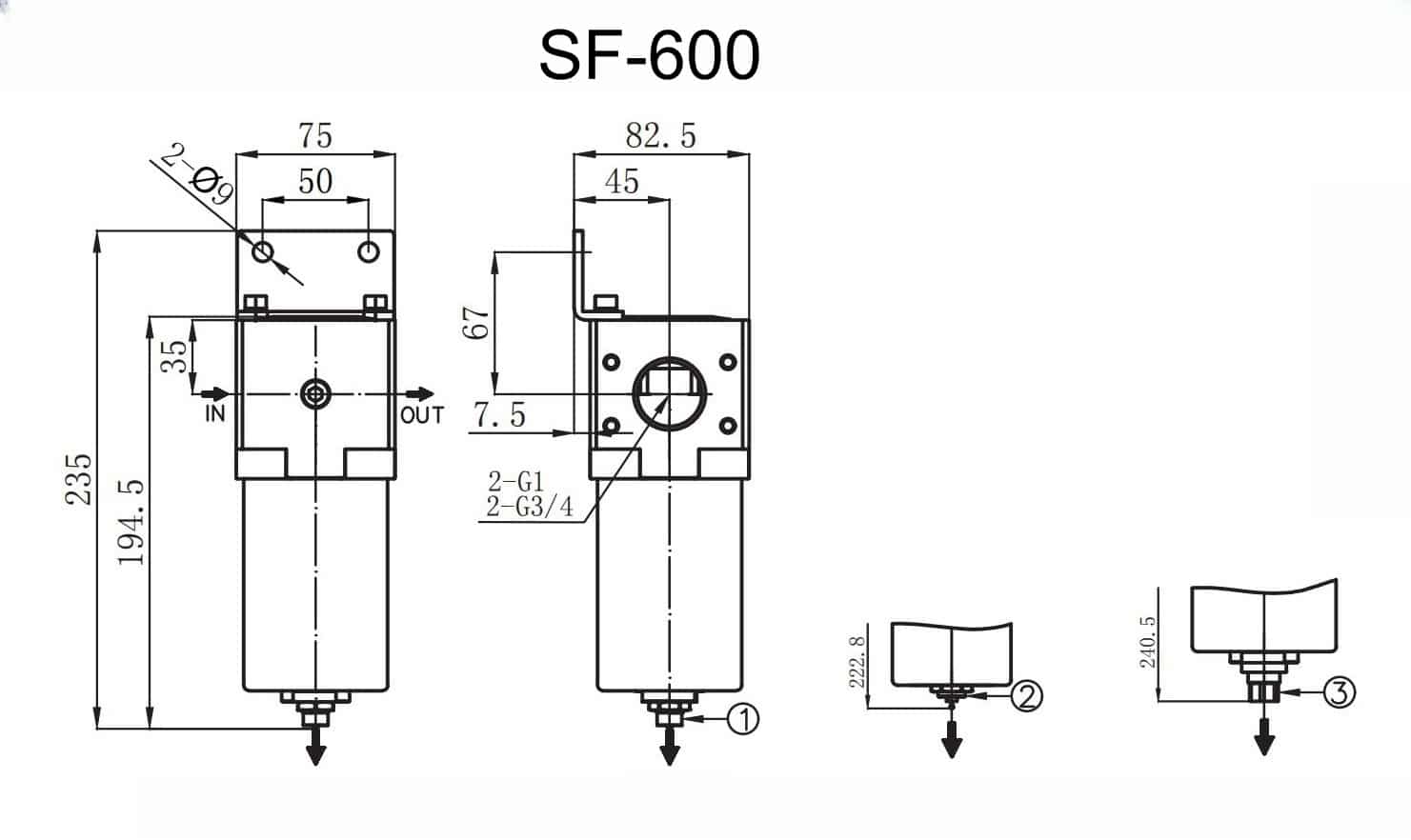

Model: SF-200 / SF-400 / SF-600

Type-Name	Air Filter
Model	SF200	SF400	SF400	SF600	SF600
Port Size(G)	G1/4	G3/8	G1/2	G3/4	G1
Max Flow Rate(L/Min)	1900	2450	3030	9600	9600
Filter Cup Capacity	105cc	110cc	110cc	110cc	110cc
Grade of Filtration	5μm,40μm
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa(870Psi)
Operating Temperature Range	-40~100℃
Drain Type	Differential pressure drain(Drain below 0.05MPa)
Material	SUS316 stainless steel
Accessories	Mounting bracket,screw x2
Weight	1240g	1630g	1600g	3900g	3800g

Integrated Design: Combines filtering, lubrication, and pressure regulation functions into a single compact unit, saving installation space.
Low Pressure Loss & High Water Separation Efficiency: Ensures minimal pressure drop and effective water separation.
Filter Precision Options: Available in 5µm and 40µm filtering options.
High Filtration Precision: Effectively removes water, oil, solid particles, and other contaminants from compressed air, ensuring clean air supply.
Quick & Efficient Contaminant Removal: Rapidly removes water and particles for cleaner operation.
Comprehensive Protection: Protects pneumatic components by filtering out impurities and simultaneously lubricating to extend their lifespan.
Equipment Longevity: Filters out airborne particles, reducing wear and tear and extending the lifespan of equipment.
Enhanced Equipment Efficiency: Clean, filtered air boosts equipment performance and efficiency.
Stable Output Pressure: The pressure-regulating valve ensures precise output pressure control for consistent operation of downstream equipment.
Improved System Reliability: Purification and lubrication reduce component wear, enhancing system reliability.
High Pressure Regulation Accuracy: Accurately adjusts output pressure to maintain stable operation of downstream systems.
Reduced Maintenance: Less frequent maintenance is required as a result of reduced wear and corrosion.
Available Port Sizes: Options include M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', and 1''.
Durable SUS316 Stainless Steel: Built for strength and long-term durability.
Resistant to Harsh Conditions: Withstands high pressure, corrosion, extreme temperatures, and both acidic and alkaline environments.
High Flow Rate: Supports efficient operation with high flow capacity.
