1/2" Brass Normally Open High Pressure Solenoid Valve
SLG50HP15-NO Series 1/2" brass Body Material high pressure solenoid valve, Normally Closed and Normally Open for option, 40 bar, 4 MPa, 600 PSI high-pressure solenoid valve, anti-corrosion. General purpose use, for air, water, hot water, steam, oil, liquid, etc. Durable, long-lasting, high performance. DIN standard solenoid coil is plastic-sealed and waterproof, with a protection grade of IP65. High-quality seals with excellent performance.
Features:
1. SLG50HP15-NO series 2/2 way high-pressure solenoid valve
2. Port Sizes: 1/2"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass
5. Seal options: NBR, Diaphragm material: FKM: <150°C; TEFLON: <180°C
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. QC: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/2"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass
5. Seal options: NBR, Diaphragm material: FKM: <150°C; TEFLON: <180°C
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. QC: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
8. Normally Closed / Normally Open Options. N/C and N/O
9. Pressure: N/C: 40 bar, 4 mPa, 600 PSIÂ Â N/O: 20 bar, 2 MPa, 300 PSI
10. Fluid Media: Air, Water, Hot water, Liquid Oil, Steam
10. Fluid Media: Air, Water, Hot water, Liquid Oil, Steam
11. Application: high-pressure large-flow air steam water control system

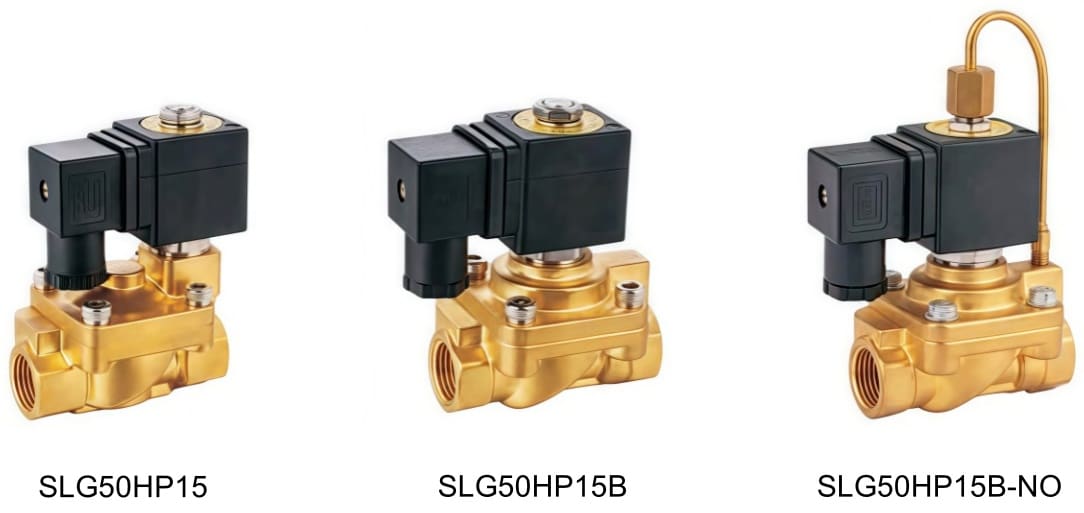

| Model | SLG50HP15 | SLG50HP15B | SLG50HP15B-NO |
|---|---|---|---|
| Working Medium | Air,Water,Oil | ||
| Motion Pattern | Guide Type | ||
| Type | Normal Close Type | Normal Open Type | |
| Aperture of Flow Rate | 15 | 15 | 15 |
| CV Value | 4.8 | 4.8 | 4.8 |

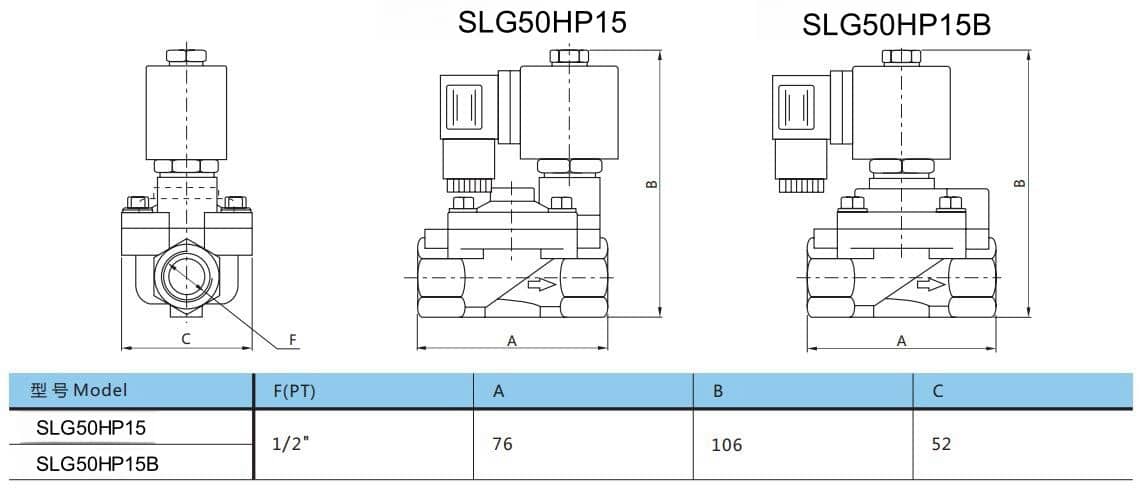

| Joint Pipe Size | 1/2" | 1/2" | 1/2" |
| Material of Body | Brass | ||
| Operation Fluid Viscosity | 50 CST | ||
| Working Pressure | 1.5~40 | 1.5~20 | |
| Max.Pressure Resistance | 50 | 25 | |
| Operating Temperature Range | -10~50℃ | ||
| Weight(KGS) | 0.835 | 0.845 | 0.81 |
| Item | SLG50HP15 Solenoid Valve |
|---|---|
| Type | 2/2 Way |
| Structure | Pilot |
| Application | General |
| Place of Origin | China |
| Power | Electric |
| Customized support | OEM |
| Port Size | 1/2 |
| Warranty | 2 years |
| Temperature of Media | Medium Temperature |
| Brand Name | AIRKERT |
| Media | Oil,Air,Water |
| Product name | High-Pressure Solenoid Valve |
| Body material | Brass |
| Voltage | AC220V AC110V DC12V DC24V |
| Size | 1/2 |
| Medium | Water Oil Gas Air |
| Working Pressure | 1.5-40 bar,Max 50 bar |
| Motion Pattern | Guide Type |
| Aperture of Flow Rate | 15mm |
| Operating Temperature Range | -10 to 50 degC |
| Weight | 0.81kg |
