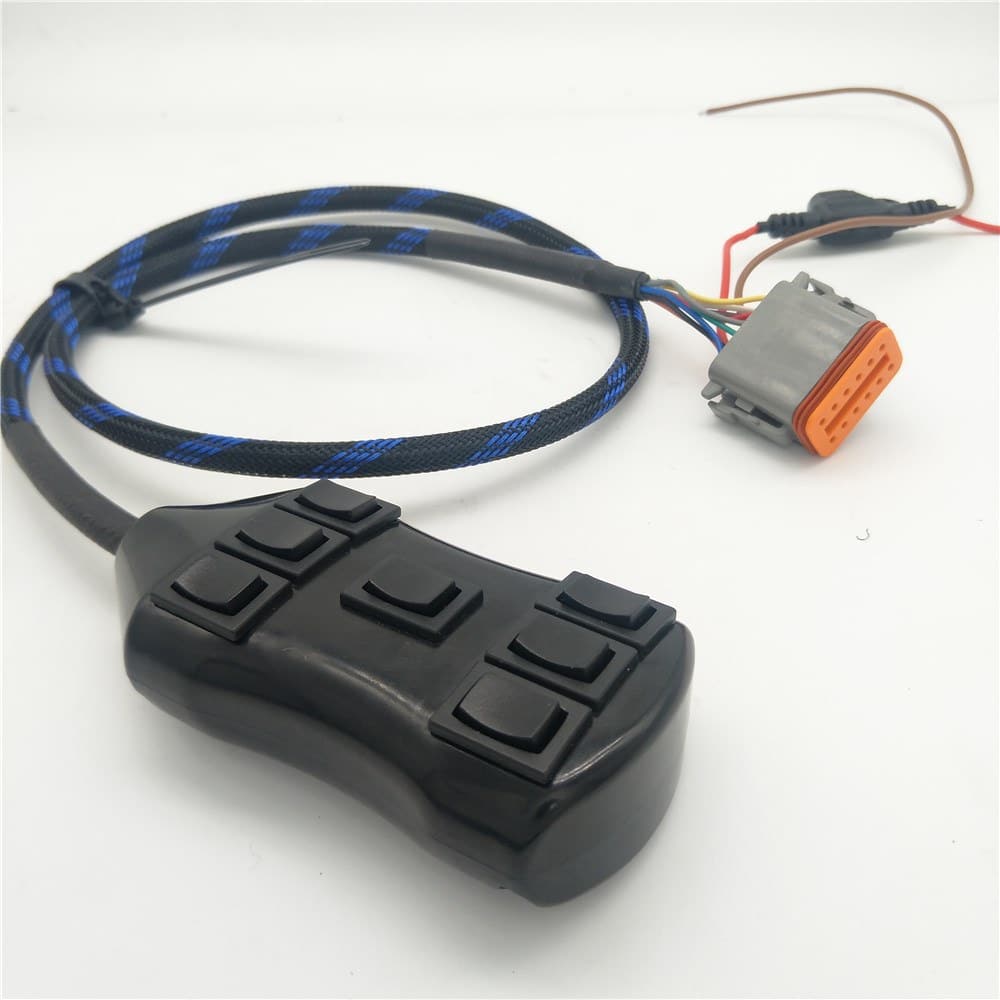

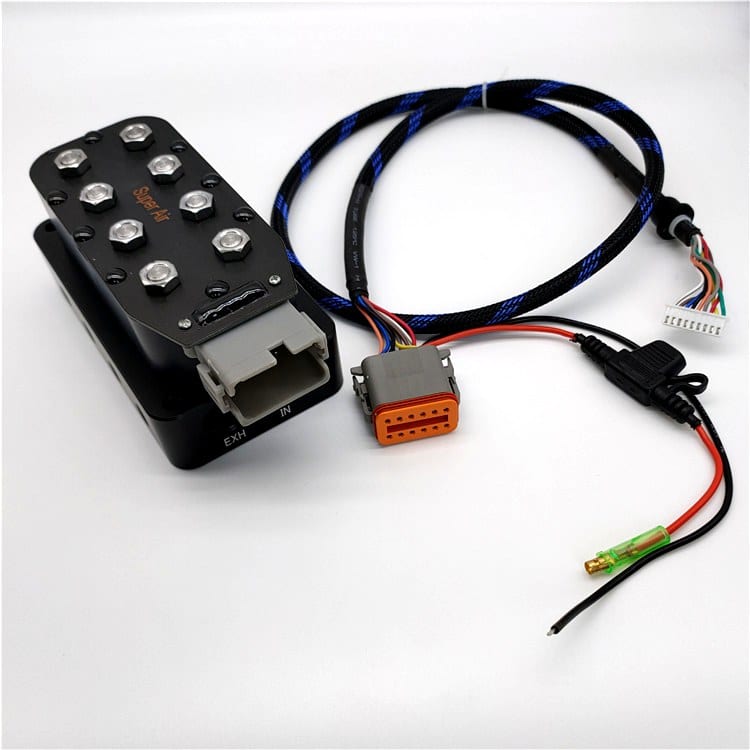

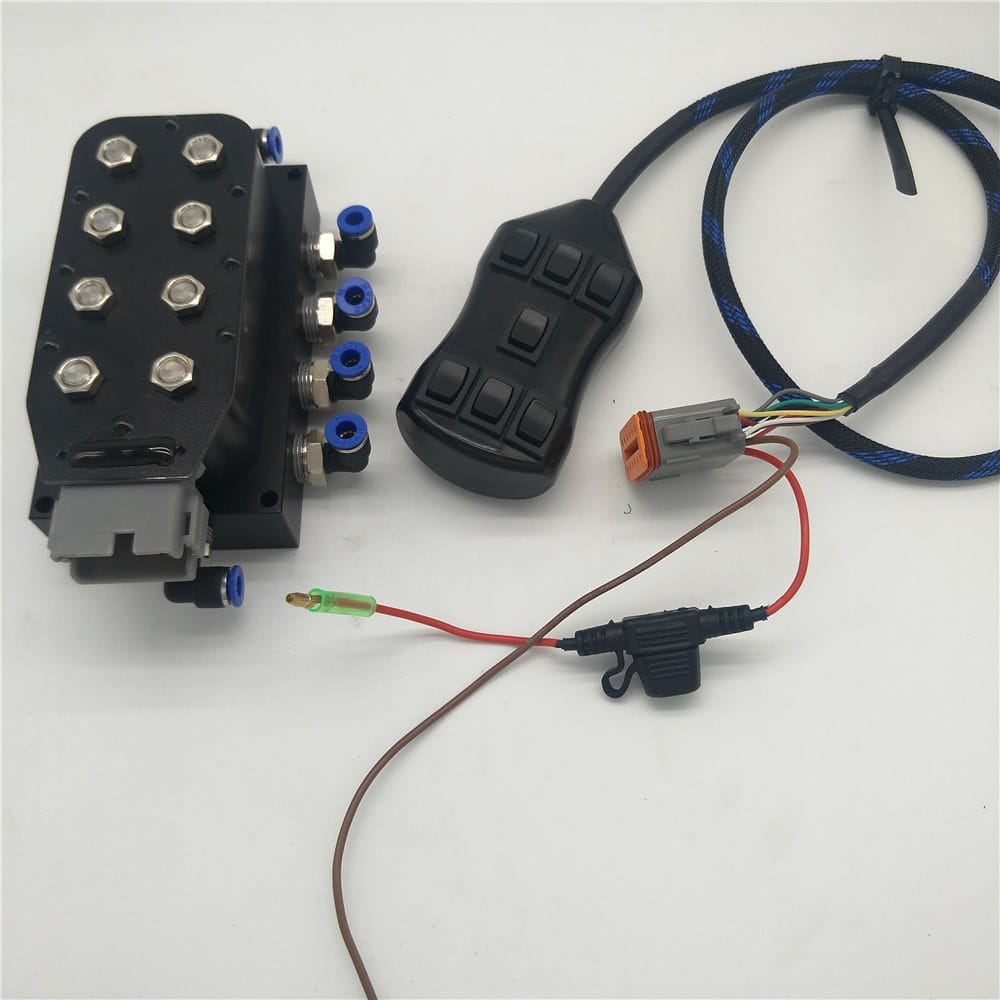

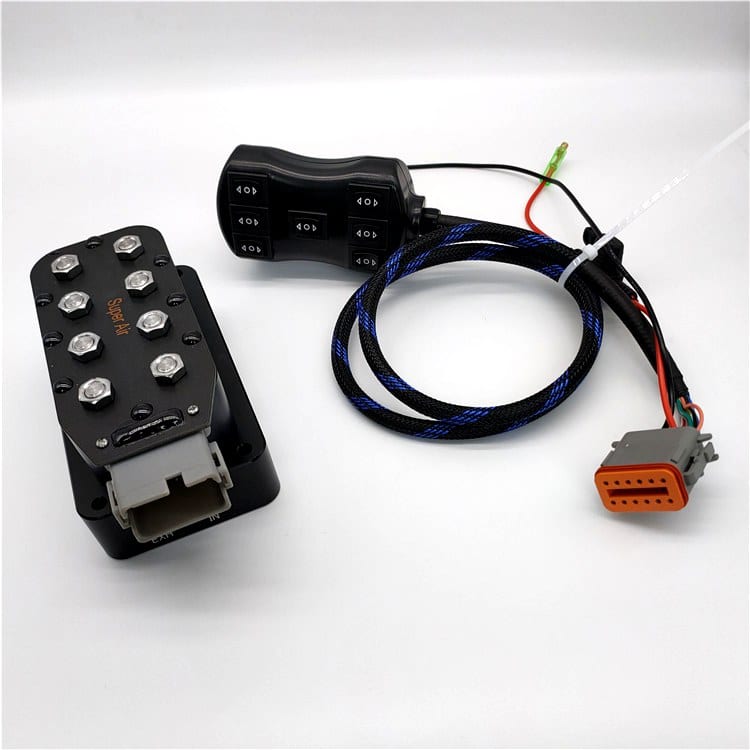

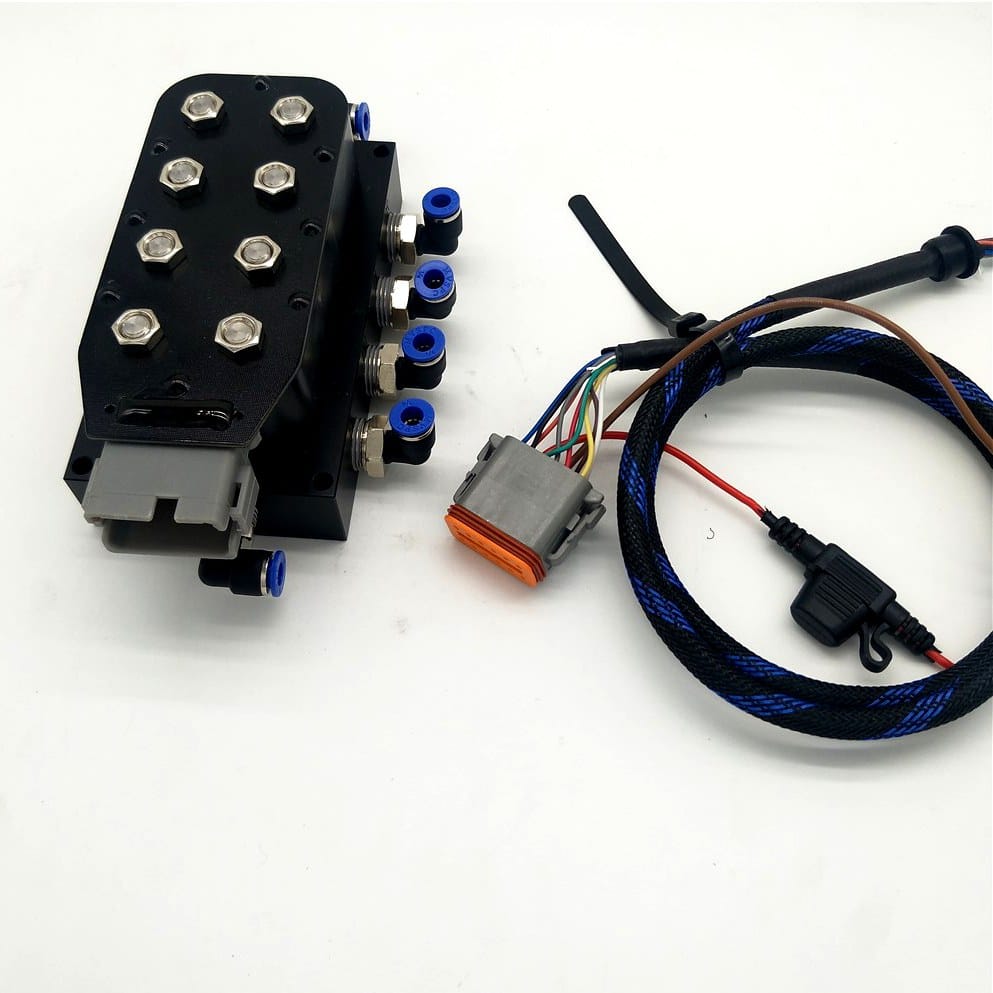

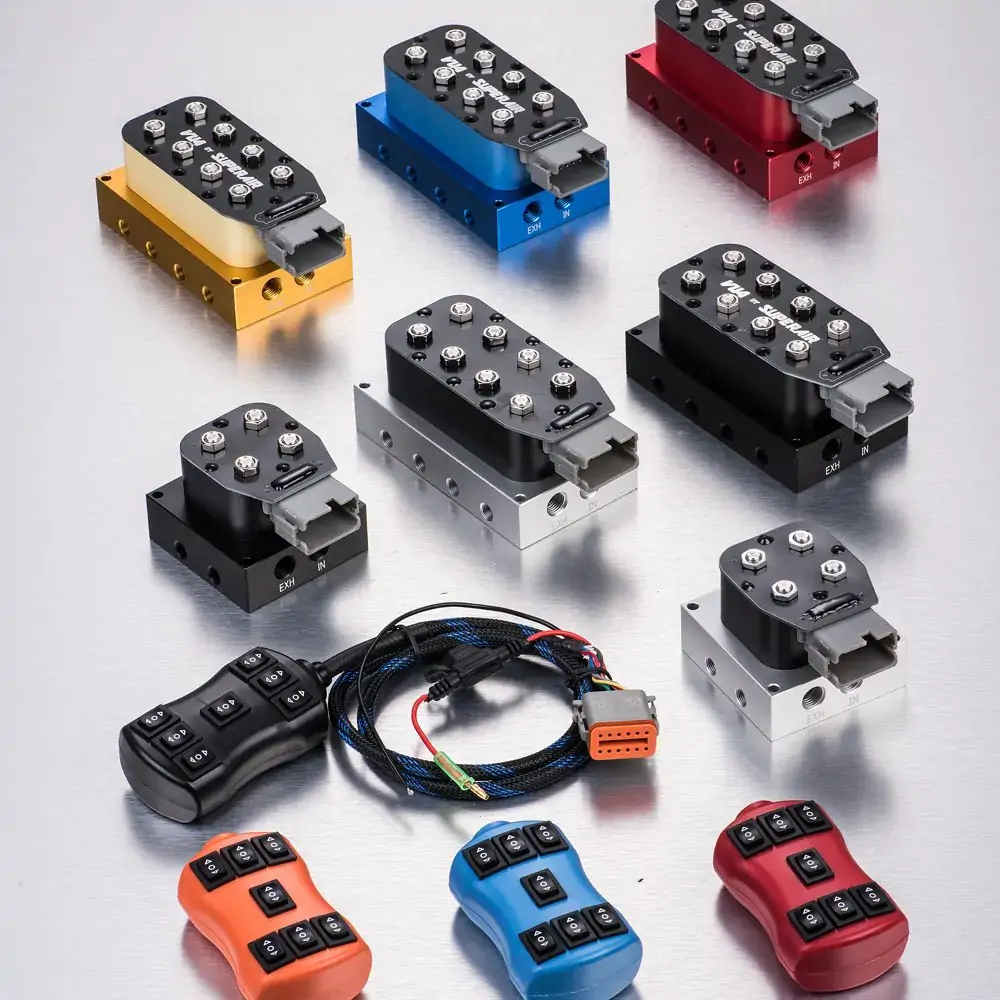

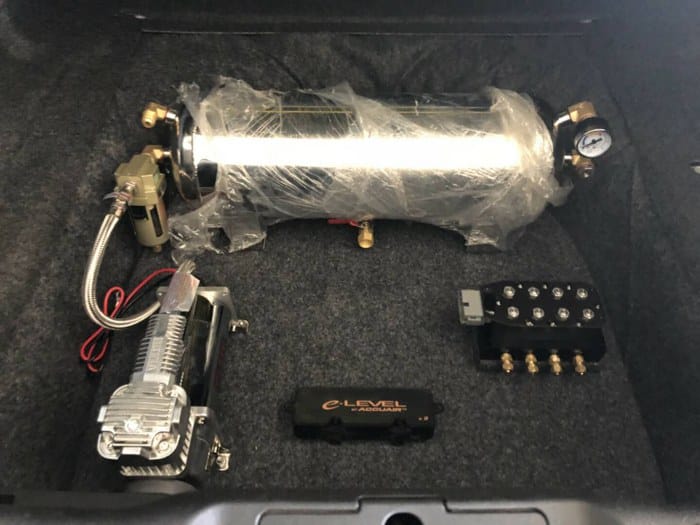

Integral Assembly Car Truck Chassis Air Suspension Manifold Solenoid Valve Block, 8 PCS package, 4 PCS package, 2 PCS package, with fittings, cable, control box, 2W160-4F 2W160-8F 2W160-2F Solenoid Manifold, stable quality, competitive price. The whole air bag system include manifold valve, air bag, air tank, air compressor, cable, fitting, air tube, control box, etc. All the parts follow DOT standard, widely used in the car truck Vehicle modification.

Features:

Body material: brass / aluminum
Pressure: 0-10 bar, 150 PSI
Fluid Media: Air
Series: AVS, RIDE, ACCUAIR, AIRBAG

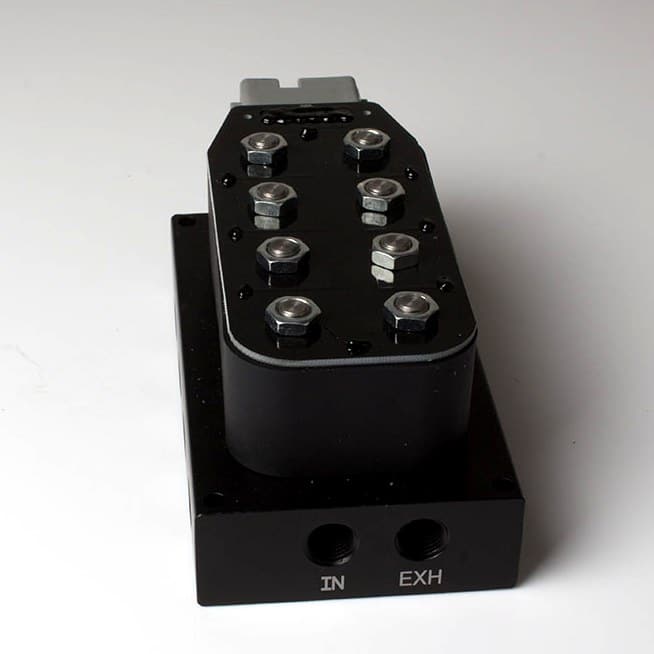

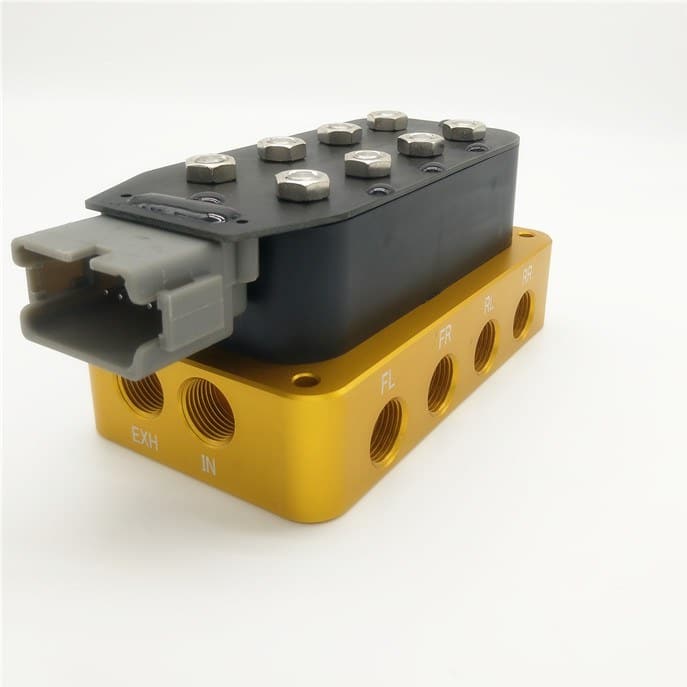

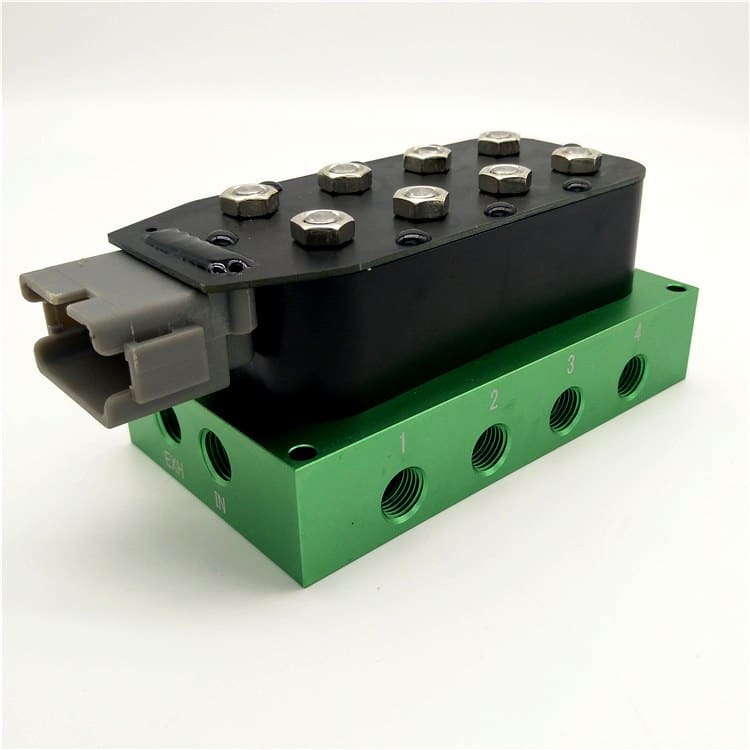

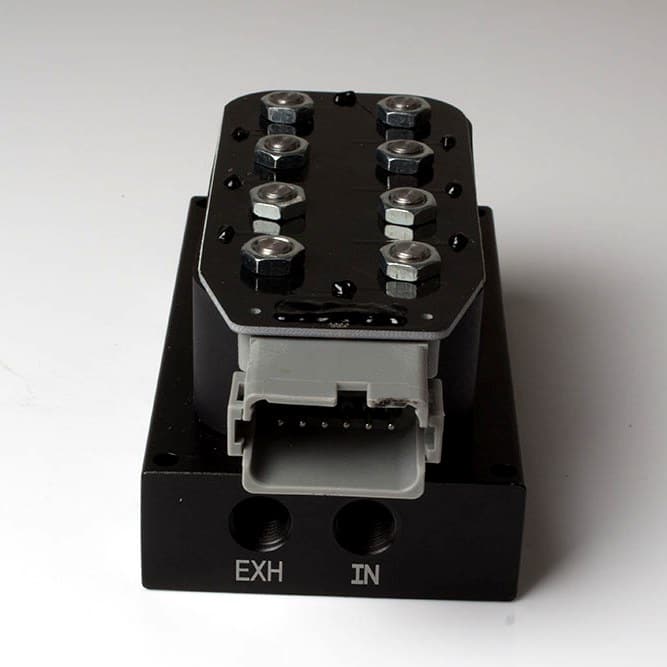

Air suspension solenoid valve VX4  2W160-4F

Includes:

·                  (1) VX4 Corner Solenoid Valve Unit.

·                  (2) ft Plug-n-Play Weatherproof Harness (for use with e-level™ controller). Splice for use with any other controller or switches.

·                  (3) Illustrated Manual.

Features:

·                  For use with e-Level Controller or any other brand of controller or switches.

·                  Pre-wired & port numbered for reduced installation time.

·                  High pressure rated for operation up to 200 PSI.

·                  Dual inlet & exhaust ports for maximum flow.

·                  Compact layout for minimal space usage (5” x 3” x 3”).

·                  Anodized aluminum manifold to prevent corrosion.

·                  100% weather resistant for harsh under vehicle environments.

Tech Specs:

·                  Compatible Suspension Type

·                  Voltage Requirements: 9.5 – 16 volts(Common DC12V)

·                  Current Requirements: 1.1 amps

·                  Connectors: IP67 certified

·                  No. of Inlets Ports: 2

·                  No. of Exhaust Ports: 2

·                  Max Operating Pressure: 200 PSI

·                  Cv Flow Factor: .25

·                  Average Adjustment Time: ~2.2 second
