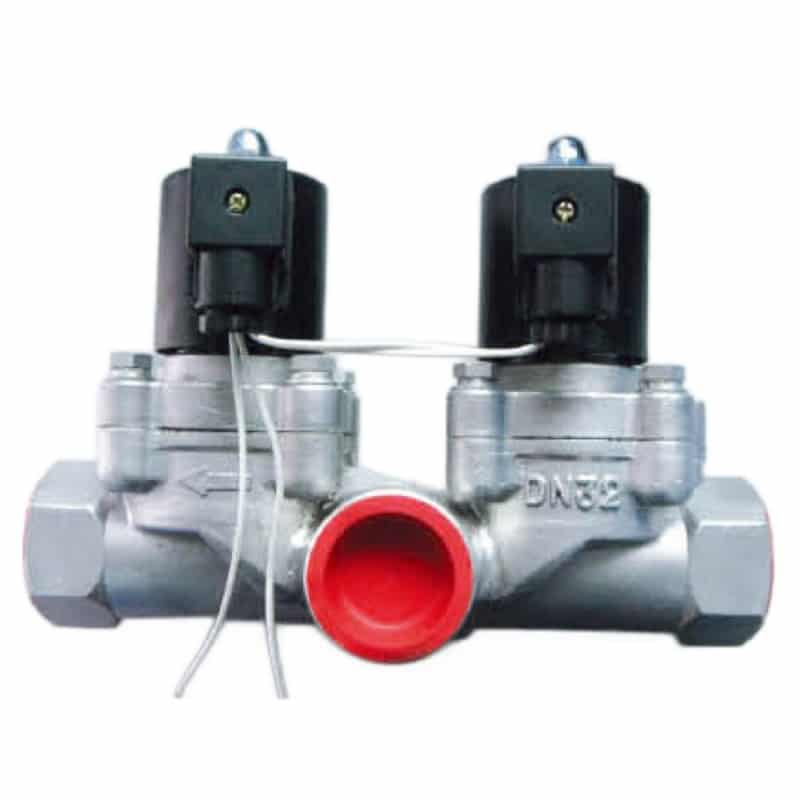

BDMZ Series High Temperature Stainless Steel Bidirectional Solenoid Valve

The BDMZ Series Bidirectional Solenoid Valve is engineered for high-pressure piping systems requiring reliable fluid reversing, shunting, or multi-directional flow control. Featuring a robust dual-coil structure and a premium stainless steel body, this heavy-duty valve is designed to handle demanding industrial media with exceptional sealing performance and zero backflow leakage. With a maximum working pressure of up to 10MPa (100 Bar), it is the ideal choice for high-pressure automation, hydraulic circuits, and specialized fluid management systems.

Key Features

True Bi-directional & Reversing Control: Specially structured to control and withstand medium flow in both directions, preventing backflow and ensuring stable line pressure.
High Pressure Capability: Built to endure extreme working conditions, supporting a wide pressure range from 6.4MPa up to 10MPa (model dependent).
Premium Material Construction: Precision-machined from high-grade Stainless Steel 304 / 316, offering superior corrosion resistance, chemical compatibility, and extended service life.
Dual-Coil Efficiency: Equipped with reliable dual electromagnetic actuators for precise, responsive switching between fluid ports.
Flexible Specifications: Available in multiple port sizes from G1/2″ to G2″ (DN15 to DN50) to seamlessly integrate into various industrial piping standards.

Technical Specifications

Body Material: Stainless Steel SS304 / Stainless Steel SS316
Nominal Diameter (DN): DN15, DN20, DN25, DN32, DN40, DN50
Connection Size (Thread D): G1/2″, G3/4″, G1″, G1-1/4″, G1-1/2″, G2″
Applicable Pressure Range:
- DN15: 10.0 MPa
- DN20: 8.0 MPa
- DN25 – DN50: 6.4 MPa
Structure type: 3-Port / 2-Port, Dual-Coil Bi-directional Control Type
Applicable Media: Water, Gas, Liquid, High-Pressure Air, Light Oil

How to order

1	2	3	4	5	6	7	8	9
Series	Port Size	Voltage	Seal Material	Orifice (mm)	Body Material	Operation	Coil Type	Thread Standard
BDMZ	10	U2	T	10L	S1	C	D	N
	08: 1/4″ 10: 3/8″ 15: 1/2″ 20: 3/4″ 25: 1″ 35: 1-1/2″ 50: 2″	U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC	T: Teflon + Fiberglass	15mm-50mm	S1: SS316 S2: SS304	C: Normally Closed O: Normally Open	D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof	B: BSP G: G N: NPT

Dimensions

Size	Port	L (mm)	L1 (mm)	B (mm)	B1 (mm)	H (mm)	H1 (mm)	H2 (mm)	Pressure	Material
DN15	1/2″	145	14	65	40	145	14	155	10MPa	SS304 SS316
DN20	3/4″	160	15	70	45	160	16	170	8.0MPa
DN25	1″	190	15	85	50	160	23	170	6.4MPa
DN32	1-1/4″	230	18	95	55	175	28	185	6.4MPa
DN40	1-1/2″	270	20	105	60	190	33	200	6.4MPa
DN50	2″	300	20	120	70	205	41	215	6.4MPa
