2W Manual Solenoid Valve

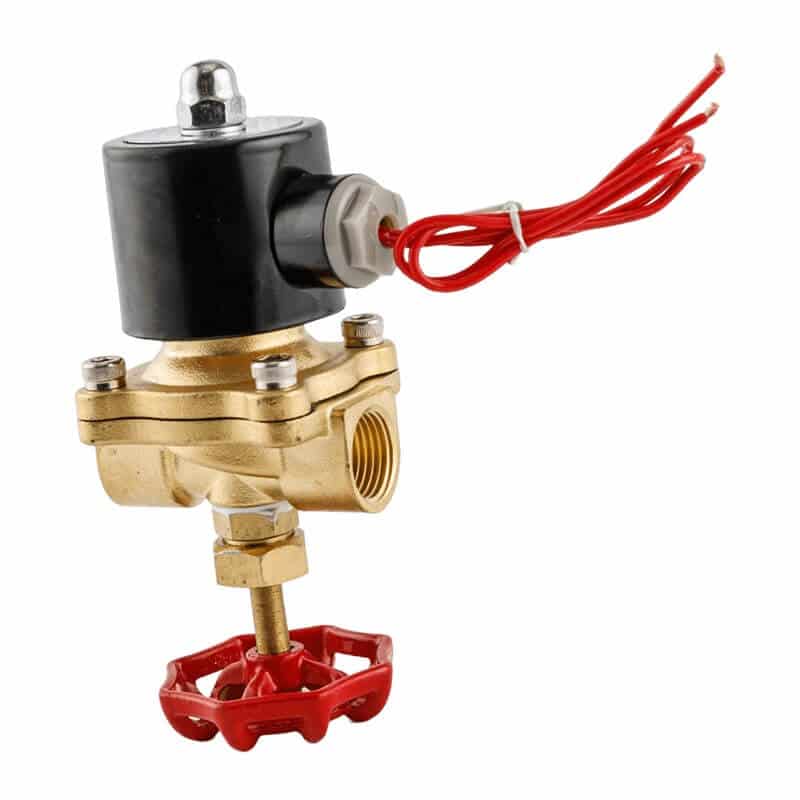

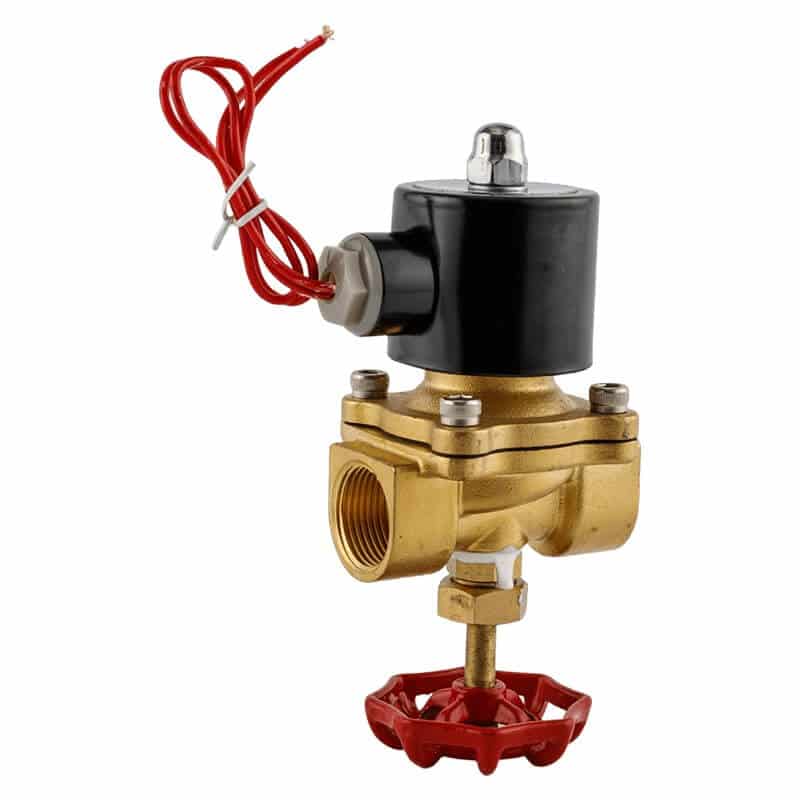

2W Series solenoid valve is one of the most popular types of 2-way general purpose fluid solenoid valves, with brass and stainless steel materials for options. The addon type 2W-M series solenoid valves come with a manual control wheel at the bottom of the valve. Under some conditions, the manual operation can keep the solenoid valve open and closed as per the normal working requirements, not afraid of the fail condition or loss of electricity.
Features:
1. 2W Manual series Brass 2-way N/C Solenoid ElectricMagnetic Valves.
2. Port Sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
3. Thread Standard: G, BSP, NPT
4. Materials: Brass valve body, Stainless Steel internal one-piece core tube, 430F armature, and 302 springs, prolonged working life.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
3. Thread Standard: G, BSP, NPT
4. Materials: Brass valve body, Stainless Steel internal one-piece core tube, 430F armature, and 302 springs, prolonged working life.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.
| Type | 2/2 ways |
| Acting type | direct acting |
| Series | 2W-M |
| Body Material | Brass |
| Actuation | solenoid valve |
| Pressure Resistance | 0-1.0 Mpa |
| Sealing Material | NBR, VITON, EPDM |
| Temperature | -5 ~ 80 ℃ (120℃ optional) |
| Port Size | 1/8“-2” |
| Working Status | N.C. Normally Closed |
| Wiring | Flying Leads |
| Industry | Safety Protection industry |
