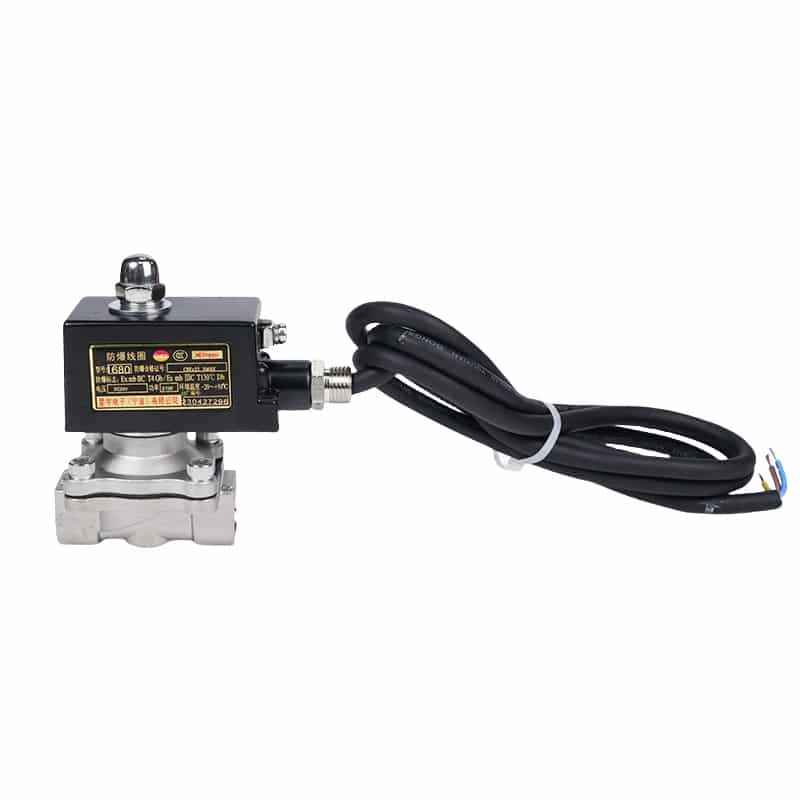

2W 2/2 Way Explosion Proof Solenoid Valve
2W Series brass and stainless steel body material, 2/2 way explosion proof solenoid valve, ATEX certificate ex-proof coil for 2W series solenoid valve, IEC Ex ex-proof coil, CNEX 13.1599X, Ex tb IIIC T135℃ Db. Suitable for LPG, natural gas, oil, water, steam, etc. PTFE VITON seals for performance enhancement.
Features:
1. 2/2 Way ex-proof solenoid valve
2. Port Sizes: 1/2", 3/4", 1", 1-1/2", 2"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, Stainless Steel
5. Seal options: NBR, Diaphragm material: FKM: <150°C; TEFLON: <180°C
6. Voltages: 12VDC, 24VDC, 110VAC, 220VAC, special voltage customizable.
7. QC: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/2", 3/4", 1", 1-1/2", 2"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, Stainless Steel
5. Seal options: NBR, Diaphragm material: FKM: <150°C; TEFLON: <180°C
6. Voltages: 12VDC, 24VDC, 110VAC, 220VAC, special voltage customizable.
7. QC: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
8. Operation: Diaphragm Pilot Type
9. Pressure: 0-8 Bar, 0.8 MPa, 120 PSI
10. Fluid Media: Air, Water, Hot water, Liquid Oil, Steam, Gas
10. Fluid Media: Air, Water, Hot water, Liquid Oil, Steam, Gas
11. Application: large flow rate medium, ex-proof requirement.
Exproof Coil Specifications
| Normal Voltage | AC220V AC110V DC24V DC12V | |
|---|---|---|
| Normal Power | AC | 12VA |
| DC | 11W | |
| Ex-proof Grade | Ex mb I Mb Ex mb II T4 Gb DIP A20 TA T4 |
|
| Connection Type | connector type cable | |
| Production License | XK06-014-00295 | |
| Ex-proof Certificate No | CNEx13.1599X | |
| Diameter | 13 mm | |
| Height | 42 mm | |
Solenoid Valve Specifications
| Model | 2W / 2W-NO |
|---|---|
| Media | Air/ Water/ Oil / Gas |
| Working Type | Direct Action |
| Pattern | Normally Close / Normally Open |
| Fluid Viscosity | ＜20CST |
| Working Pressure | Air, Water, Gas 0~0.7 MPa |
| Max Pressure | 1.0 MPa |
| Working Temp. | -5~80 ℃ |
| Rated Voltage | DC12-24V AC24V-380V ±10% |
| Valve Body Material | Brass / Stainless Steel |
| Seal Material | NBR / VITON / EPDM |

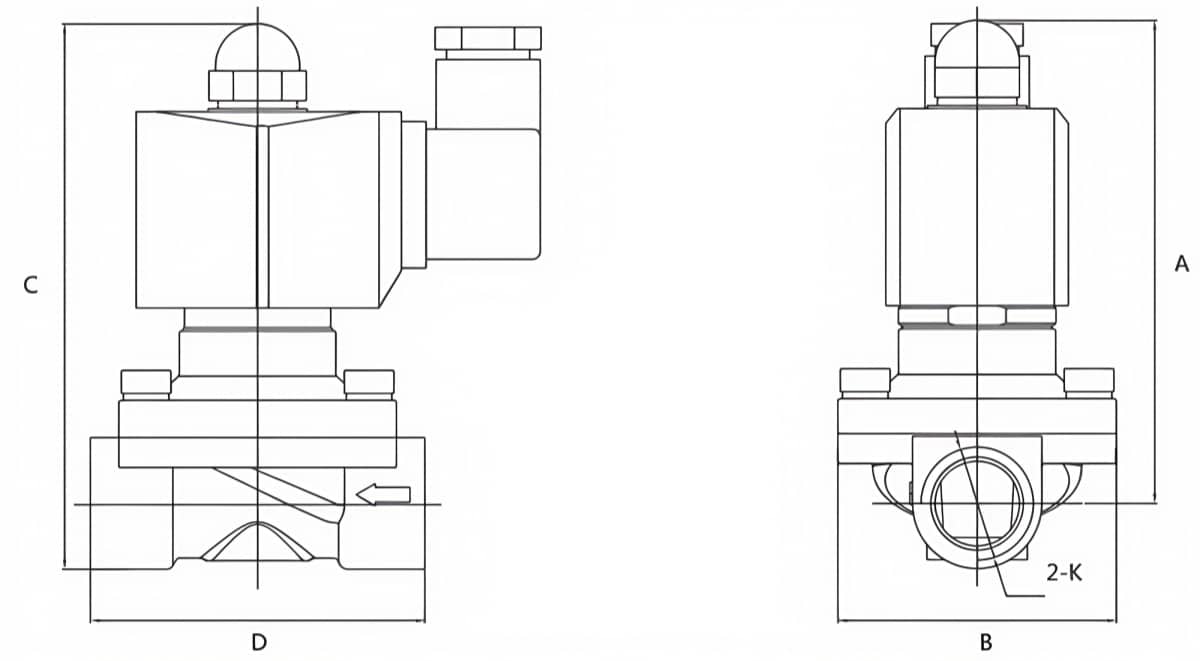

| Mode | A | B | C | D | K |
|---|---|---|---|---|---|
| 2W160-10 | 93 | 56 | 106 | 69 | G3/8" |
| 2W160-15 | 93 | 56 | 106 | 69 | G1/2" |
| 2W200-20 | 100 | 55 | 117 | 73 | G3/4" |
| 2W250-25 | 104 | 78 | 125 | 99 | G1" |
| 2W350-35 | 141 | 93 | 172 | 124 | G11/4" |
| 2W400-40 | 141 | 93 | 172 | 124 | G11/2" |
| 2W500-50 | 157 | 124 | 195 | 172 | G2" |
