2W-15 solenoid valve

2W-15 General Water Solenoid Valve Air Solenoid Valve

2W solenoid valves are one of the most popular 2/2 way valves in AIRKERT company. The 2W UW solenoid valve zero differential valves have a thread size ranging from 1/8” to 2”.We started production when the factory was established. We have two types material of for these valves: brass body and stainless steel body. And the function can be a normal close valve and normal open. With good quality and stable performance, this type of solenoid valve is widely used in many different industrial fields. Our output can reach 600,000Pcs per year.

Body material: Forged Brass, Cast Brass, SS304
Pressure:0-7kgf/cm2
Orifice:Ф2.5mm-50mm
Pipe size:1/8”-2”
Fluid Media: Water、Hot Water、Air、Gas 、Oil Etc

2W160-10 2W160-15 2W160-20  2W200-20 2W250-25 2W350-35 2W400-40 2W500-50

2W-15 2W-20 2W-25 2W-35 2W-40 2W-50

Working Medium Air,Water,Oil,gas
Operation Direct Acting
Acting Type Normally Closed
Orifi ce Size(mm) 16
CV Value 4.8
Port Size 1/2″
Operation Fluid Viscosity 20 CST Below
Operating Pressure Air:0~1.0Mpa,Water:0~0.7Mpa,Oil:0.9Mpa
Max. Pressure Resistance 1.0Mpa
Operating Temperature NBR for -5 ~80℃ and VITON for -5~150℃
Voltage Range ±10%
Material of Body Brass
Material of Oil Seal NBR or VITON

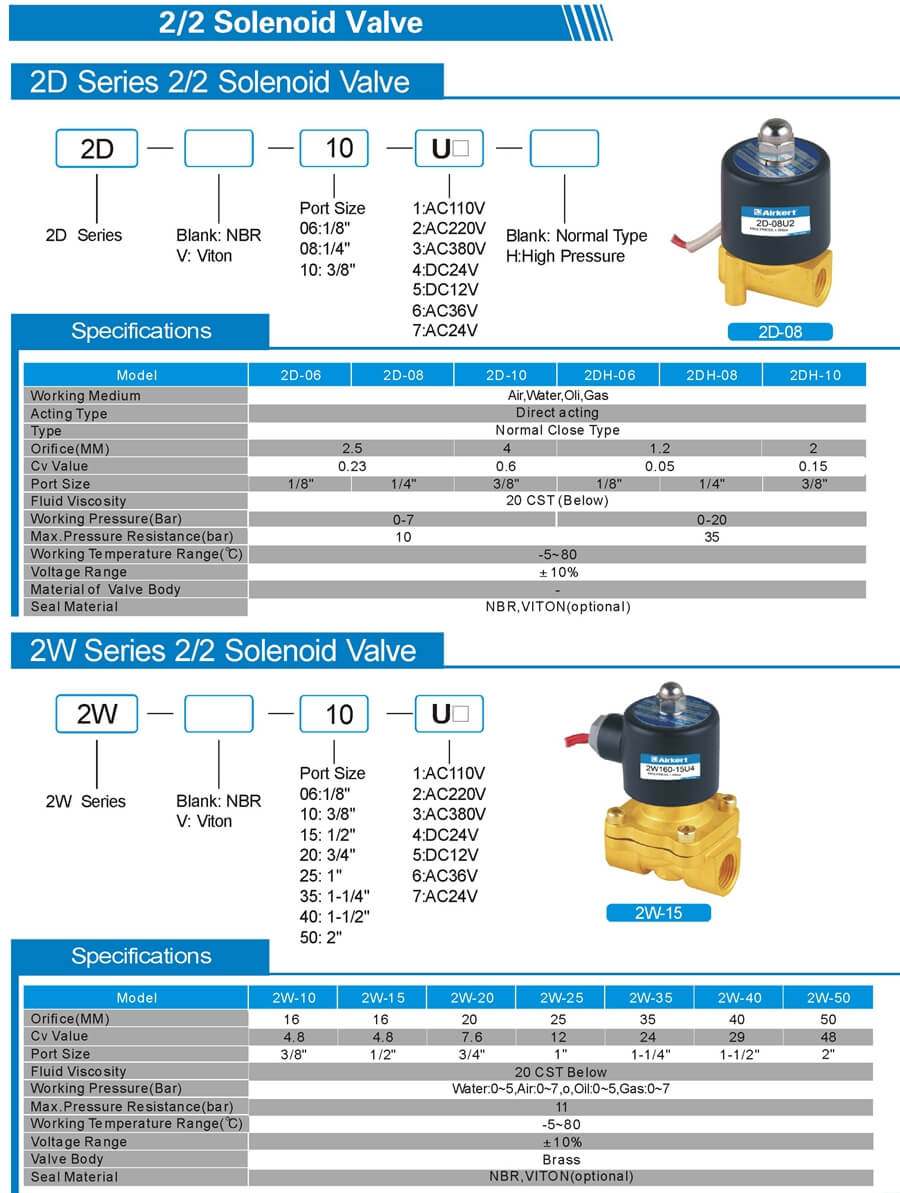

2D 2W Solenoid Valve Sheet

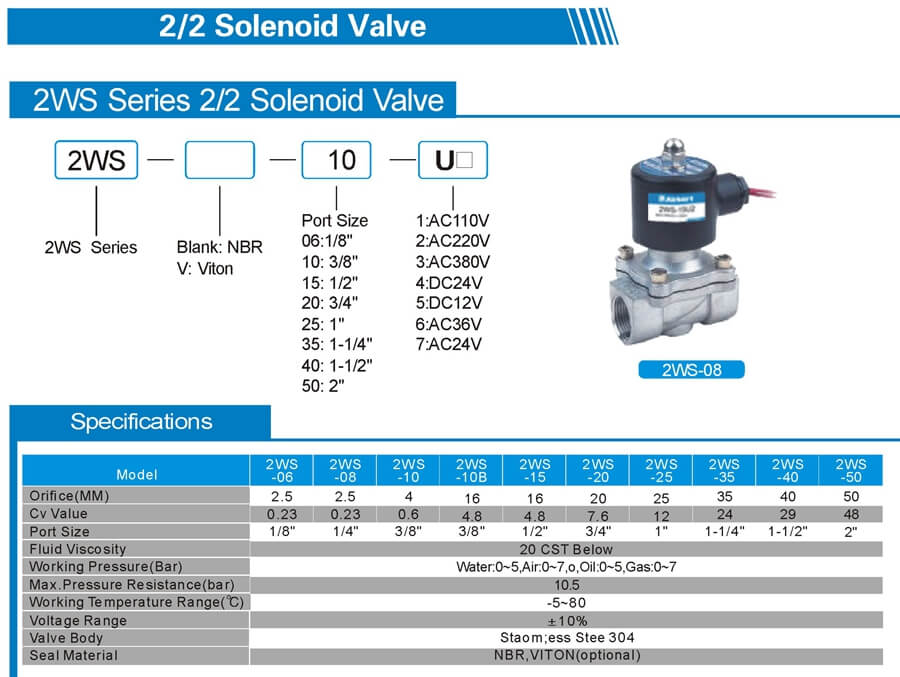

2W 2S 2WS Solenoid Valve Sheet
