100 Bar 1500 PSI High Pressure Solenoid Valve

AMH Series Stainless Steel SS316 SS304 Body Material, 1/8" to 1" Port Size, Round valve body, 100 bar, 10 MPa, 1500 PSI Super ultra high pressure solenoid valve, anti-corrosion, suitable for washing system, dust cleaning, dust blowing systems, long-lasting, high performance, durable, ultra-high pressure resistance. The solenoid coil is plastic-sealed and waterproof, with a protection grade of IP65. High-quality PTFE/PEEK seals with excellent performance.

Features:

1. AMH series 2/2 way high-pressure solenoid valve
2. Port Sizes: 1/8" 1/4" 3/8" 1/2"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS316, SS304
5. Seal options: Diaphragm material: FKM: <150°C; TEFLON: <180°C
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. QC: Solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
8. Normally Closed. N/C Type
9. Pressure: 100 bar, 10 mPa, 1500PSI
10. Fluid Media: Air, Water, Hot water, Liquid Oil, Steam
11. Application: high-pressure large-flow steam water control system
Pipe Orifice C V Min Pressue
(bar)		 Max Work Pressure (bar) Coil Power Weight

(KG)
AC DC AC(50Hz) DC
Air Water Oil Air Water Oil VA W W

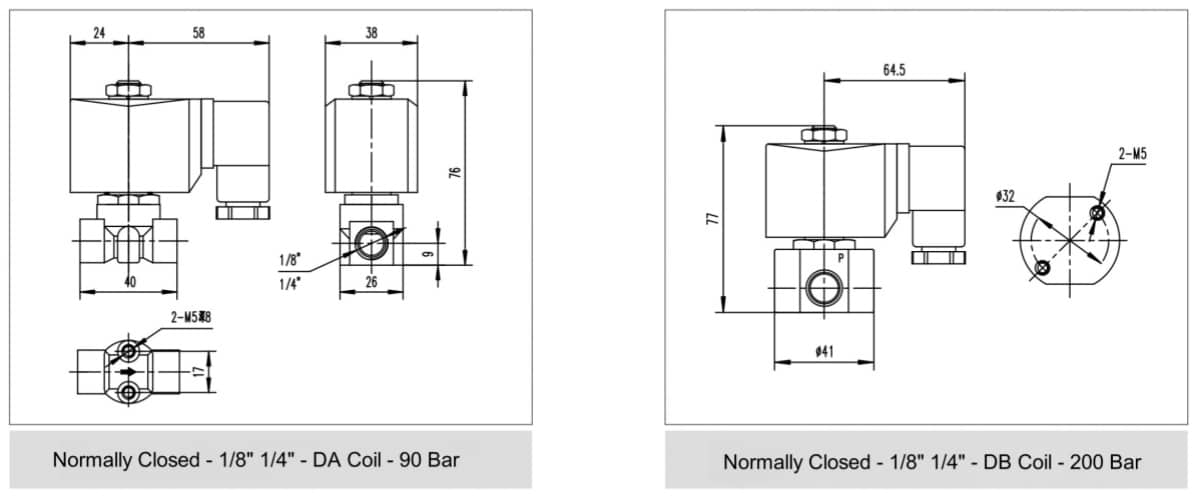

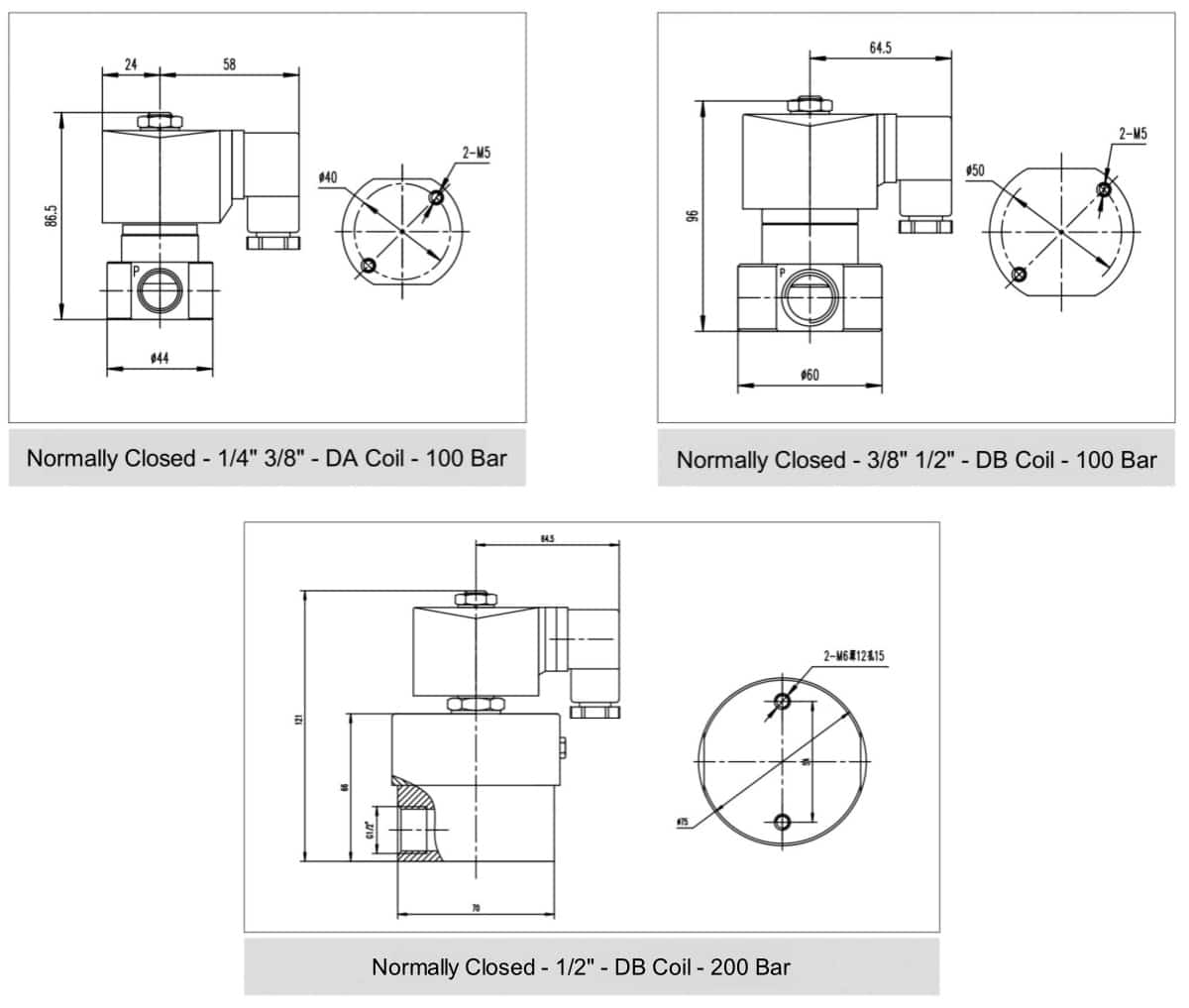

Normally Closed
1/8”
1/4”		 1 0.04 0 120 120 100 120 120 100 DA 22 12 18 0.40
1.5 0.1 0 90 90 70 90 90 70 0.40
2 0.15 0 50 50 40 50 50 40 0.40
2.5 0.23 0 35 35 25 35 35 25 0.40
1/4” 6 0.8 0.5 100 100 80 70 70 50 0.5
3/8" 6 0.8 0.5 100 100 80 70 70 50 0.66
1/8“1/4 ” 1.2 0.05 0 200 200 150 200 200 150 DB 39 24 25 0.65
2 0.15 0 100 100 80 100 100 80 0.65
3/8" 10 1.8 0.5 100 100 80 70 70 50 1.10
1/2” 10 1.8 0.5 100 100 80 70 70 50 1.09
1/2” 15 4.6 1 200 200 180 200 200 180 2.43
1/2” 15 4.6 0.5 70 70 50 70 70 50 1.02
3/4” 20 8.5 0.5 70 70 50 70 70 50 1.27
1” 25 12 0.5 70 70 50 70 70 50 1.74
Pipe Orifice C V Min Pressure
(bar)		 Max Work Pressure (bar) Coil Power Weight
(KG)
AC DC AC(50Hz) DC
Air Water Oil Air Water Oil VA W W
Normally Open
1/8”
1/4”		 1 0.04 0 90 90 75 90 90 75 DA 22 12 18 0.43
1.5 0.1 0 50 50 40 50 50 40 0.43
3/8” 6 0.8 0.5 100 100 80 100 100 80 DB 39 24 25 0.85
1/2” 10 1.8 0.5 70 70 50 70 70 50 1.22
1/2” 15 4.6 0.5 50 50 40 50 50 40 1.09
3/4” 20 8.5 0.5 50 50 40 50 50 40 1.34
1” 25 12 0.5 50 50 40 50 50 40 1.81
