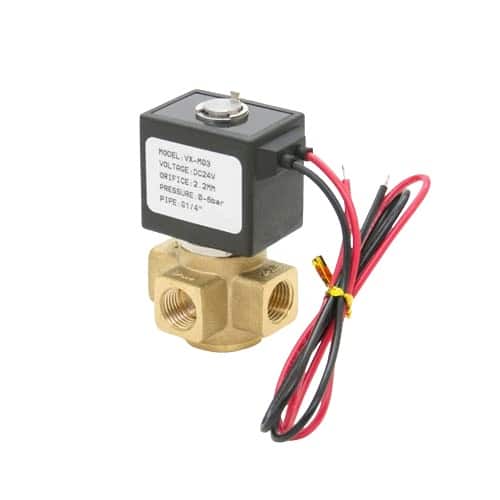

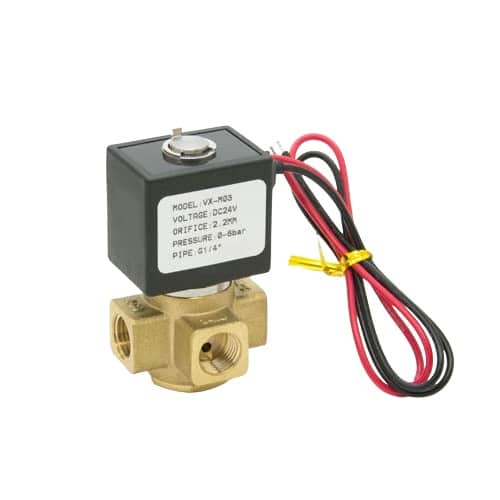

VX Series 3/2 3-Way Brass Solenoid Valve

This compact VX Series 2/3-way direct-acting solenoid valve features a highly responsive mechanism and a standard encapsulated waterproof coil with IP65 protection. Designed for reliable performance, it is ideal for use in various control systems, testing equipment, and automated processes. Available in DN1.5–3 mm orifices with 1/8″–1/4″ ports, it can operate under pressures ranging from 0 to 16 bar, providing versatility for different applications.

2/3-Way Solenoid Valve

  • Structure: Compact direct-acting design, sensitive response

  • Coil: Standard encapsulated waterproof coil, protection class IP65

  • Application: Suitable for control systems and testing equipment

Technical Specifications

  • Type: 2/3-way

  • Operation Mode: Direct-acting

  • Orifice Size: DN1.5 ~ 3 mm

  • Port Size: 1/8″ ~ 1/4″

  • Working Pressure: 0 ~ 10 bar

Body material:  Stainless Steel / Brass
Pipe size: 1/8″, 1/4″
Fluid Media: Air, gases, oil, non-corrosive liquids, water.
Model: VX23

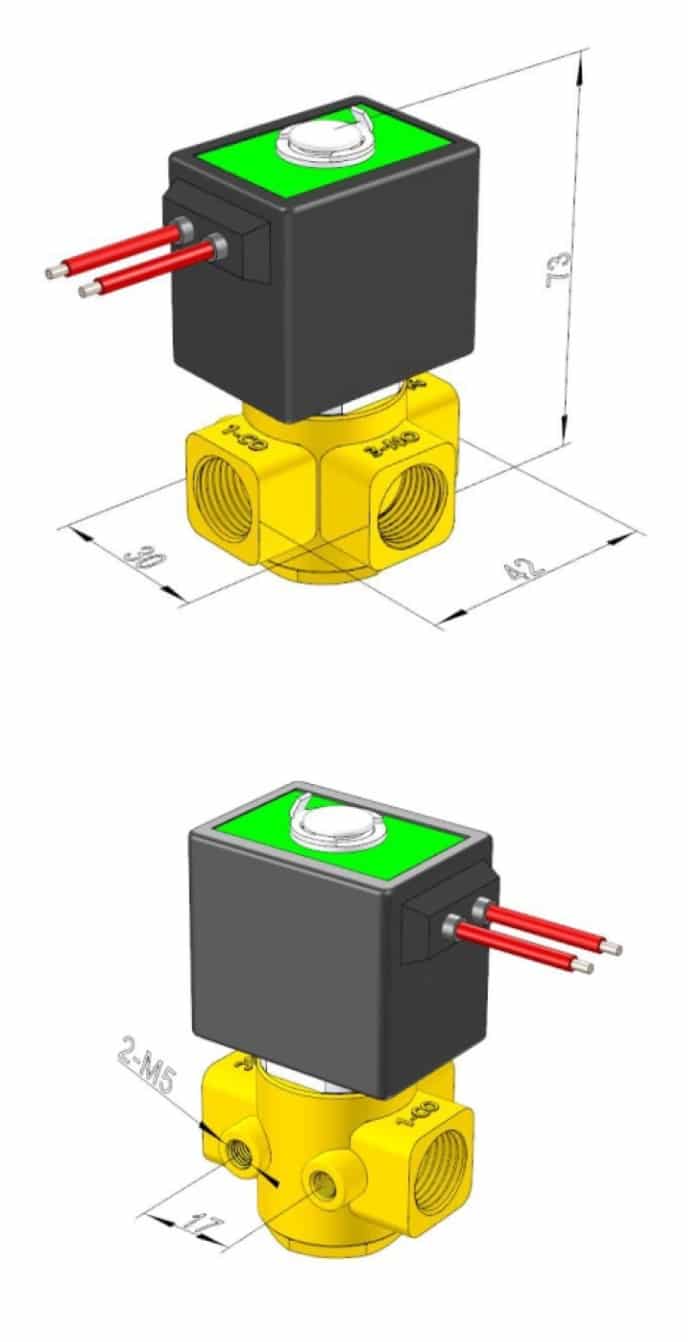

VX23 solenoid valve show

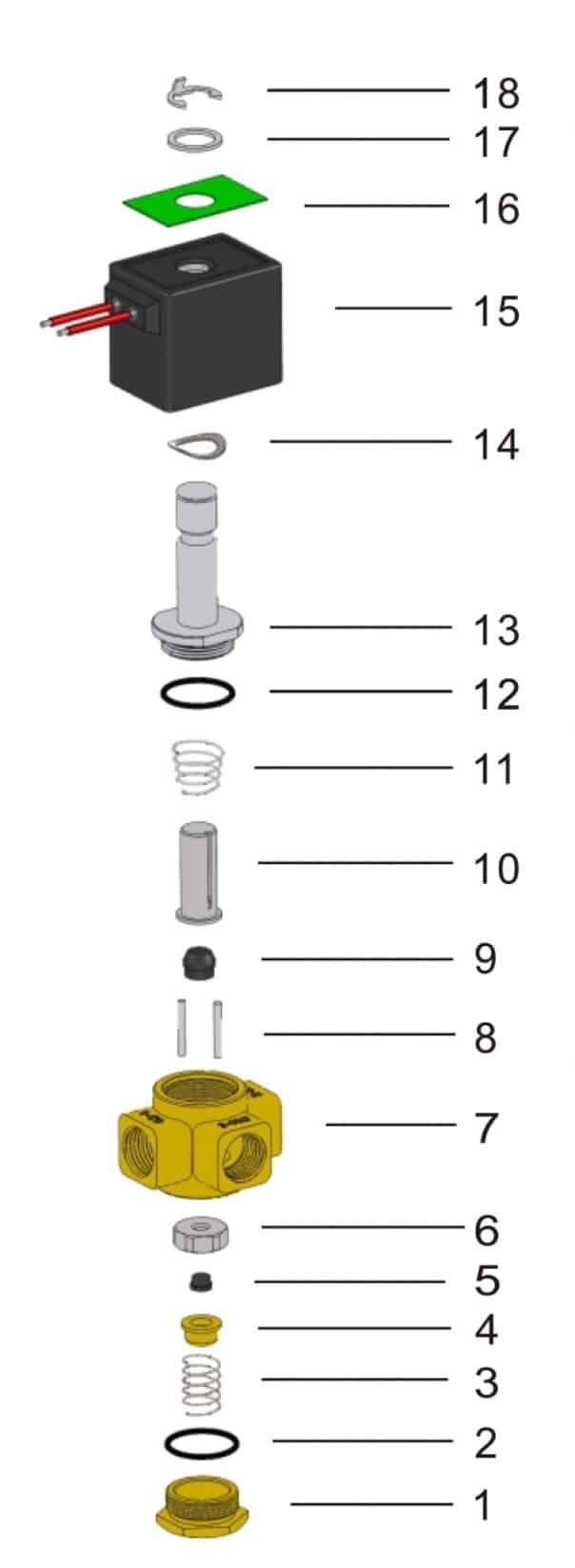

VX23 solenoid valve parts
No. Parts Material
18 Clip Spring steel
17 Washer SUS304
16 Plate Aluminum
15 Coil Copper
14 Washer Spring steel
13 Tube 430F
12 O-ring NBR/EPDM/FKM
11 Spring SUS304
10 Pluger 430F
9 Seals NBR/EPDM/FKM
8 Pole SUS304
7 Body Brass
6 Core SUS304
5 Seals NBR/EPDM/FKM
4 Core Brass
3 Spring SUS304
2 O-ring NBR/EPDM/FKM
1 Cover Brass

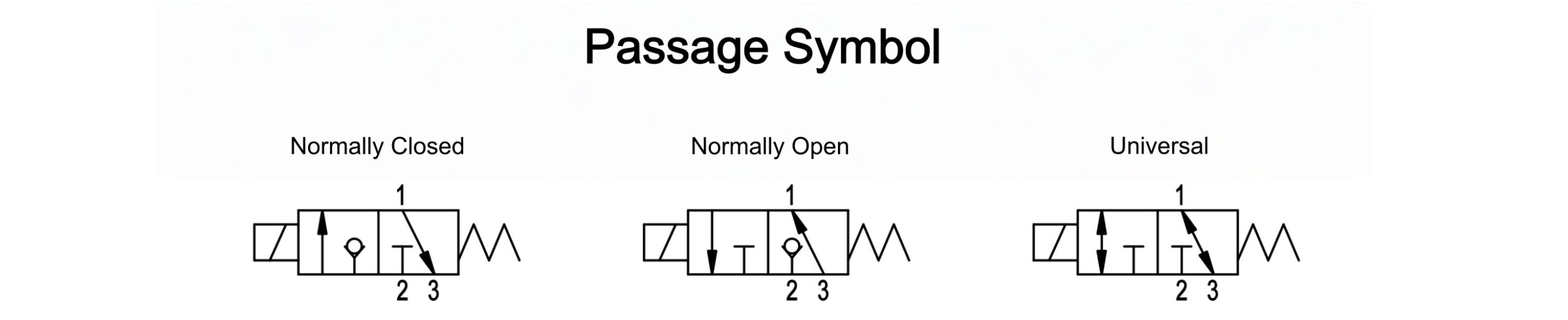

VX 3 way solenoid valve flow
Pipe Orifice CV value Max Work Pressure(bar) Power Weight
(KG)
AC DC AC(50Hz) DC
Air Water Oil Air Water Oil VA W W
Normally Closed
1/8″ 1.5 0.08 10 10 7 10 10 7 9 4.5 8 0.32
1/4″ 2.2 0.17 7 7 5 7 7 5
1/4″ 3 0.27 3 3 2 3 3 2
Normally Open
1/8″ 1.5 0.08 10 10 7 10 10 7 9 4.5 8 0.32
1/4″ 2.2 0.17 7 7 5 7 7 5
1/4″ 3 0.27 3 3 2 3 3 2
Universal
1/8″ 1.5 0.08 7 7 5 7 7 5 9 4.5 8 0.32
1/4″ 2.2 0.17 4 4 3 4 4 3
1/4″ 3 0.27 2 2 1 2 2 1
