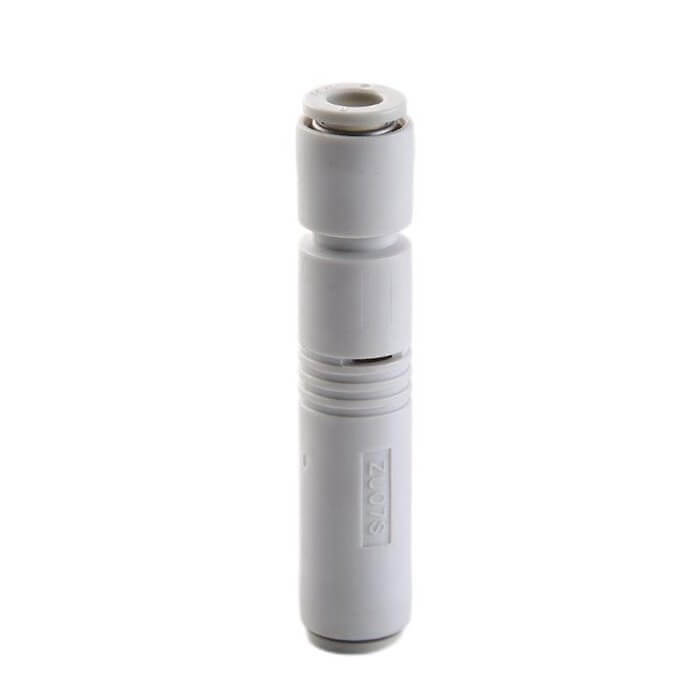

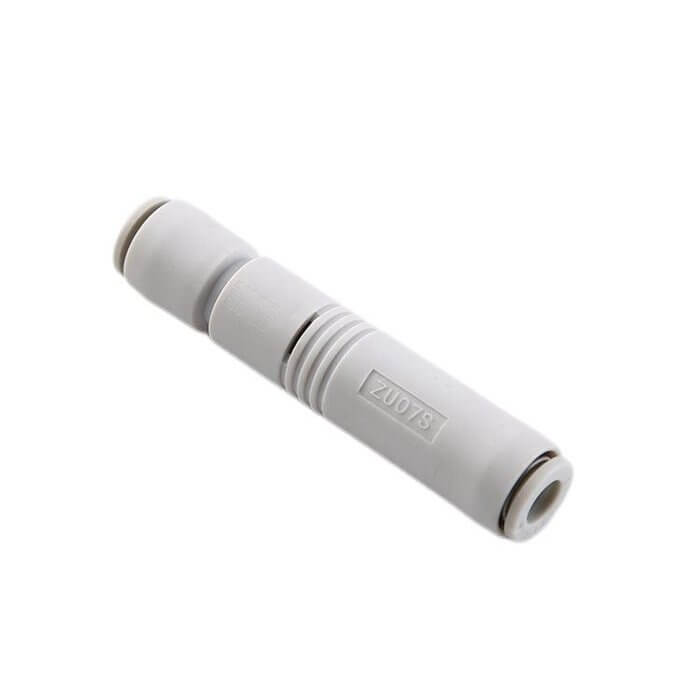

Vacuum generator one touch push-in fitting
SMC alternative Vacuum Generator series ZU combines design simplicity with high performance. Simply plug an air supply tube in one end, and the vacuum is ready at the other end. Also, these generators are often smaller and lighter than the bulky vacuum lines used in central vacuum systems. The slim ZU generators are extra compact. A built-in exhaust silencer keeps generator noise to a minimum. Available in four nozzle diameters and a number of port sizes.
Body material: Plastic
Pressure:1-10 bar, 150 PSI
Fluid Media: Compressed air
Specifications
I. Fluid type: air (no other gases or liquids)
2. working pressure: 0 to I50psi
3. Negative pressure:-29.5 in Hg
4. Applicable tube: polyurethane and nylon
5. Standard: Metric, Inch, NPT
Fluid
|
Air
|
|
Applicable tubing material
|
FEP, PFA, Nylon, Soft Nylon, Polyurethane
|
|
Operating temperature range
|
-5 to 50℃
|
|
Operating pressure range
|
0.1 to 0.6MPa
|
|
Standard supply pressure
|

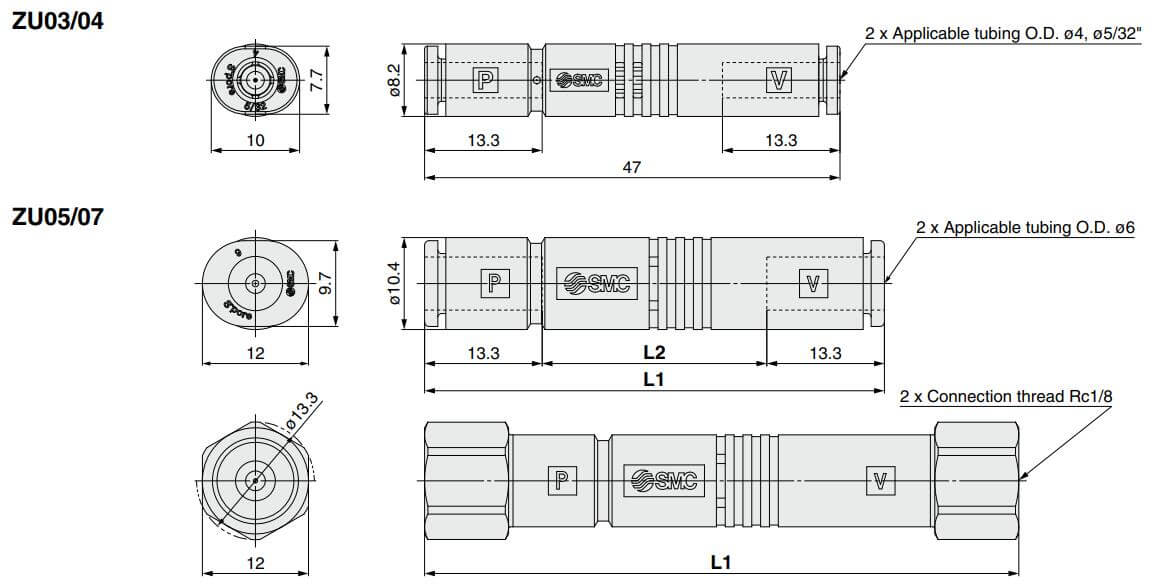

ZU03/04
|
0.35MPa
|
ZU05/07
|
0.45MPa
|
