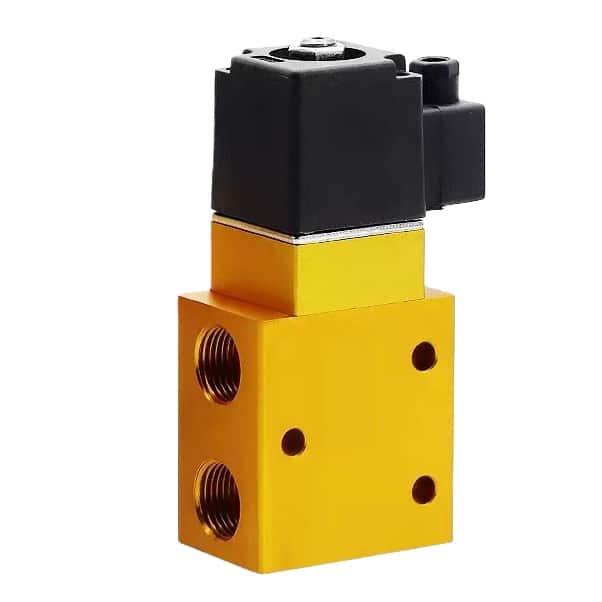

23JD bottle blowing solenoid valve

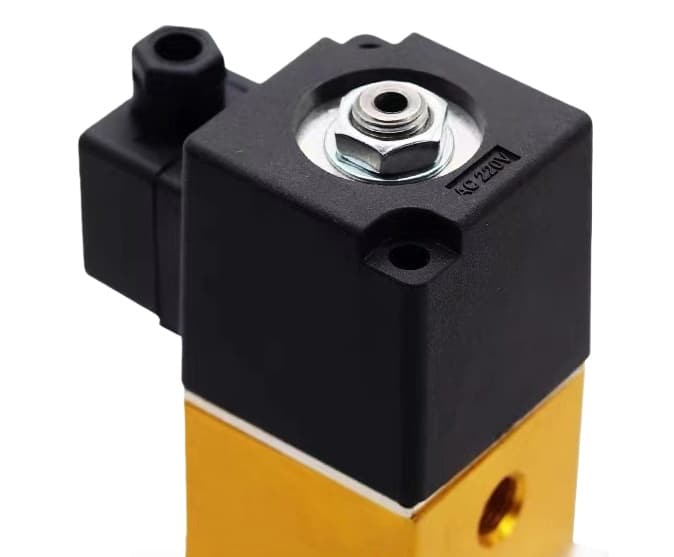

23JD 3 way bottle blowing solenoid valve

3/2 Way High Pressure PET Bottle Blowing Machine Solenoid Valve

The 23JD Series is a high-performance solenoid valve engineered specifically for the rigorous demands of PET plastic bottle blowing machines. Built to withstand high-pressure environments, this valve combines rapid response times with exceptional durability, making it an ideal component for automated industrial systems.

Key Features & Benefits

  • Rapid Response: Features a switching time of ≤0.04s, ensuring precise control essential for high-speed bottle blowing operations.1

  • Extreme Durability: Designed for a long service life with a tested capability of over 1,500,000 operational cycles.

  • Reliable Quality: Every unit undergoes 100% pressure and leakage testing prior to packaging to guarantee zero defects.

Technical Specifications

Feature Specification
Model Series 23JD Series
Application PET Bottle Blowing, High-Pressure Pneumatic Systems
Working Pressure Range 0.15 MPa – 2.4 MPa (Supports up to 30 bar/3.0 MPa)
Operating Temperature -5°C to +50°C
Switching Time ≤ 0.04 seconds
Voltage Options DC12V, AC220V, and others available
Service Life > 1,500,000 cycles

How to order

1 2 3 4 5 6 7 8 9
Series Port Size Voltage Seal Material Orifice
(mm)		 Body Material Operation Coil Type Thread Standard
23JD 15 U2 N 15L B C D N
08: 1/4″
15: 1/2″		 U1: 110VAC
U2: 220VAC
U3: 380VAC
U4: 24V DC
U5: 12V DC
U6: 36V AC
U7: 24V AC		 N: NBR
V: VITON
E: EPDM
T: PTFE		 8L: 8
15L: 15		 B: Brass
A: Aluminum		 C: Normally Closed

O: Normally Open

 D: DIN Standard

W: Lead Wire
X: EX-Proof
A: Water-Proof

 B: BSP

G: G
N: NPT

Technical Data Sheet

3/2 Way High Pressure Bottle Blowing Machine Solenoid Valve
Model 23JD-8P 23JD-8P2 23JD-15P 23JD-15P2
Orifice 8mm 15mm
Working Pressure 0.15Mpa~2.4Mpa
Pressure Resistance 1.5Mpa
Switching time ≤0.04s ≤0.08s
Effective Sectional Area ≥20mm2 ≥60mm2
Working Temp. Minus 10~55℃
Mdeium Temp. Minus 5~50℃
