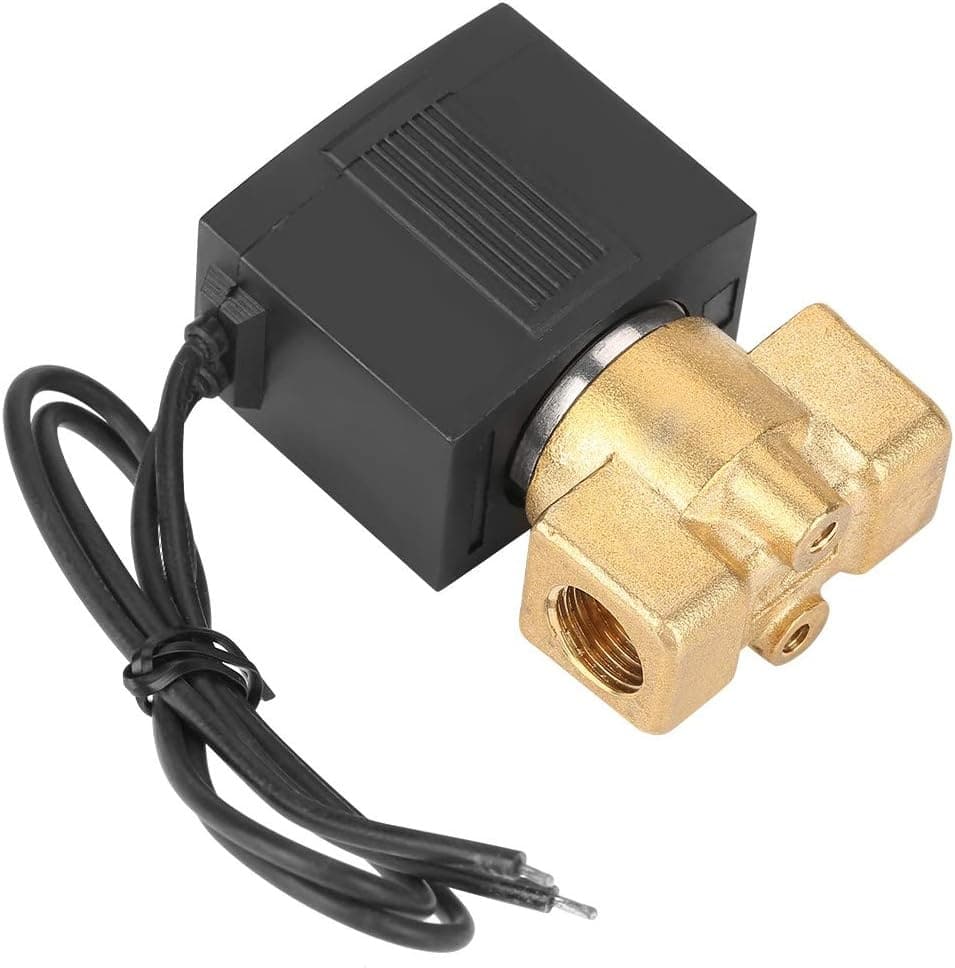

VX2120 Solenoid Valve SMC Model Alternative
The VX2120 Series Solenoid Valves are engineered for versatility, offering size options ranging from 1/8” to 1/2” and compatibility with a wide range of media, including air, gas, water, hot water, and light oil. Constructed from high-quality brass, these valves are designed to be sturdy, reliable, and capable of long-term use. This 2-way solenoid valve utilizes an advanced diaphragm sealing and direct-acting structure, which ensures rapid and straightforward operation. Crucially, the valve’s design allows it to initiate operation even under zero pressure difference.
Built for sustainability, the VX2120 series boasts excellent sealing performance and is remarkably easy to install and maintain across various environments. Its proven functionality makes it an ideal choice for numerous fields, including Irrigation Control (gardens and farms), precise Liquid Control in pipelines and artificial rivers, and versatile Air Control in settings such as laboratories and factories.
-
Type: 2/2-Way, Direct Acting
-
Body Material: Forged Brass
-
Working Pressure: 0–7 Bar
- Voltages: 24VDC / 12VDC / 110VAC / 220VAC
-
Orifice Size: 3–13 mm
-
Pipe Size: 1/8″–1/2″
-
Flange Size: DN4 – DN15
-
Fluid Media: Air, Water, Gas, Oil

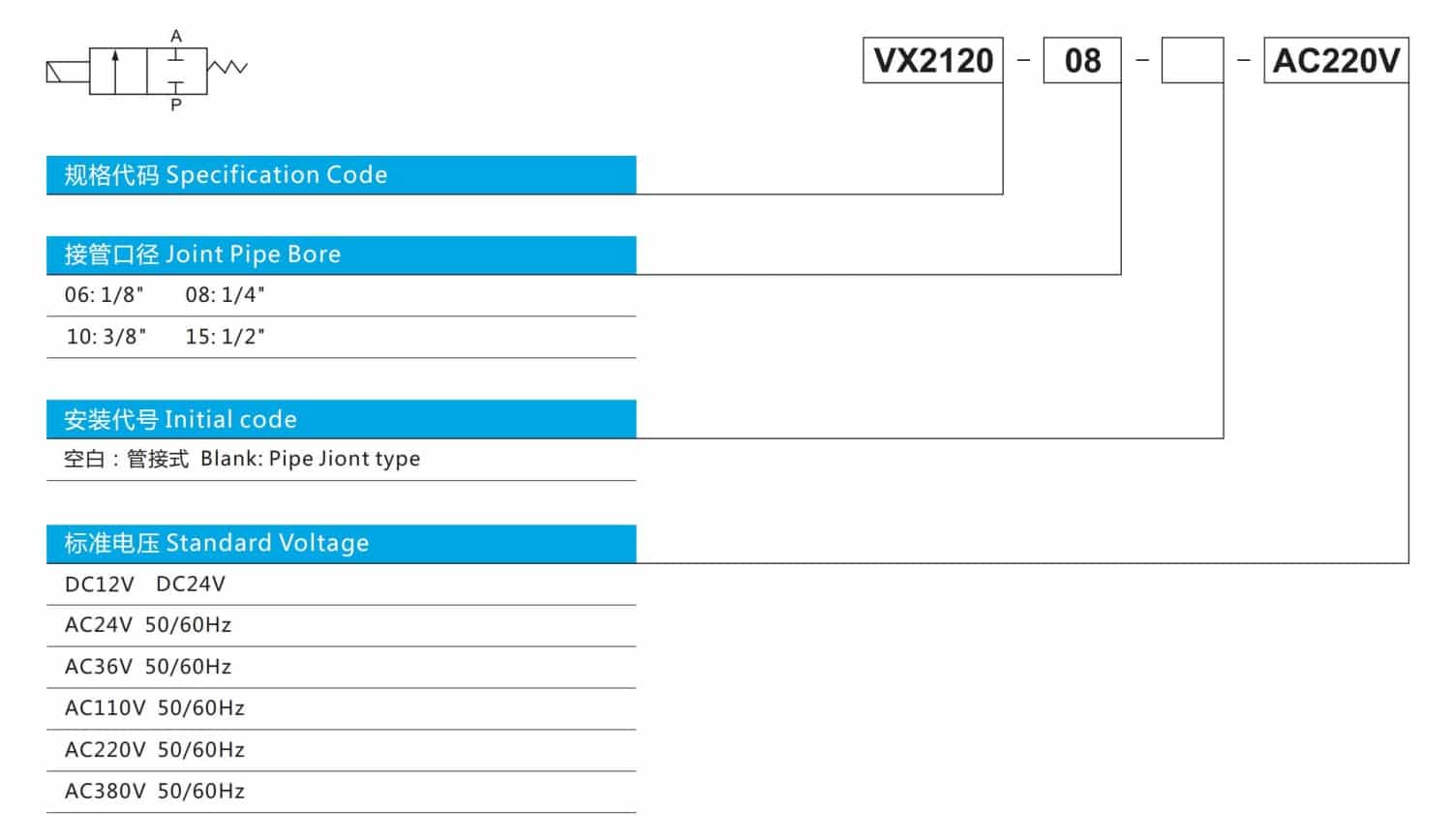

How to order
Dimensions
| Model | F(G) | A | B | C |
|---|---|---|---|---|
| VX2120-06/VXS2120-06 | 1/8″ | 26 | 42 | 66 |
| VX2120-08/VXS2120-08 | 1/4″ | 26 | 42 | 66 |
| VX2120-10 | 3/8″ | 40 | 48 | 77 |
| VX2120-15 | 1/2″ | 47 | 66 | 87 |
Technical Data Sheet
| Model | VX2120-06 | VX2120-08 | VX2120-10 | VX2120-15 |
|---|---|---|---|---|
| Working Medium | Air,Water,Steam | |||
| Motion Pattern | Direct Drive Type | |||
| Type | Normally Closed | |||
| Working-pressure (bar) | 0~7 | |||
| Aperture of Flow Rate (mm) | 3 | 10 | 13 | |
| Joint Pipe Bore | 1/8″ | 1/4” | 3/8″ | 1/2″ |
| Operating Temperature Range | -5~80℃ | |||
| Material of oil seal | NBR, EPDM, VITON | |||
| Weight (KGS) | 0.289 | 0.282 | 0.385 | 0.556 |

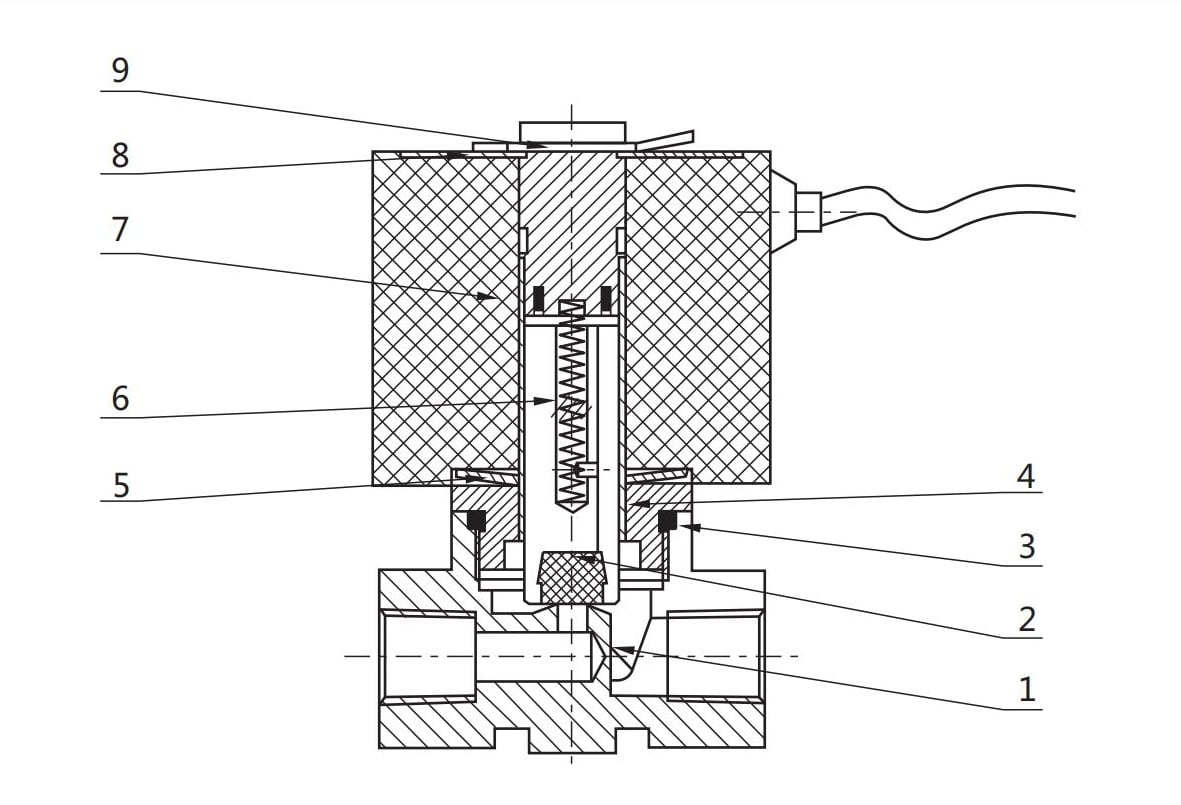

Valve Parts
| NO. | Name |
|---|---|
| 1 | Body of Valve |
| 2 | Assembly Of Iron Core |
| 3 | O-ring |
| 4 | Assembly Of Iron Core |
| 5 | Stacking |
| 6 | Spring |
| 7 | Coil |
| 8 | Name Plate |
| 9 | Snap Ring |
