Size 1/2″ to 4″ PN16 UPVC Plastic Motorized Ball Valve Electric Ball Valve
Electric Actuated UPVC plastic motorized ball Valve is a reliable solution for automated fluid control in corrosive or chemically aggressive environments. It combines a high-performance UPVC valve body with an electric actuator to provide efficient, remote-controlled flow regulation. Ideal for low-pressure, non-metallic piping systems requiring corrosion resistance. Electric ball valve can be widely used in many applications:
-
Water Treatment Systems
-
Chemical Processing Plants
-
Irrigation and Agriculture
-
Aquaculture / Fish Farming
-
Laboratories and R&D Facilities
-
Plating and Electrochemical Industries
-
Cooling Systems in HVAC
Features:
1. Electric actuated 2/2 ball valve
2. Port Sizes: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″
3. Connection: Threaded, Socket, Welded, Compression Fitting
4. Materials: UPVC, CPVC, PVDF PPH, etc.
5. Seal options: PTFE, EPDM
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each valve will be tested individually before shipment, including for functionality and leakage.
2. Port Sizes: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″
3. Connection: Threaded, Socket, Welded, Compression Fitting
4. Materials: UPVC, CPVC, PVDF PPH, etc.
5. Seal options: PTFE, EPDM
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each valve will be tested individually before shipment, including for functionality and leakage.
8. Normally open/close by electric, with a manually open/close addon option.
9. Medium Temperature: -15℃~50℃
10. Valve Core Structure: Ball
11. Protection Level: Standard IP54, Explosion-proof IP67
Pressure: 16 Bar / PN16
Fluid Media: Air, Liquid.
Fluid Media: Air, Liquid.

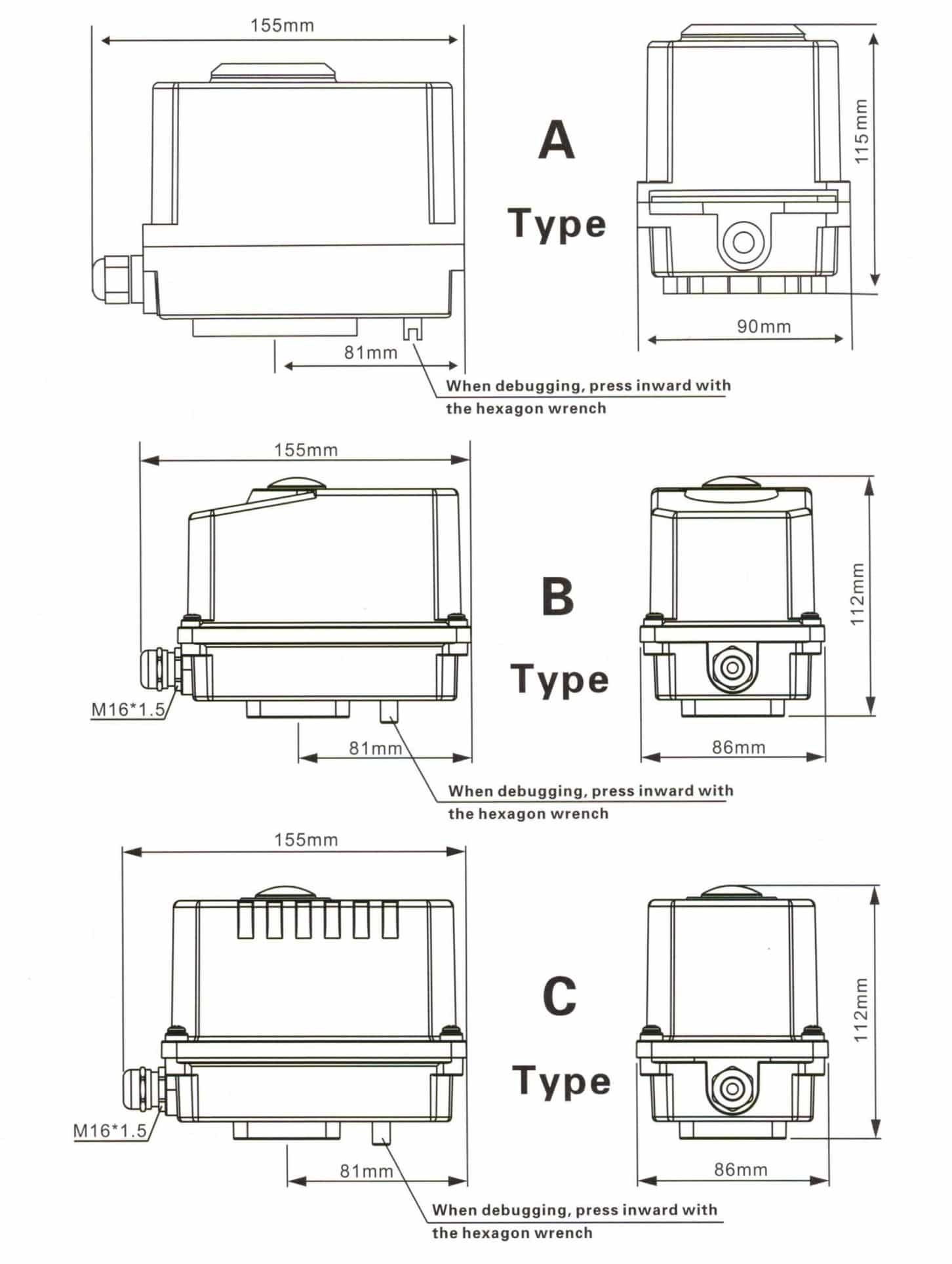

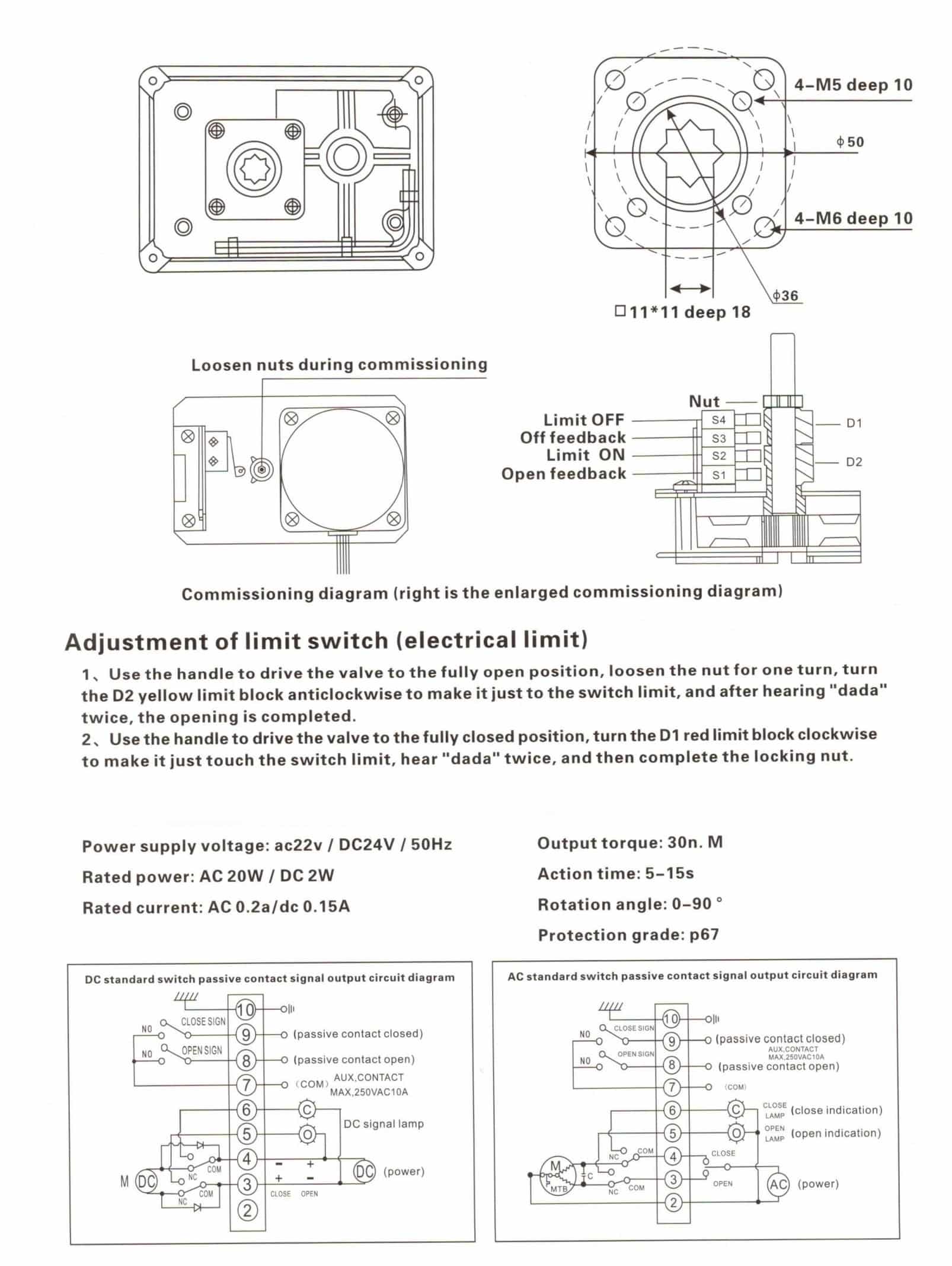

| Valve size | NPT/BSP/No Thread Glued Type 1/2 3/4”1″1-1/4”1-12″ 2”(Optional) |
|---|---|
| Connection standard | ISO5211 F03、F05 |
| Output axis specification | 11*119*9 |
| Maximum working pressure | 1.0MPa |
| Circulation medium | Fluid,air |
| Rated voltage | DC12VDC24VAC24V DC12-24V AC110-230V(Optional) |
| Working current | ≤1.5A |
| Open/dlose time | ≤12S |
| Life time | 70000 times(testing pressure is 0.4MPa,medium is water) |
| Valve body material | UPVC |
| Actuator materia | PPO |
| Sealing material | FKM/EPDM &PTFE |
| Actuator rotation | 90° |
| Torque force | 15 N.m |
| Cable Length | 0.5m,1.5m(Optional) |
| Environment temperature | -15℃~50℃ |
| Liquid temperature | 2℃~55℃ |
| Manual operation | Yes |
| Open/dose indicator | Yes |
| Protection class | IP67 |
| No. | Item | Material | Quantity | Unit |
|---|---|---|---|---|
| 3/4/8/9 | O-Ring | EPDM/VITON | 7 | PCS |
| 01 | Socket | UPVC/CPVC/PPH | 2 | PCS |
| 02 | Nut | UPVC/CPVC/PPH | 2 | PCS |
| 05 | Adapter | SUS304 | 1 | PCS |
| 06 | Stem | UPVC/CPVC/PPH | 1 | PCS |
| 07 | Bracket | UPVC/SUS304 | 1 | PCS |
| No. | Item | Material | Quantity | Unit |
|---|---|---|---|---|
| 10 | Lining | UPVC/CPVC/PPH | 1 | PCS |
| 11 | Antidiarrhea ring | PTFE | 2 | PCS |
| 12 | Ball | UPVC/CPVC/PPH | 1 | PCS |
| 13 | Body | UPVC/CPVC/PPH | 1 | PCS |
| 14 | Screw | SUS304 | 6-8 | PCS |
| 15 | Motor | SUS304 | 1 | PCS |
| Size | d | d1 | d2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI | DIN | JIS | CNS | PPH | ANSI | DIN | JIS | CNS | PPH | ||
| 1/2”(15) | 15 | 21.40 | 20.25 | 22.30 | 22.40 | 19.30 | 21.25 | 20.05 | 21.85 | 21.90 | 19.00 |
| 3/4”(20) | 20 | 26.75 | 25.25 | 26.30 | 26.40 | 24.10 | 26.58 | 25.05 | 25.85 | 25.90 | 23.80 |
| 1”(25) | 25 | 33.52 | 32.25 | 32.33 | 34.50 | 31.00 | 33.28 | 32.05 | 31.85 | 33.90 | 30.70 |
| 1-1/4”(32) | 32 | 42.28 | 40.25 | 38.43 | 42.50 | 39.00 | 42.05 | 40.05 | 37.85 | 41.90 | 38.60 |
| 1-1/2”(40) | 40 | 48.40 | 50.25 | 48.46 | 48.60 | 49.00 | 48.12 | 50.05 | 47.75 | 47.90 | 48.60 |
| 2”(50) | 50 | 60.45 | 63.25 | 60.56 | 60.60 | 61.90 | 60.18 | 63.05 | 59.75 | 59.90 | 61.40 |
| 2-1/2”(65) | 63 | 73.30 | 75.25 | 76.60 | 76.70 | 73.60 | 72.85 | 75.05 | 75.87 | 75.90 | 72.30 |
| 3”(80) | 75 | 89.25 | 90.35 | 89.60 | 89.70 | 88.30 | 88.70 | 90.05 | 88.83 | 88.90 | 86.90 |
| 4”(100) | 90 | 114.60 | 110.35 | 114.70 | 115.00 | 108.00 | 114.10 | 110.05 | 113.98 | 113.80 | 106.40 |

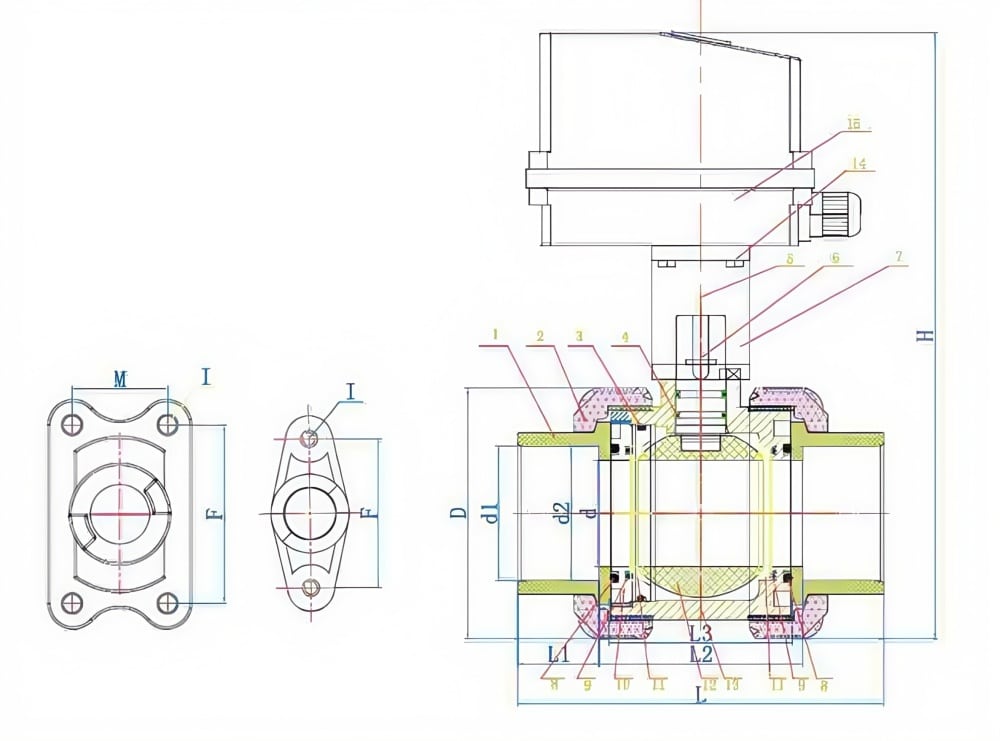

| Size | D | L | L1 | L2 | L3 | W | H1 | H2 | F | M | I | Operating torque(N.M) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2”(15) | 54.00 | 106.00 | 23.00 | 60.00 | 52.00 | 84.00 | 52.50 | 27.50 | 31.00 | M6 | 2.0 | |
| 3/4”(20) | 63.00 | 114.00 | 26.00 | 62.00 | 54.00 | 90.00 | 59.00 | 32.00 | 33.00 | M6 | 2.5 | |
| 1”(25) | 73.50 | 128.00 | 29.00 | 70.00 | 62.00 | 106.00 | 67.50 | 37.25 | 40.00 | – | M6 | 4.0 |
| 1-1/4”(32) | 84.50 | 144.00 | 33.00 | 78.00 | 70.00 | 116.00 | 77.50 | 42.75 | 52.00 | – | M8 | 5.0 |
| 1-1/2”(40) | 98.00 | 158.50 | 35.50 | 87.50 | 79.50 | 128.00 | 90.00 | 50.00 | 52.00 | – | M8 | 7.5 |
| 2”(50) | 118.00 | 172.00 | 38.50 | 95.00 | 85.00 | 140.00 | 106.00 | 60.00 | 70.00 | M8 | 8.5 | |
| 2-1/2”(65) | 150.00 | 278.00 | 64.50 | 144.50 | 132.50 | 198.00 | 136.50 | 76.50 | 84.00 | 45.00 | M10 | 13 |
| 3”(80) | 169.00 | 310.00 | 70.00 | 166.00 | 150.00 | 218.00 | 149.50 | 86.00 | 84.00 | 45.00 | M10 | 16 |
| 4”(100) | 190.00 | 352.00 | 84.00 | 181.00 | 157.00 | 235.00 | 166.00 | 98.00 | 121.00 | 49.00 | M12 | 25 |
