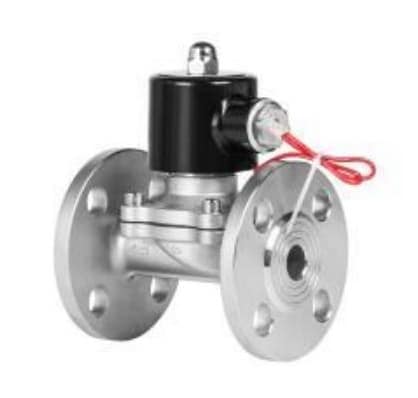

SS304 SS316 Stainless Steel Flange Solenoid Valve
The 2WF Series stainless steel flange solenoid valve is designed for precise and reliable control of air, gas, oil, and liquid media in demanding industrial systems. Constructed with durable stainless steel materials — SS304, SS316, CF8, and CF8M optional — and equipped with robust flange connections, this valve ensures excellent corrosion resistance and long-term stability. Its direct-acting structure provides fast response and dependable sealing performance, supporting a working pressure range of 0 to 10 bar (0–1.0 MPa). Available in 1/2″ to 3″ sizes with orifice options from 2.5 mm to 65 mm, the valve meets various flow and system design requirements.
The 2WF Series is engineered to perform under a wide range of operating conditions, with medium temperature capability from -5°C to 80°C, and optional high-temperature configurations up to 120°C or 150°C depending on the sealing material (NBR, EPDM, VITON). Multiple voltage choices including 220VAC, 110VAC, 24VDC, and 12VDC allow easy integration into different control systems. With optional explosion-proof coils and installation flexibility (horizontal or tilting less than 30°), the stainless steel flange solenoid valve is widely used in water treatment, HVAC systems, chemical processing, machinery equipment, and general industrial automation applications requiring high reliability and corrosion-resistant flow control.
-
Type: 2/2-Way Flanged Type
-
Body Material: SS316 SS304 CF8 CF8M Stainless Steel
-
Working Pressure: PN10 Class, 10 Bar, 1.0MPa
-
Orifice Size: 16mm to 80mm
-
Pipe Size: 1/2″ to 3″
-
Fluid Media: Air, Water, Gas, Oil, other liquids.
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Orifice (mm) | Body Material | Operation | Coil Type | Thread Standard |
| 2WF | 15 | U2 | N | 6L | S1 | C | D | N |
| 15: 1/2″
20: 3/4″ 25: 1″ 40: 1-1/2″ 50: 2″ 65: 2-1/2″ 80: 3″ |
U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC | N: NBR V: VITON E: EPDM T: PTFE | 1L: 1.0 2L: 2.0 3L: 3.0 4L: 4.0 … 10L: 10 15L: 15 … 50L: 50 | B: Brass S1: SS316 S2: SS304 NY: Nylon UP: UPVC | C: Normally Closed O: Normally Open | D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof | B: BSP G: G N: NPT |
Dimensions
| Model | Pipe Size | Orifice (mm) |
Width (mm) |
Height (mm) |
Hole Distance (mm) |
Sealing | Temperature |
|---|---|---|---|---|---|---|---|
| DN15 | 1/2“ | 16 | 107 | 146 | 65 | NBR/VITON | NBR≤80℃EPDM≤120℃VITON≤150℃ |
| DN20 | 3/4” | 20 | 107 | 158 | 75 | NBR/EPDM/VITON | |
| DN25 | 1“ | 25 | 138 | 160 | 85 | NBR/EPDM/VITON | |
| DN32 | 11/4” | 32 | 148 | 200 | 100 | NBR/EPDM/VITON | |
| DN40 | 11/2′ | 40 | 154 | 210 | 110 | NBR/EPDM/VITON | |
| DN50 | 2” | 50 | 185 | 230 | 125 | NBR/VITON | |
| DN65 | 2.5” | 58 | 225 | 255 | 144 | NBR/VITON | |
| DN80 | 3″ | 80 | 273 | 257 | 160 | NBR/VITON |
Technical Data Sheet
| Body Material | SS316 / SS304 / Brass |
|---|---|
| Flange Port | 1/2″ – 3″ |
| Motion | Direct Acting |
| Orifice | 2.5mm – 65mm |
| Coil | Round Coil (Ex-Proof Optional) |
| Working Pressure | 0 – 1.0 MPa |
| Ambient Temperature | -5 – 40 ℃ |
| Medium Temperature | -5 – 80 ℃ (120 ℃, 150℃) |
| Sealing | NBR(80℃), EPDM(120℃), VITON(150℃) |
| Voltage | 220VAC / 110VAC / 24VDC / 12VDC |
| Power | DN15-DN25: 20W / DN32-DN65: 30W |
| Working Medium | Air, Gas, Oil, Liquids |
| Installation | Horizontal, Tilt less than 30 degree. |
