SLDF Series Under Water Fountain Solenoid Valve
The SLDF series solenoid valve provides reliable on-off control of fluid media in automatic control systems. It is specially designed for music fountains and dancing fountain applications, ensuring smooth and precise water control.
This series adopts a direct-acting, diaphragm-type structure, utilizing pressure differential to open the valve. It offers rapid response, stable performance, easy installation, and long service life. The valve is built with forged brass, cast brass, or cast iron for excellent durability and strong anti-clogging capability, making it suitable for long-term use in rivers, lakes, seawater, and other artificial water environments.
-
Type: 2/2-Way, Direct Acting
-
Body Material: Forged Brass / Stainless Steel
-
Working Pressure: 0–6 Bar
-
Orifice Size: 15–150 mm
-
Pipe Size: 1/2″–2″
-
Flange Size: DN15–50
-
Fluid Media: Water and other compatible fluids
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Orifice (mm) |
Body Material | Operation | Coil Type | Thread Standard |
| SLDF | 15 | U2 | N | 15L | B | C | D | N |
| 06: 1/8″ 08: 1/4″ 10: 3/8″ 15: 1/2″ 20: 3/4″ 25: 1″ 35: 1-1/4″ 40: 1-1/2″ 50: 2″ |
U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC |
N: NBR V: VITON E: EPDM T: PTFE |
1L: 1.0 2L: 2.0 3L: 3.0 4L: 4.0 … 10L: 10 15L: 15 … 50L: 50 |
B: Brass S1: SS316 S2: SS304 NY: Nylon UP: UPVC |
C: Normally Closed
O: Normally Open |
D: DIN Standard
W: Lead Wire X: EX-Proof A: Water-Proof |
B: BSP
G: G N: NPT |

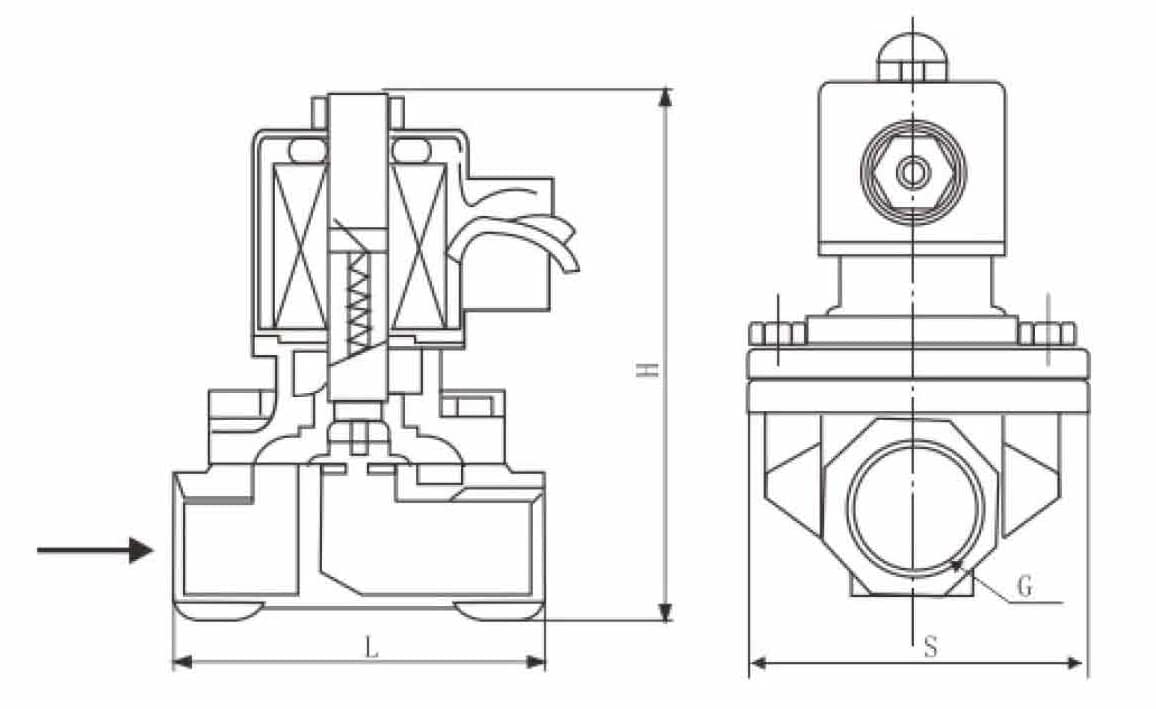

Dimensions
| Model | L(mm) | H(mm) | Pipe Size | Weight(KG) |
|---|---|---|---|---|
| SLDF-15 | 69 | 117 | 1/2″ | 1.0 |
| SLDF-20 | 73 | 123.5 | 3/4″ | 1.1 |
| SLDF-25 | 99 | 134.5 | 1″ | 1.6 |
| SLDF-35 | 112 | 172 | 1-1/4″ | 2.1 |
| SLDF-40 | 123 | 172 | 1-1/2″ | 2.5 |
| SLDF-50 | 168 | 209 | 2″ | 4.2 |
| SLDF-15S | 69 | 117 | 1/2″ | 0.9 |
| SLDF-20S | 73 | 123.5 | 3/4″ | 1.0 |
| SLDF-25S | 99 | 134.5 | 1″ | 1.5 |
| SLDF-35S | 112 | 172 | 1-1/4″ | 2.0 |
| SLDF-40S | 123 | 172 | 1-1/2″ | 2.4 |
| SLDF-50S | 168 | 209 | 2″ | 4.1 |
Technical Data Sheet
| Ambient Temperature | -10℃~50℃ | ||
|---|---|---|---|
| Operating Pressure | ≤φ500~0.6MPa >φ650.06MPa-0.5MPa | ||
| Fluid Media | Water | ||
| Fluids Temp. | 0℃~60℃ | ||
| Body Material | Brass Stainless Steel Plastic | ||
| Power | φ25 | AC220V 28VA / DC24V 33W | |
| φ32/40/50 | AC220V 35VA / DC24V 40W | ||
| Coil Class | B Class | Degree of protection | IP67 |
| Voltage Tolerance | -10%~+10% | ||
| Life-span | 200000 Times | ||
| Response Times | 0.2 Sec | ||
| Amounting Position | Flow as the arrow | ||
