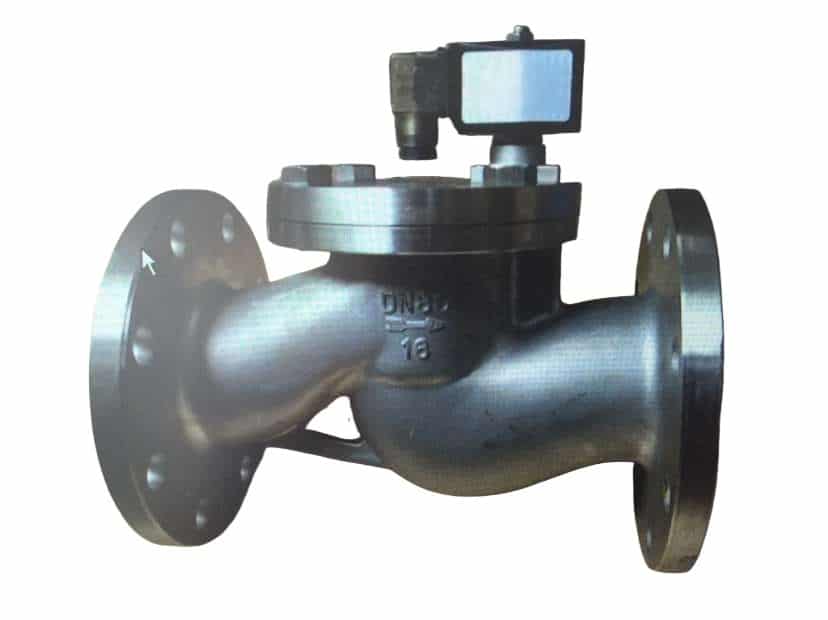

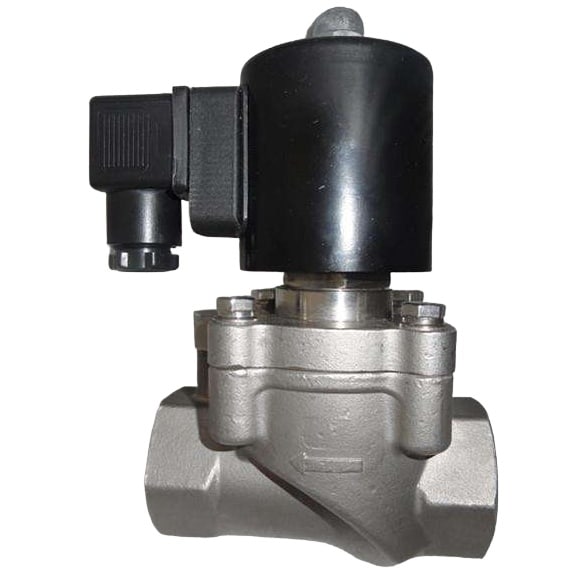

ZBSF Stainless Steel Big Orifice Flanged Solenoid Valve
ZBSF all stainless steel big orifice flanged solenoid valve – it can automatically open or close after receiving the electric control signal to realize the on-off or flow control of the liquid medium in the pipeline. The ZBSF series all-stainless steel solenoid valve is an actuator used in an industrial process automation control system. It can automatically open or close after receiving the electric control signal to realize the on-off or flow control of the liquid medium in the pipeline.
All-stainless steel solenoid valves can be widely used in production and scientific research departments such as textiles, printing, chemicals, plastics, rubber, pharmaceuticals, food, building materials, machinery, electrical appliances, surface treatment, as well as bathrooms, canteens, air conditioners, and other daily life facilities. ZBSF-Y series solenoid valves are mainly used for the control of liquid media such as corrosive liquids, ultra-clean liquids, and edible liquids, water, steam, waste water, and other liquids.
Body material : SUS201,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),WCB,Brass,etc.
Full port : 1 1/2″-14″(DN40-DN350)
Working Pressure: PN10-16-25,1-2.5 MPa,10-25Bar
Medium Temperature : – 20 ℃ ~ + 180°C, Optional(- 20℃ ~ + 350°C)
Connection Type: Weld, Thread, Socket, Clamped, Flanged
Connection Standards : BSPT, Optional(NPT, BSP, BSPP)
Sealing: PTFE, RPTFE, PPL, etc.
Diaphragm: NBR, Silicone, VITON, FKM, Fluororubber
Voltages : DC24V,AC220V
Control Mode: Normally Closed (Powered On), Normally Open (Powered Off)
Solenoid Coil Waterproof Level : IP-65 Option(IP-67, IP-68) Iron shell coil
Waterproof Level : IP-64 Option(IP-67, IP-68)
Explosion Proof: Option(Ex db IIC T4/T6 Gb: Ex tb IIIC T130℃/T80’℃ Db)
Body material:Â SS316 SS304
Pressure: PN16 Class 16 Bar, 1.6 MPa / PN25 Class 25 Bar, 2.5 MPa
Pipe size: 1-1/2″ – 14″
Fluid Media: Steam, Tap Water, Waste water, Water, Liquids, etc.
Model: ZBSF ZBSF-Y
| Model | ZBSFYF | ZBSFYP | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Working Medium | Normal Liquids, Air | High-Temp Liquids, Air | ||||||||
| Temperature(℃) | ≤60 | ≤220 | ||||||||
| Voltage | AC220V / OPTIONAL | |||||||||
| Pressure(MPa) | 0.04～2.5 | 0.1-2.5 | ||||||||
| Orifice (mm) | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
| Power | 24W | 50VA | ||||||||
| Body Material | SS304/SS316 | CAST STEEL / SS304 / SS316 | ||||||||
| Standard (Kv) | JB/T7352-94 | |||||||||

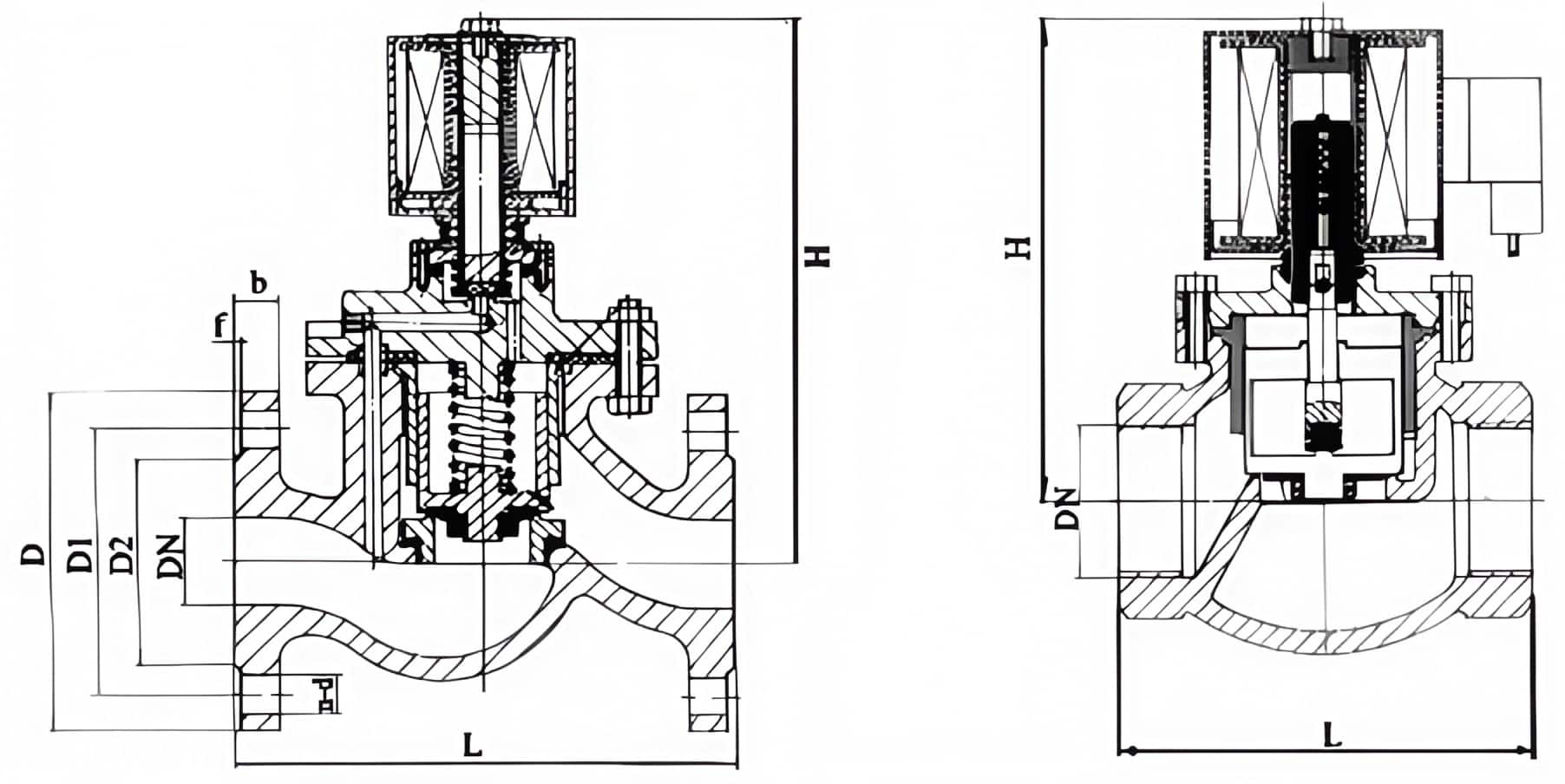

| DN | Thread Connection | Flange Connection | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread | Dimensions | Dimensions | Flange Dimensions | ||||||||
| G | H | L | H | L | D | D1 | D2 | n-d | b | f | |
| 40 | 11/2 | 200 | 160 | 244 | 165 | 150 | 110 | 84 | 4–Φ18 | 18 | 3 |
| 50 | 2 | 210 | 185 | 250 | 200 | 165 | 125 | 94 | 4–Φ18 | 20 | 3 |
| 65 | 260 | 290 | 185 | 145 | 118 | 4–Φ18 | 20 | 3 | |||
| 80 | 260 | 310 | 200 | 160 | 132 | 8-Φ18 | 20 | 3 | |||
| 100 | 290 | 345 | 220 | 180 | 156 | 8-Φ18 | 22 | 3 | |||
| 125 | 365 | 400 | 250 | 210 | 184 | 8-Φ18 | 22 | 3 | |||
| 150 | 400 | 480 | 285 | 240 | 211 | 8-Φ18 | 24 | 3 | |||
| 200 | 443 | 600 | 340 | 295 | 266 | 8-Φ18 | 24 | 3 | |||
| 250 | 493 | 750 | 395 | 350 | 319 | 12-Φ26 | 26 | 4 | |||
| 300 | 549 | 850 | 445 | 400 | 370 | 12-Φ26 | 28 | 4 | |||
| 350 | 600 | 980 | 520 | 470 | 429 | 16-Φ26 | 30 | 4 | |||
Structural Features:
When operated automatically with an electromagnetic indirect pilot diaphragm structure:
â‘ This valve is unaffected by steam condensate.
② The medium fluid temperature can reach 130°C;
â‘¢ The main valve core is made of special wear-resistant materials.
â‘£ The valve core utilizes fluid lubrication to reduce wear;
⑤ This valve adopts a pilot-operated structure and is suitable for large-diameter series.
Applications:
Suitable for superheated steam, high-temperature oil, hot water, water, air, and more. Widely used in automatic control systems for steam heaters, dryers, petrochemicals, pharmaceuticals, food, cement products, and environmental protection.
