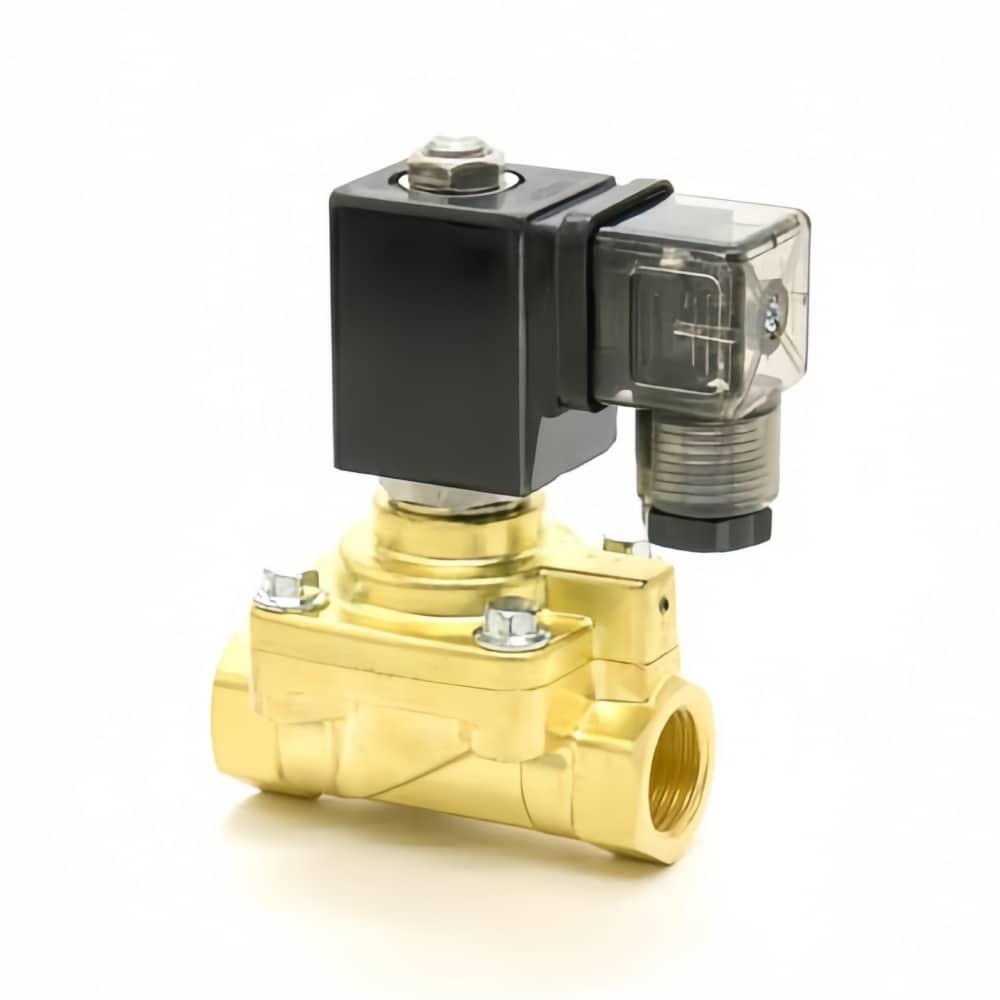

AE Series Direct Acting High Pressure Solenoid Valve
High-pressure air solenoid valve for blow molding machines, featuring a reinforced diaphragm design, forged brass body, and long-lasting performance. Working pressure up to 50 bar. Designed for controlling the on/off flow of high-pressure air in blow molding machines. Features a reinforced diaphragm structure for extended service life. Forged brass valve body and high-quality iron core ensure durability and reliable performance.
Type: 2/2 Way, Normally Closed
Operation: Direct Acting
Orifice Size: DN15 mm
Port Size: 1/2”, 3/4”
Working Pressure: 0–50 bar
Body material: Brass
Fluid Media: Air, gases, oil, non-corrosive liquids, water.
Model: AE Series
Applications: Bottle blowing machine

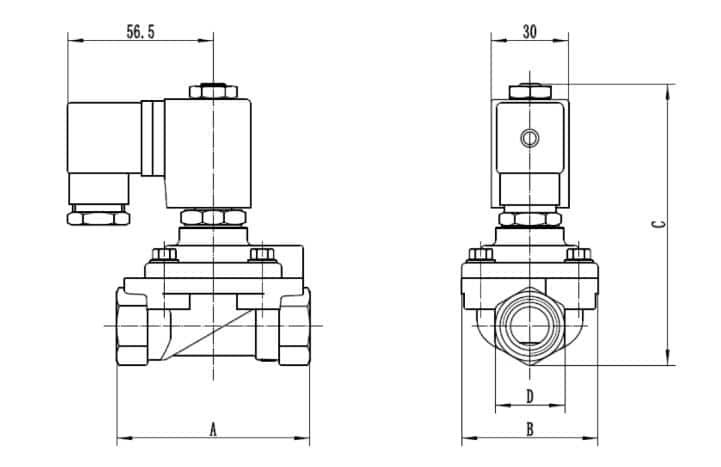

Dimensions
| Size | A | B | C | D |
|---|---|---|---|---|
| 1/2″ | 75 | 53 | 109 | 27 |
| 3/4″ | 80 | 53 | 112 | 32 |
Technical Specifications
| Thread | Orifice | CV value | Mini Pressure (bar) |
Max Work Pressure(bar) | Power | |||
|---|---|---|---|---|---|---|---|---|
| AC | DC | AC | DC | |||||
| Air | Air | VA | W | W | ||||
| Normally Closed (N/C) | ||||||||
| 1/2″ | 15 | 4.0 | 0 | 50 | 50 | 20 | 12 | 12 |
| 3/4″ | 15 | 4.0 | 0 | 50 | 50 | |||
| Normally Open (N/O) | ||||||||
| 1/2″ | 15 | 4.0 | 0 | 50 | 50 | 20 | 12 | 12 |
| 3/4″ | 15 | 4.0 | 0 | 50 | 50 | |||
Note:
Not suitable for the following media:
-
Corrosive fluids;
-
Fluids that are liquid when heated but solidify when cooled;
-
Fluids with viscosity greater than 50 cSt.
If the medium contains impurities or solid particles, a filter (with a mesh size finer than 80 mesh/inch) must be installed before the valve.
