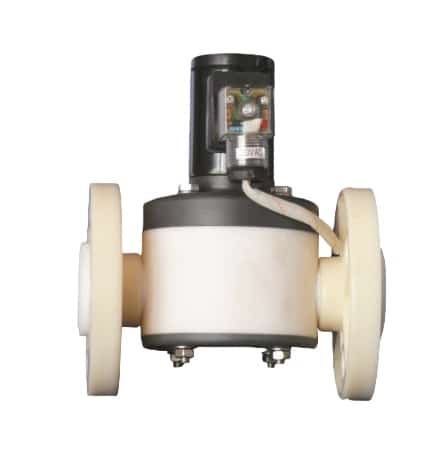

Anti Corrosion Solenoid Valve for Acid & Chemical Media

The Anti Corrosion Solenoid Valve is specially designed for chemical and corrosive fluid control. All wetted parts are made of corrosion-resistant plastics and sealing materials, ensuring stable performance, reliable sealing, and long service life when handling acid, alkali, and chemical media.

It is widely used in chemical processing, pharmaceutical, medical equipment, water treatment, agricultural machinery, and industrial automation systems.

Type: 2/2-Way
Body Material: PTFE / PVC / ABS / SS
Working Pressure: 0–16 Bar
Fluid Media: Water, Sulfuric Acid, Hydrochloric Acid, Organic Solvents

Key Features

Designed specifically for corrosive chemical media
Wetted parts made of PTFE, PVC, ABS, or SS316
Excellent acid and alkali resistance
Stable piston structure with reliable performance
Reset spring isolated from fluid
High-quality coil, not easy to burn
Optional dustproof, waterproof, and explosion-proof design
Chemical solenoid valve for acid, alkali, and chemical media

How to order

1	2	3	4	5	6	7	8	9
Series	Port Size	Voltage	Seal Material	Orifice (mm)	Body Material	Operation	Coil Type	Thread Standard
ACV	15	U2	N	15L	B	C	D	N
	06: 1/8″ 08: 1/4″ 10: 3/8″ 15: 1/2″ 20: 3/4″ 25: 1″ 35: 1-1/4″ 40: 1-1/2″ 50: 2″	U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC	N: NBR V: VITON E: EPDM T: PTFE	1L: 1.0 2L: 2.0 3L: 3.0 4L: 4.0 … 10L: 10 15L: 15 … 50L: 50	B: Brass S1: SS316 S2: SS304 NY: Nylon UP: UPVC	C: Normally Closed O: Normally Open	D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof	B: BSP G: G N: NPT

Technical Data Sheet

Item	Specification
Product Name	Chemical / PTFE / Acid Resistant Solenoid Valve
Size Range	DN1 – DN100
Control Mode	Normally Open / Normally Closed / Latching
Voltage	DC12–220V / AC24–380V
Body Material	PTFE, PVC, ABS, Stainless Steel 316
Applicable Media	Acid, Alkali, Chemical Liquids, Organic Solvents, Corrosive Gas
Working Pressure	0 – 1.6 MPa
Temperature Range	-50 ℃ to +100 ℃ (Max. +200 ℃ optional)
Medium Viscosity	≤ 50 cSt (customizable for higher viscosity)
Protection Class	Dustproof / Waterproof / Explosion-proof (optional)
Connection Type	Threaded / Flanged / Welded / Customized Interface
